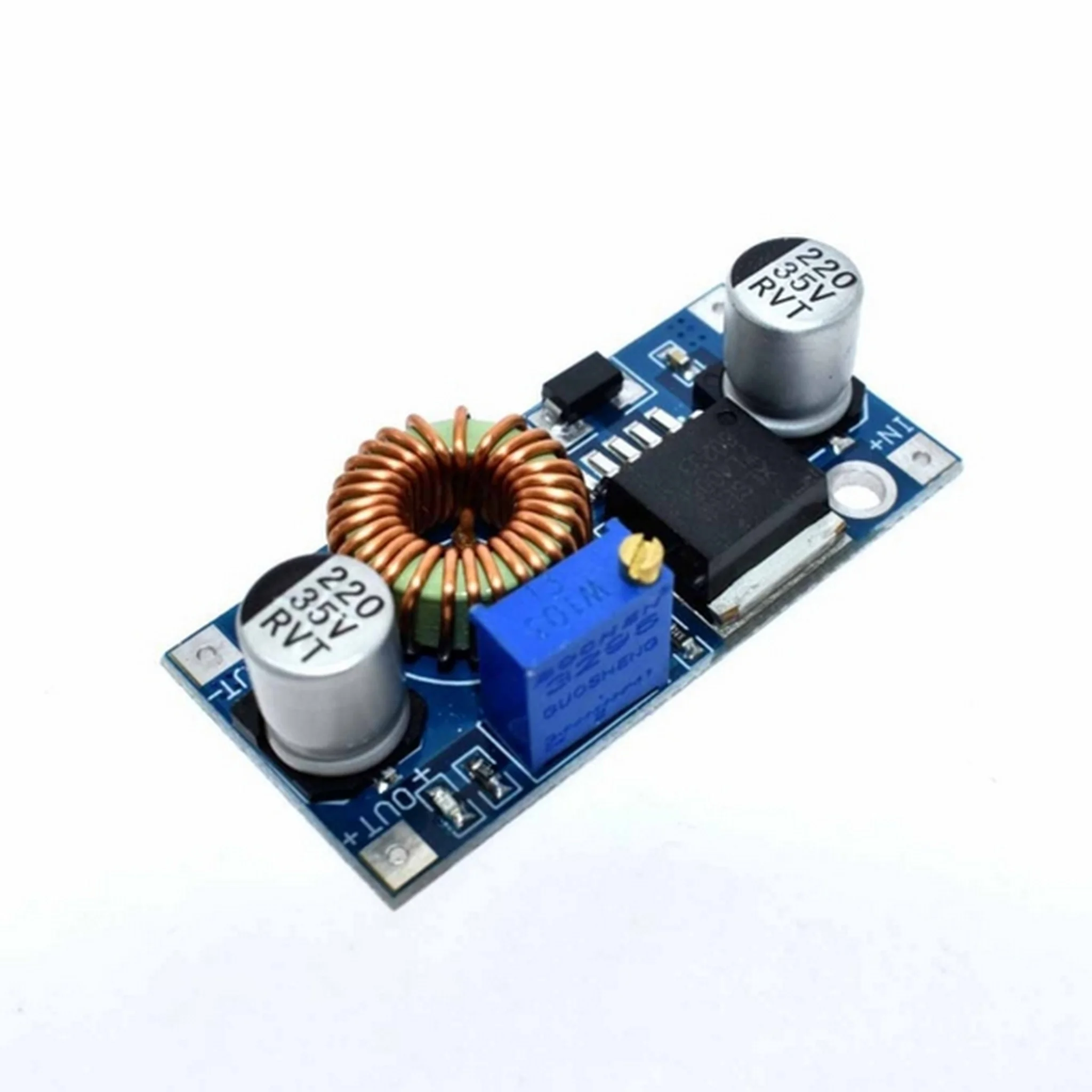

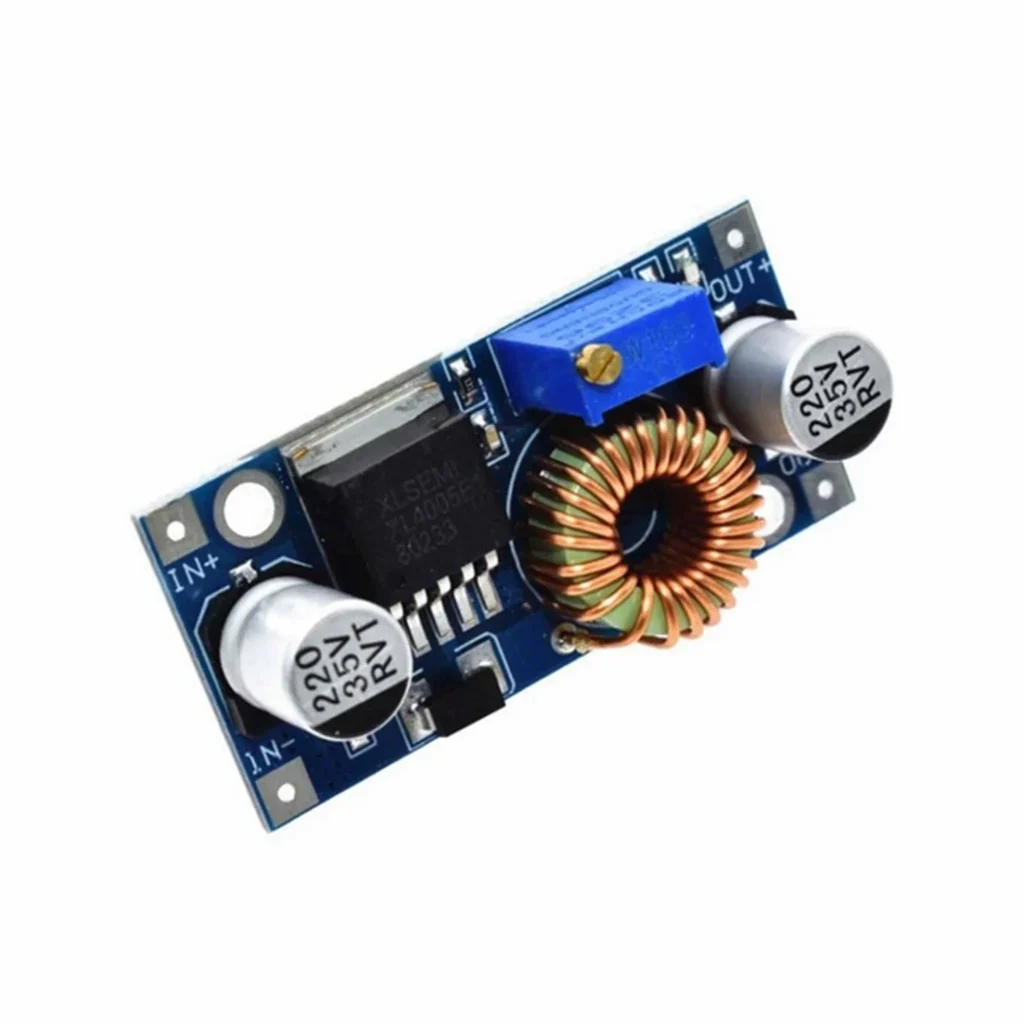

XL4005 DSN5000 DC-DC adjustable step-down 5A power Supply module

€7.00

Product Weight: 0.0300KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-00A334
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

XL4005 DSN5000 DC-DC adjustable step-down 5A power Supply module

Rectification: Non-synchronous rectifier
Input voltage: DC 5V-30V
Output voltage: DC 0.8V-24V (Adjustable, Output < Input)
Output current:Rated current is 2.5A,(5A Max, If current is larger than 2.5A, eEnhancement of heat dissipation is required.)
Conversion efficiency:90%(highest)
Switching Frequency: 300KHz.
Output ripple:30mV(maximum)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: -40° ~ +85°
43mm*21mm*14mm(L*W*H)/1.69” * 0.83” * 0.55” approx

XL4005 DSN5000 DC-DC adjustable step-down 5A power Supply module
