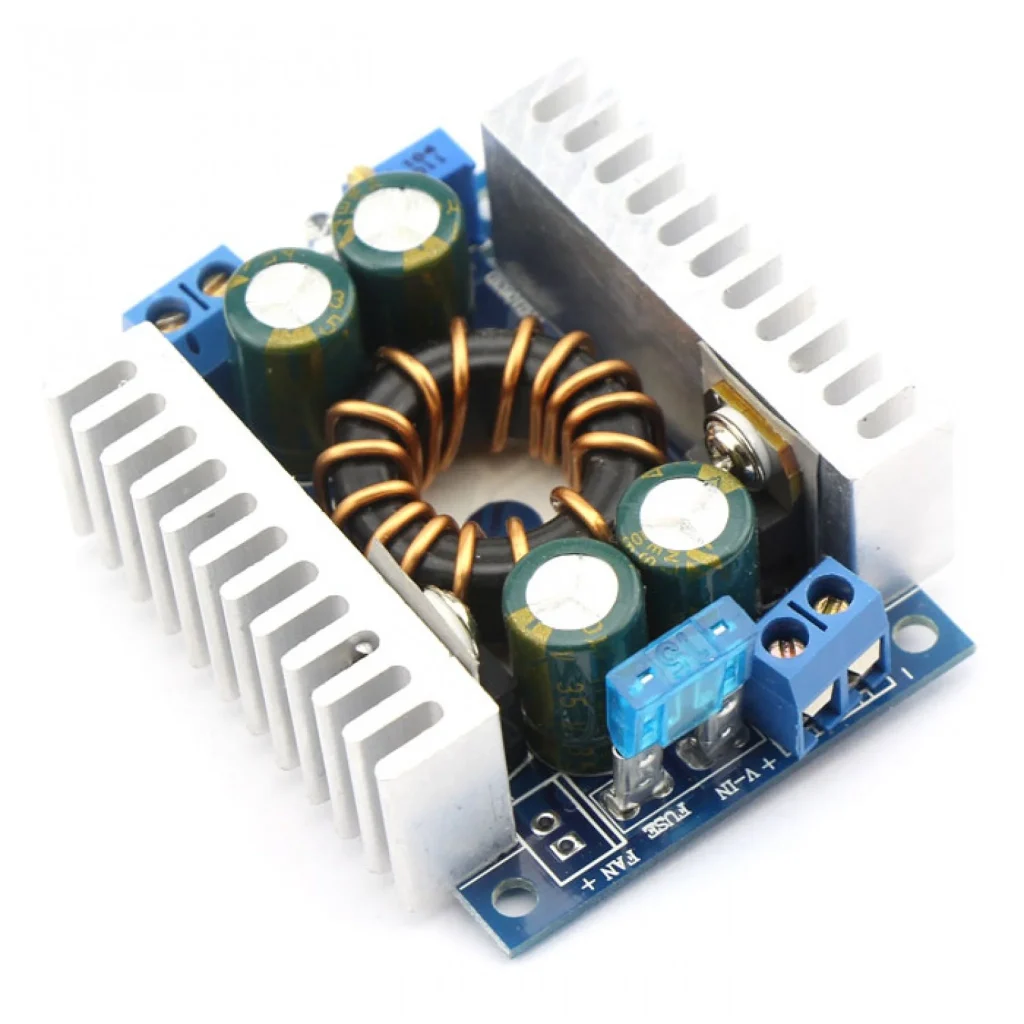

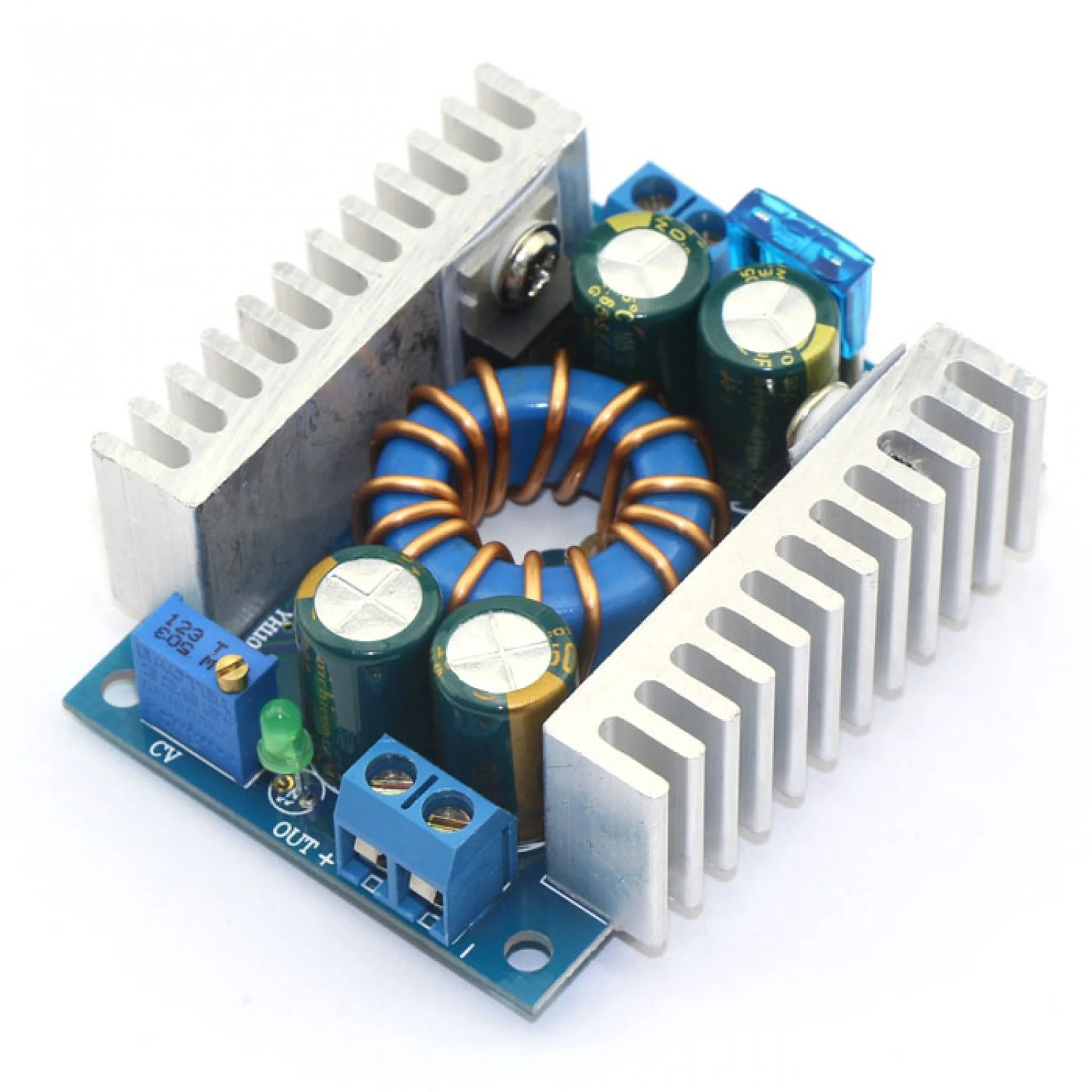

150W Power Supply Module DC 12V 24V Boost Converter Adjustable Voltage

It is a DC Step Up Converter Regulator, DC 12V 24V Adjustable Voltage Regulator Notebook/Mobile Power Module/Adapter/Driver, It has small size, high efficiency, easy installation and use, Applied to the Car Power,notebook mobile power, voltage Regulator,industrial equipment,and DIY ect.

Parameters:

• Module Name: 150W boost module
• Module properties: non-isolated module
• Minimum voltage difference: 0V

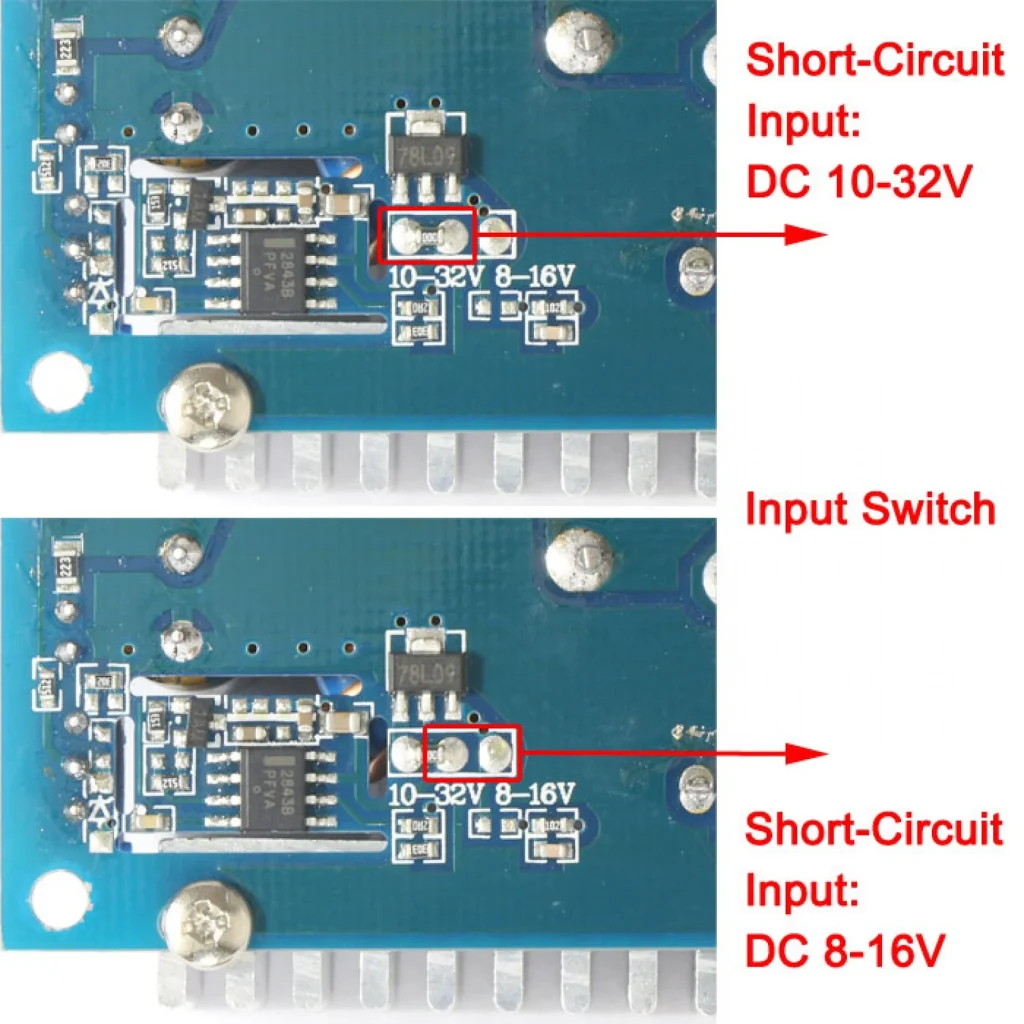

• Two Input voltage optional:  select the input voltage by adjusting the jumper on the back of the PCB
• Input/output Voltage 1: When Input DC 10~32V (aimed at application to wide input voltage)
• Input/output Voltage 2: When Input DC 8~16V (aimed at application to 3 strings of lithium battery and 12V accumulator)
• Output Voltage 1 : When Input DC 10~32V,Output 10~46V
• Output Voltage 2 : When Input DC 8~16V,Output 8~46V
• Input Current: 16A Max. (exceed 8A please enhance heat dissipation)
• Output current: 8A Max. (exceed 4A please enhance heat dissipation)
• Quiescent operating current: 15mA (12V to 20V, higher output voltage will increase the quiescent current)
• Output power: 90W(natural cooling), 150W(enhance heat dissipation)
• Capacitances:2 x 470uF/35V(input) ; 2x 330uF/50V(output)
• Operating temperature: -40°c to +85°c
• Working frequency: 380KHz
• Conversion efficiency: up to 95%
• Operating indicator: Yes

• Short circuit protection: None
• Input reverse polarity protection: None (If need please install diode at input port)
• Installation: 4x 3mm screws
• Wiring: Terminals, Needn’t solder, V-IN input, V-OUT output
• Module size: 60mm x 50mm x 20mm

Testing:

• 16V to 19V, output current 3A, efficiency 94%
• 12V to 20V, output current 5A, efficiency 89.5%
• 12V to 30V, output current 3A, efficiency 89.2%
• 24V to 42V, output current 3A, efficiency 95.2%

Some Applications:

• DIY a voltage Regulator, adjustable.
• The power supply for electronic equipment.
• Used as a car power supply, Power supply for laptop,PDA, or other digital products
• DIY a notebook mobile power
