5A 75W DC-DC High-Power Adjustable Step Down Stabilized Voltage Supply Module

€11.00

Product Weight: 0.0900KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-00A330
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

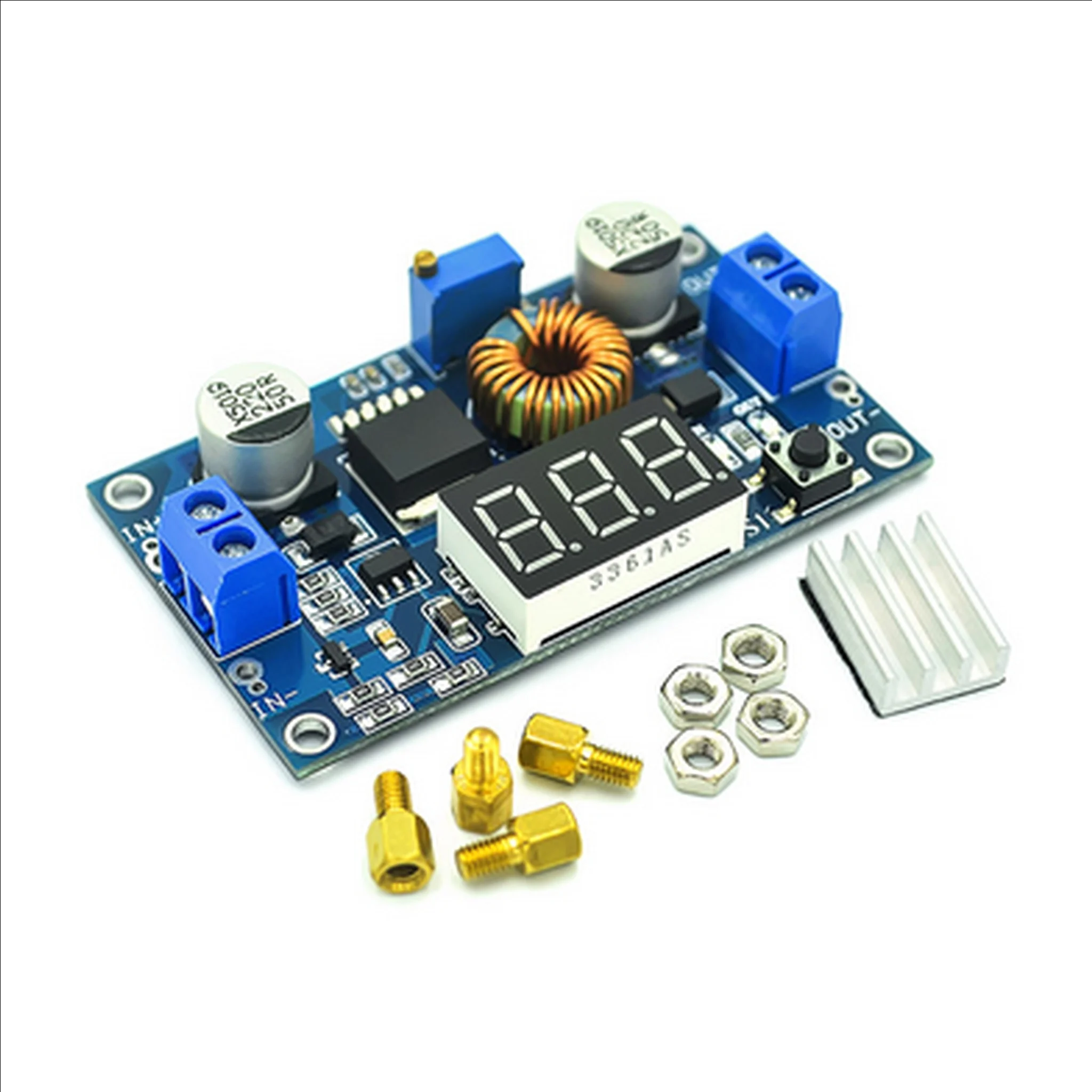

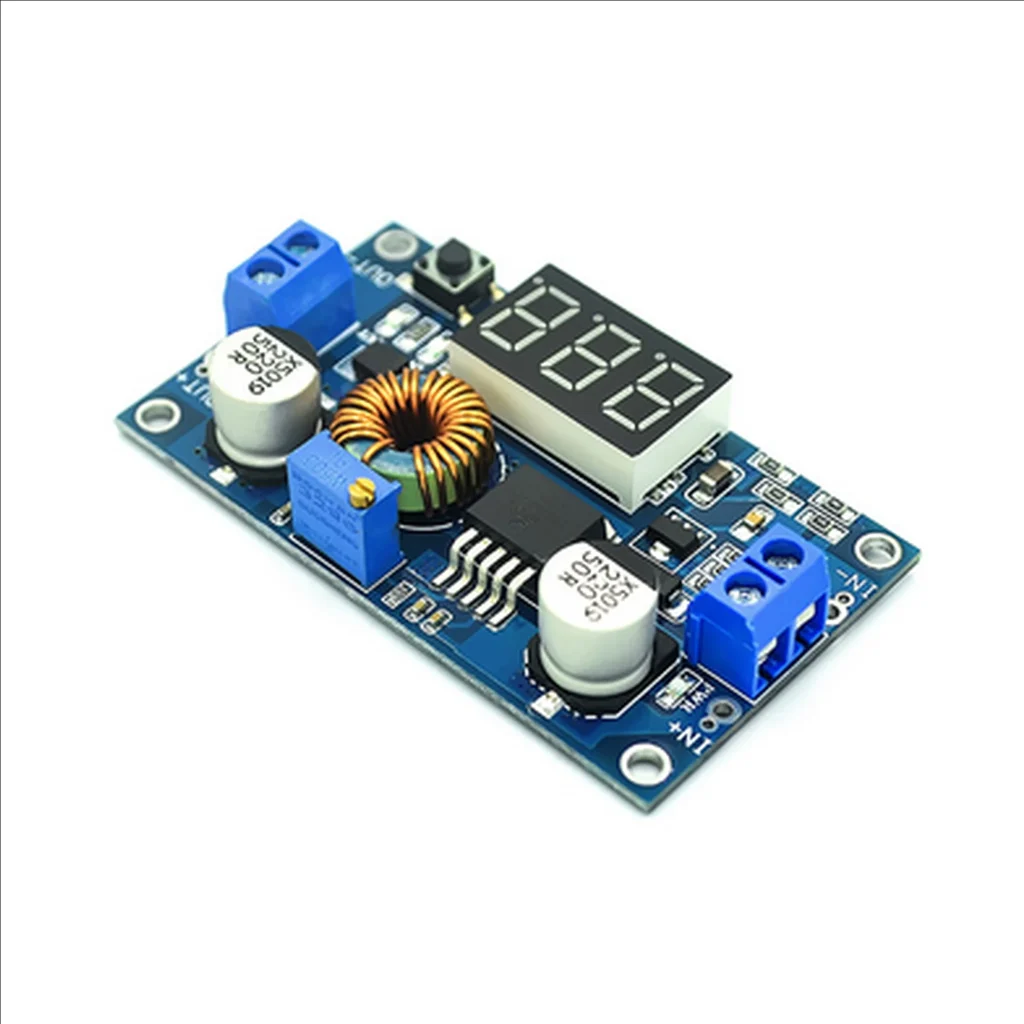

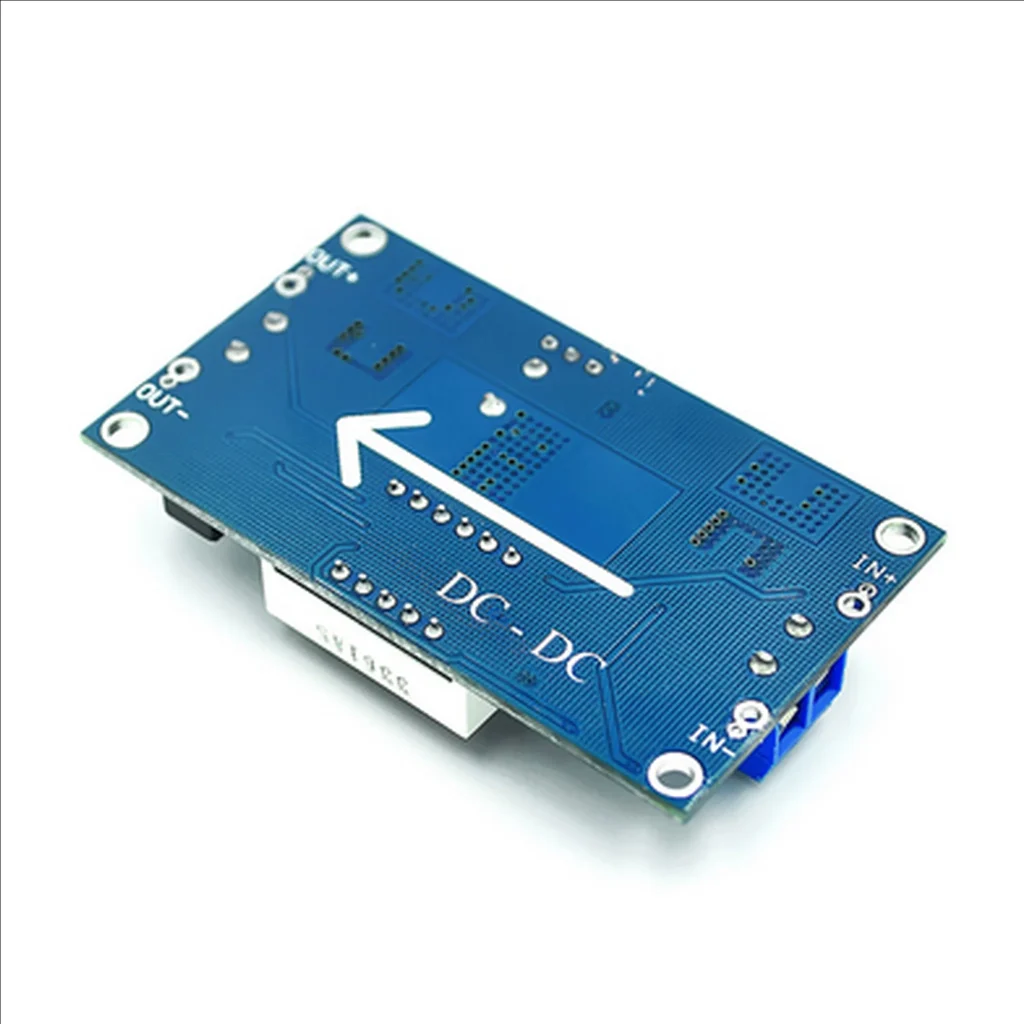

5A 75W DC-DC High-Power Adjustable Step Down Stabilized Voltage Supply Module

Module Properties: 5A High Power 75W DC-DC adjustable step-down module
Input voltage: DC 4.0 ~ 38V
Output voltage: DC 1.25V ~ 36V continuously adjustable ( the input voltage must be higher than the output voltage 1.5V )
Output current: max 5A, recommended for use in the 4.0A.
Measure range: 0 ~ 40V ( please ensure that the input voltage is 4.5V or more)
Conversion efficiency: up to 96%
Output power: up to 75W, more than 50W, Please enhance heat dissipation
Voltmeter error: ± 0.05V
Load regulation: S (I) ≤ 0.8%
Voltage Regulation: S (u) ≤ 0.8%
With overheat protection and short circuit protection

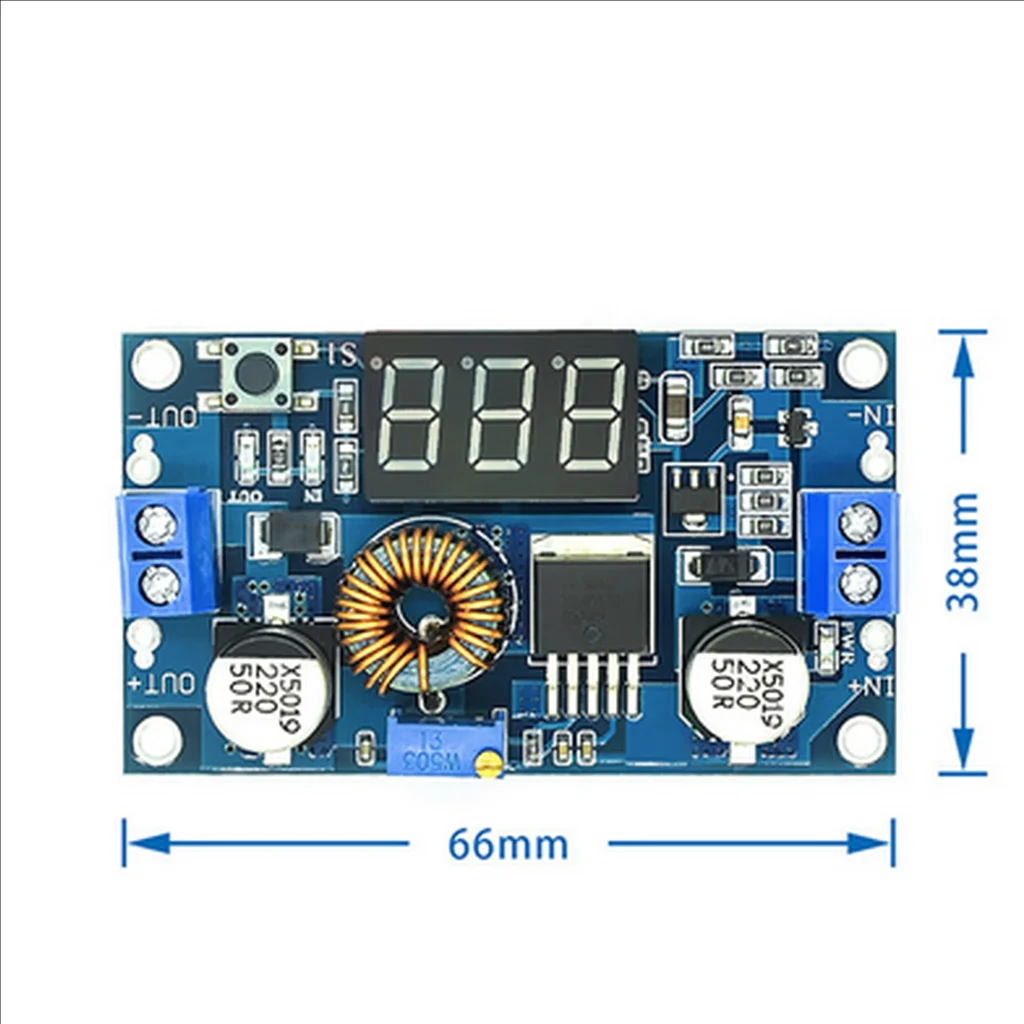

Dimensions: 6.6 * 3.9 * 1.8cm
