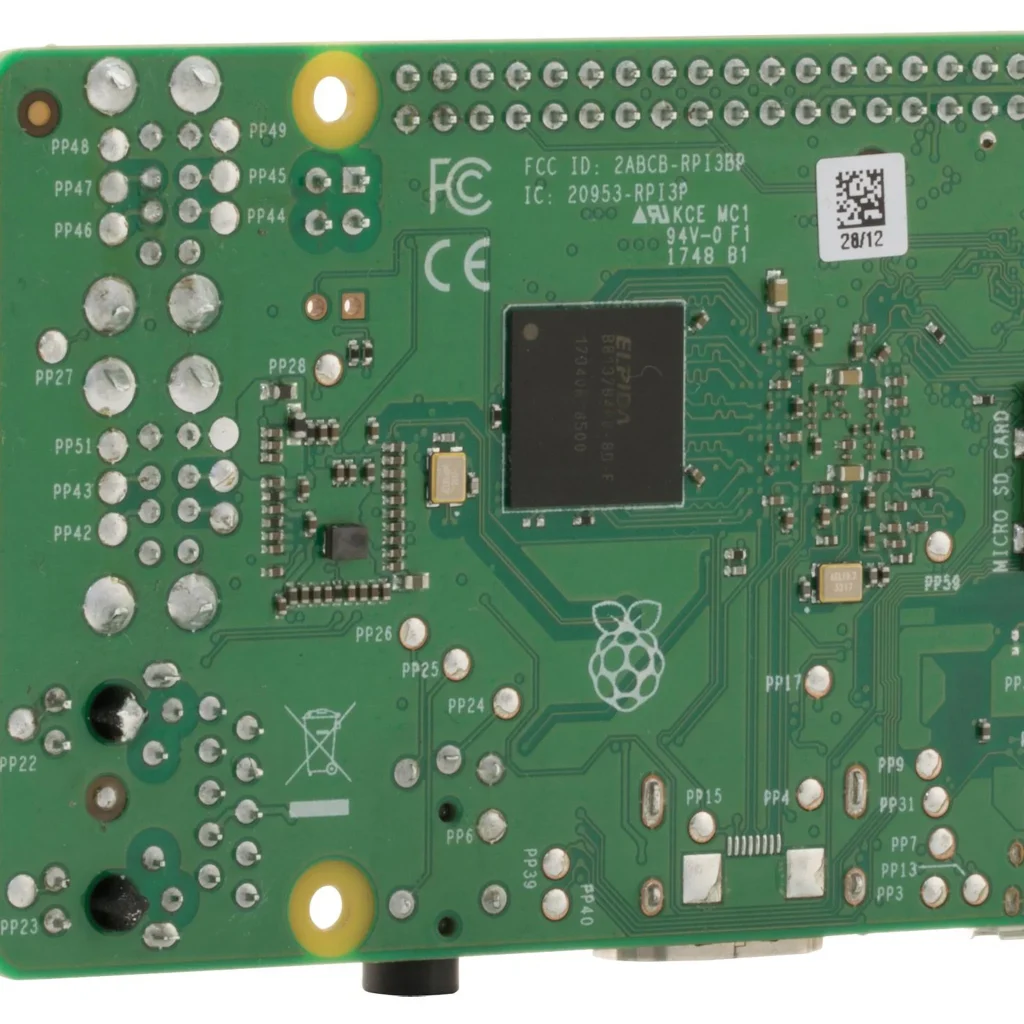

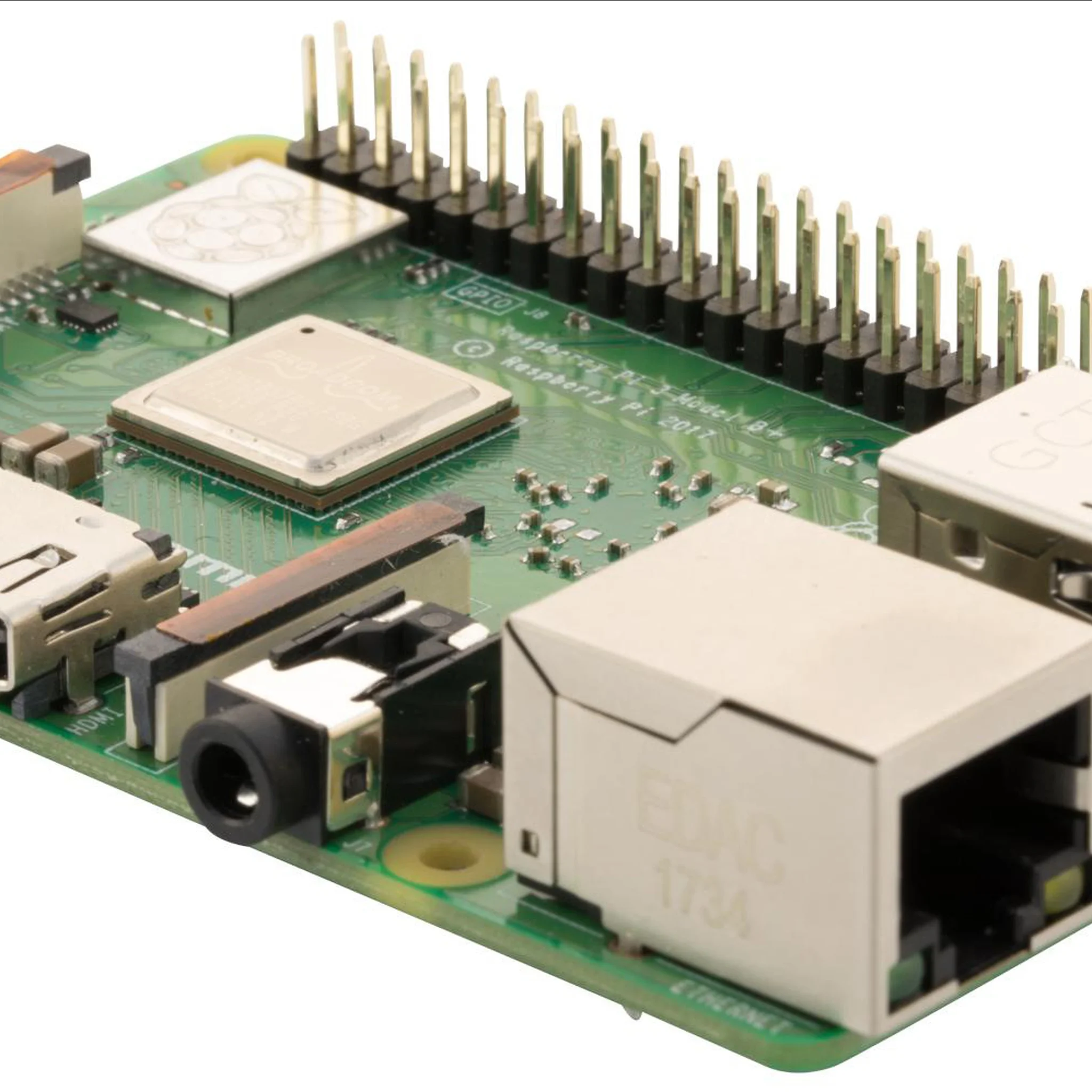

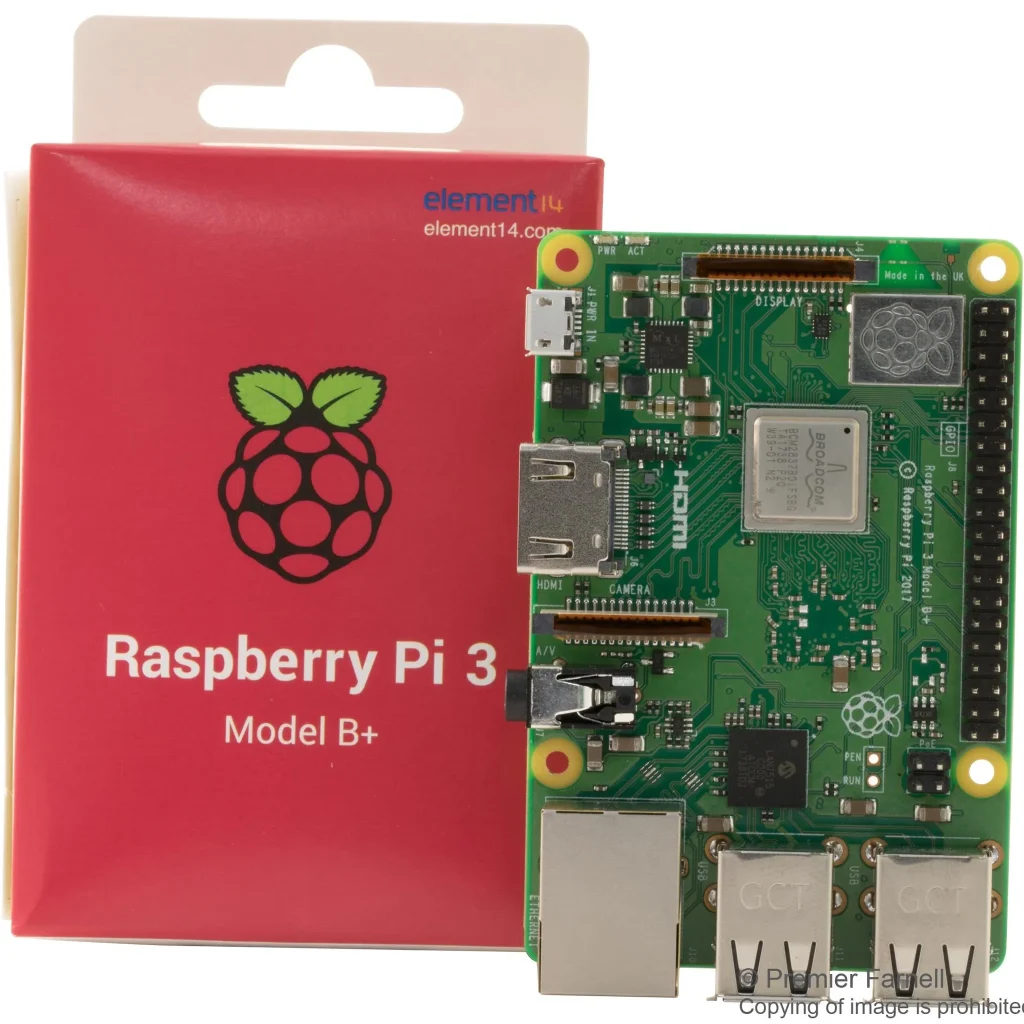

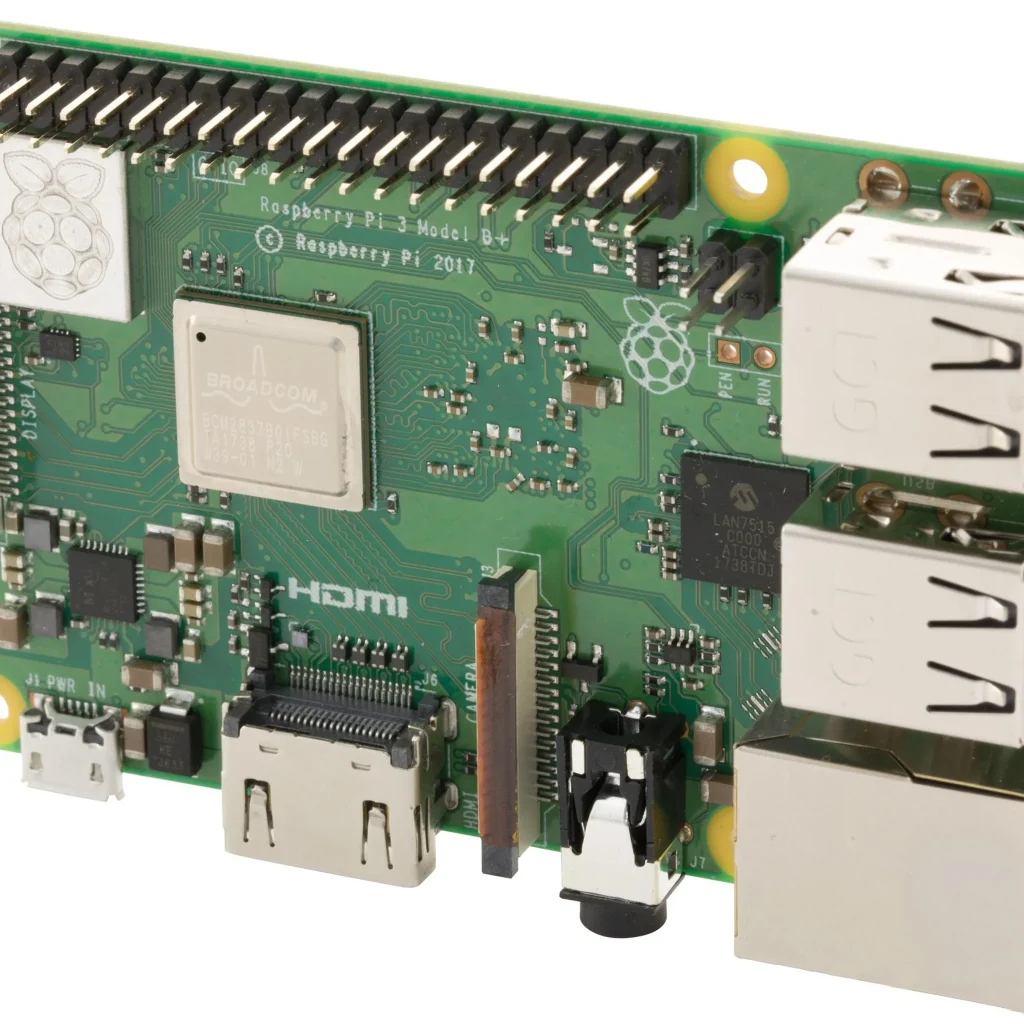

Raspberry Pi 3 Model B+ Quad Core CPU 64 Bit 1.4GHz, 1GB RAM

* Availability from 20-23 January 2020

Specifications

CPU : Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
RAM :  1GB LPDDR2 SDRAM
Connectivity:
                  2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
                  Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
                  4 × USB 2.0 ports
Access: Extended 40-pin GPIO header

Video & sound:
                  1 × full size HDMI
                  MIPI DSI display port
                  MIPI CSI camera port
                  4 pole stereo output and composite video port

Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
SD card support: Micro SD format for loading operating system and data storage
Input power:
                  5V/2.5A DC via micro USB connector
                  5V DC via GPIO header
                  Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

Environment: Operating temperature, 0–50°C
Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/products/raspberry-pi-3-model-b+
Production lifetime: The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.

PRODUCT BRIEF, MECHANICAL DRAWINGS, AND SCHEMATICS

• Raspberry Pi 3 Model B+ product brief
• Raspberry Pi 3 Model B+ mechanical drawing
• Raspberry Pi 3 Model B+ schematic diagrams

HARDWARE SPECIFICATIONS

More detailed information on Raspberry Pi hardware is available.
