Product Weight: 0.0500KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

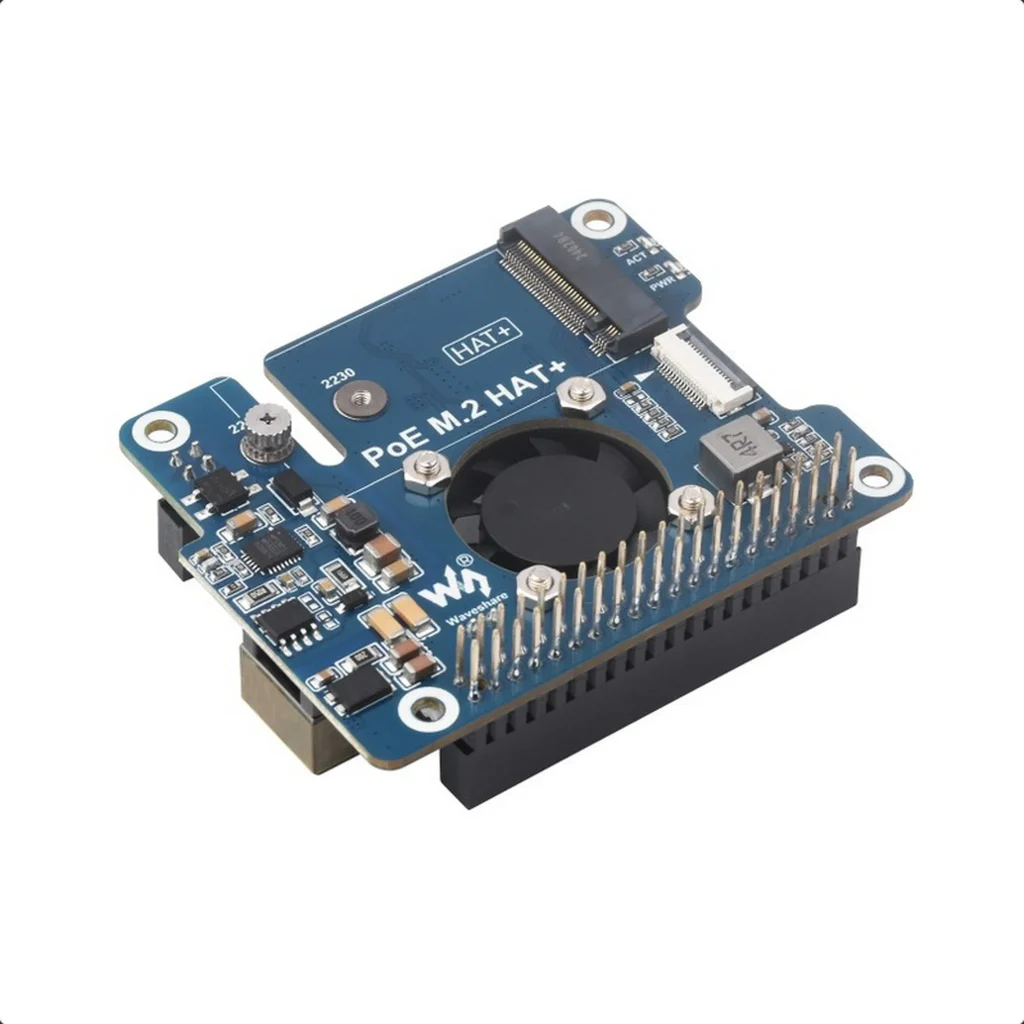

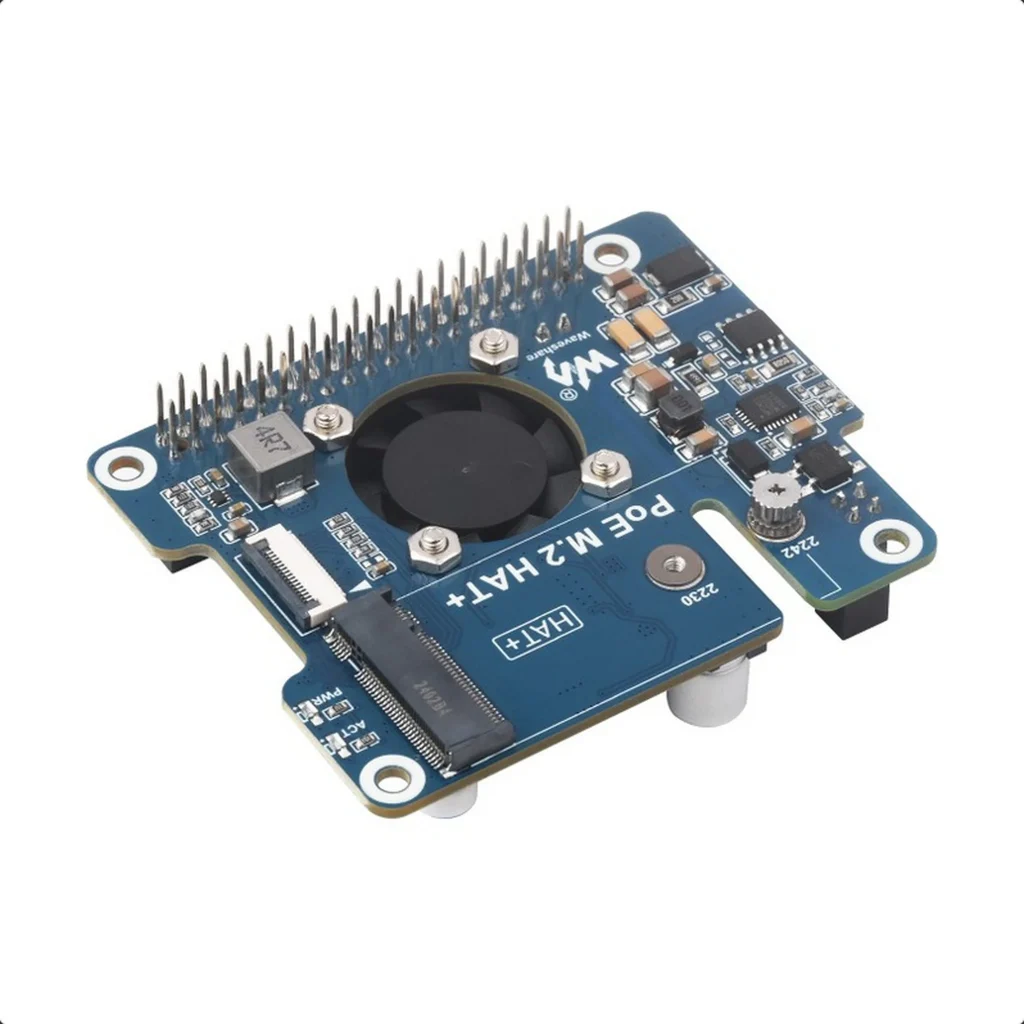

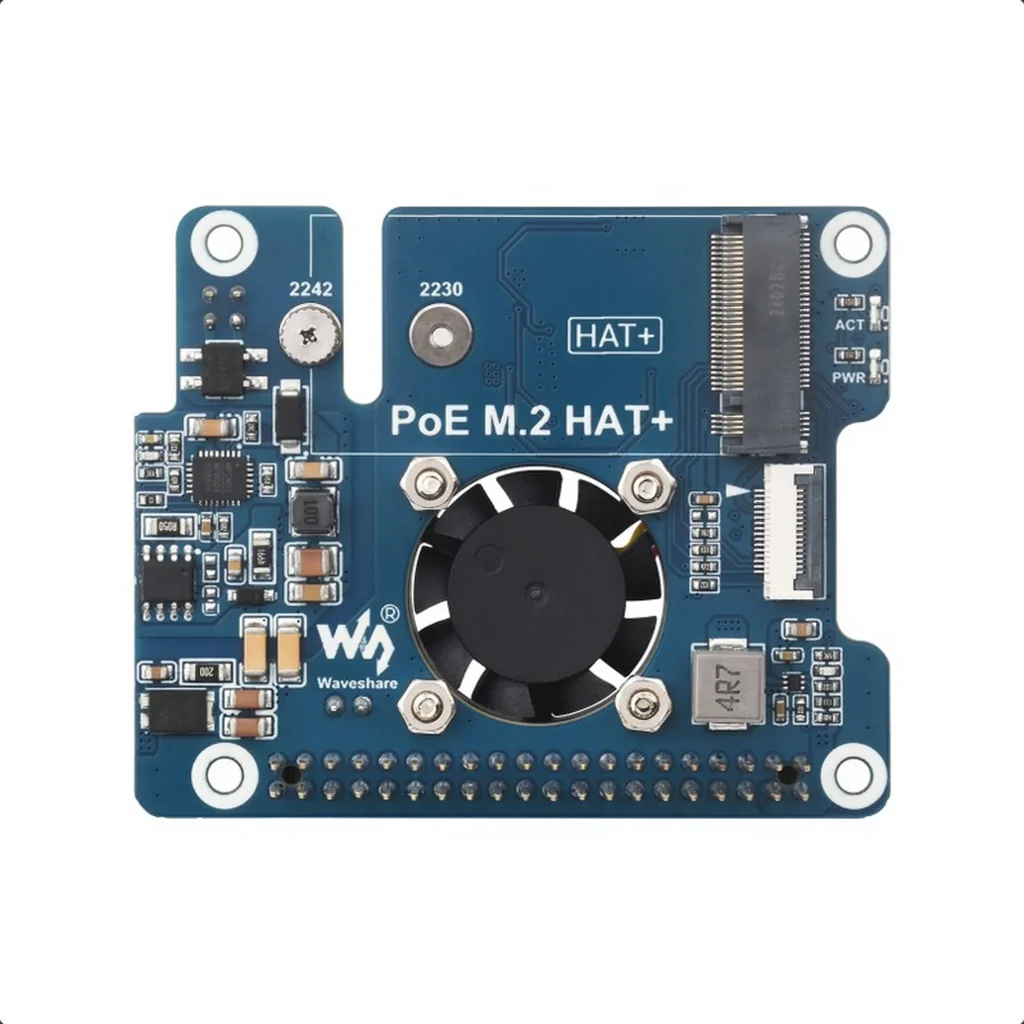

Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |
| Dimensions | 56.5 × 70.0mm |
| Network standard | IEEE 802.3af/at PoE |

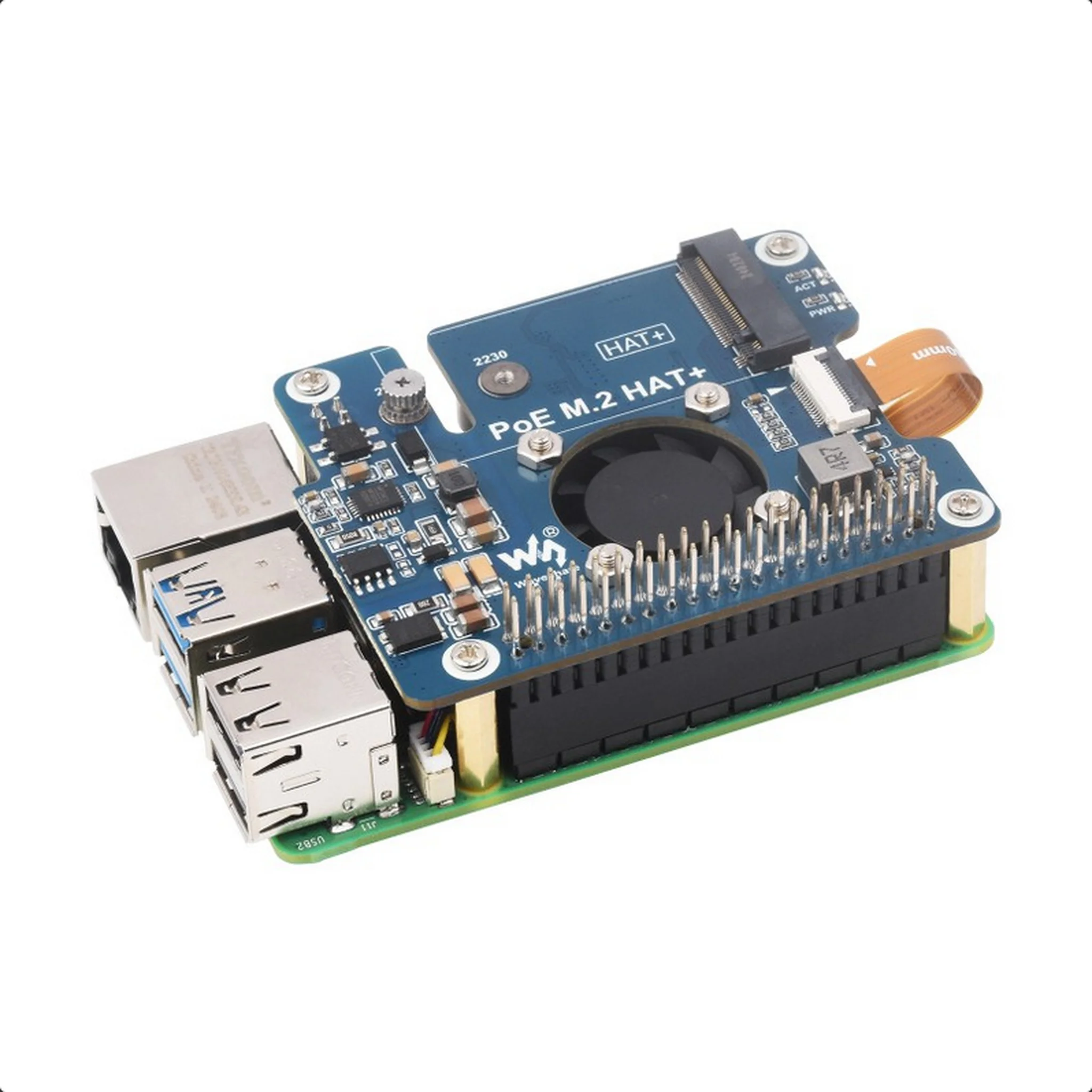

* for reference only, the Raspberry Pi 5 is not included.
Note: Only supports the NVMe Protocol Solid State Drives.
Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
* for reference only, please refer to the Package Content for detailed part list
Easy to monitor the Working Status
Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
providing both network connection and power supply for your Raspberry Pi in one cable
5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

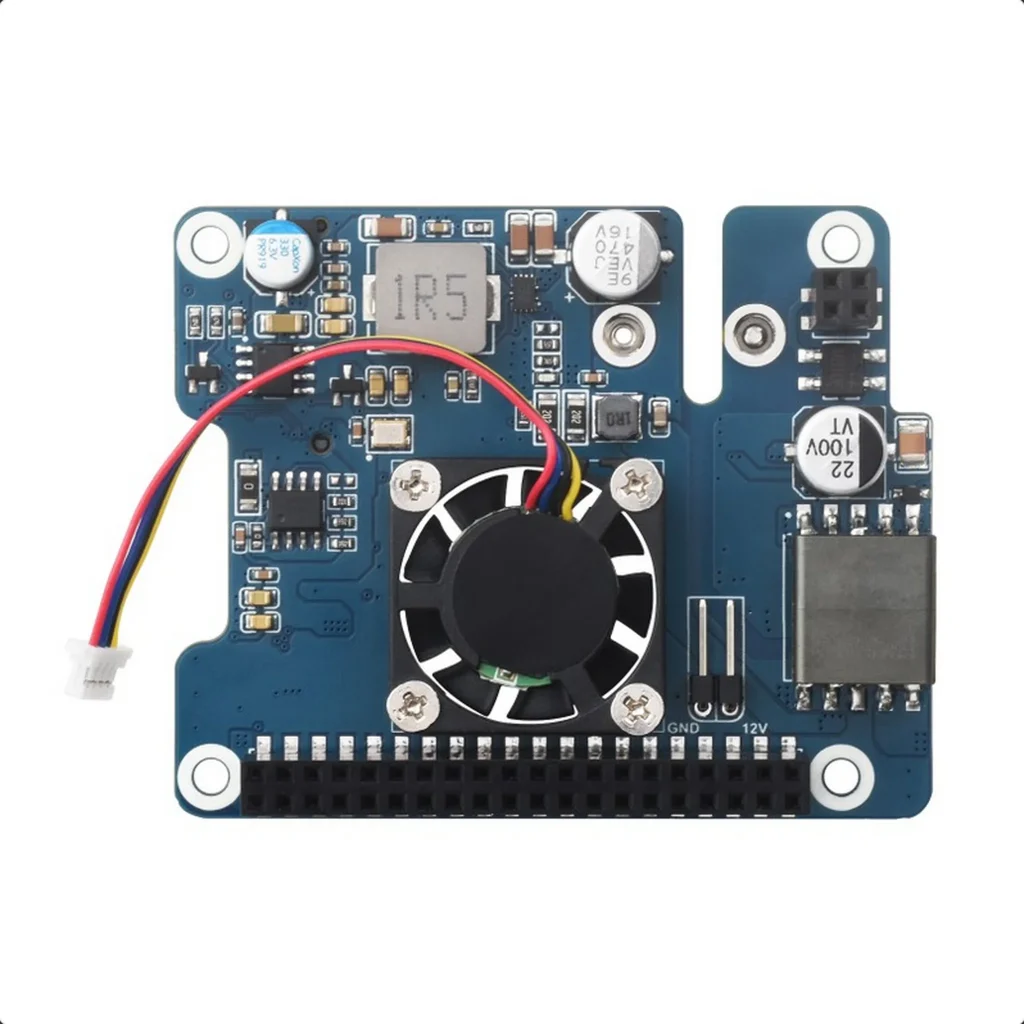

Accelerate Cooling Effect, More Stable Performance
Attach the thermal tapes first, then install the metal heatsink and fix the HAT
* for reference only, please refer to the Package Content for detailed part list
