USB 3.2 Gen1 HUB HAT for Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

€36.00

Add To Wishlist Add To Compare

Product Details

SKU : 48-17584
Stock : Available

Guaranteed Safe Checkout

Raspberry Pi

Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Features at a glance

4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
Onboard external USB-C 5V DC power port, ensures more stable power supply
1x power indicator and 4x USB port indicators, easy to check the operating status
Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
Purpose-made for Raspberry Pi 5 / 4B, compatible with other Raspberry Pi version as well
Comes with development resources and manual

USB 3.2 Gen 1 OR USB 3.0

they’re totally equivalent in fact, indicating the transition of technical naming specification
the word USB 3.0 on this page exactly means USB 3.2 Gen 1

Data rate	used name	current name
5 Gbps	USB 3.0 / USB 3.1 Gen 1	USB 3.2 Gen 1

Only Raspberry Pi 5, Raspberry Pi 4B and Pi 400 support USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.

External power supply support

Onboard external USB-C 5V DC power port

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

Multiple indicators

easy to check the operating status of power and USB ports

Various USB devices support

Driver free, plug & play

compatible with OS including Windows, mac OS, Linux and Android

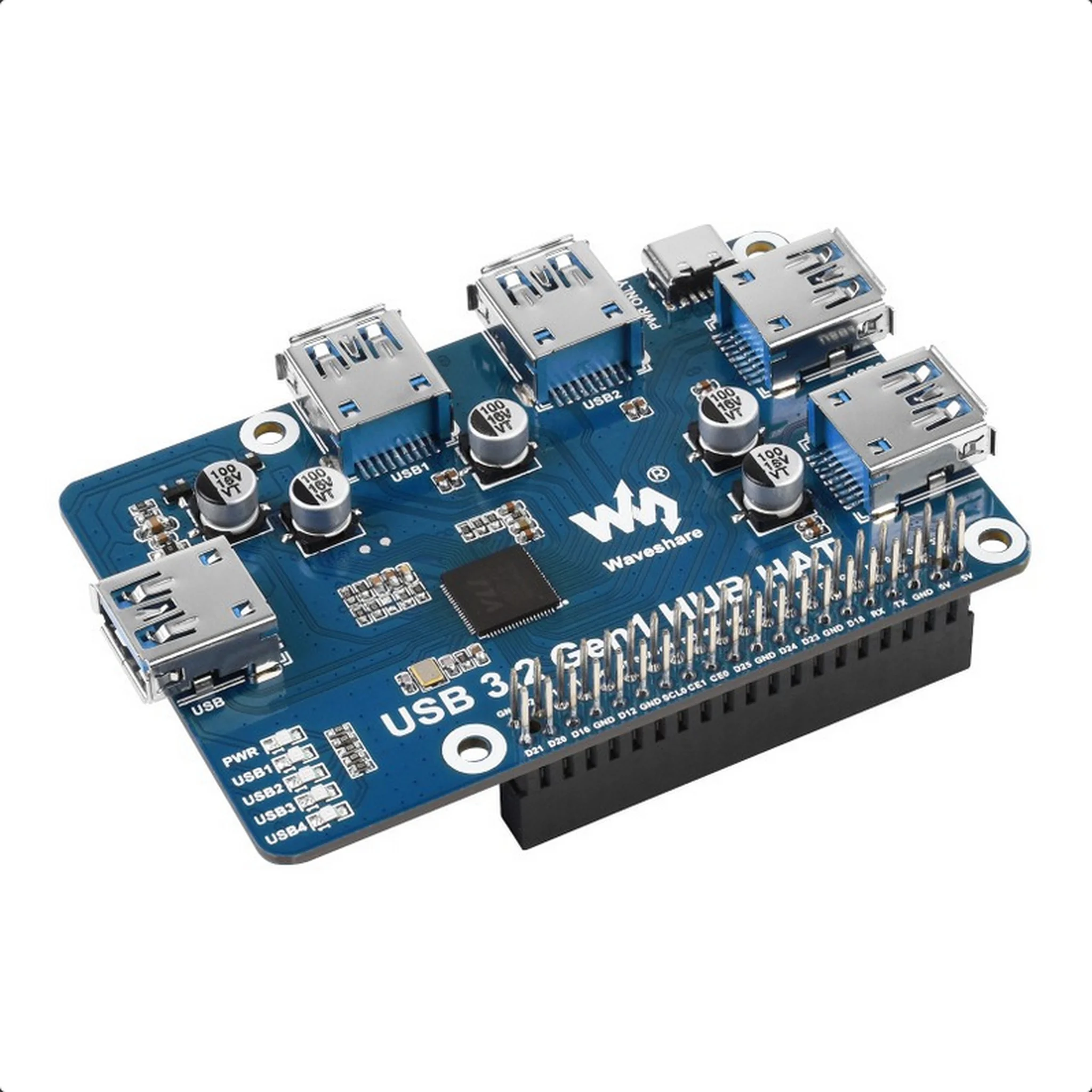

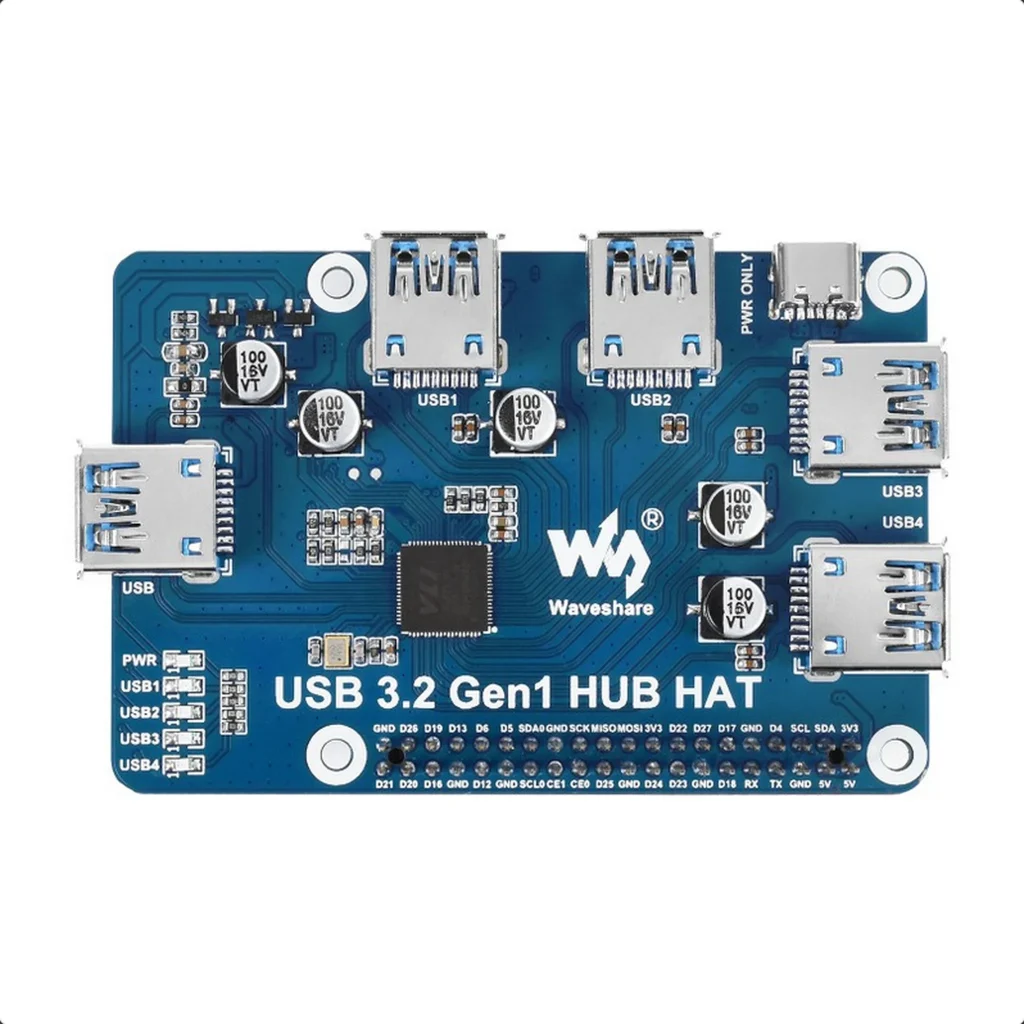

What’s on board

Raspberry Pi GPIO header
for connecting Raspberry Pi
USB 3.2 Gen1 HUB input
connects to Raspberry Pi USB port
USB 3.2 Gen1 extended ports
USB1~USB4
PWR ONLY port
for external USB-C 5V DC power input

VL817-Q7
USB HUB chip
MX25L512EOI-10G
FLASH chip
PWR
power indicator
USB1~USB4
USB1~USB4 indicators
