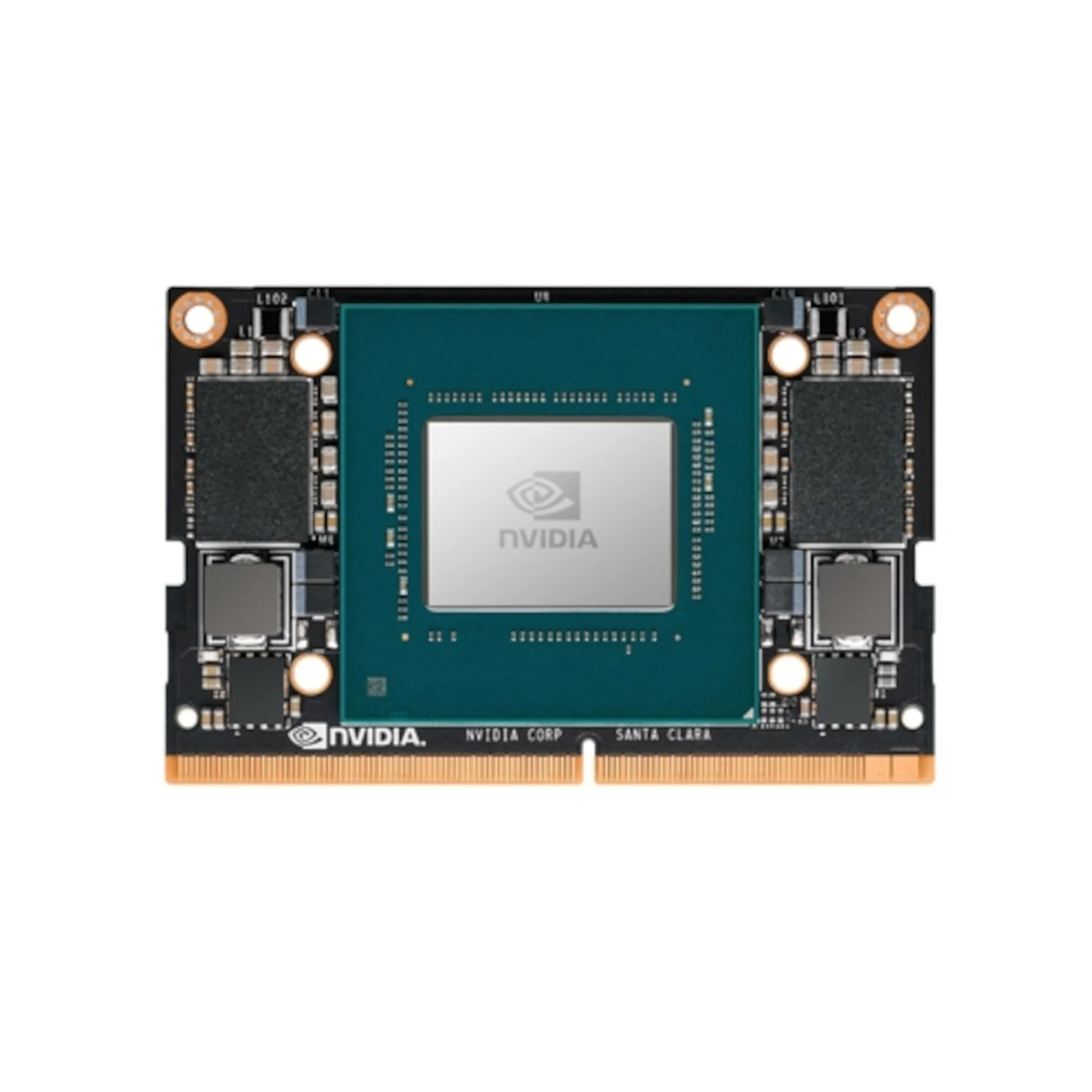

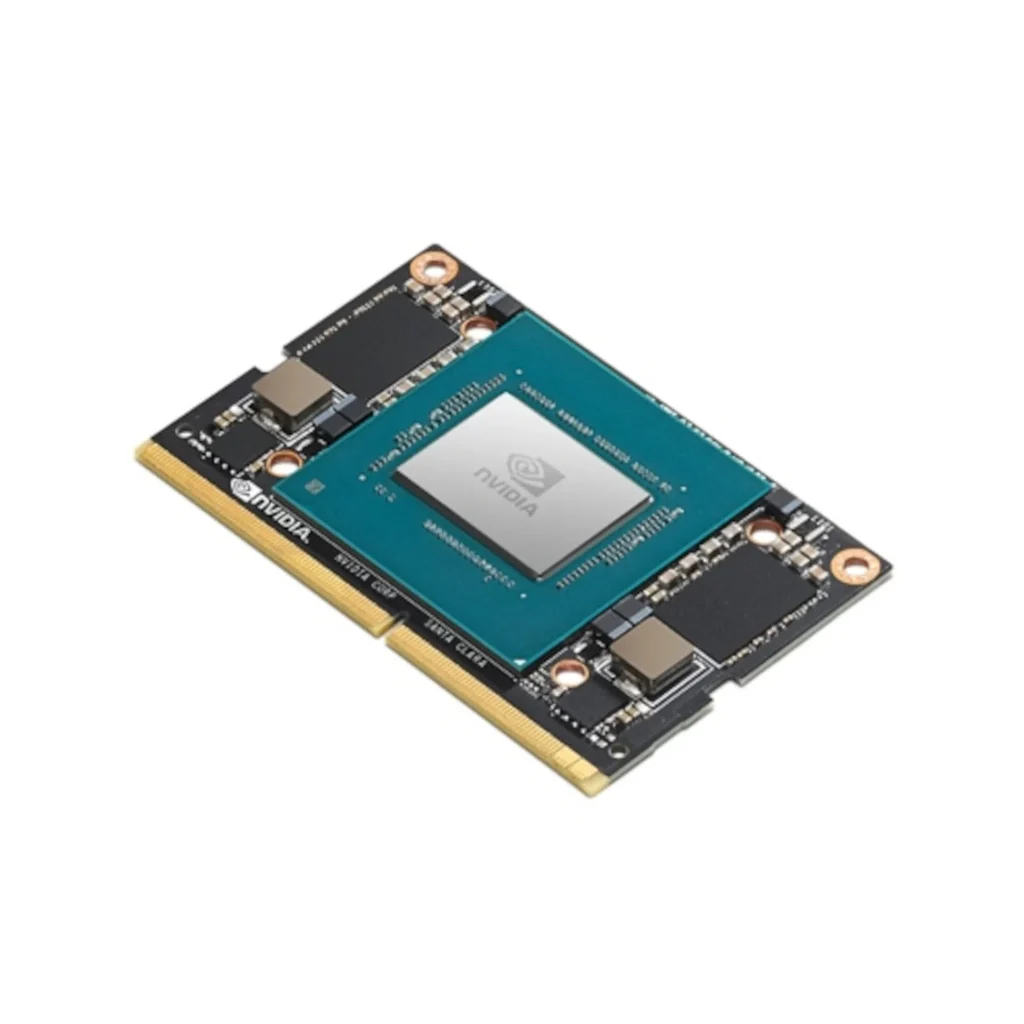

NVIDIA JETSON XAVIER NX Module 8GB
Description
NVIDIA Jetson Xavier NX takes supercomputer performance to the edge in a compact system-on-module (SOM) that’s smaller than a credit card. It features new cloud-native support and accelerates the NVIDIA software stack with more than 10X the performance of its widely adopted predecessor, Jetson TX2. This power-efficiency enables accurate, multi-modal AI inference in a small form factor and opens the door for innovative edge devices in manufacturing, logistics, retail, service, agriculture, smart city, healthcare and life sciences, and more.
The Jetson Xavier NX module benefits from new cloud-native support across the entire Jetson platform lineup, making it easier to build, deploy, and manage AI at the edge. Pre-trained AI models from NVIDIA NGC, together with the NVIDIA Transfer Learning Toolkit, provide a faster path to inference with optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.
NVIDIA JetPack SDK enables development of AI applications for Jetson Xavier NX with accelerated libraries supporting all major AI frameworks, as well as computer vision, graphics, multimedia, and more. Together with the latest NVIDIA tools for application development and optimization, JetPack ensures fast time to market and reduced development costs. Ease of development and speed of deployment together with a unique combination of form-factor, performance, and power advantage make Jetson Xavier NX the most flexible and scalable platform to get to market and continuously update over the lifetime of a product.
Feautures
- 384-Core Volta GPU
- 6-Core ARM 64 Bit CPU
- 8 GB LPDDR4
- 16 GB eMMC
Technical information
| |
10W |
15W |
20W |
| AI Perfomance |
14 TOPS (INT8) |
21 TOPS (INT8) |
21 TOPS (INT8) |
| GPU |
|
384-core NVIDIA Volta GPU with 48 Tensor Cores |
|
| GPU Max Freq |
800 MHz |
1100 MHz |
1100 MHz |
| CPU |
|
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3
|
|
| CPU Max Freq |
8 GB 128-bit LPDDR4x @ 1600 MHz
51.2GB/s
|
|
8 GB 128-bit LPDDR4x @ 1600 MHz
59.7GB/s
|
| Storage |
|
16 GB eMMC 5.1 |
|
| Display |
|
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
|
| DL Accelerator |
|
2x NVDLA Engines |
|
| Mechanical |
|
45 mm x 69.6 mm
260-pin SO-DIMM connector
|
|
| Networking |
|
10/100/1000 BASE-T Ethernet |
|
| Power |
|
10W|15W|20W
|
|
| PCIe |
|
1 x1 + 1×4
(PCIe Gen3, Root Port & Endpoint)
|
|
| CSI Camera |
|
Up to 6 cameras (36 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
|
|
** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
