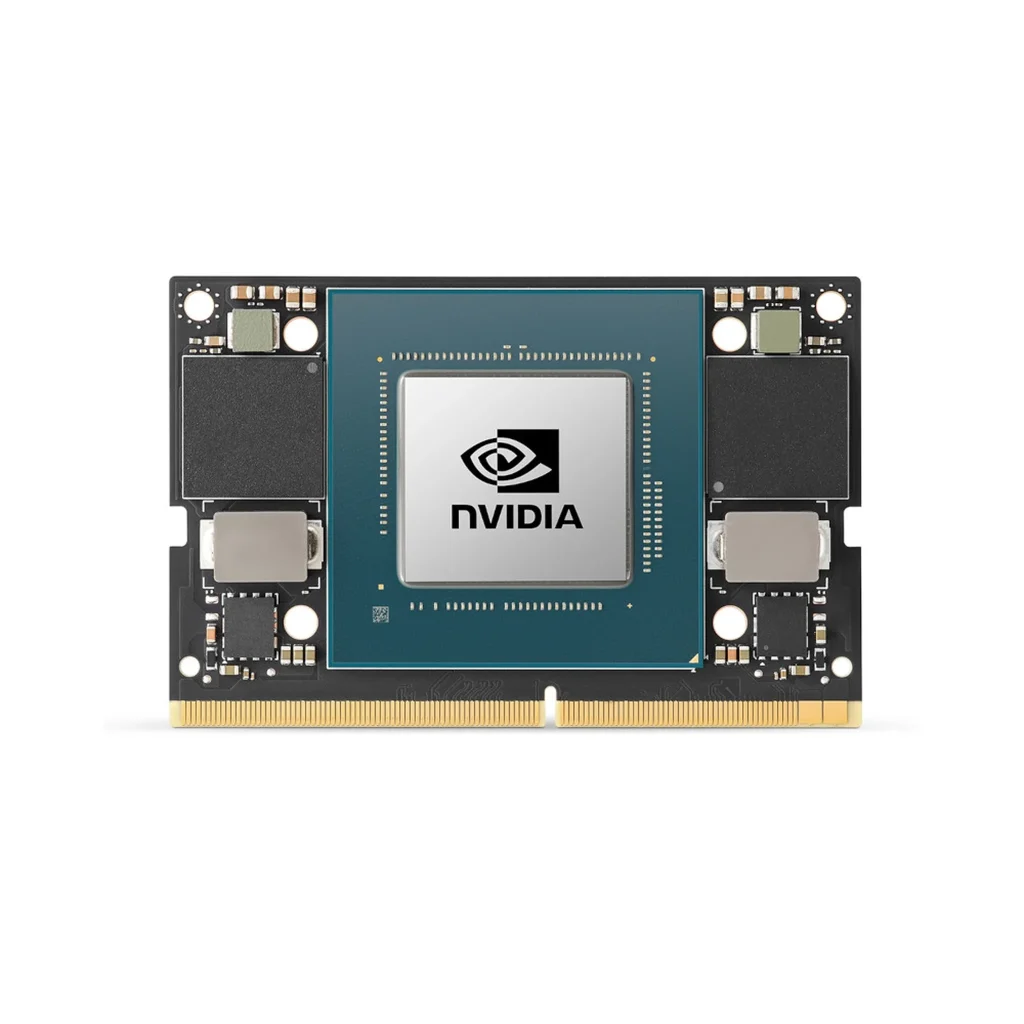

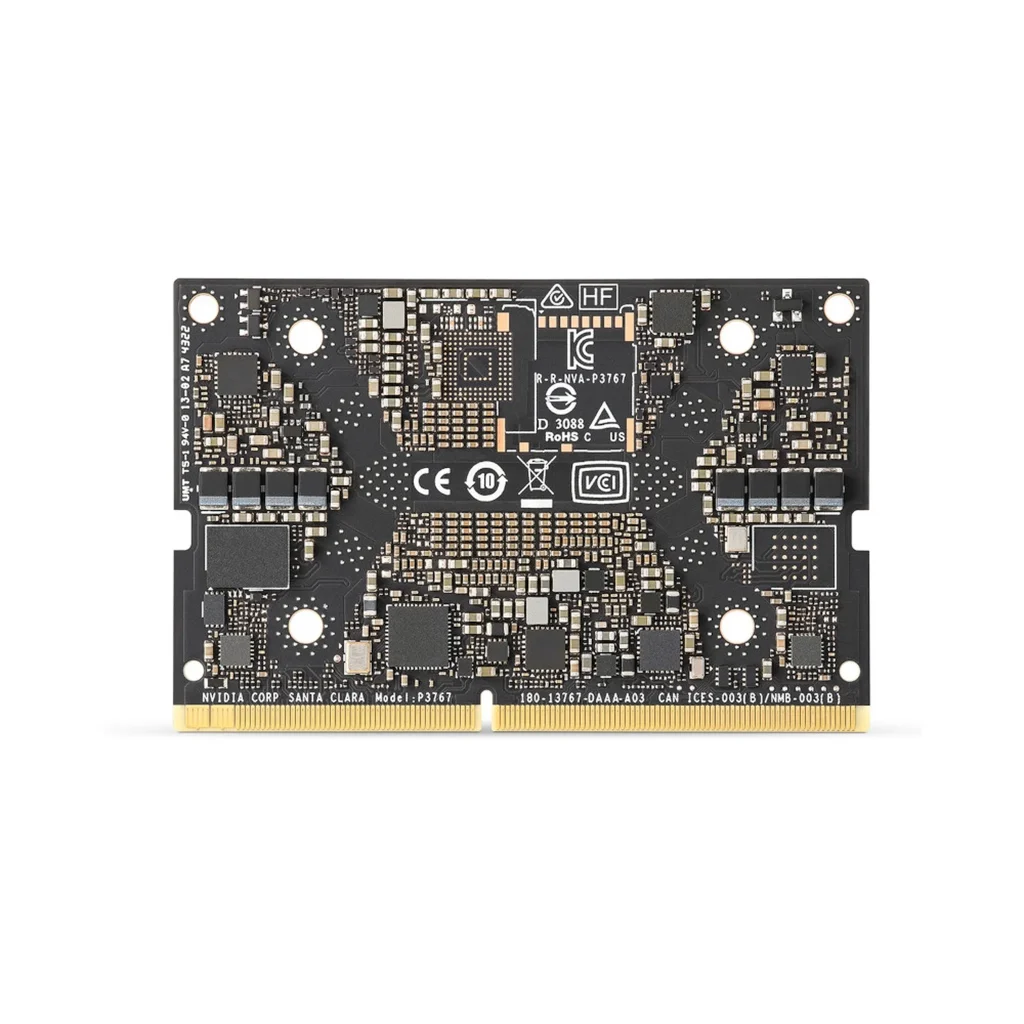

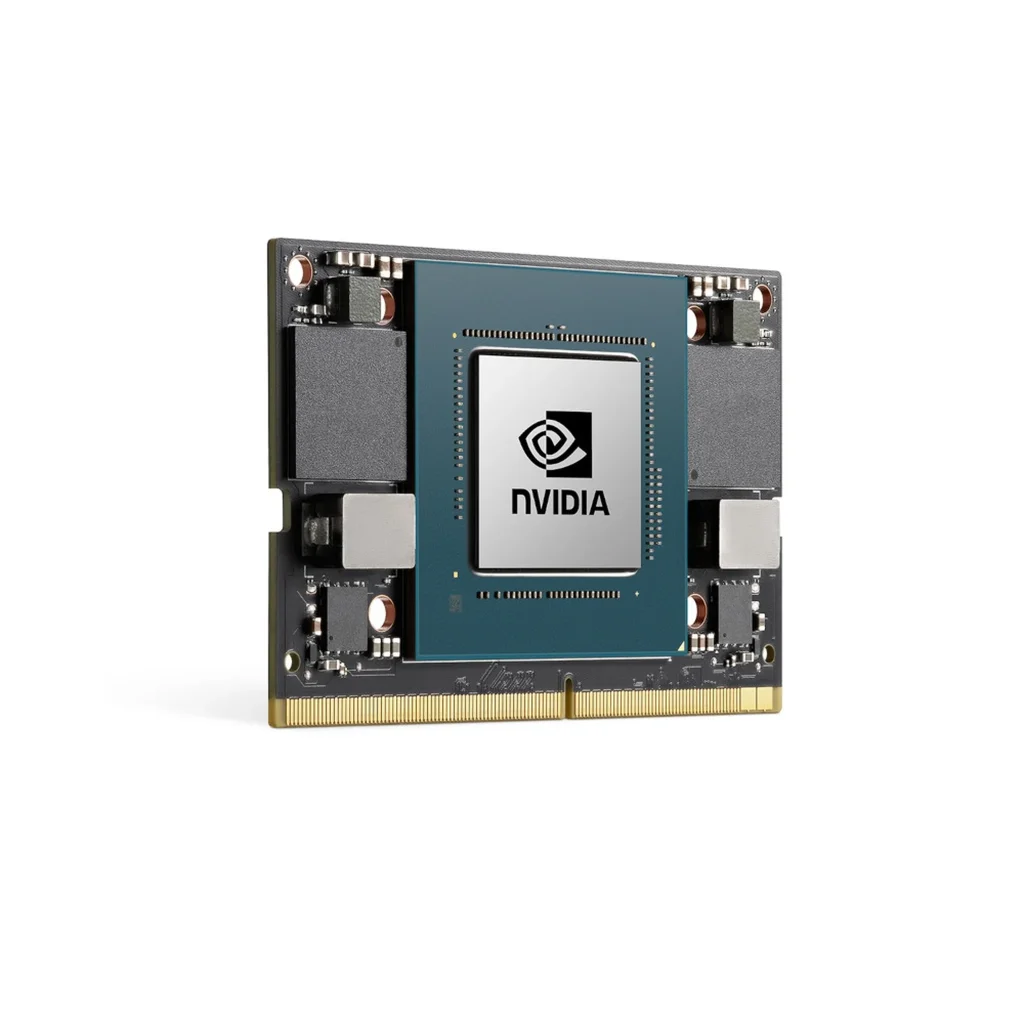

NVIDIA Jetson Orin NX 8GB

Description

NVIDIA Jetson Orin NX 8GB series modules deliver up to 117 TOPS of AI performance in the smallest Jetson form-factor, with power configurable between 10W and 40W. This gives you 5X the performance of NVIDIA Jetson AGX Xavier and 7.5X the performance of Jetson Xavier NX, making it ideal for small form-factor, low-power products like drones and handheld devices.

These system-on-modules support multiple concurrent AI application pipelines with an NVIDIA Ampere architecture GPU, next-generation deep learning and vision accelerators, high-speed IO, and fast memory bandwidth. Now, you can develop solutions using your largest and most complex AI models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.

Jetson runs the NVIDIA AI software stack, with available use-case-specific application frameworks, including NVIDIA Isaac for robotics, NVIDIA Metropolis for vision AI, and NVIDIA Holoscan for sensor processing. You can save significant time with NVIDIA Omniverse™ Replicator for synthetic data generation (SDG), and with NVIDIA TAO Toolkit for fine-tuning pretrained AI models from the NGC catalog.

Jetson ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product. Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, giving you the flexibility to create the next generation of AI solutions with the latest NVIDIA GPU technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your road to market has never been faster.

Feautures

• 1024-core NVIDIA Ampere architecture GPU with 32 tensor cores
• 1x NVDLA v2.0
• 6-core Arm Cortex-A78AE v8.2 64-bit CPU
• 8GB 128-bit LPDDR5
• PVA v2.0

Technical information

• GPU: NVIDIA Ampere architecture with 1024 NVIDIA CUDA cores and 32 Tensor cores
• CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU / 1.5MB L2 + 4MB L3
• DL Accelerator: 1x NVDLA v2.0
• Vision Accelerator: PVA v2
• Memory: 8GB 128-bit LPDDR5 102.4 GB/s
• Storage: Supports external NVMe via PCIe
• Power: 10W – 40W
• Mechanical: 45 mm x 69.6 mm / 260 pin SO-DIMM connecto

 ** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
