NVIDIA Jetson Orin Nano 4GB

Description

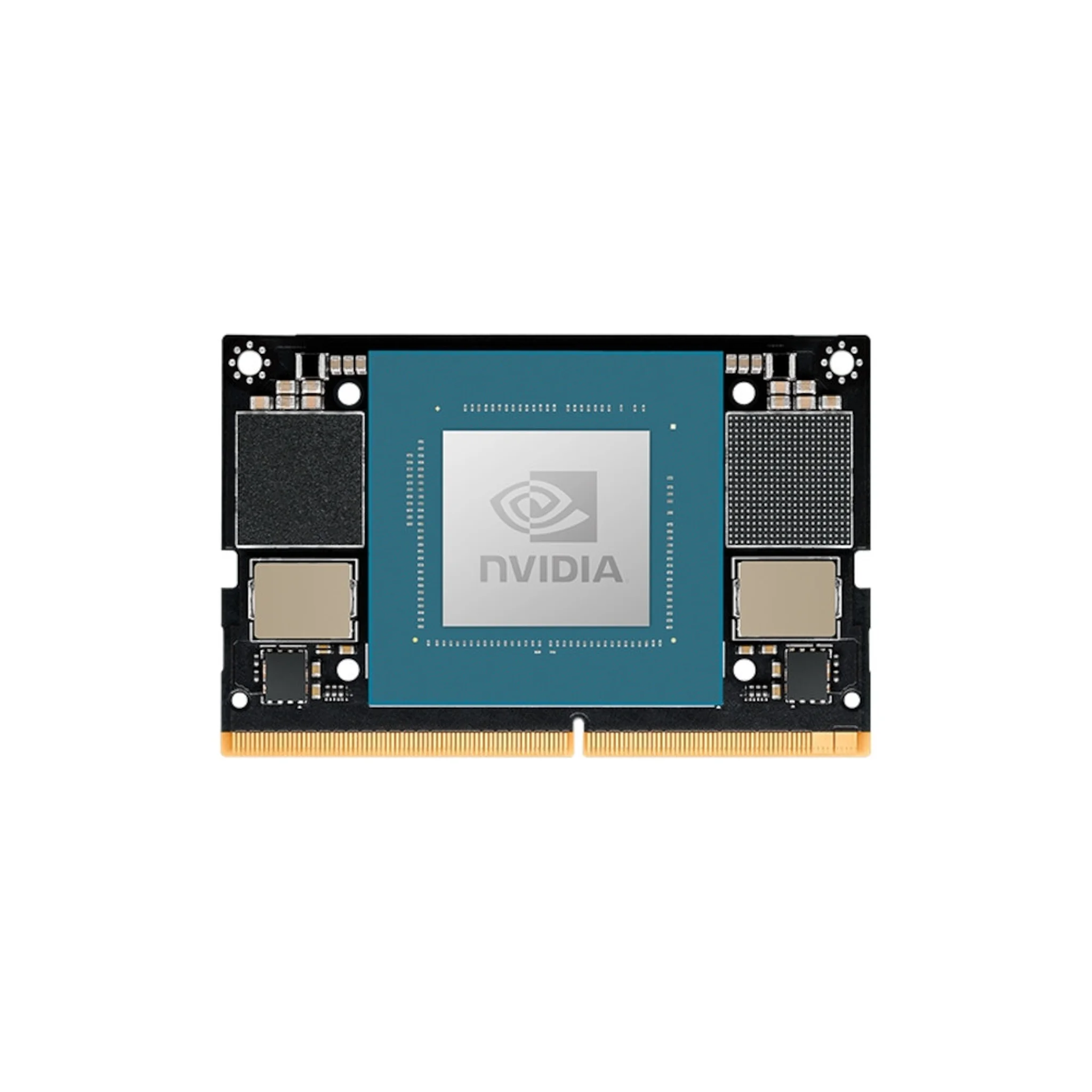

The NVIDIA Jetson Orin Nano 4GB module delivers up to 34 TOPS of AI performance in the smallest Jetson form-factor, with power configurable from 7W to 25W. This gives you up to 68X the performance of NVIDIA Jetson Nano and sets the new baseline for entry-level Edge AI.

This system-on-module is pin-compatible with Jetson Orin NX, and supports multiple concurrent AI application pipelines with high-speed IO and an NVIDIA Ampere architecture GPU. This enables lower-priced consumer, retail analytics, and industrial QA devices to benefit from more complex AI models.

Jetson runs the NVIDIA AI software stack, with available use-case-specific application frameworks, including NVIDIA Isaac for robotics, NVIDIA Metropolis for vision AI, and NVIDIA Holoscan for sensor processing. You can save significant time with NVIDIA Omniverse Replicator for synthetic data generation (SDG), and with NVIDIA TAO Toolkit for fine-tuning pretrained AI models from the NGC catalog.

Jetson ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.

Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and they give you the flexibility to create the next generation of AI solutions with the latest NVIDIA GPU technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your road to market has never been faster.

Feautures

• 512-core NVIDIA Ampere
• architecture GPU with
• 16 tensor cores
• 6-core Arm Cortex-A78AE v8.2
• 4GB 64-bit LPDDR5
• Support for external NVMe

Technical information

• AI Performance: 34 TOPS
• GPU: 512-core NVIDIA Ampere architecture GPU with 16 tensor cores
• Max GPU Freq.: 625MHz
• CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
• CPU Max Freq.: 1.5GHz
• Memory: 4GB 64-bit LPDDR5 / 34GB/s
• Storage: (Supports external NVMe)
• Camera: Up to 4 cameras (8 via virtual channels*) 8 MIPI CSI-2 lanes D-PHY 2.1 (up to 20Gbps)
• Video Encode: 1080p30 supported by 1-2 CPU cores
• Video Decode: 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
• PCIe: 1 x4 + 3 x1 (PCIe Gen3, Root Port, and Endpoint)
• USB: 3x USB 3.2 Gen2 (10Gbps) / 3x USB 2.0
• Networking: 1x GbE
• Display: 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4
• Other I/O: 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
• Power: 7W – 25W
• Mechanical: 69.6mm x 45mm / 260-pin SO-DIMM connector
