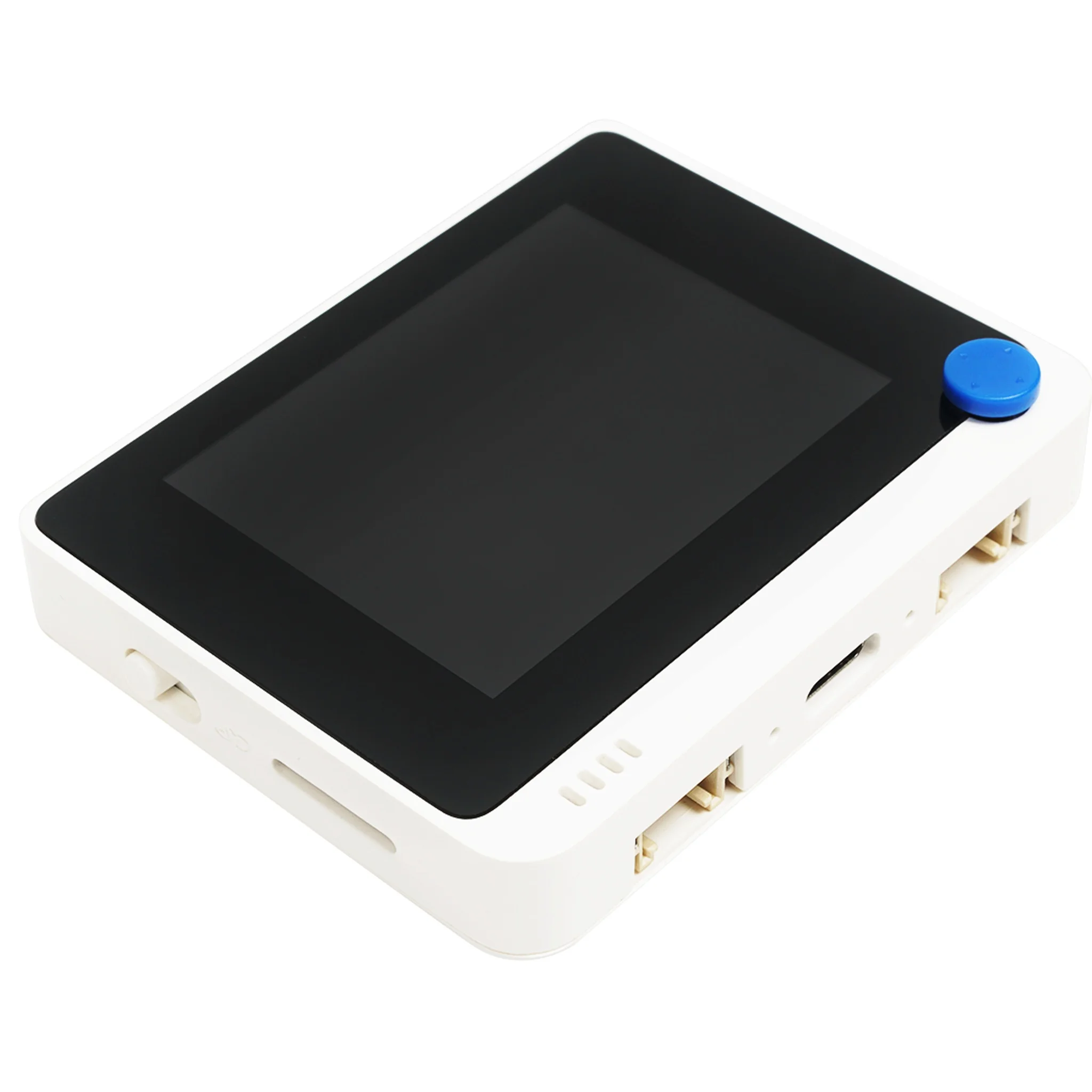

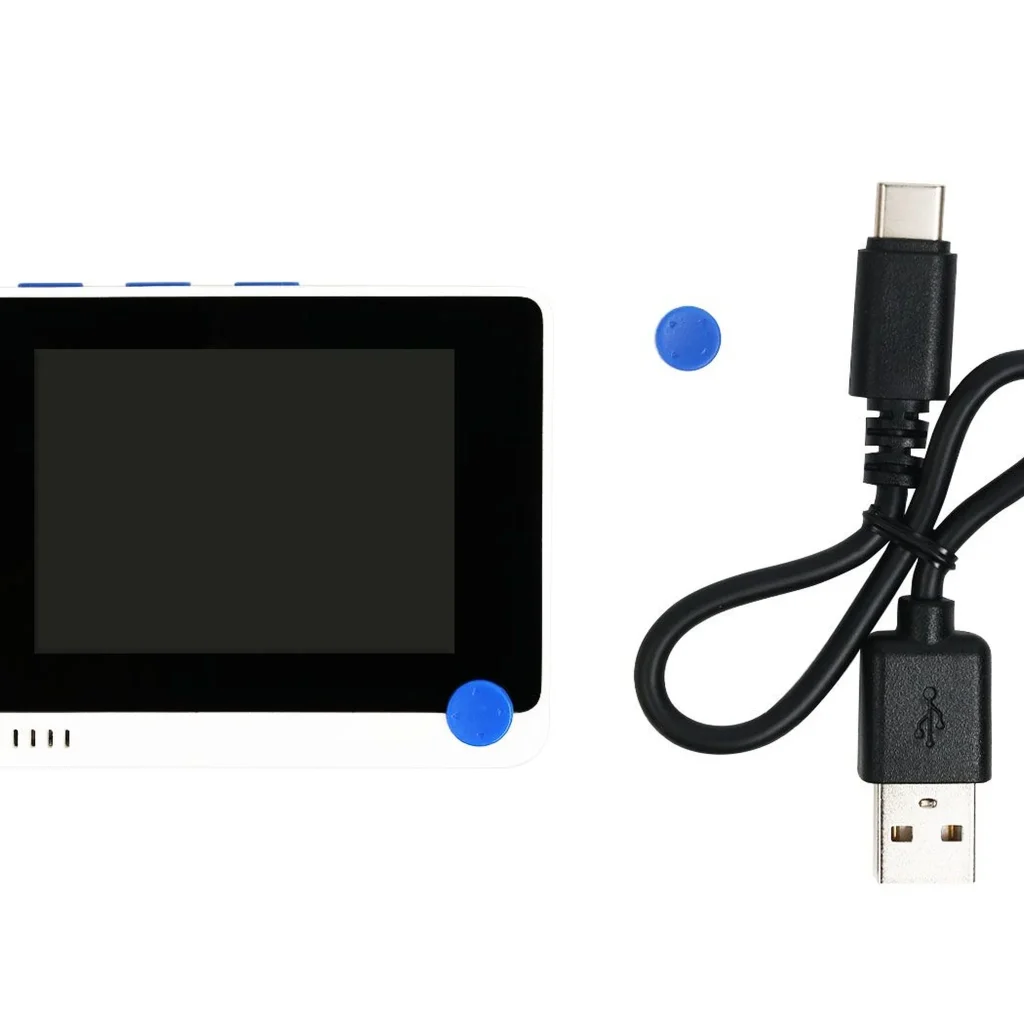

Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board

Key Features

Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz
Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz / 5Ghz Wi-Fi
Highly Integrated Design: 2.4” LCD Screen, IMU and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes
Raspberry Pi 40-pin Compatible GPIO
Compatible with over 300 plug&play Grove modules to explore with IoT
USB OTG Support
Support Arduino, CircuitPython, Micropython, ArduPy(What is ArduPy?), AT Firmware, Visual Studio Code
ELEC certificated

Description

The Wio (Wireless Input and Output) platform (Wio Link, Wio Nodes,etc.) was first introduced to the world at the end of 2015 by Seeed.

Today a new Wio member is joining the family – Wio Terminal. Instead of being a single embedded functional module, Wio Terminal is more of a complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product.

With Wio Terminal, you can:

Sense and tag the Real-World data with over 300 Groves created by Seeed
Use a 100% open-source Hardware in a pythonic way
Build your program interpreter starting from 90% with LCD screen and compact enclosure

Compatible with Arduino and Micropython, Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). On top of that, it also has two multifunctional Grove ports for Grove Ecosystem and Raspberry pi 40-pin compatible GPIO for more add-ons.

Wio Terminal + Grove = IoT System
Wio Terminal + Raspberry Pi = Edge Computing System
Wio Terminal + Customized add-ons = Handheld devices or endless possibilities!

What is Grove?

No jumpers or soldering required, Grove makes it easier to connect, experiment, and simplify the prototyping process significantly. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Each one comes with clear documentation and demo code to help you get started quickly. Not only are these open hardware, but we also have open-source software.
Highlight Features

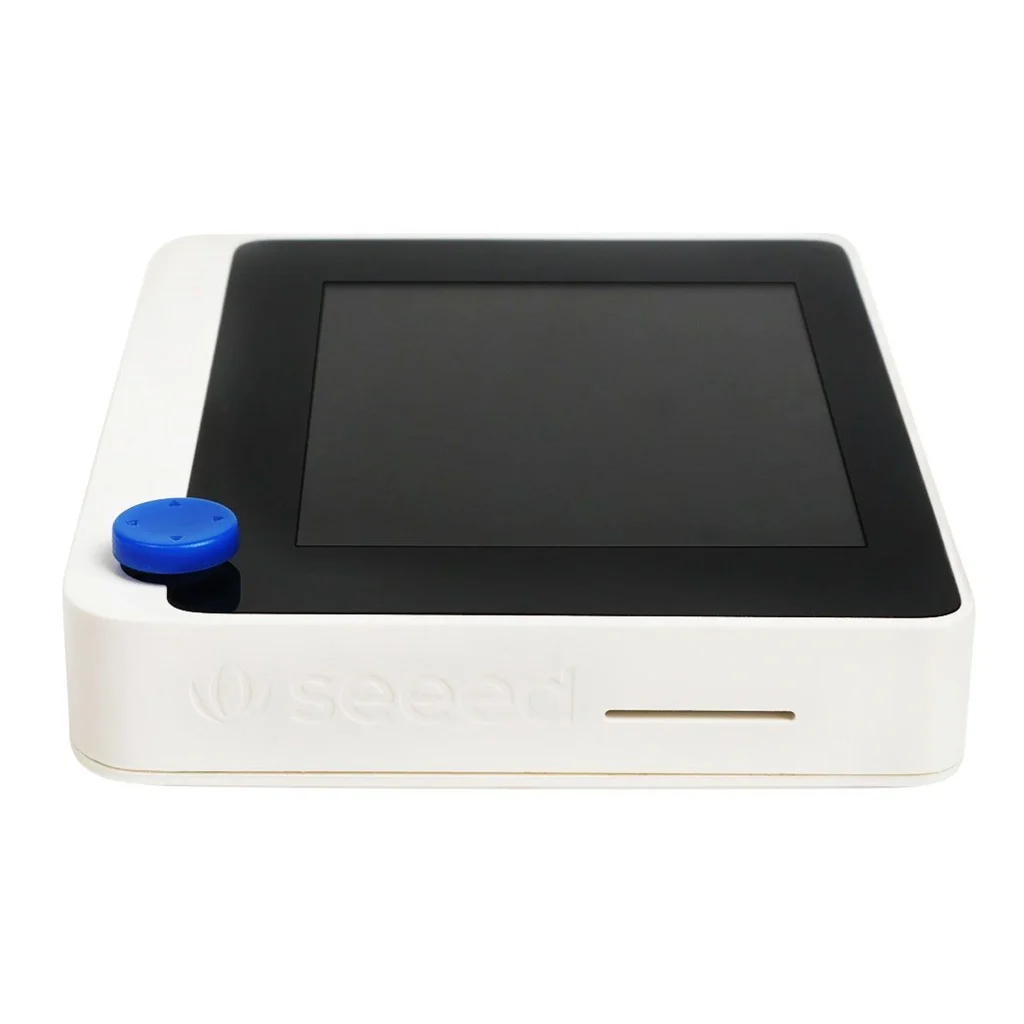

Highly Integrated Design

MCU, LCD, WIFI, BT, IMU, Microphone, Buzzer, microSD Card, Configurable Buttons, Light Sensor, 5-Way Switch, Infrared Emitter (IR 940nm), Crypto-authentication Ready
Well-designed enclosure with built-in magnets and two mounting holes, allowing you to set up your IoT project without hassle

Powerful MCU – Microchip ATSAMD51P19

ARM Cortex-M4F core running at 120MHz (Boost up to 200MHz)
4 MB External Flash, 192 KB RAM
Comprehensive Protocol Support
SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)

Reliable Wireless Connectivity

Powered by Realtek RTL8720DN
Dual Band 2.4Ghz / 5Ghz Wi-Fi (802.11 a/b/g/n)
BLE / BLE 5.0

USB OTG Support

Accessible Devices(as USB-Host): read data or signals from a mouse, keyboard, MIDI devices, Xbox/PS gaming controllers, 3D printers
Simulated Devices(as USB-Client): emulate a mouse, keyboard or MIDI devices to Host PC
When using USB Host/Client function, you can use the 40-pin on the back of Wio Terminal for power supply. Check here for detailed instructions.

Grove Ecosystem

    300+ Grove modules to explore with IoT
    Two onboard multi-functional Grove ports can be used for Digital, Analog, I2C, and PWM
    Note: To connect Grove with Wio Terminal, please use unbuckled grove cable.

Raspberry Pi 40-pin Compatible

Can be mounted to a Raspberry Pi as a slave device
Raspberry Pi’s HAT can be used with an adapter cable

Software Support

Arduino
MicroPython
ArduPy
AT Firmware
Visual Studio Code
CircuitPython ( How to run CircuitPython on Wio Terminal?)

What is ArduPy?

ArduPy is a combination of Arduino and MicroPython developed by Seeed. Check our Wiki and Github for more technical details
We wish to develop the ArduPy into a community-driven software and look forward to your participation. Join the discussion at our Forum!

Applications

Python Terminal Device
Data Collection Device for Machine Learning
Hand-held Device
Retro Gaming Device
IoT Controller
Education
Prototyping
Slave device / Accessories for Raspberry Pi

Technical Specifications

Main Chip
Manufacturer Part Number : ATSAMD51P19
Core Processor : ARM® Cortex®-M4F
Maximum Speed : 200MHz
External Flash : 4MBytes
Operating Temperature : -40°C ~ 85°C (TA)
LCD Screen
Resolution : 320×240
Display Size : 2.4inch
Drive IC : ILI9341
Wireless Connectivity
Manufacturer Part Number : RTL8720DN
KM4 CPU : ARM® Cortex®-M4F @ 200MHz
KM0 CPU : ARM® Cortex®-M0
Wi-Fi : 802.11 a/b/g/n 1×1, 2.4GHz & 5GHz
Bluetooth : Support BLE5.0
Built-in Modules
Accelerometer : LIS3DHTR
Microphone : 1.0V-10V -42dB
Speaker : ≥78dB @10cm 4000Hz
Light Sensor : 400-1050nm
Infrared Emitter : 940nm
Interface
MicroSD Card Slot : Maximum 16GB
GPIO : 40-PIN (Raspberry Pi Compatible)
Grove : 2 (Multifunction)
FPC : 20-Pins
USB Type-C : Power & USB-OTG
Operation Interface
5-Way Switch
Power/Reset Switch
User-defined button *3
Enclosure
Dimension : 72mm*57mm*12mm
Materials : ABS+PC
