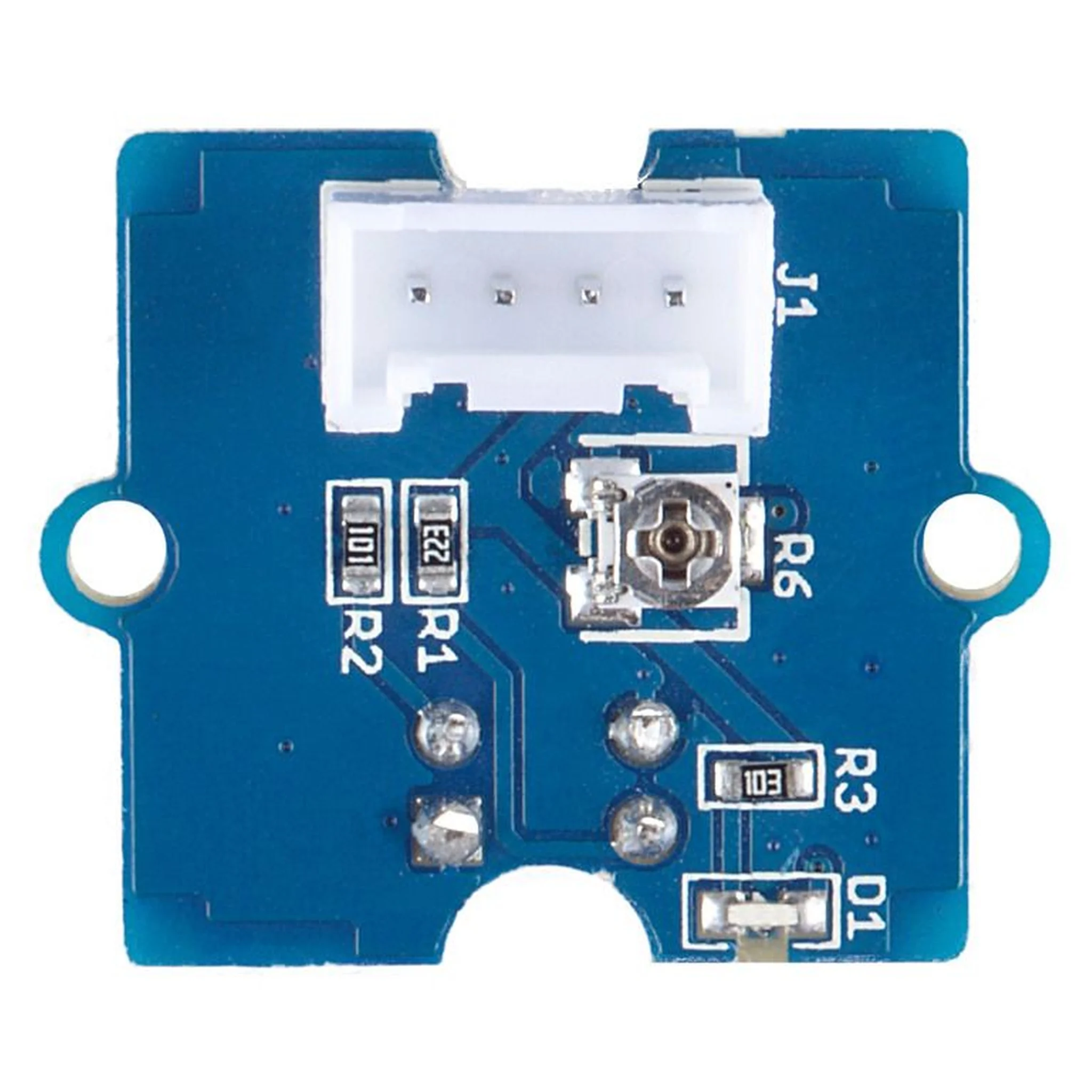

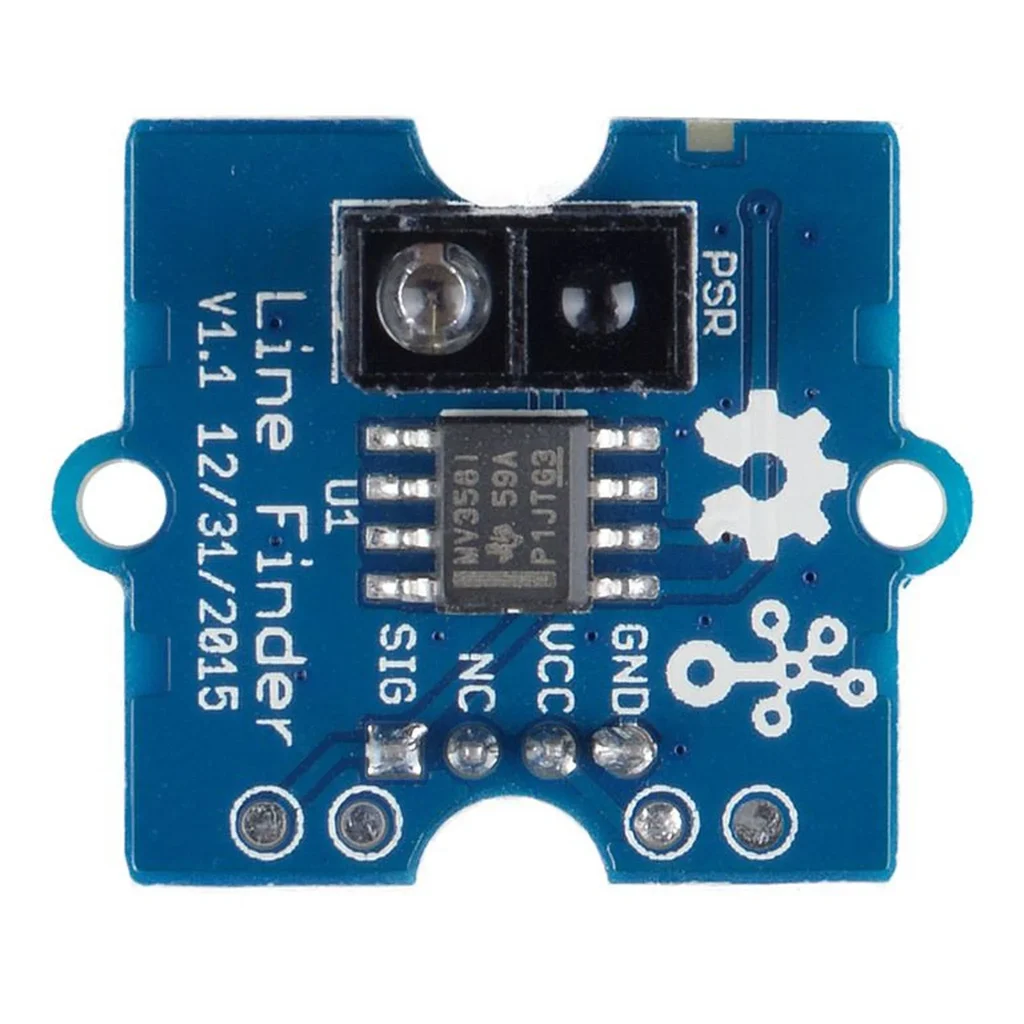

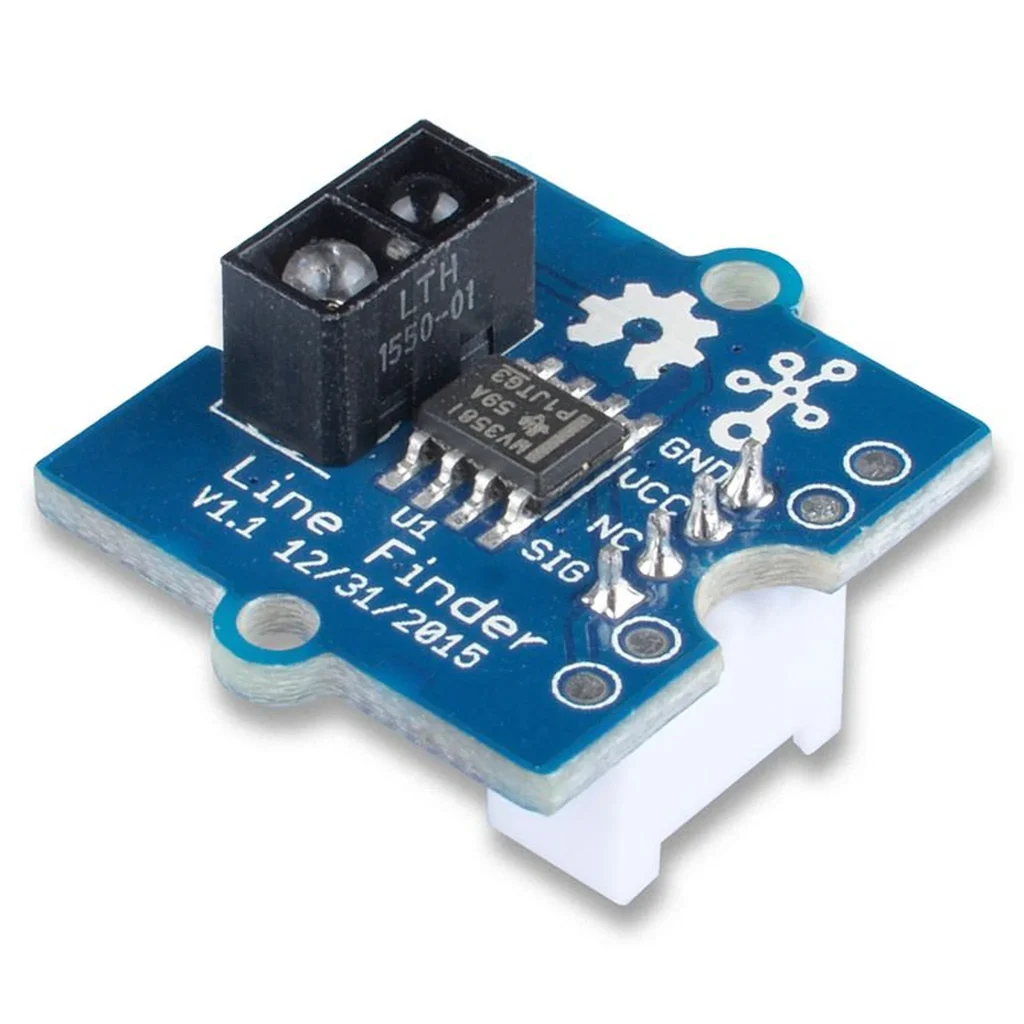

Most of automated robotic projects start from a line-following robot, Grove – Line finder v1.1 is designed to achieve this task easily and quickly. Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistor. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.

Features

•  Easy to use
• Integrated indicator LED
• Digital output
• Adjustable detecting range.

Specifications

•  Power supply: 5V DC
• Digital output mode: TTL (High when black is detected, Low when white is detected)
• Connector: 4 pin Buckled Grove interface

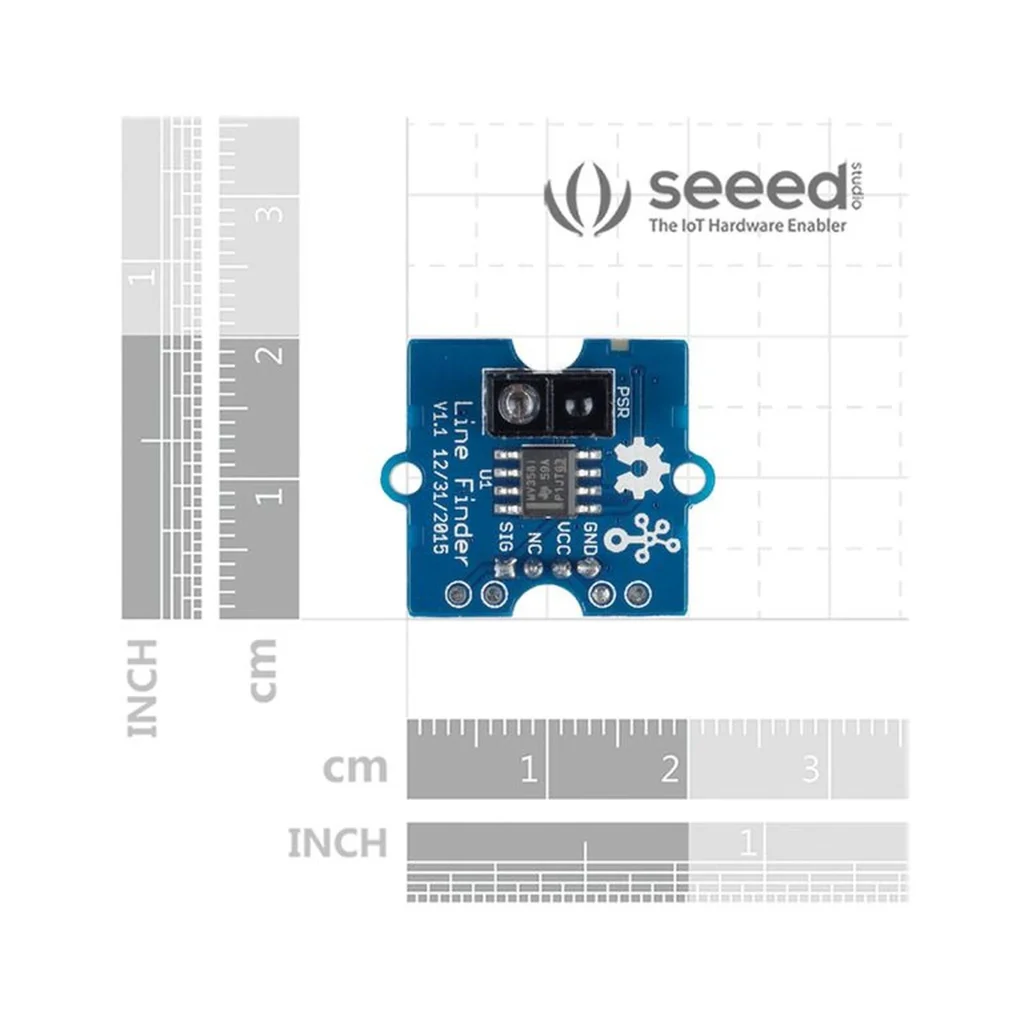

• Dimension: 20mm*20mm
• Comparator: LMV358
• Photo reflective diode: RS-06WD

Technical details

Dimensions : 24.2mm x20mm x10.8mm
Weight : G.W 8g
Battery : Exclude
Power supply : 5V DC
Digital output mode : TTL (High when black is detected, Low when white is detected)
Connector : 4 pin Buckled Grove interface
Comparator : MV358
Photo reflective diode : RS-06WD
