USB to RS485 Converter Adapter

€5.00

Product Weight: 0.0300KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-0S1318-0
Stock : Available

Guaranteed Safe Checkout

Raspberry Pi

Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

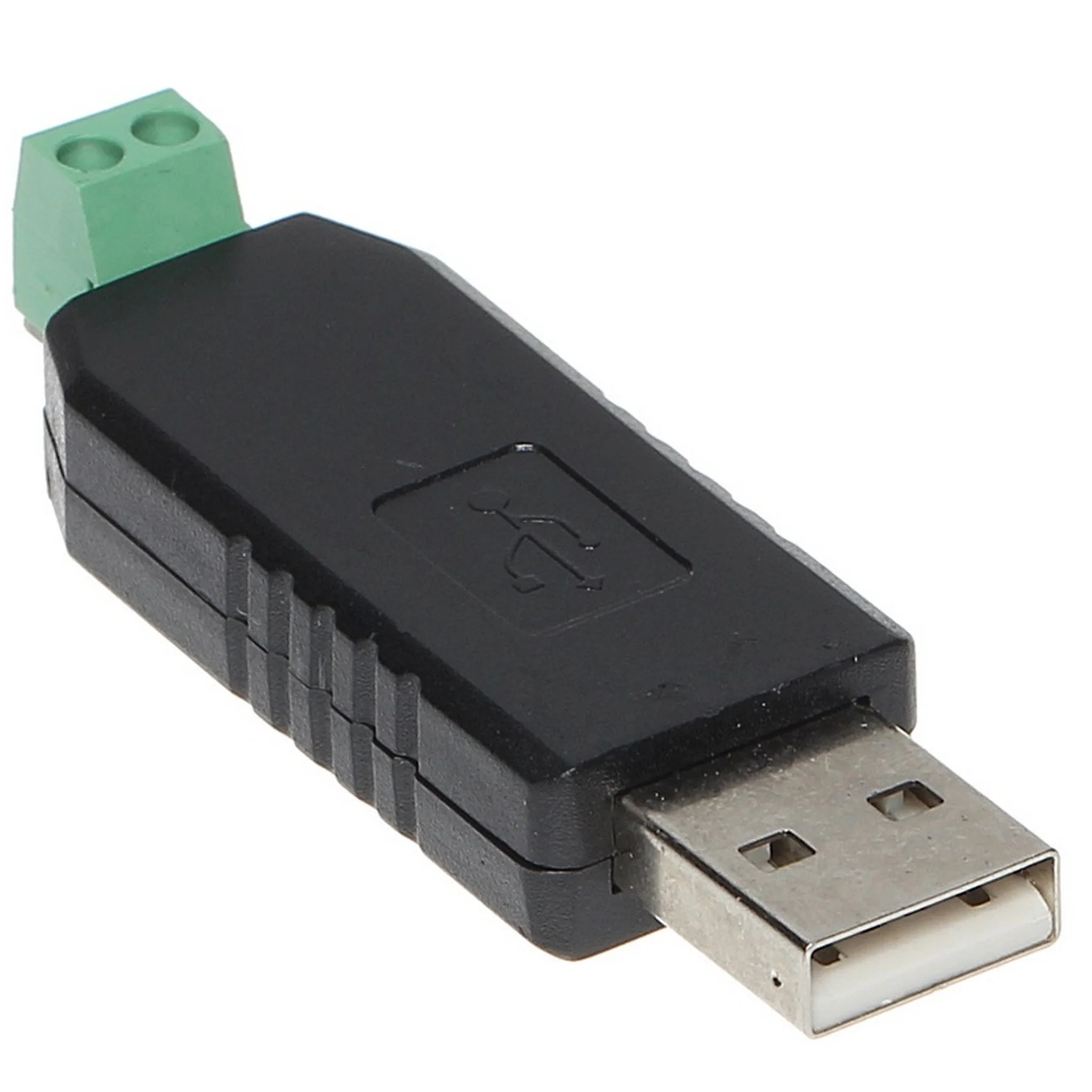

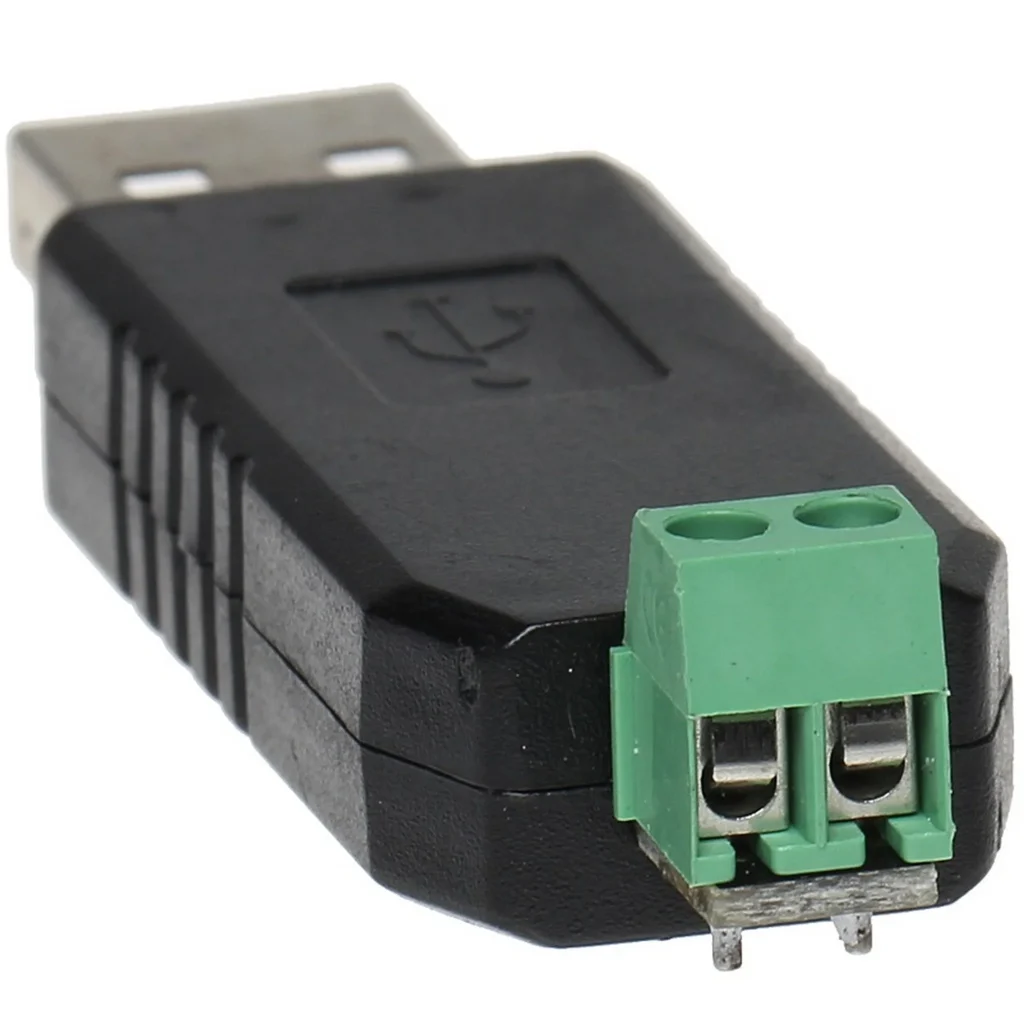

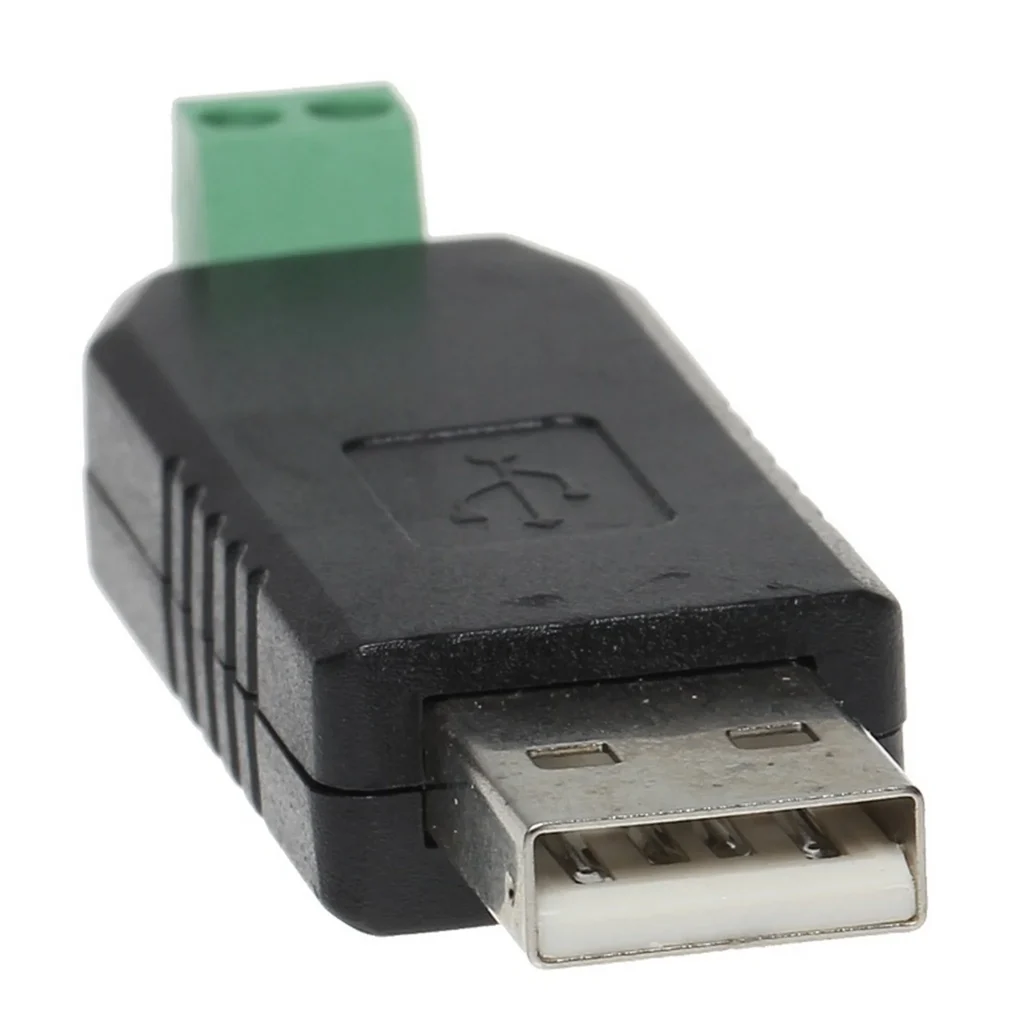

USB to RS485 Converter Adapter

The USB to RS485 Converter Adapter module support WIN7 XP Vista Linux Mac OS provides an easy to use RS485 interface by means of a Virtual Com Port on the user’s system.

There are no command structures, whatever is sent to the Virtual Comm Port is automatically converted to RS485 and vice versa. The module is completely self-powered from the USB bus.

Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play. It shows up as a serial/com port and is accessible from applications or hyper-terminal.

This converter provides half-duplex RS-485 communication. The Baud rate range is 75 bps to 115200 bps, maximum up to 6 Mbps. No need of external power supply for operation.

Color:	Black
Screw Terminal	2
Baud Rate(bps)	75 to 115200
Max. Baud Rate(Mbps)	6
Operating Temperature (°C)	-40 to 90
Communication Distance(m)	1200
Length (mm):	60
Width (mm):	18
Height (mm):	12
Weight (g):	20
Chipset	CH340

USB to RS485 Converter Adapter
