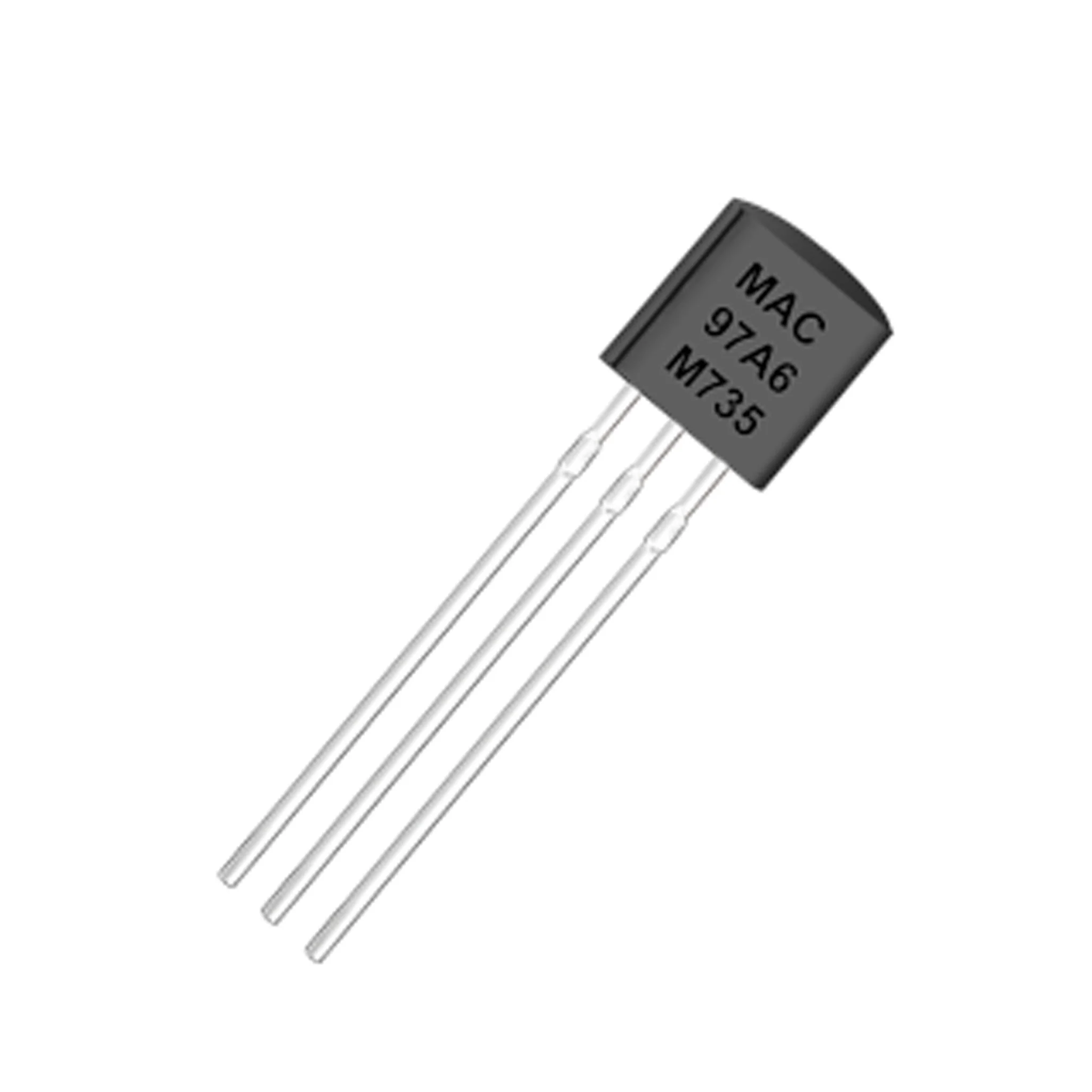

Triode MAC97A6 TO-92 0.6A/400V bidirectional thyristor

Gallery Image 1

Triode MAC97A6 TO-92 0.6A/400V bidirectional thyristor

€1.00

Product Weight: 0.0010KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-00Z037
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Bidirectional SCR/ thyristor TLC336A DIP

On-State RMS Current – It RMS:	0.6 A
Non Repetitive On-State Current:	8.8 A
Rated Repetitive Off-State Voltage VDRM:	400 V
Off-State Leakage Current @ VDRM IDRM:	3 uA
On-State Voltage:	1.4 V
Holding Current Ih Max:	10 mA
Gate Trigger Voltage – Vgt:	0.9 V
Gate Trigger Current – Igt:	4 mA
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package/Case:	TO-92-3
