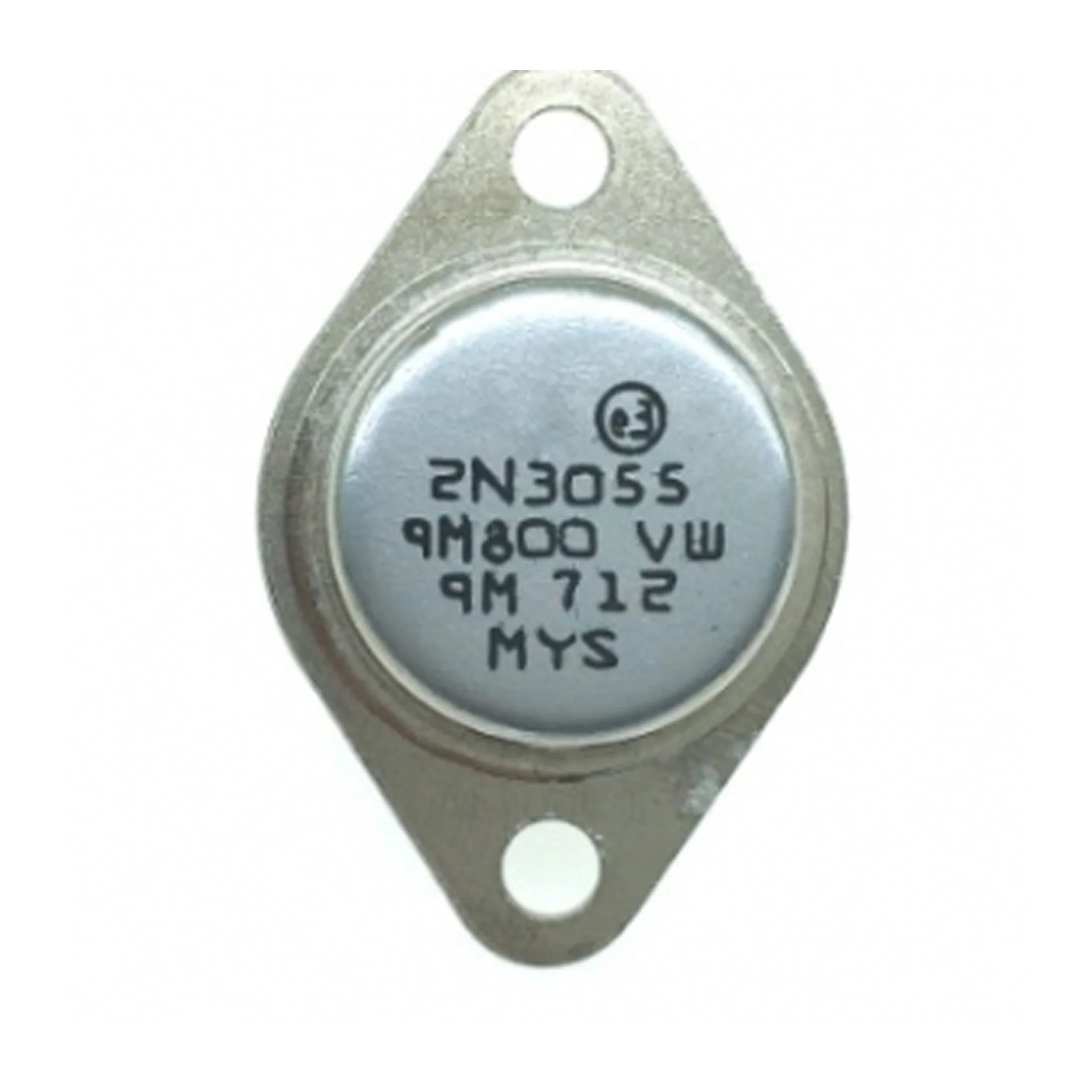

Transistor 2N3055 NPN 60V,15A, TO3

Product Weight: 0.0200KG

Product Category:	Bipolar Transistors – BJT
Transistor Polarity:	NPN
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	60 V
Collector- Base Voltage VCBO:	100 V
Emitter- Base Voltage VEBO:	7 V
Maximum DC Collector Current:	15 A
Pd – Power Dissipation:	115000 mW
Minimum Operating Temperature:	– 65 C
Maximum Operating Temperature:	+ 200 C
DC Collector/Base Gain hFE Min:	20 at 4 A, 4 V
