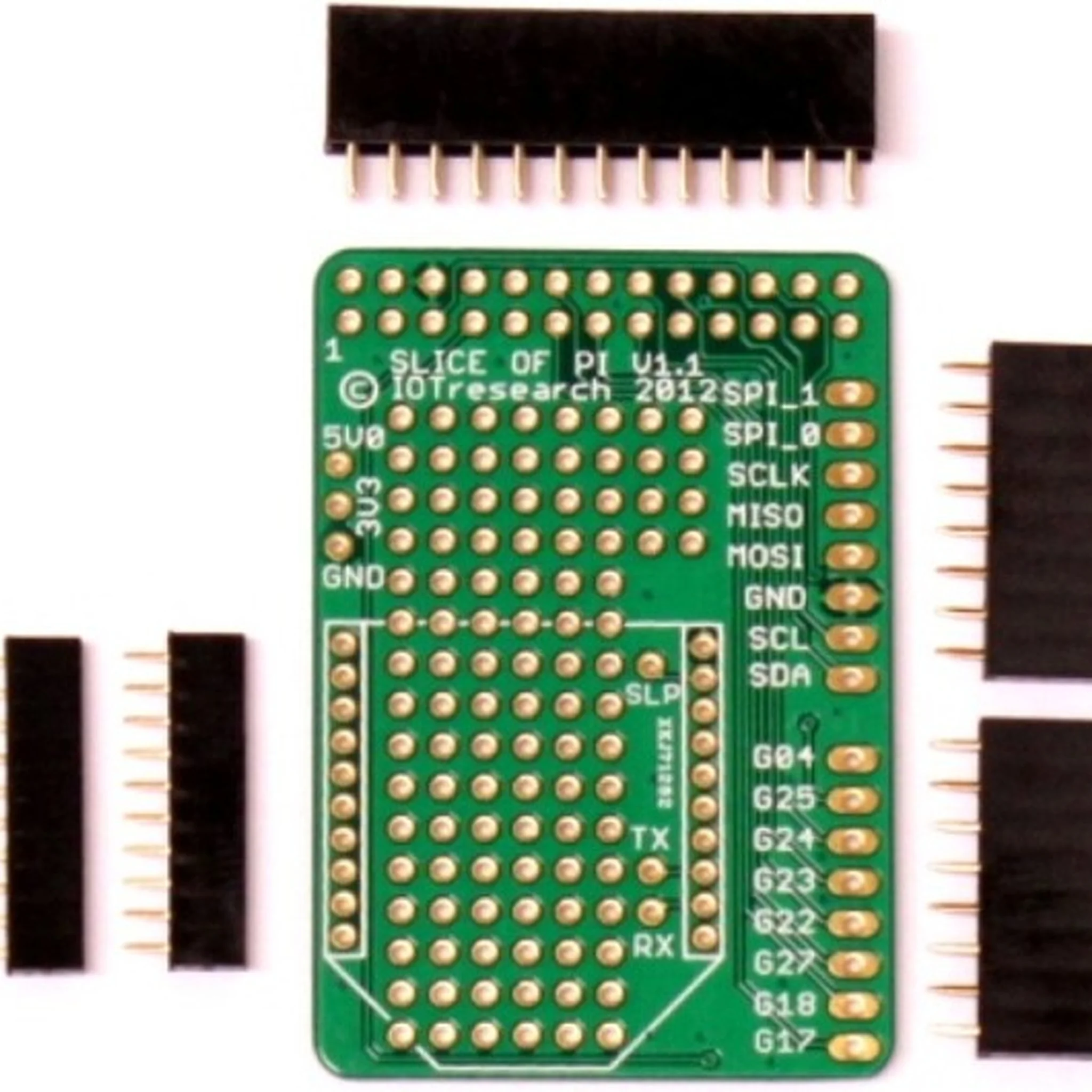

Slice of Pi – Raspberry Pi Addon Prototyping board

For everyone who has been waiting for a Raspberry Pi prototyping board, this convenient small breakout board is for you.

Useful as a general purpose prototyping board with access to SPI and I2C pins, GP0 through GP7, TX, RX and power.

It also includes an XBee style connector for XRF / XBee / RN-XV Radio modules.

Comes supplied as a kit of parts that needs to be soldered. Construction is very easy and suitable for everyone with basic soldering skills.

Header 1 (I2C and SPI)

8 way 0.1 pin male

Header 2 (GPIO)

8 way 0.1 pin male

Header 3 (XBee)

20 way 2mm pin female
connects to PI pin connects to PI pin connects to PI pin

SPI_1
SPI_0
SCLK
MISO
MOSI
GND
SCL
SDA

GP7
GP6
GP5
GP4
GP3
GP2
GP1
GP0

3V3
RX
TX
SLEEP
GND

Board Size: 5cm x 3.5cm

Related Products

Automation HAT
Automation HAT
Available
SKU : PIM-213
€ 83.00
RPi Relay Board
RPi Relay Board
Available
SKU : 48-011638
€ 31.00
SIM7600E-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G, GNSS, for Europe, Southeast Asia, West Asia, Africa
SIM7600E-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G, GNSS, for Europe, Southeast Asia, West Asia, Africa
Available
SKU : 48-17372
€ 151.00

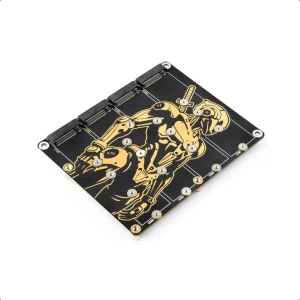

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, Supports 4-ch NVMe Solid State Drives, Supports Powering The Raspberry Pi 5, Raspberry Pi 5 NVMe
PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, Supports 4-ch NVMe Solid State Drives, Supports Powering The Raspberry Pi 5, Raspberry Pi 5 NVMe
Available
SKU : 48-30674
€ 71.00

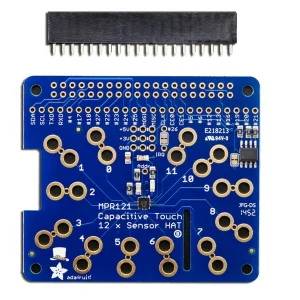

Adafruit Capacitive Touch HAT for Raspberry Pi – Mini Kit – MPR121
