Physical

Size (HxWxD):

85x85x30 mm / 3.35×3.35×1.18 inch

Weight:

180 g / 6.35 oz

Screw terminals max torque:

0.4 Nm / 4.43 lbin

Conductor cross section:

0.5 to 2.5 mm? / 20 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

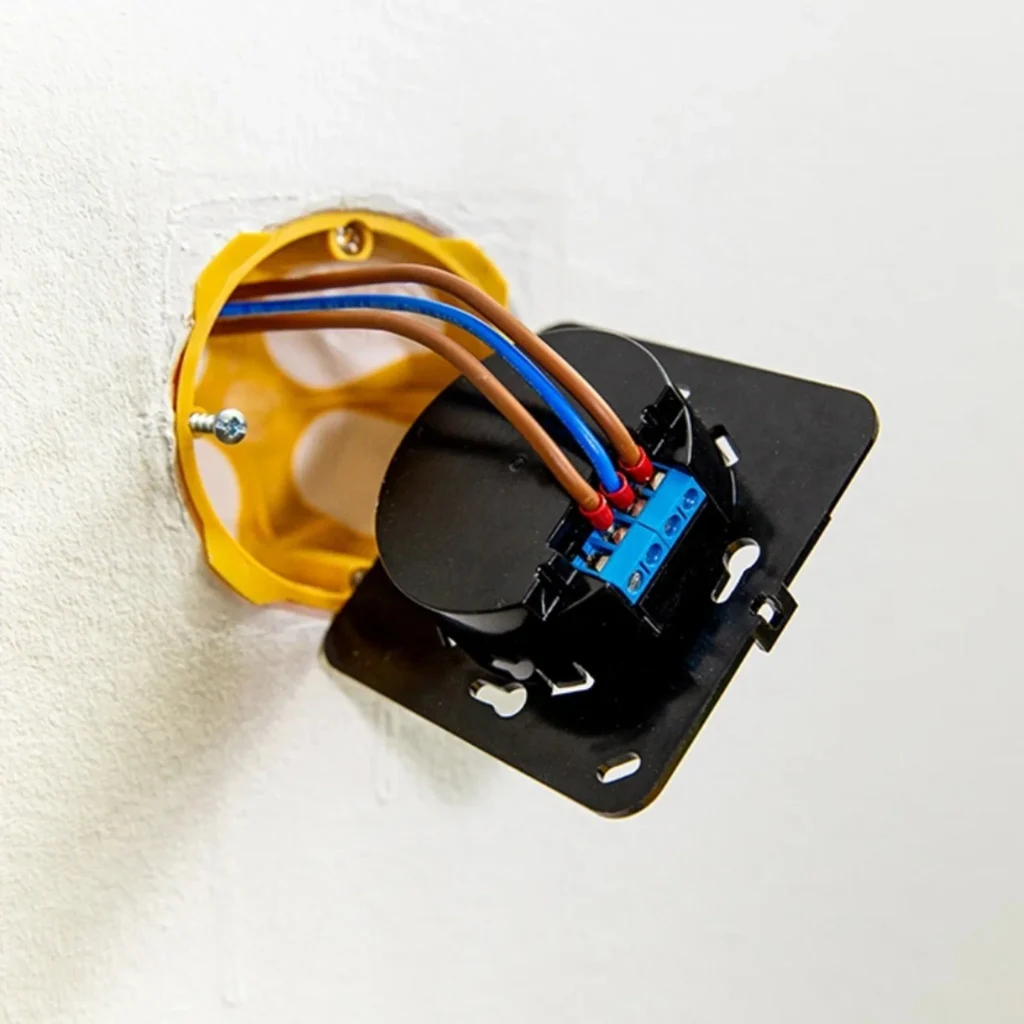

Mounting:

Wall box

Shell material:

Plastic, aluminum, glass

Shell color:

Black or white

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

230 VAC, 50/60Hz

Power consumption:

< 1 W

Output circuits ratings

Max. switching voltage:

230 VAC

Max. switching current:

5 A

Sensors, meters

Internal-temperature sensor:

No

Ambient temperature sensor

Yes

Humidity sensor:

Yes

Light sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2401 – 2495 ÌHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 – 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

MTK6580

RAM:

1 GB

Flash:

8 GB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 2 URLs per hook…

Scripting:

No

MQTT:

Yes
