Product Weight: 0.0700KG

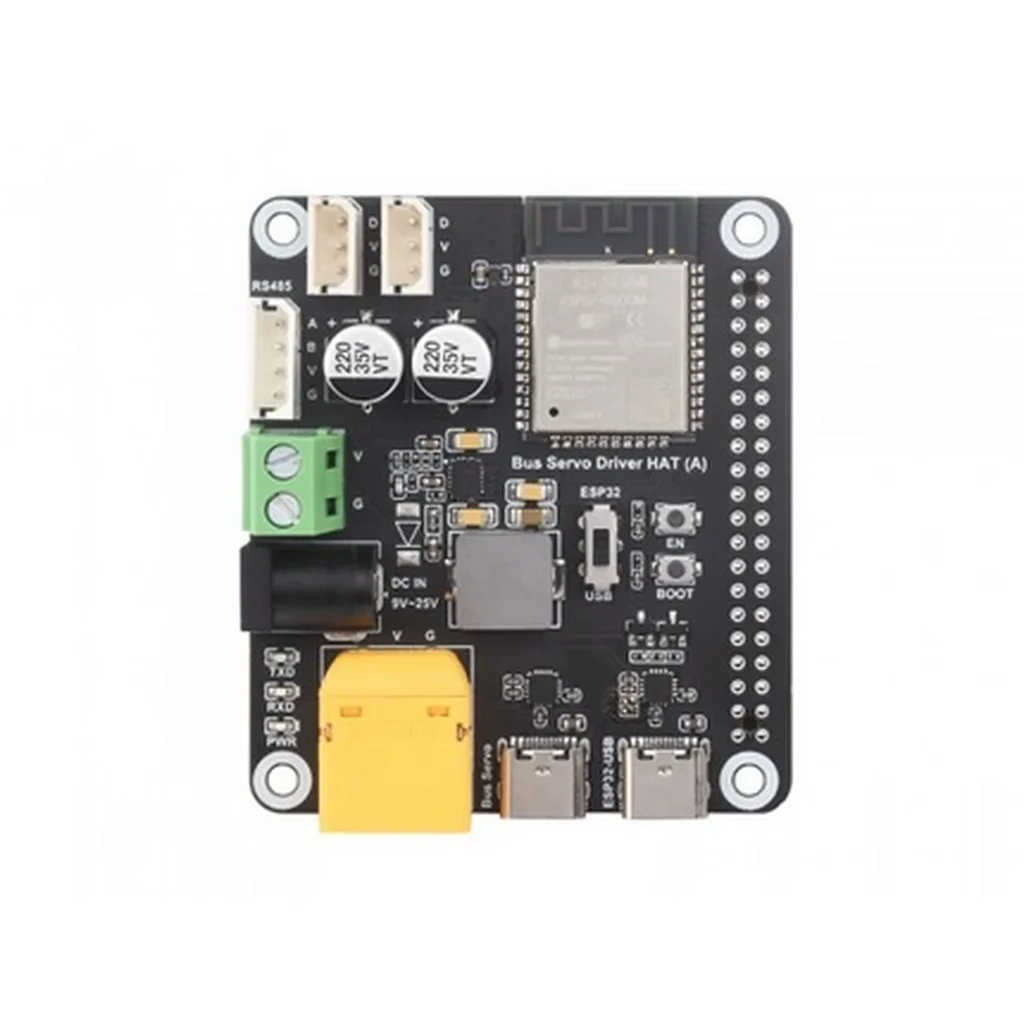

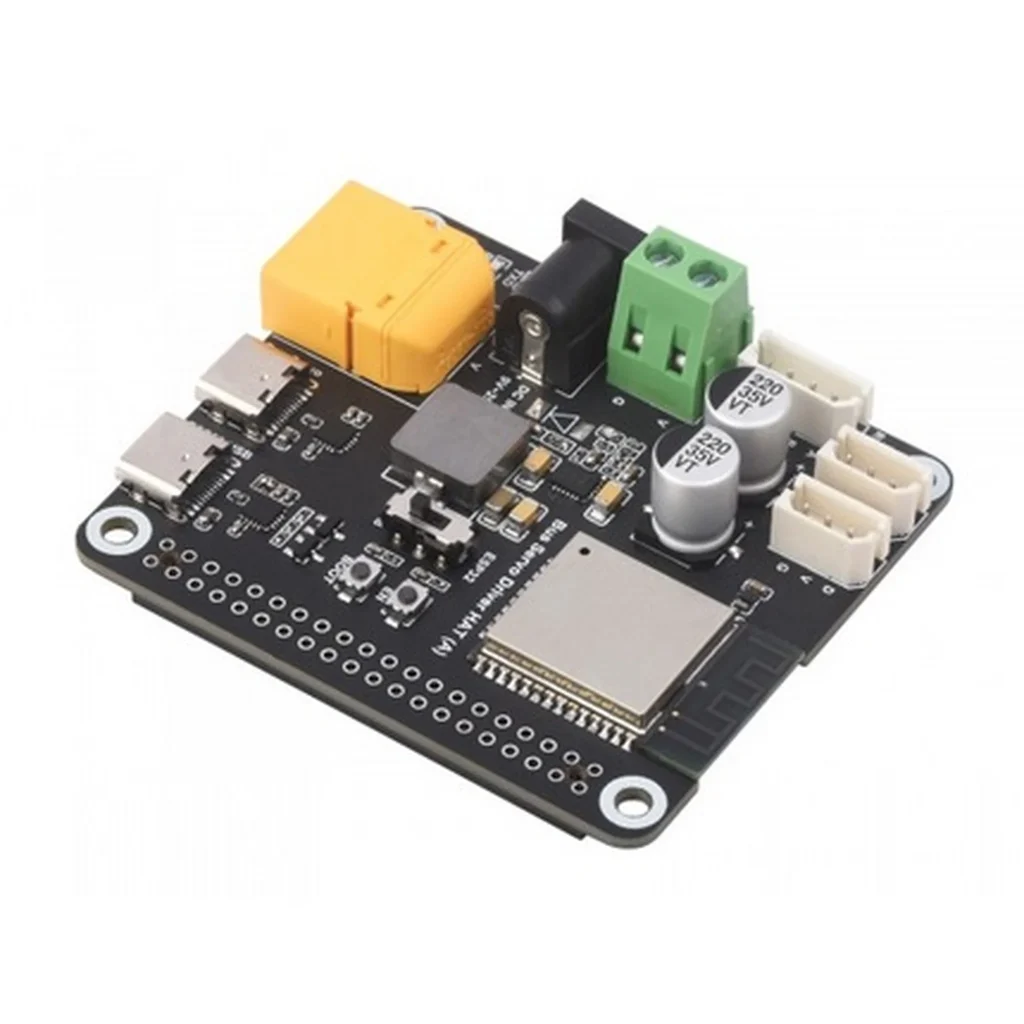

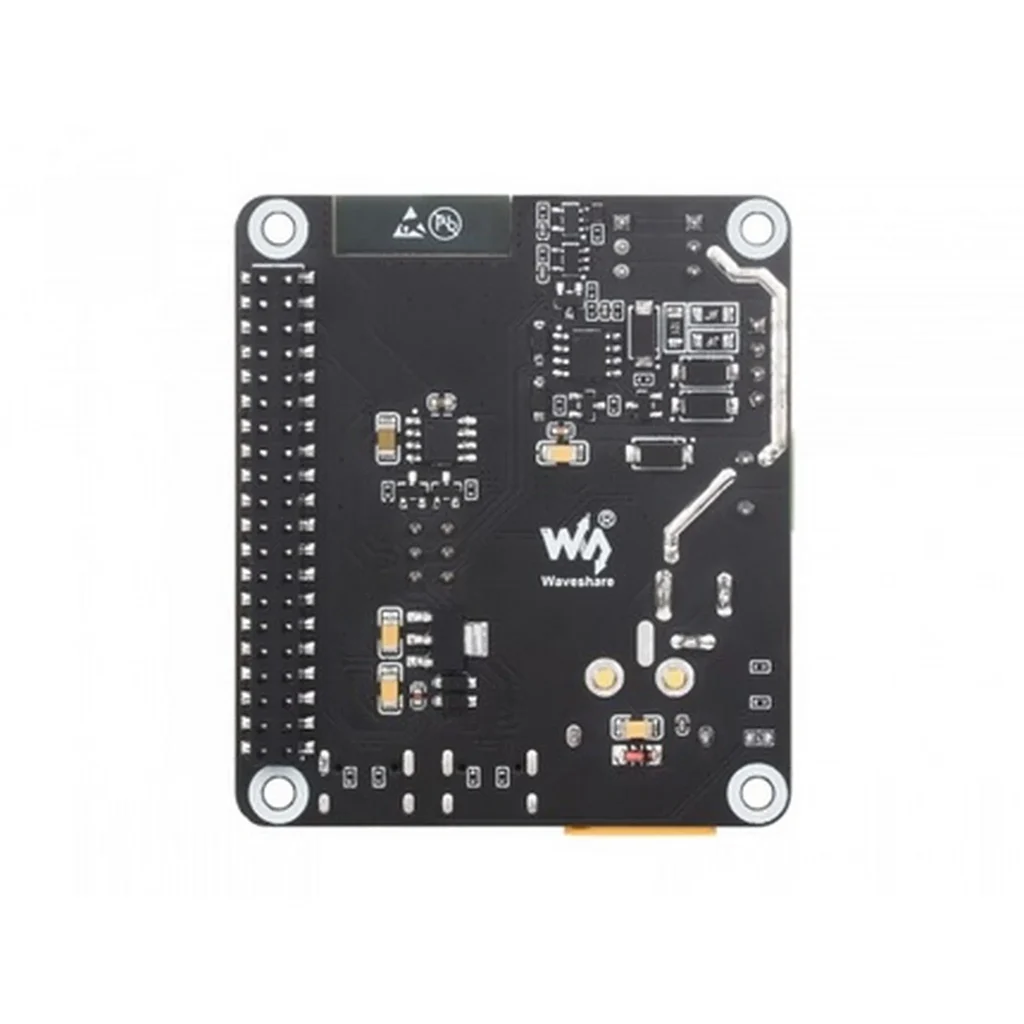

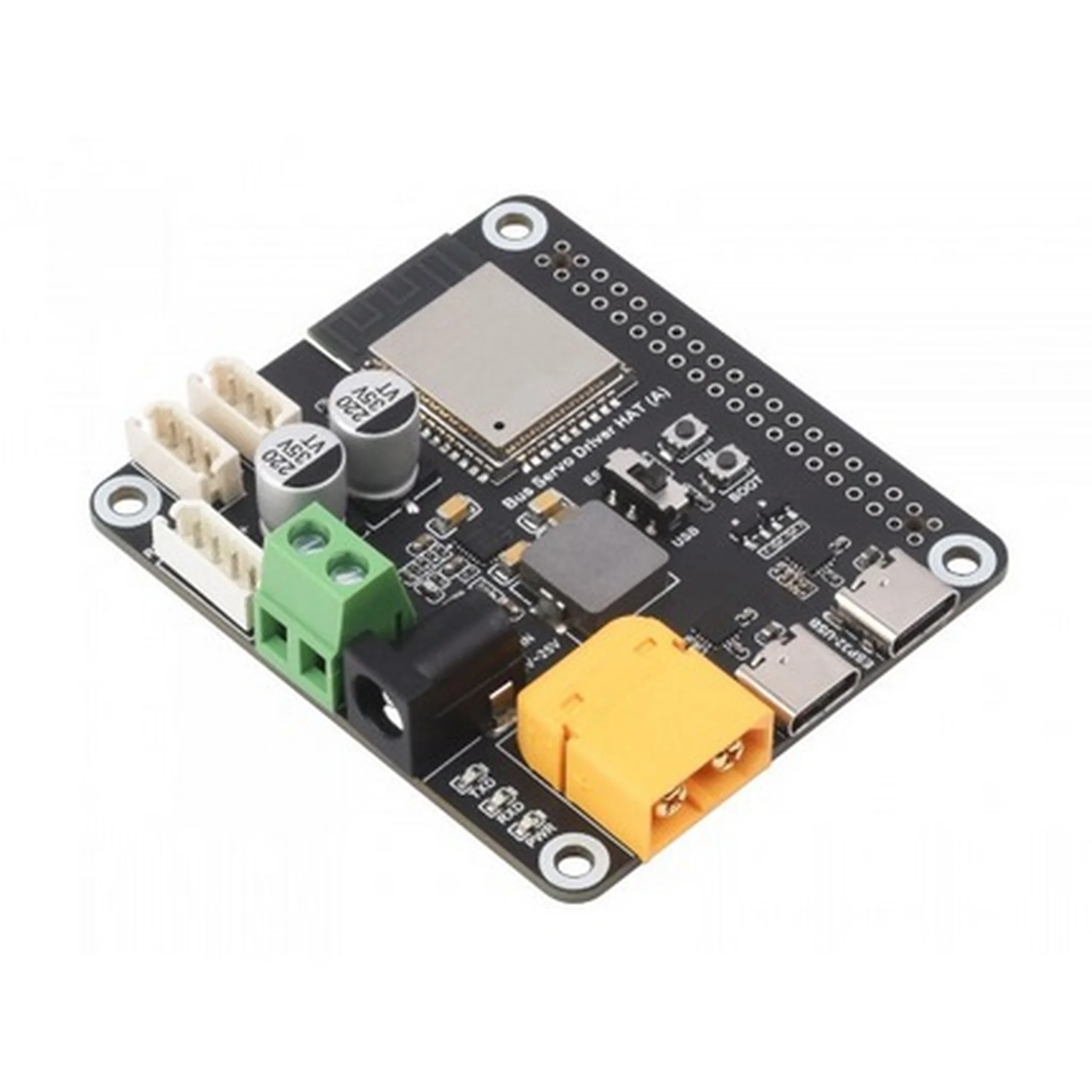

Designed for Serial Bus Servos, Integrates ESP32 and Servo Control Circuit
Allows controlling up to 253 serial bus servos at the same time via ESP32 UART or USB port, can be used as the main controller of the robotics projects
| Controller | ESP32-WROOM-32 |
|---|---|
| Power supply Port | XT60 connector, 5.5×2.5 mm DC jack |
| Power Supply | 9~25V (the input voltage and the servo voltage must be matched) |
| Communication interface | UART, USB Type-C port × 2 |
| Wireless communication | 2.4G WiFi |
| Mounting hole diameter | 3 mm |
| mounting hole spacing | 58×49 mm |
| PCB size | 65×57 mm |
* images here are for reference ONLY
Supports ST / RSBL series bus servos and selecting power supply input according to the servo used
Allows controlling up to 253 serial bus servos at the same time
* for reference only, the servos in the picture are NOT included.
Supports sending JSON commands to ESP32 for controlling the serial bus servos, or directly sending control commands to the servos via USB Type-C port. Comes with Python demo.
The Bus Servo Driver HAT (A) Will Automatically Establish A Hotspot after Powering on, Allows Users To Connect And Control The Driver board Via Mobile Phones, Tablets And PCs with the Cross-Platform Web Application we provided
Supports powering the Pi and communicating through GPIO UART interface, neat cable management
Built-In WiFi And Bluetooth, As Well As ESP-NOW Support, For Remote Control And Servo Debugging
