Product Weight: 0.0100KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

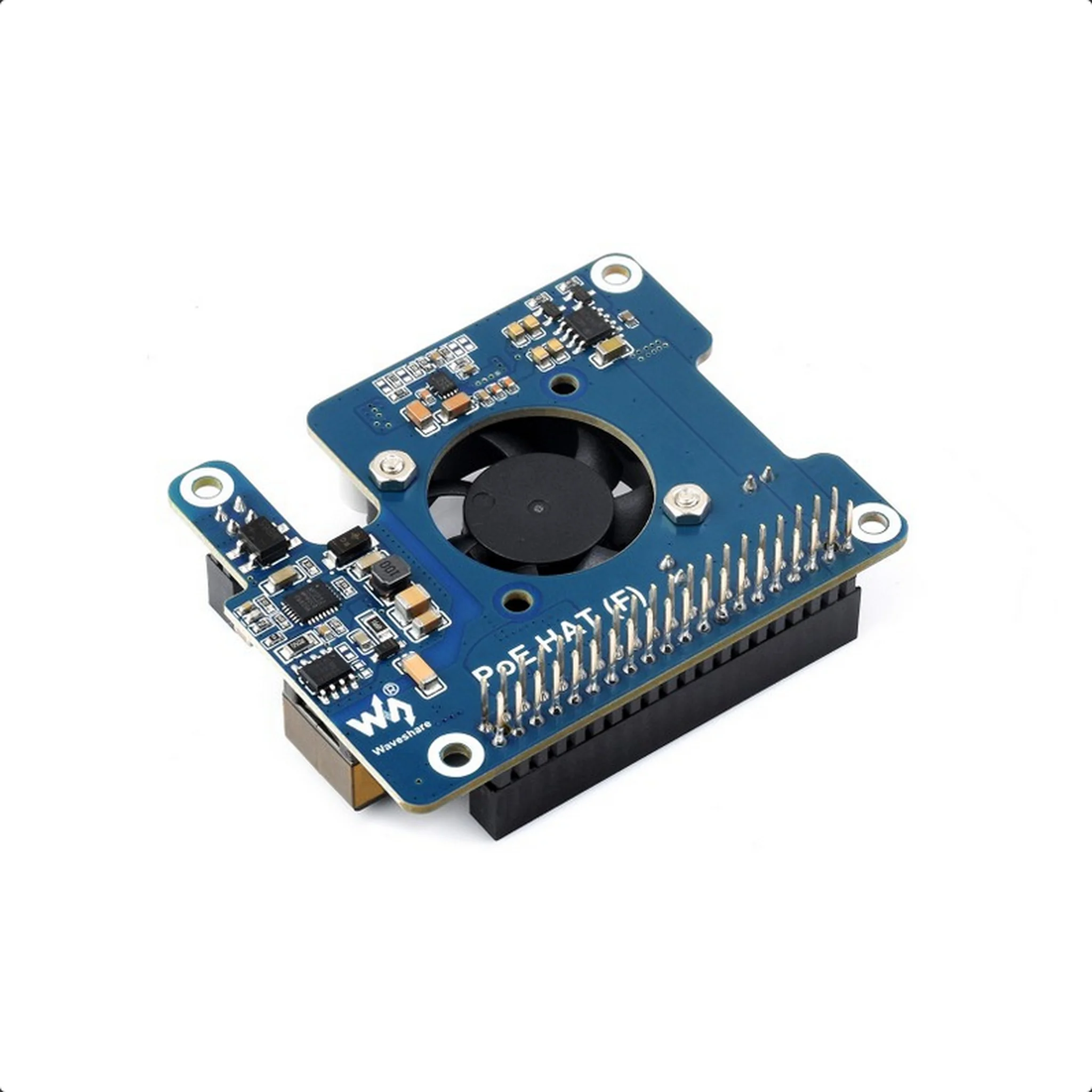

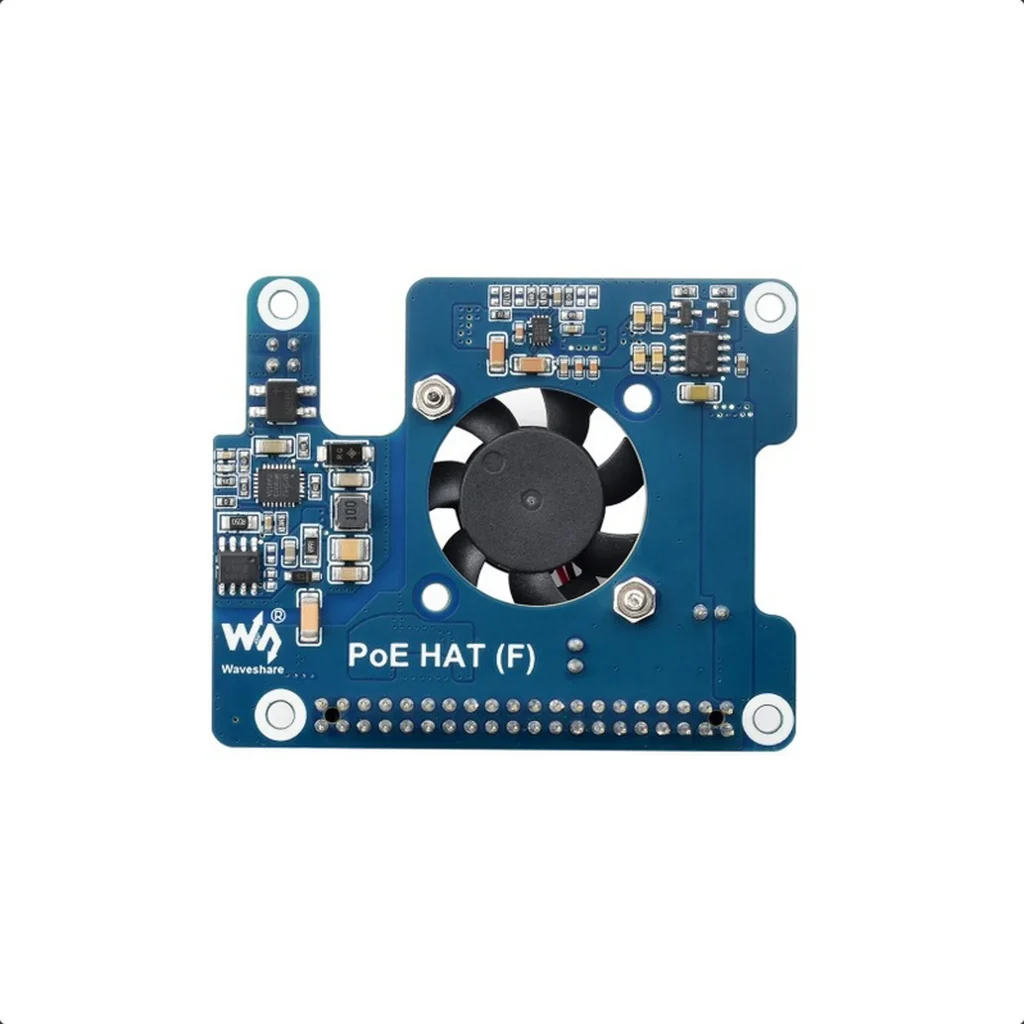

Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard
12V and 5V power outputs to support more peripherals
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |
| Dimensions | 56.5 × 70.0mm |
| Network standard | IEEE 802.3af/at PoE |
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

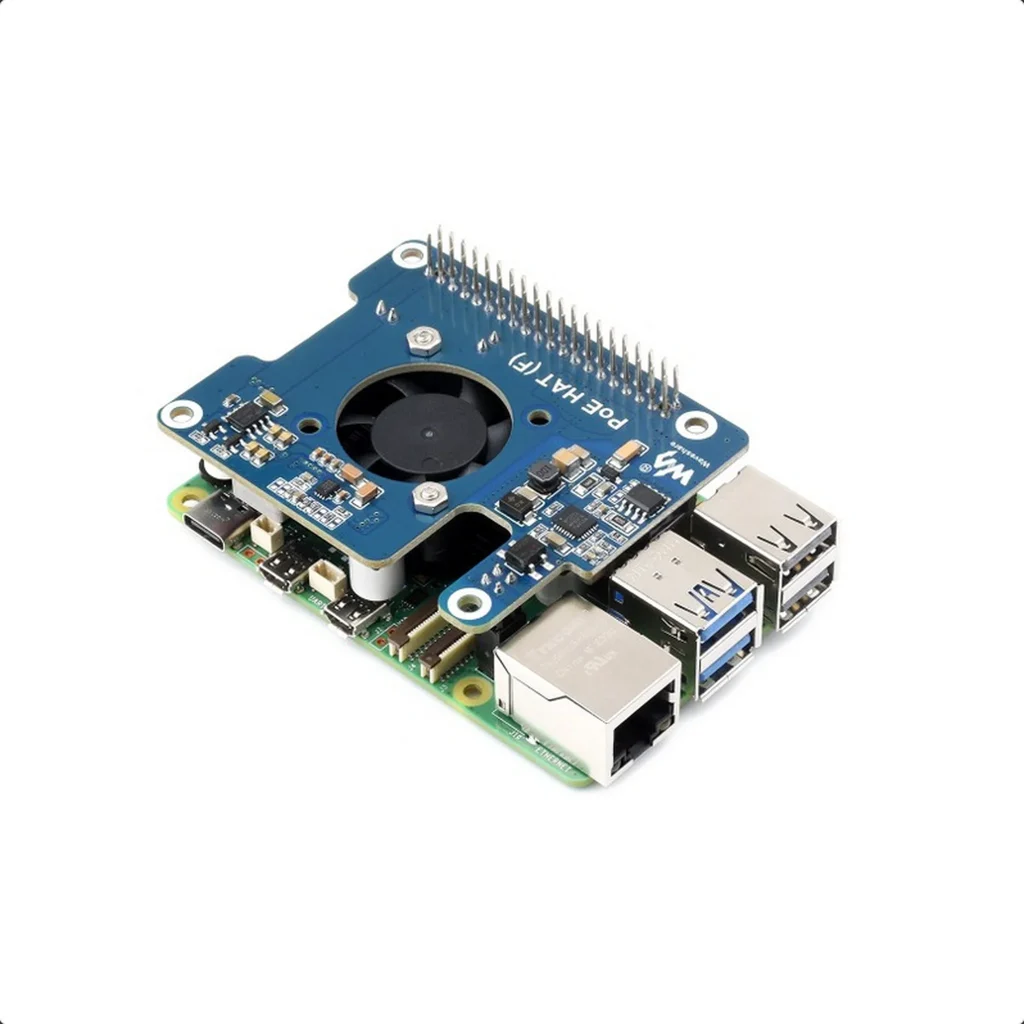

providing both network connection and power supply for your Raspberry Pi in one cable
5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

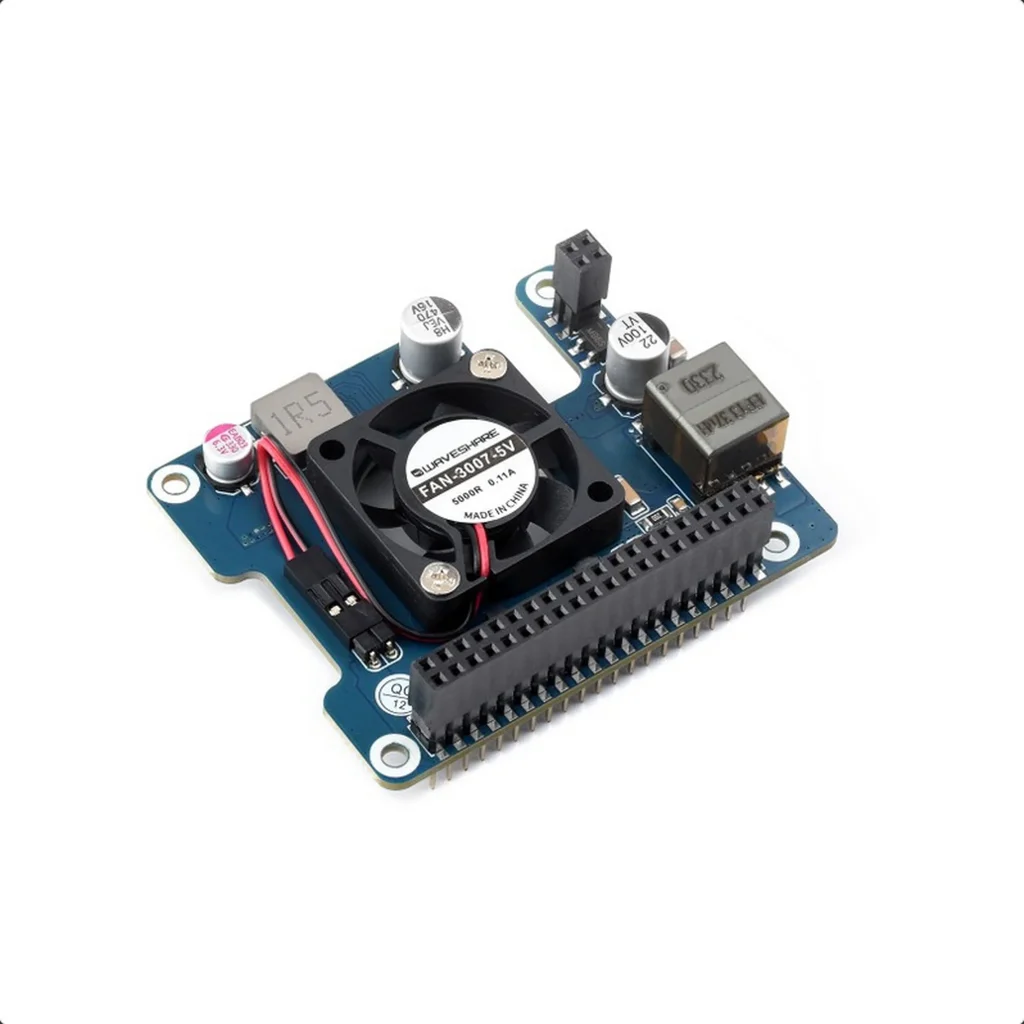

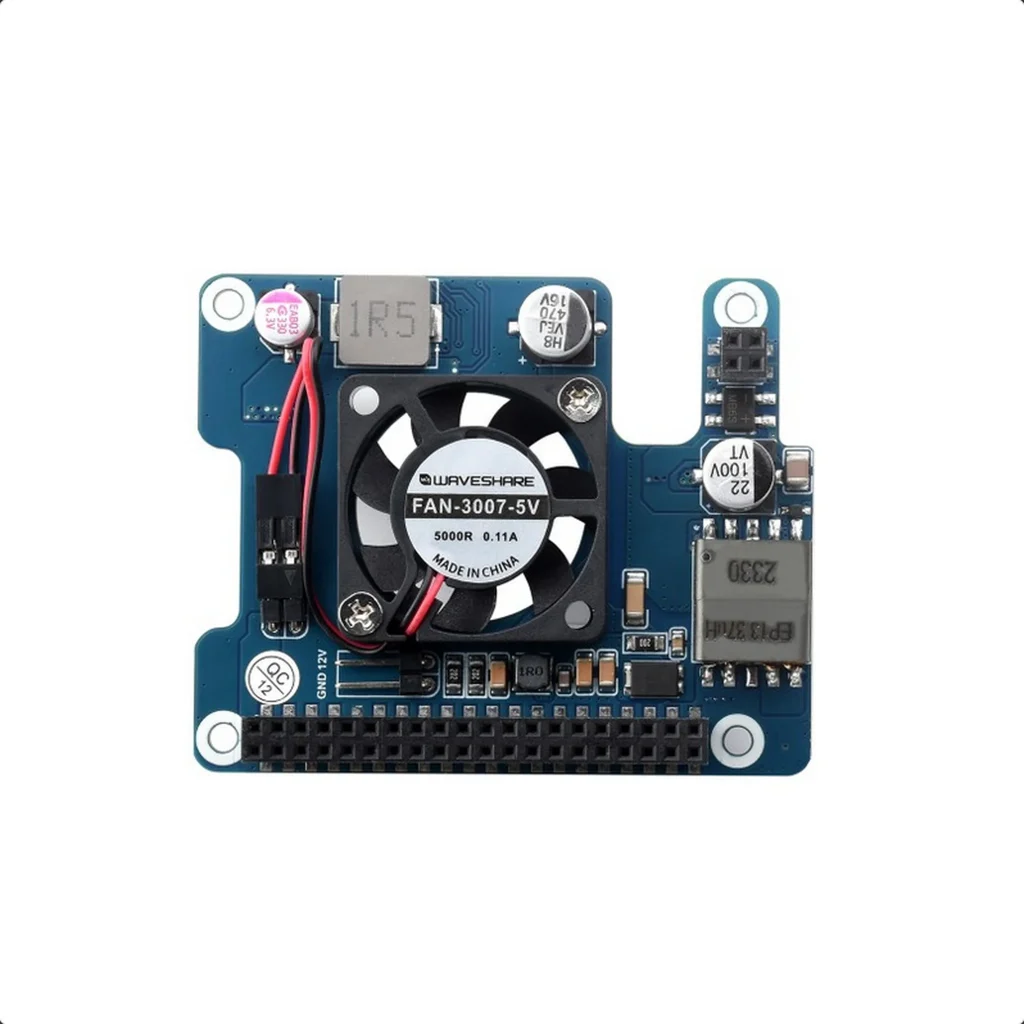

Accelerate Cooling Effect, More Stable Performance
Incorporates original voltage buck chip
providing up to 5A under sufficient heat dissipation condition
Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
* for reference only, please refer to the Package Content for detailed part list
