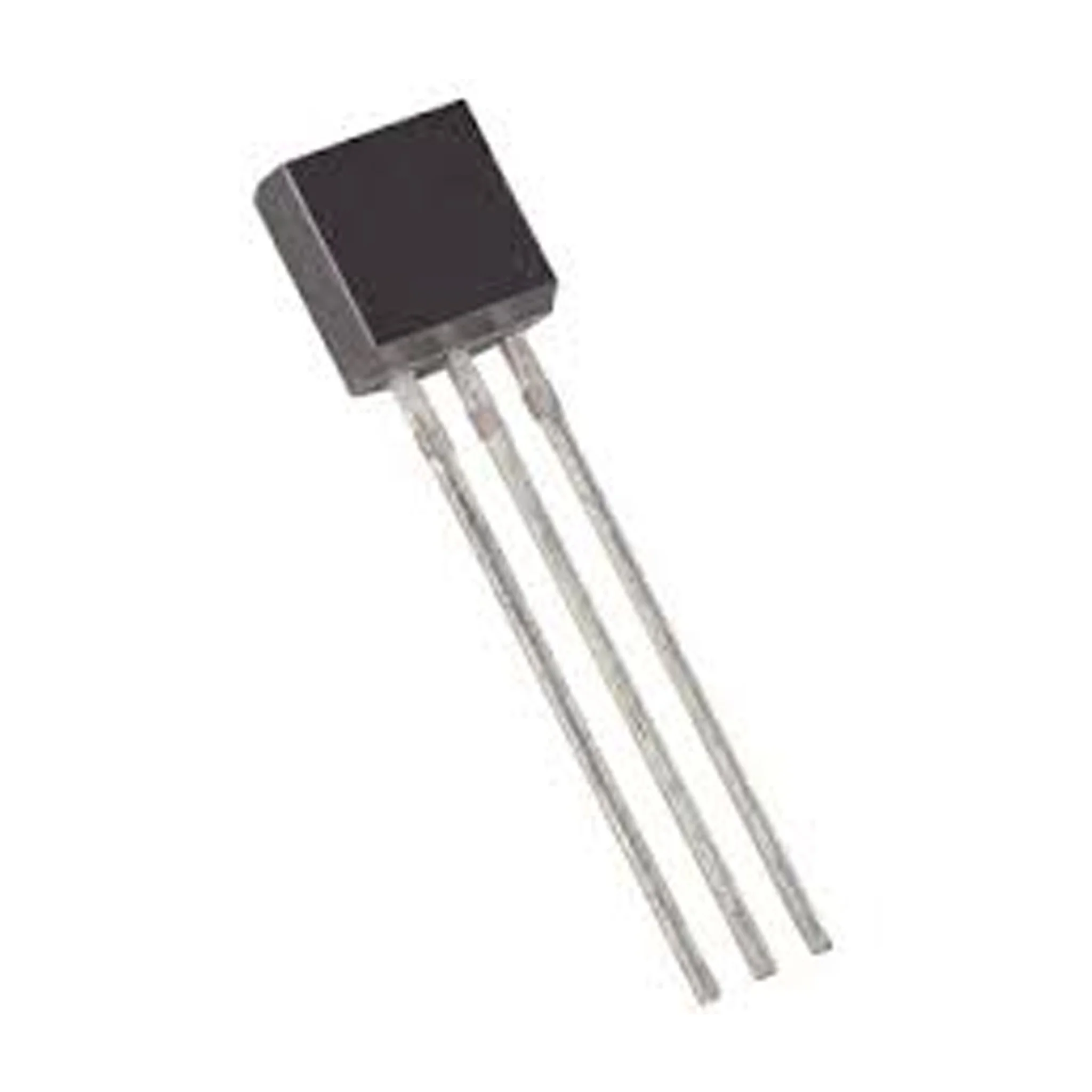

One way SCR / thyristor BT169 0.8A/400V TO-92

One way SCR / thyristor BT169 0.8A/400V TO-92

€1.00

Product Weight: 0.0010KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-00Z041
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

One way SCR / thyristor BT169 0.8A/400V TO-92

Rated Repetitive Off-State Voltage VDRM:	400 V
Off-State Leakage Current @ VDRM IDRM:	–
On-State RMS Current – It RMS:	0.8 A
Vf – Forward Voltage:	–
Maximum Gate Peak Inverse Voltage:	5 V
Gate Trigger Voltage – Vgt:	0.5 V
Gate Trigger Current – Igt:	50 uA
Minimum Operating Temperature:	– 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package/Case:	TO-92-3
Holding Current Ih Max:	5 mA
Non Repetitive On-State Current:	8 A
Product Type:	SCRs
