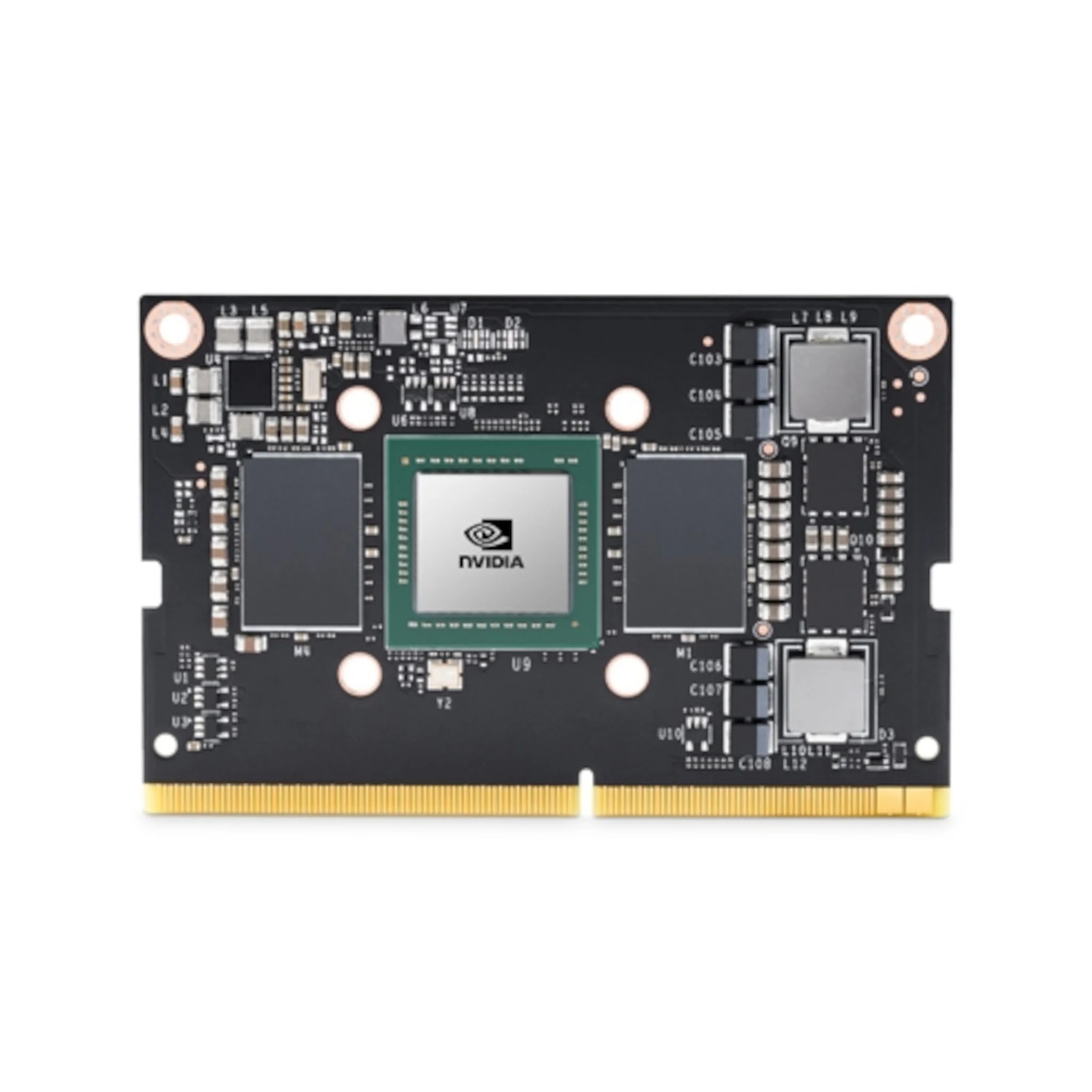

NVIDIA JETSON XAVIER NX MODULE 16GB

Description

Jetson Xavier NX 16GB delivers up to 21 TOPS for running modern AI workloads, consumes as little as 10 watts of power, and has a compact form factor smaller than a credit card. Customers can leverage the 16GB memory with their real time AI pipelines to run complex applications with multiple neural networks, processing data in parallel from high-resolution sensors. This opens the door for embedded and edge computing devices that demand increased performance but are constrained by size, weight, and power budgets.

Feautures

• 384-Core Volta GPU
• 6-Core ARM 64 Bit CPU
• 16 GB 128-bit LPDDR4
• 16 GB eMMC

Technical information

• AI Performance: 21 TOPS (INT8)
• GPU: 384-core NVIDIA Volta GPU with 48 Tensor Cores
• CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU / 6MB L2 + 4MB L3
• CPU Max Freq: 2-core @ 1900MHz / 4/6-core @ 1400Mhz
• DL Accelerator: 2x NVDLA Engines
• Vision Accelerator: 2x PVA
• Memory: 16 GB eMMC 5.1
• Power: 10W | 15W | 20W
• PCIe 1 x1 + 1×4 / (PCIe Gen3, Root Port & Endpoint)
• CSI: Up to 6 cameras (36 via virtual channels) / 14 lanes MIPI CSI-2 / D-PHY 1.2 (up to 30 Gbps)
• Video Encode: 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) / 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264)
• Video Decode: 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) / 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
• Display: 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
• Power: 10/100/1000 BASE-T Ethernet
• Mechanical: 45 mm x 69.6 mm / 260-pin SO-DIMM connector

 ** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
