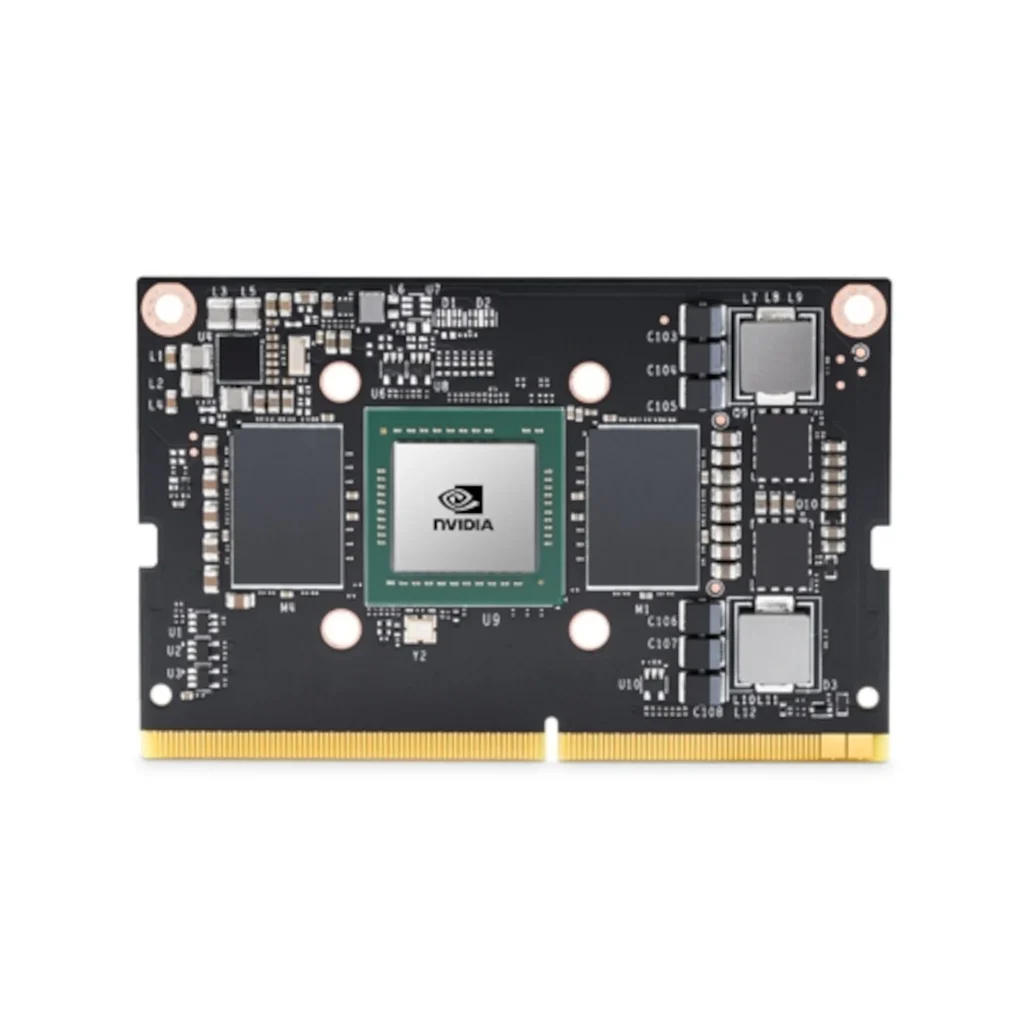

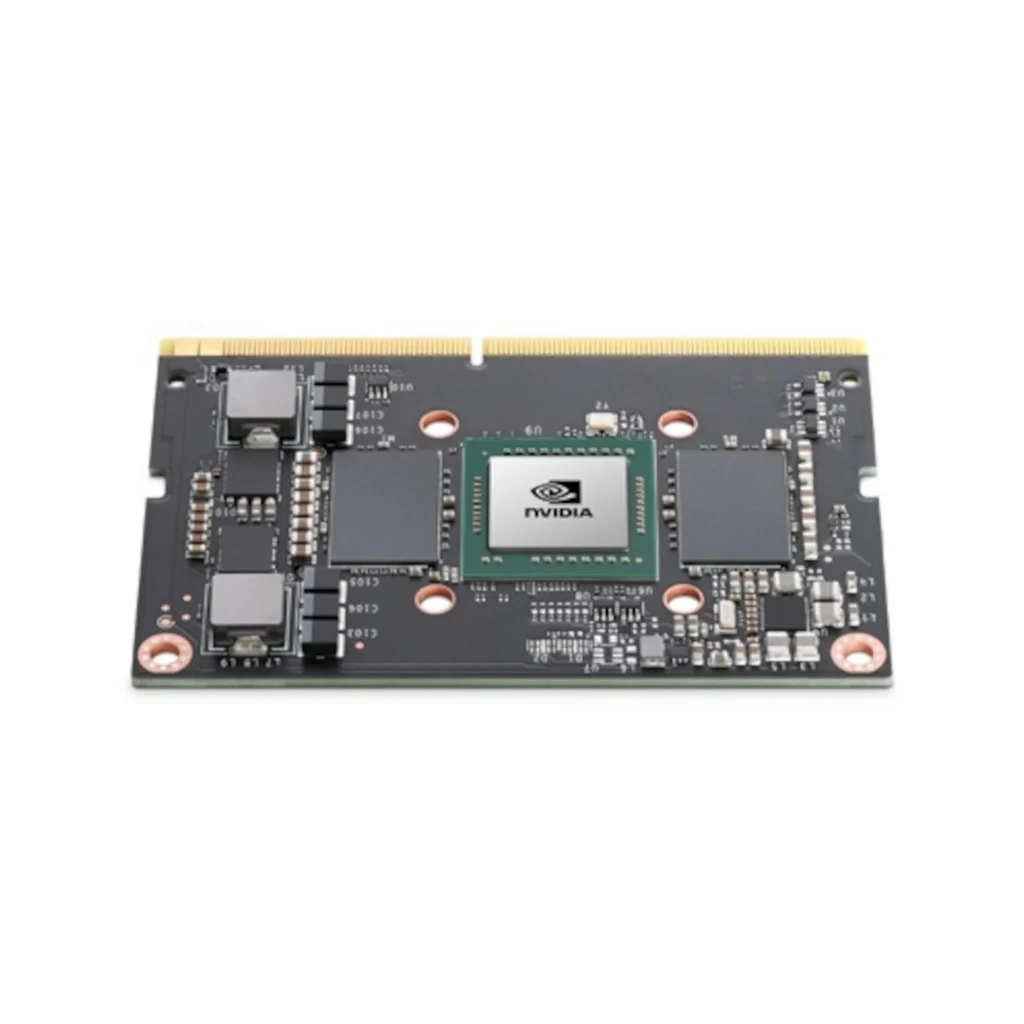

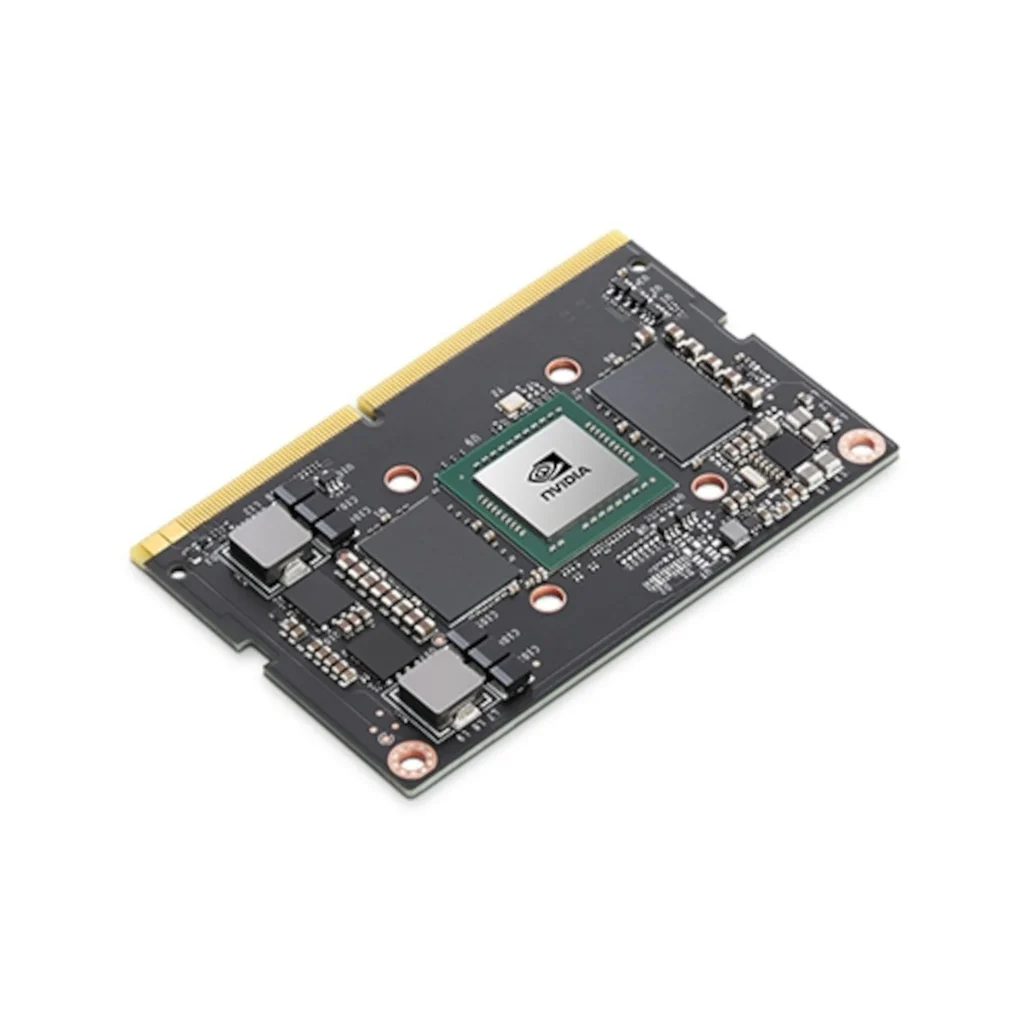

NVIDIA Jetson TX2 NX Module

Description

NVIDIA Jetson TX2 NX delivers the next step in AI performance for entry level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier NX.

The compact, power efficient Jetson TX2 NX system-on-module (SOM) is perfect for creating mass-market AI products in the fields of manufacturing, logistics, retail, service, agriculture, smart city, and healthcare and life sciences. Intelligent machine OEMs can now scale their product offerings with pin-compatible Jetson modules,while leveraging cloud native technologies to build, deploy, and manage the same software across all of them.

Pre-trained AI models from NVIDIA NGC, together with the NVIDIA Transfer Learning Toolkit, provide a faster path to inference with optimized AI networks, while containerized deployments bring flexible and seamless updates.

NVIDIA JetPack SDK enables development of AI applications for Jetson TX2 NX with accelerated libraries supporting all major AI frameworks, as well as computer vision, graphics, multimedia, and more. Together with the latest NVIDIA tools for application development and optimization, JetPack ensures fast time to market and reduced development costs.

Ease of development and speed of deployment—plus a unique combination of form-factor, performance, and power advantage—make Jetson TX2 NX the ideal mass-market AI product platform to get to market and continuously update over the lifetime of a product.

Feautures

• NVIDIA Pascal architecture with 256 NVIDIA CUDA cores
• Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm Cortex-A57 MPCore processor complex
• 4GB 128-bit LPDDR4
• 16 GB eMMC 5.1
• 10/100/1000 Base-T Ethernet
• Voltage Input: 5V
• Module Power: 7.5W -15W

Technical information

• AI Performance: 1.33 TFLOPS
• GPU: NVIDIA Pascal architecture with 256 NVIDIA CUDA cores
• Max GPU Freq: 1.3GHz
• CPU: Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm Cortex-A57 MPCore processor complex
• CPU Max Freq: 2.0GHz
• Memory: 4GB 128-bit LPDDR451.2GB/s
• Storage: 16GB eMMC 5.1
• Power: 7.5W | 15W
• PCIe: Gigabit Ethernet, Wi-Fi
• CSI Camera: Up to 5 cameras (12 via virtual channels)12 lanes MIPI CSI-2 (3×4 or 5×2)D-PHY 1.2 (up to 30Gbps)
• Video Encode: 1x 4Kp60 | 3x 4Kp30 | 4x 1080p60 | 8x 1080p30 (H.265)1x 4Kp60 | 3x 4Kp30 | 7x 1080p60 | 14x 1080p30 (H.264)
• Video Decode: 2x 4Kp60 | 4x 4Kp30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264
• Display: 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.01x 2 DSI (1.5Gbps/lane)
• Networking: 10/100/1000 Base-T Ethernet
• USB: 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.01x 2 DSI (1.5Gbps/lane)
• Other IOs: 1x SDIO | 2x SPI | 3x UART | 4x I2S | 4x I2C | 1x CAN | GPIOs
• Mechanical : 45 mm x 69.6 mm 260 pin SO-DIMM edge connector

 ** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
