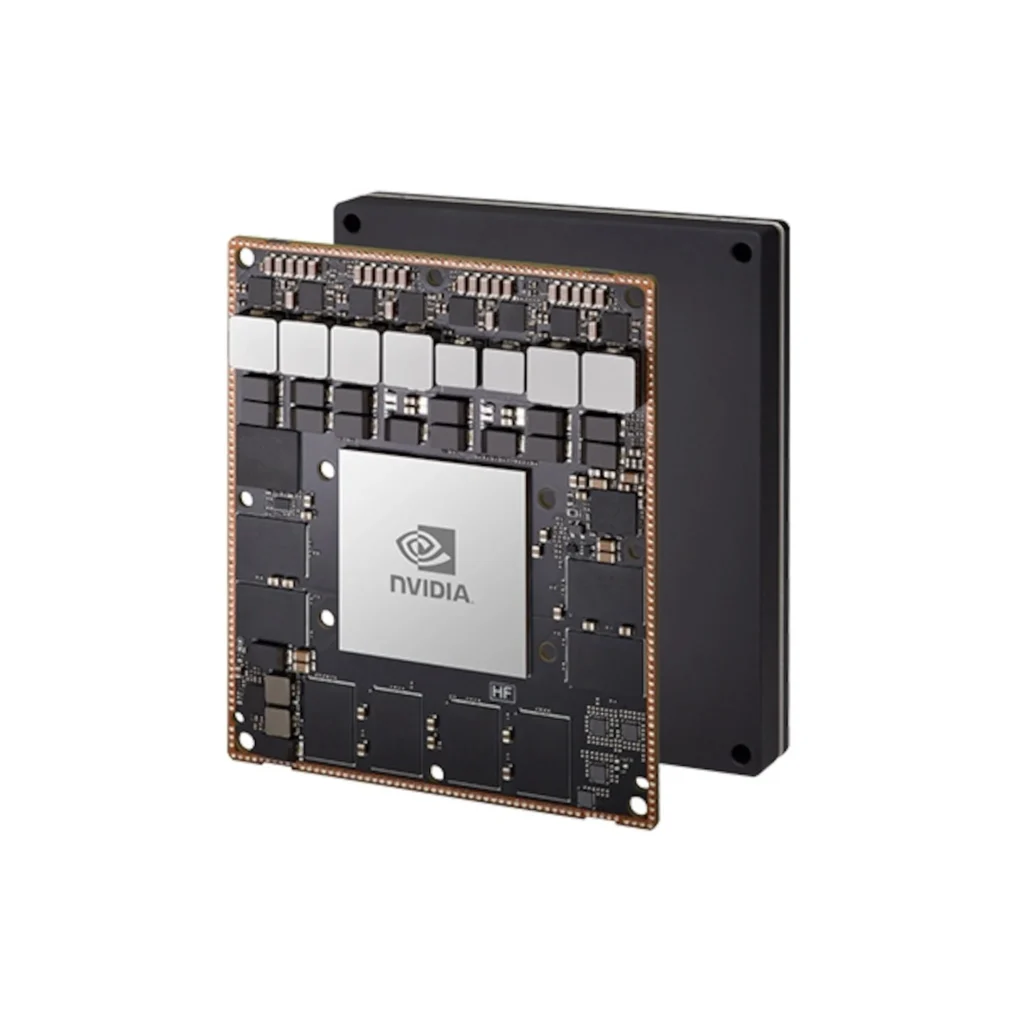

NVIDIA Jetson AGX Xavier Module 64GB

Description

The Jetson AGX Xavier 64GB module makes AI-powered autonomous machines possible, running in as little as 10W and delivering up to 32 TOPs. Customers can leverage the 64GB memory to store multiple AI models, run complex applications, and enhance their real time pipelines. As part of the world’s leading AI computing platform, it benefits from the rich set of NVIDIA AI tools and workflows, enabling developers to train and deploy neural networks quickly. Jetson AGX Xavier 64GB is supported by NVIDIA JetPack SDK, which can help you save development effort and expense.

Feautures

• 512-Core NVIDIA Volta GPU with Tensor Cores
• (2x) NVDLA Engines
•
8-Core ARM v8.2 64-Bit Carmel CPU
•
64GB 256-bit LPDDR4x 136.5GB/s
•
32GB eMMC 5.1 Flash Storage
•
7-Way VLIW Vision Accelerator Processor
• Voltage input: 5 V, 9 V~20 V

• Module Power: 10 W~30 W
• Operating temperature: -25 C to 80 C measured on the TTP surface
•
Storage temperature: -25 C to 80 C

• Humidity: 95% RH, -10 C to 65 C (non-operational)

• Vibration: 5 G RMS 10 to 500 Hz (random/ sinusoidal)

• Shock: 50 G, half sine 11 ms duration

Technical information

• GPU: NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores / 22 TOPS (INT8)
• DL Accelerator: 2x NVDLA 10 TOPS (INT8)
• CPU: 8-core NVIDIA Carmel Arm v8.2 64-bit CPU / 8MB L2 + 4MB L3
• Memory: 64GB 256-bit LPDDR4x / 136.5GB/s
• Display: Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b
• Storage: 32GB eMMC 5.1
• Vision Accelerator: 2x PVA
• Video Encode: 4x 4K60 | 8x 4K30 | 16x 1080p60 | 32x 1080p30 (H.265) / 4x 4K60 | 8x 4K30 | 14x 1080p60 | 30x 1080p30 (H.264)
• Video Decode: 2x 8K30 | 6x 4K60 | 12x 4K30 | 26x 1080p60 | 52x 1080p30 (H.265) / 4x 4K60 | 8x 4K30 | 16x 1080p60 | 32x 1080p30 (H.264)
• CSI: Up to 6 cameras (36 via virtual channels) / 16 lanes MIPI CSI-2 / D-PHY 1.2 (up to 40Gbps) / C-PHY 1.1 (up to 62Gbps)
• UPHY: 8x PCIe Gen4 / 3x USB 3.1 / Single Lane UFS
• Other: USB 2.0 / UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs
• Networking: 10/100/1000 BASE-T Ethernet
• Power: 10W | 15W | 30W
• Mechanical: 100mm x 87mm / 699 pin Molex Mirror Mezz Connector / Integrated Thermal Transfer Plate

 ** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
