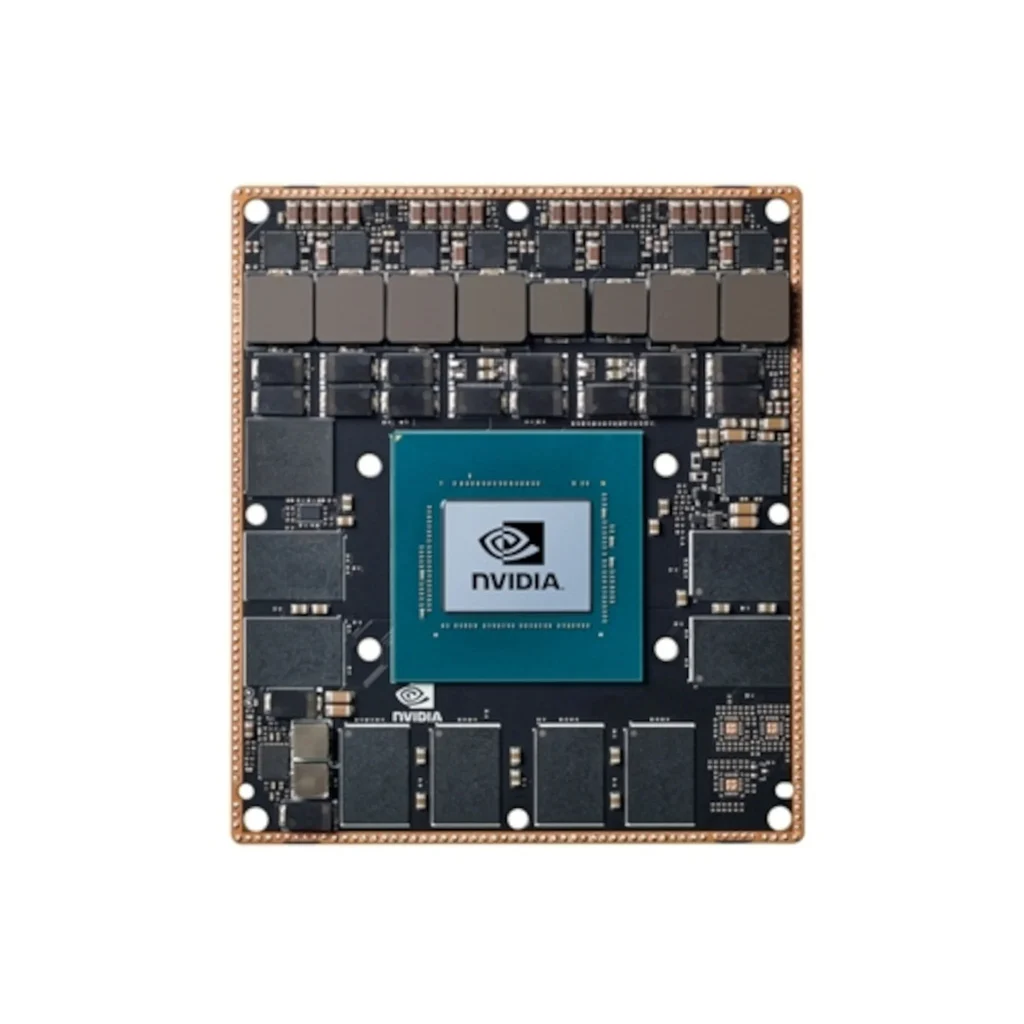

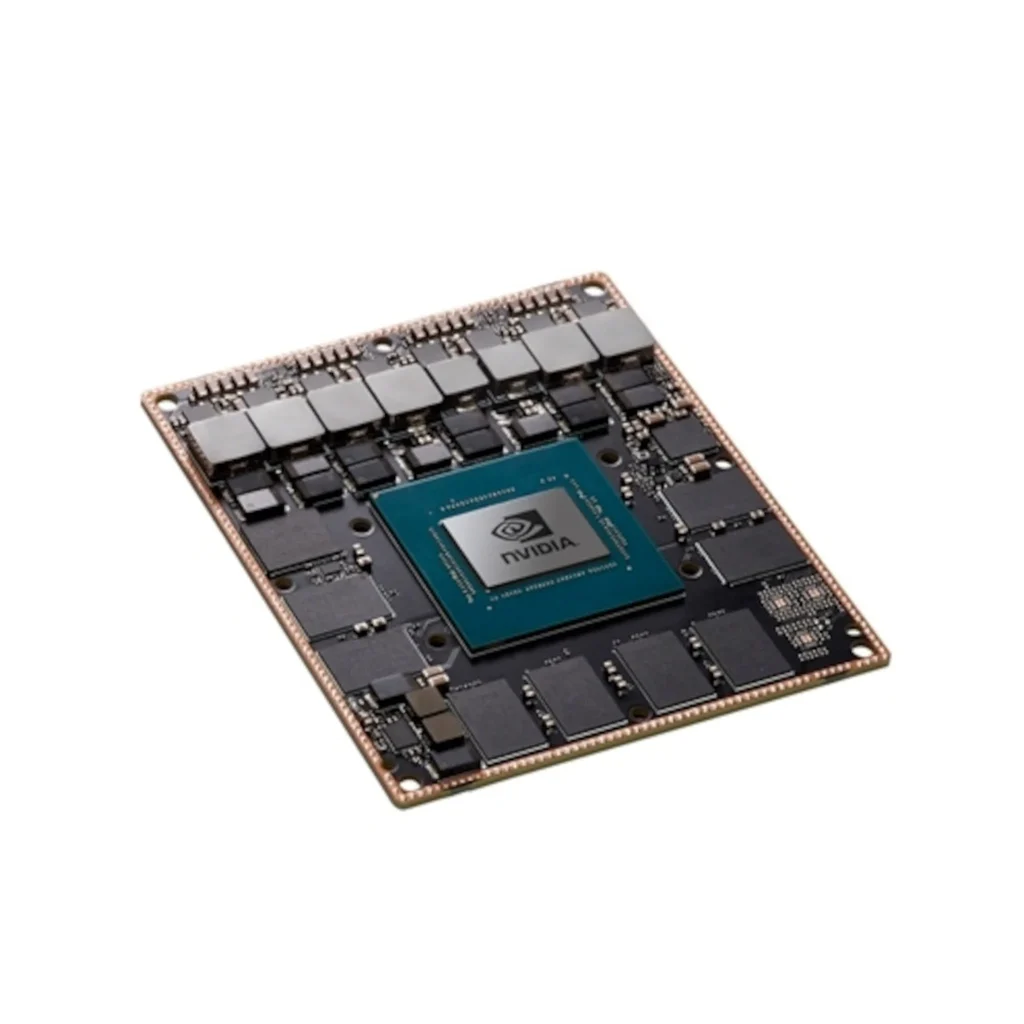

NVIDIA Jetson AGX Xavier Module 32GB

Description

The NVIDIA Jetson AGX Xavier delivers up to 32TOPS of accelerated computing capability in a compact form factor consuming under 30 watts.

This advanced system-on-module is powered by the NVIDIA Xavier SoC, it is designed for cost-effective and performance-driven autonomous machine applications. Heterogeneous accelerated computing architecture delivers advanced compute performance and allows AI at the edge. It comes with integrated memory, storage, power management, and an innovative thermal design to enable faster time to market. The Jetson AGX Xavier is able to run modern AI workloads and solve problems in optical inspection, manufacturing, robotics, logistics, retail, service, agriculture, smart cities, and healthcare.

Jetson AGX Xavier is supported by the NVIDIA JetPack SDK, which includes board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It’s also supported by the NVIDIA DeepStream SDK, which delivers a complete toolkit for real-time situational awareness through intelligent video analytics (IVA) and NVIDIA Isaac SDK, which delivers a software toolkit for robot development. These helps boost performance and accelerate software development, while reducing development cost and effort.

Feautures

• 512-Core NVIDIA Volta GPU with Tensor Cores
• (2x) NVDLA Engines
• 8-Core ARM v8.2 64-Bit Carmel CPU
• 32GB 256-bit LPDDR4x 136.5GB/s
• 32GB eMMC 5.1 Flash Storage
• 7-Way VLIW Vision Accelerator Processor
• Voltage input: 5 V, 9 V~20 V

• Module Power: 10 W~30 W
• Operating temperature: -25 C to 80 C measured on the TTP surface
• Storage temperature: -25 C to 80 C

• Humidity: 95% RH, -10 C to 65 C (non-operational)

• Vibration: 5 G RMS 10 to 500 Hz (random/ sinusoidal)

• Shock: 50 G, half sine 11 ms duration

Technical information

• GPU: 512-Core Volta GPU with Tensor Cores
• DL Accelerator: (2x) NVDLA Engines
• CPU: 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3
• Memory: 32GB 256-Bit LPDDR4x| 136.5GB/s
• Display: HDMI 2.0, eDP 1.4, DP 1.2(three simultaneous)
• Storage: 32 GB eMMC 5.1
• Vision Accelerator: 7-Way VLIW Vision Processor
• Encoder/Decoder: 4x4K60|8x 4Kp30|16x 1080p60| 32x 1080p30(HEVC) / 2x 8K30|6x 4Kp60| 12x 4Kp30| 26x 1080p60| 72x 1080p30 (HEVC)
• CSI: 16(4×4 or 6x2or 6×1) lanes MIPI CSI-2 D-PHY 1.2 (total up to 40Gbps) C-PHY 1.1 (total up to 59Gbps
• PCIE/SLVS/USB/UFS: (8x) PCIe Gen4 / (8x) SLVS-EC (3x) USB 3.1, Single Lane UFS
• Other: UART, SPI, CAN, I2 C, I2 S, DMIC, GPIOs
• Connectivity: Gigabit Ethernet
• Power: 10 W~30 W
• Size: 7 mm x 100 mm

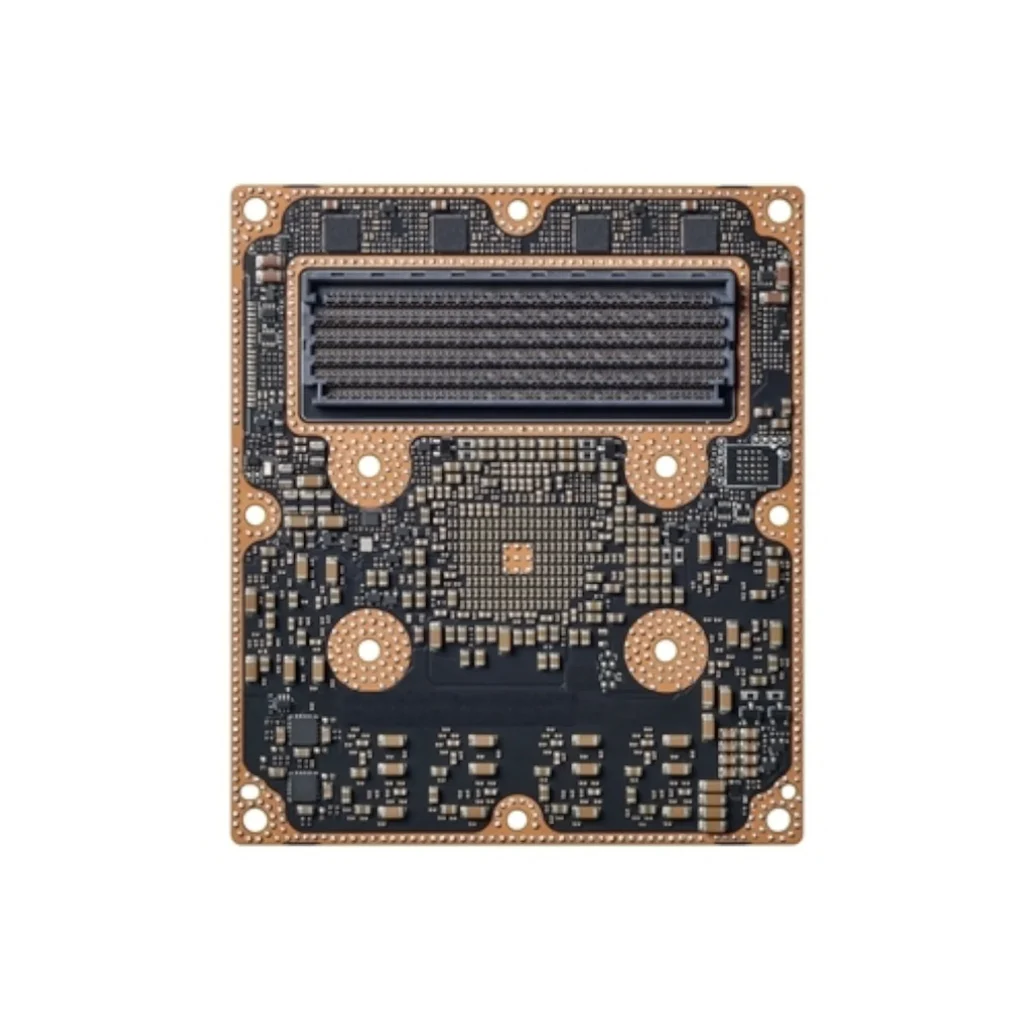

• Mechanical: 699 pin Molex Mirror Mex Connector Integrated Thermal Transfer Plate

 ** Το συγκεκριμένο προϊόν είναι διαθέσιμο μόνο κατόπιν προ-παραγγελίας
