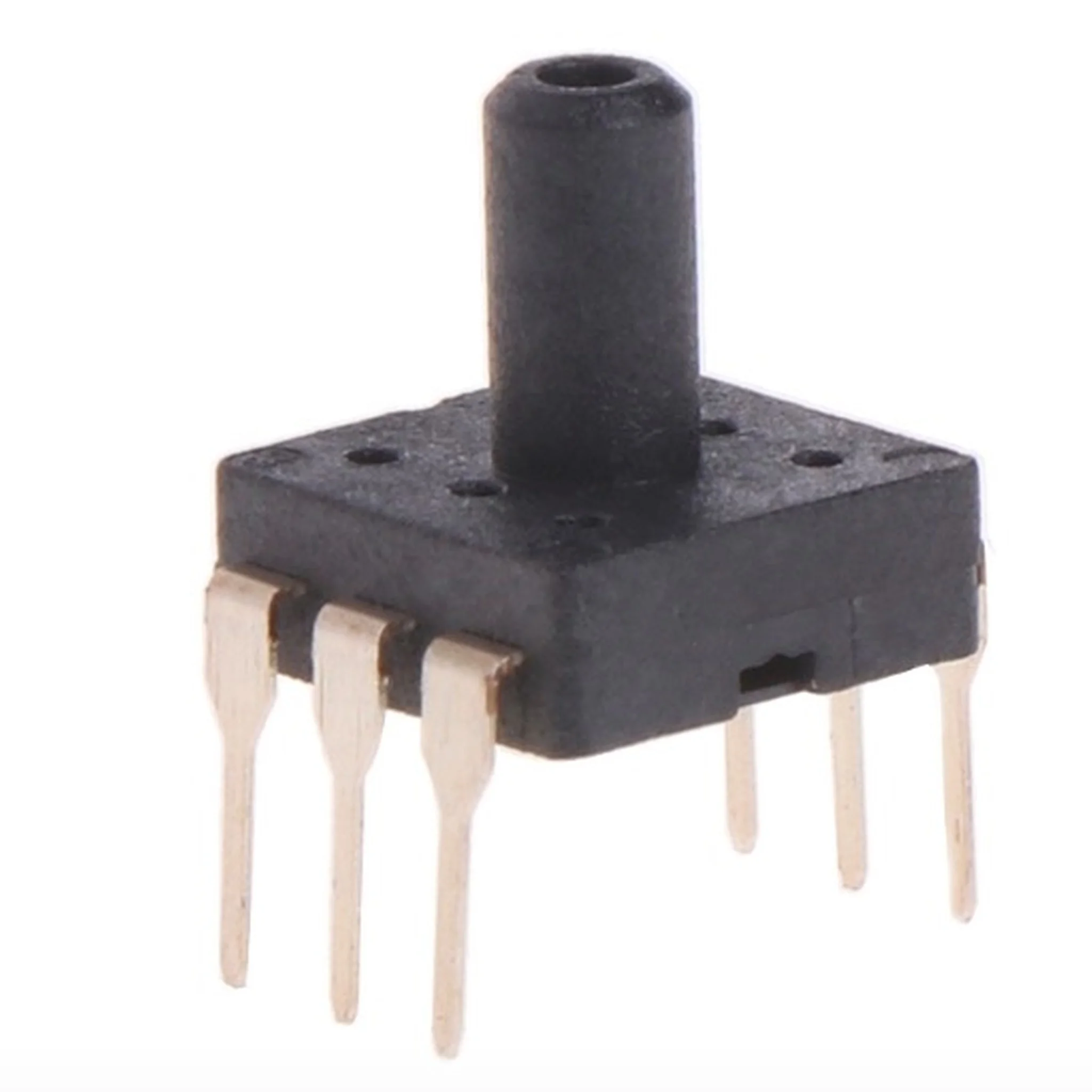

MPS20N0040D-D Sphygmomanometer Pressure Sensor 0-40kPa DIP-6 For Arduino Raspb

Features:

– This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.
– With wide applicable temperature range.
– Easy to use and install.
– Fits for the following types:

1. Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.
2. Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.
3. Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.

Specifications:

– Measuring medium: air
– Measuring range: 0-40kPa
– Operating temperature range: -40 ℃ ~ + 125 ℃
– Storage Temperature: -40 ℃ ~ + 150 ℃
– Humidity: (50% ± 10%) RH
– Ambient temperature: (25 ± 1) ℃
– Medium temperature: (25 ± 1) ℃
– Output impedance: 4kΩ ~ 6kΩ
– Zero output: -15mV~+15mV
– Hysteresis: +-0.7%F.S.
– Power supply: ≤10V DC or ≤2.0mA DC
– Insulation resistance: 100MΩ, 100VDC

Package Includes:

1 x DIP Air Pressure Sensor

Note:

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Please allow 1-3mm slight deviation due to manual measurement. Thank you!
