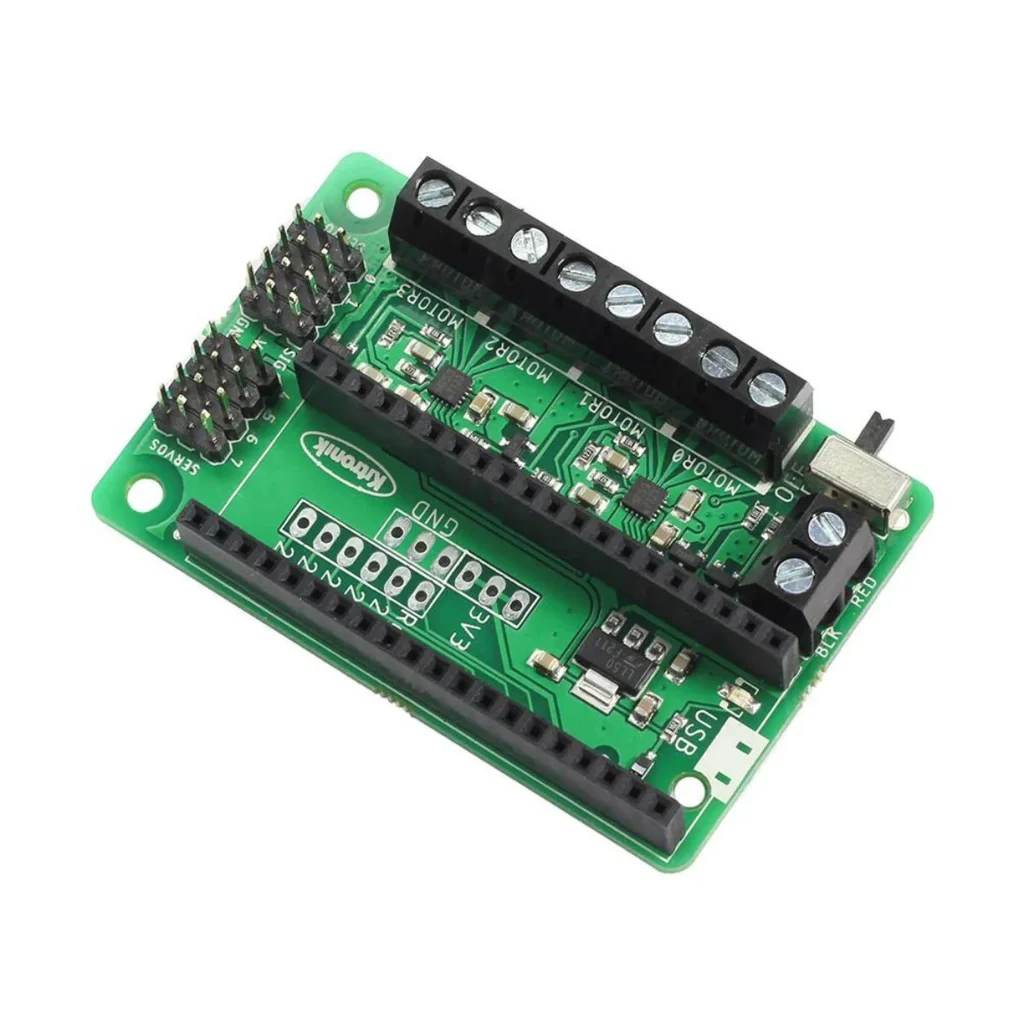

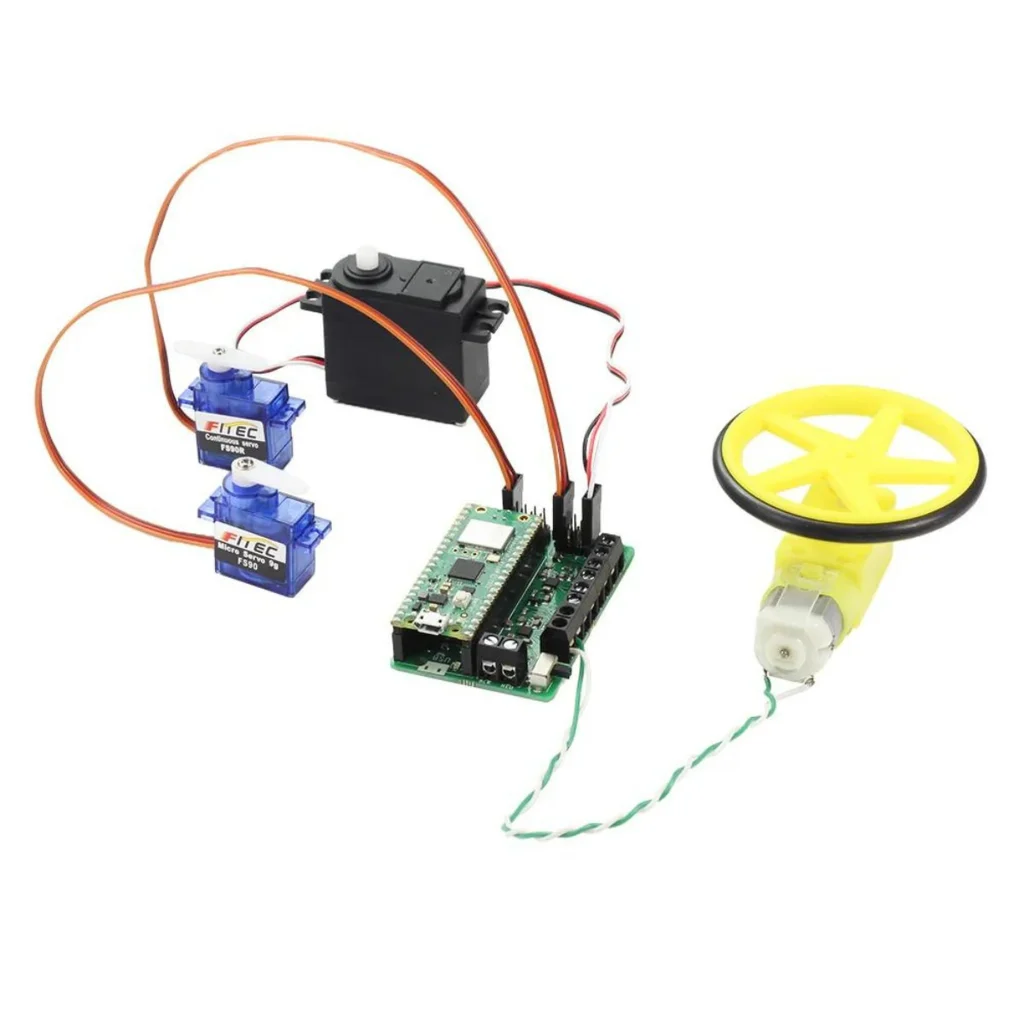

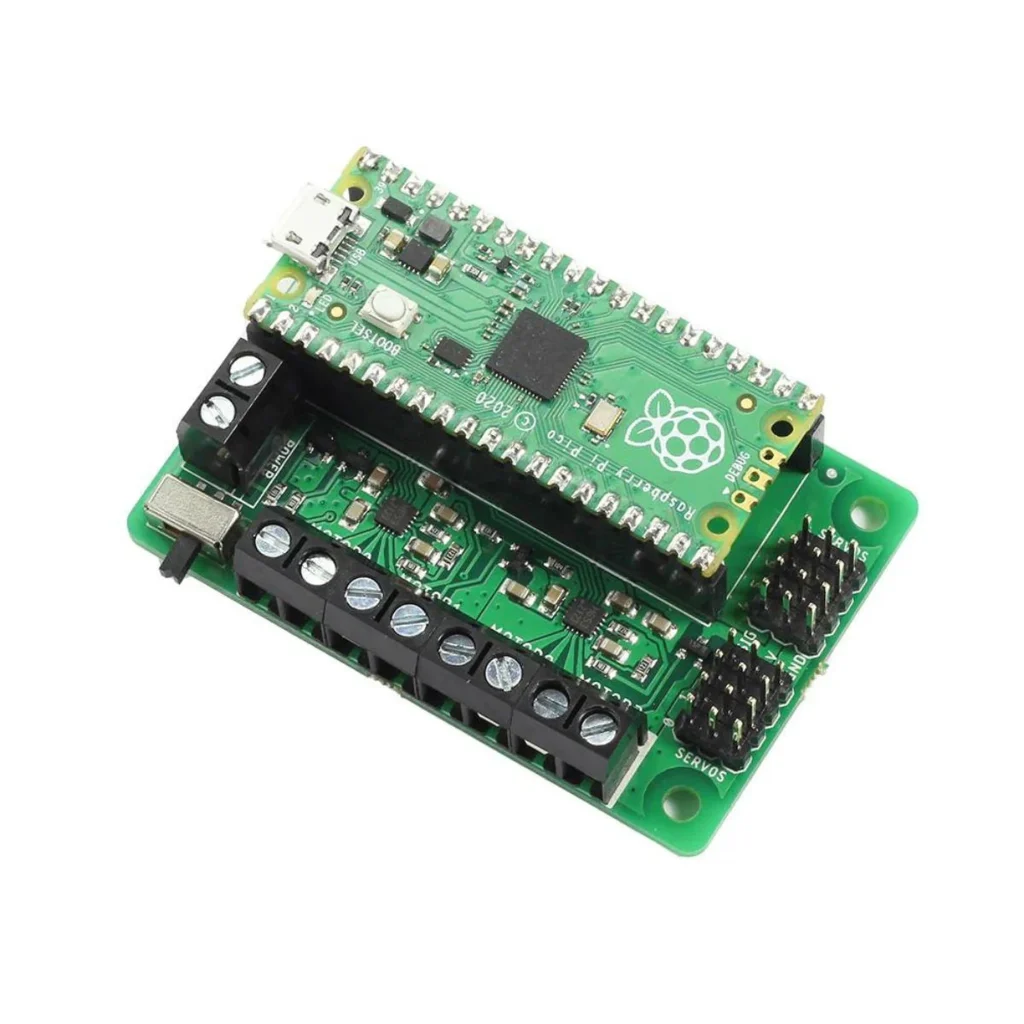

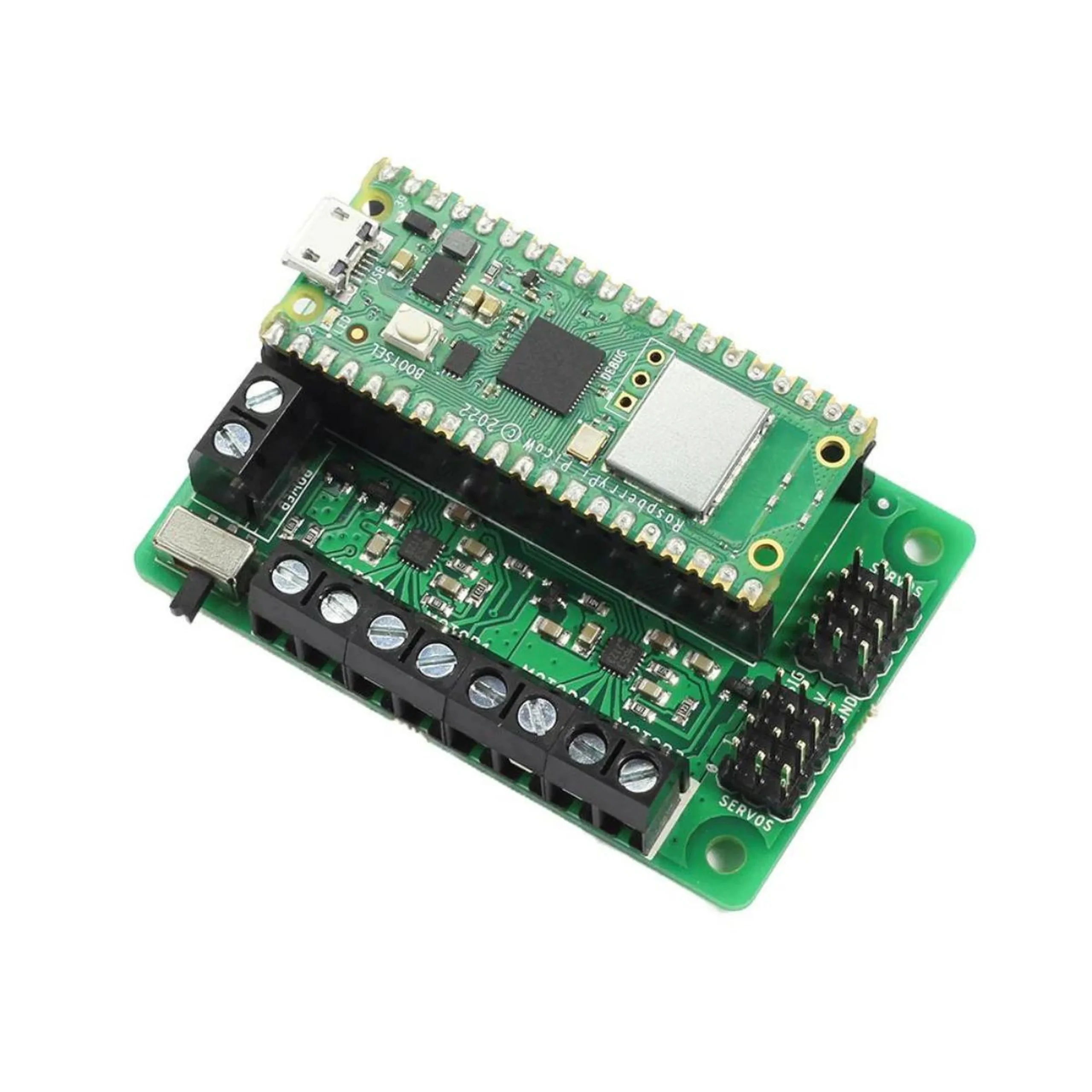

The Kitronik Simply Robotics Board for Raspberry Pi Pico features 2 Dual H-Bridge motor driver ICs and 8 servo motor outputs, all controlled by a Raspberry Pi Pico. The Raspberry Pi Pico is not included The motor driver ICs are capable of up to 1A per channel and can drive a variety of small motors. They have built-in protection for overcurrent protection. The board has standard motor sockets Breakout IO provides connections to 5 GPIO pins, including the Pico analog inputs. These IO points allow input devices, for example sensors, or output devices, such as ZIP LEDs, to be added to the board. The board also has 3 holes for mounting the board on a surface or custom enclosure, the mounting holes have a diameter of 3,3 mm (M3 gap) Power is supplied via a terminal block. The supply is controlled by an on/off power switch on the board
