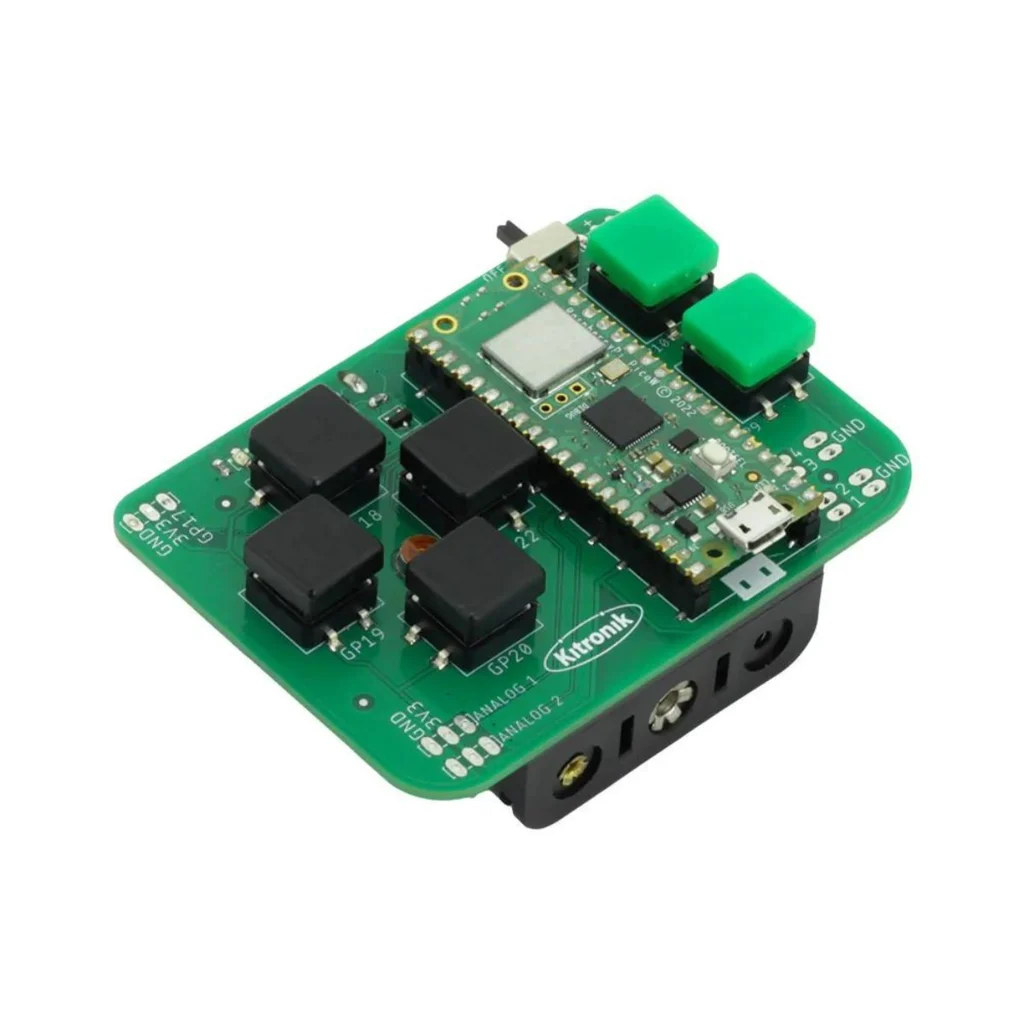

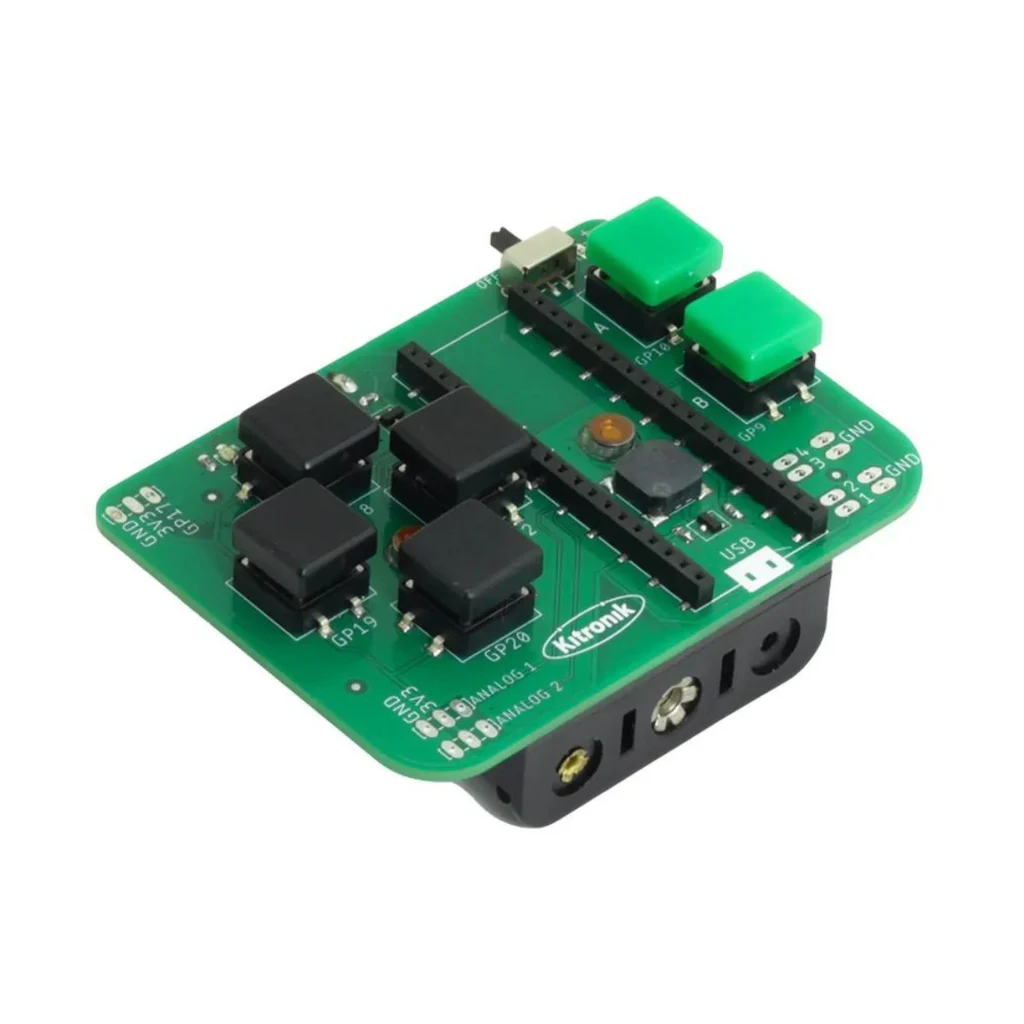

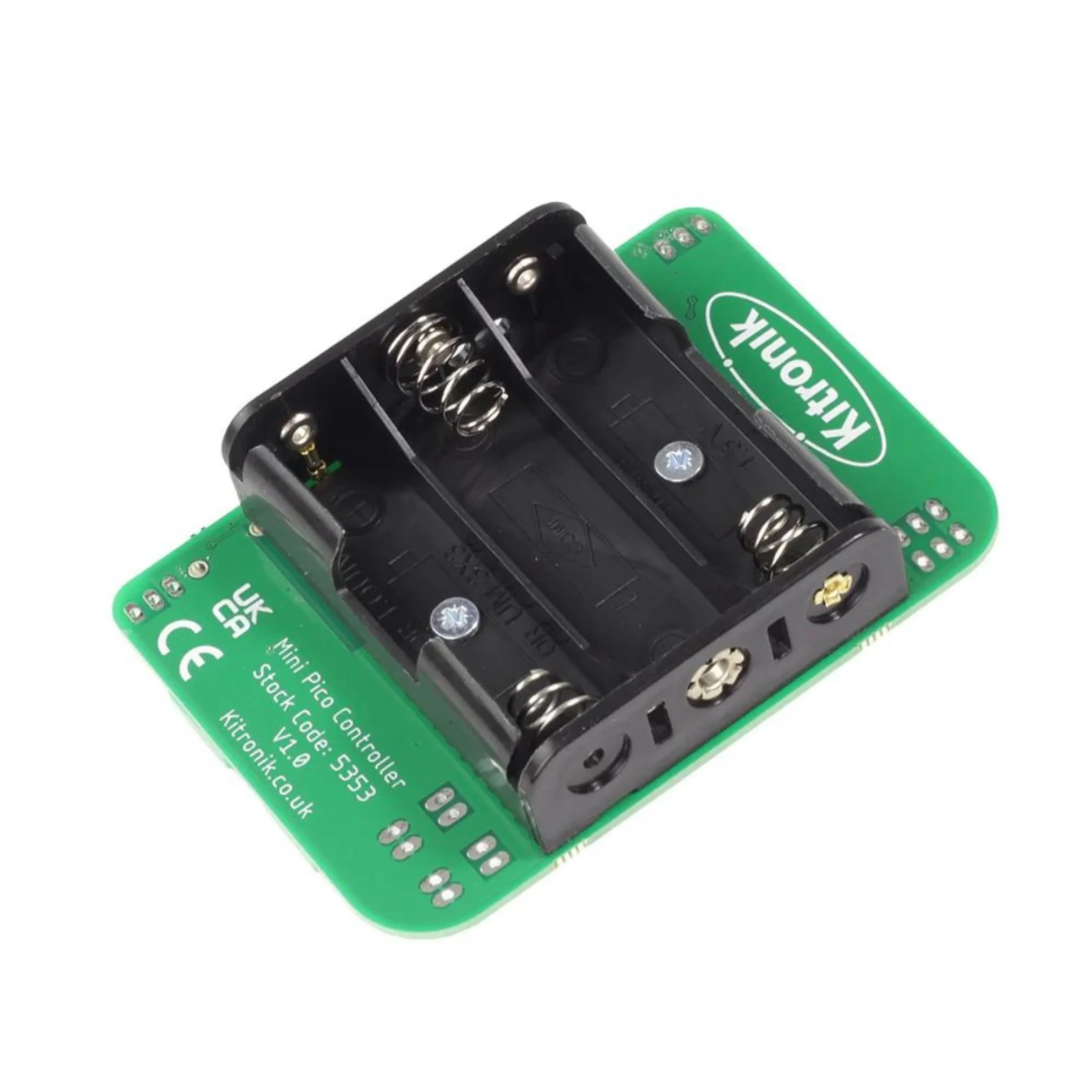

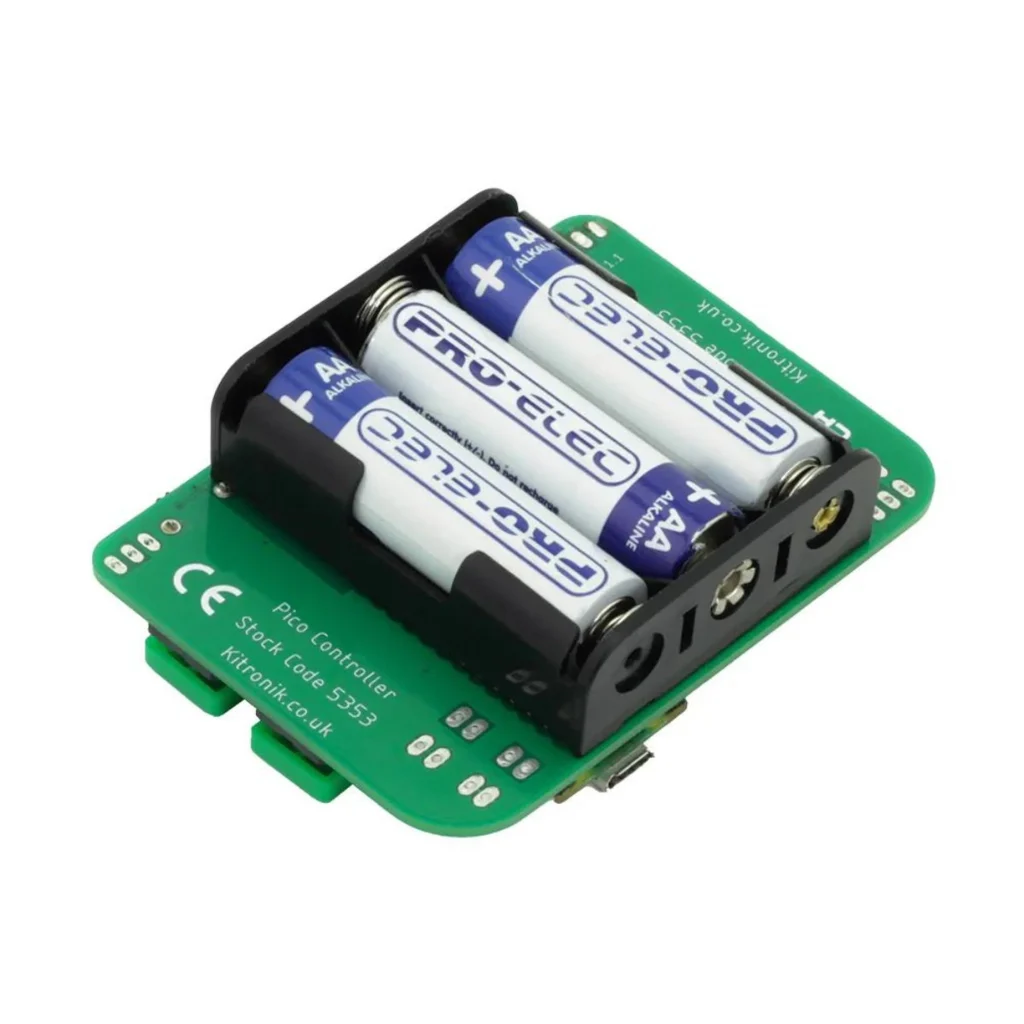

The Kitronik Mini Controller for Pico is a programmable controller for the Raspberry Pi Pico. It has a buzzer for audible feedback and 6 input buttons. It also separates: GP1, 2, 3, 4, 14 and 17, along with ADC1 and ADC2, as well as various 3.3V and GND pads, all in 0.1″/2.54mm pitch. The buttons are arranged in a standard Gamepad layout, with 4 directional buttons and two action buttons The controller is designed to act as a remote control for the Kitronik autonomous robotics platform (Buggy) for Pico, but can also be used for any Pico project/game that requires user input/control To use the Mini Controller the Pico must have soldered terminal heads and be firmly attached to the plug. The correct orientation for inserting the Pico is clearly marked on the board. Power is supplied via the built-in AA battery slot on the underside of the board, which accommodates 3x AA batteries Features: A programmable controller for Raspberry Pi Pico For use with the Raspberry Pi Pico W – Wireless with pre-welded headers. Can be used as a remote control for the Kitronik Autonomous Robotics Platform (Buggy) for Pico Also ideal for any Pico project/game that requires user input/control Features a buzzer for audible feedback and 6 input buttons (4 directional and 2 action buttons) Separates GP1, 2, 3, 4, 14 and 17, along with ADC1 and ADC2, as well as various 3.3V and GND pads, all in 0.1″/2.54mm increments
