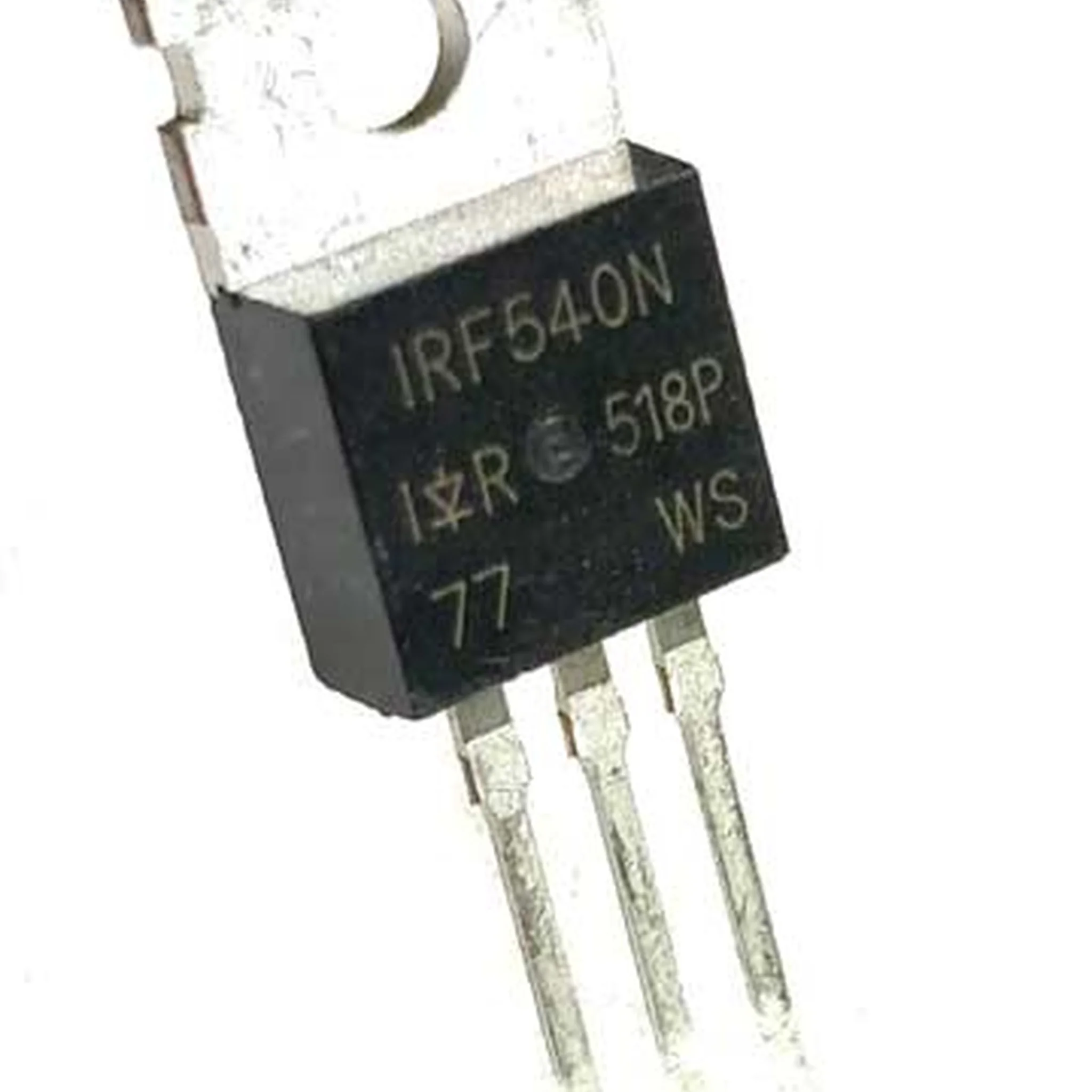

IRF540N N-Channel MOSFET

IRF540N N-Channel MOSFET
Product Thumbnail

IRF540N N-Channel MOSFET

€1.00

Product Weight: 0.0050KG

Add To Wishlist Add To Compare

Product Details

  • SKU : NS0507
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

IRF540N Equivalent



IRF540N Pin Configuration



Pin Number

Pin Name

Description

1

Source

Current flows out through Source

2

Gate

Controls the biasing of the MOSFET

3

Drain

Current flows in through Drain



Features

  • Small signal N-Channel MOSFET
  • Continuous Drain Current (ID) is 33A at 25°C
  • Pulsed Drain Current (ID-peak) is 110A
  • Minimum Gate threshold voltage (VGS-th) is 2V
  • Maximum Gate threshold voltage (VGS-th) is 4V
  • Gate-Source Voltage is (VGS) is ±20V
  • Maximum Drain-Source Voltage (VDS)is 100V
  • Turn ON and Turn off time is 35ns each’
  • It is commonly used with Arduino, due to its low threshold current.
  • Available in To-220 package

 IRF540N Equivalent

 RFP30N06, IRFZ44, 2N3055, IRF3205
