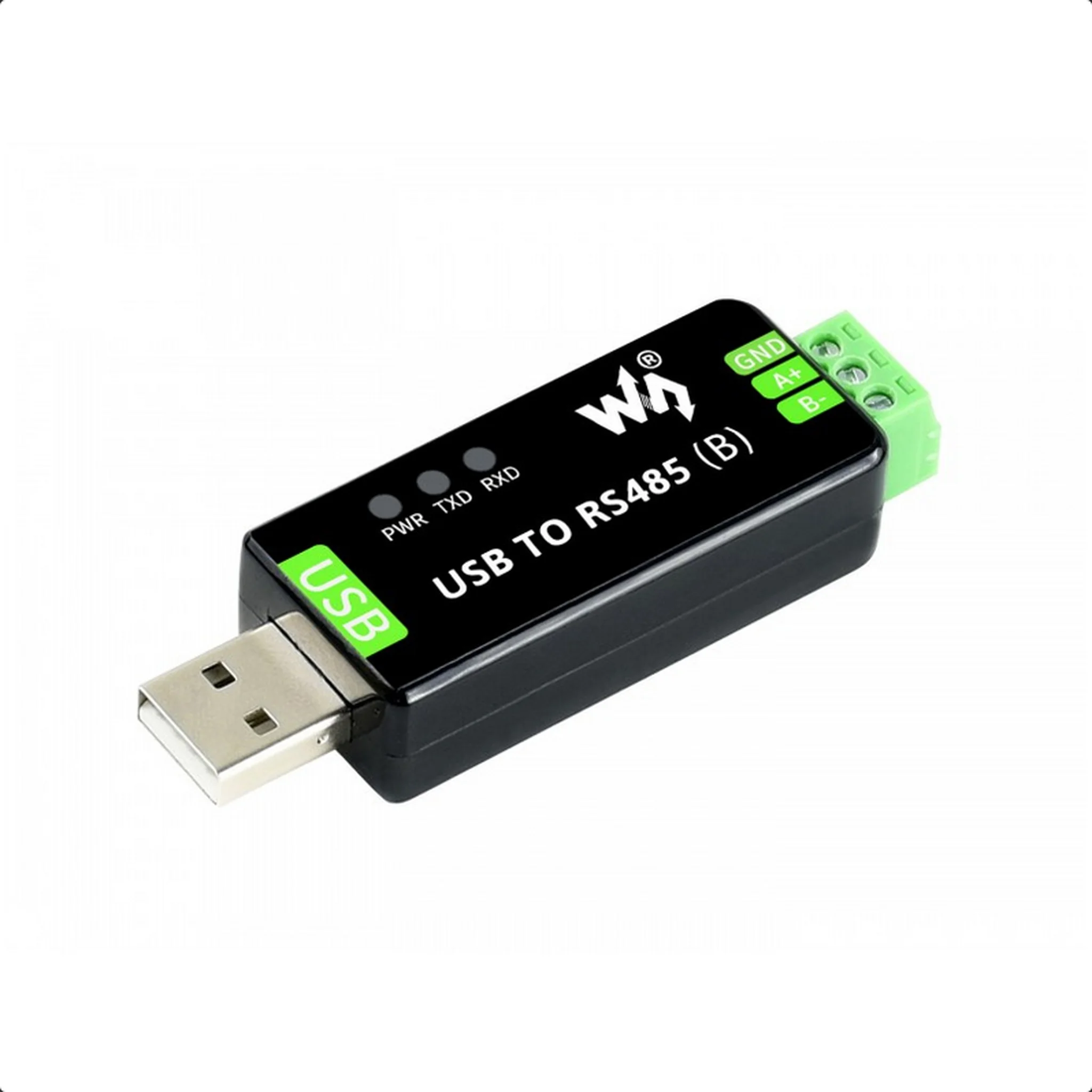

Industrial USB TO RS485 Bidirectional Converter, Onboard original CH343G, Multi-Protection Circuits
USB TO RS485 Bidirectional Converter
Features At A Glance
Support USB to RS485 bidirectional conversion
Fast communication, stable and reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

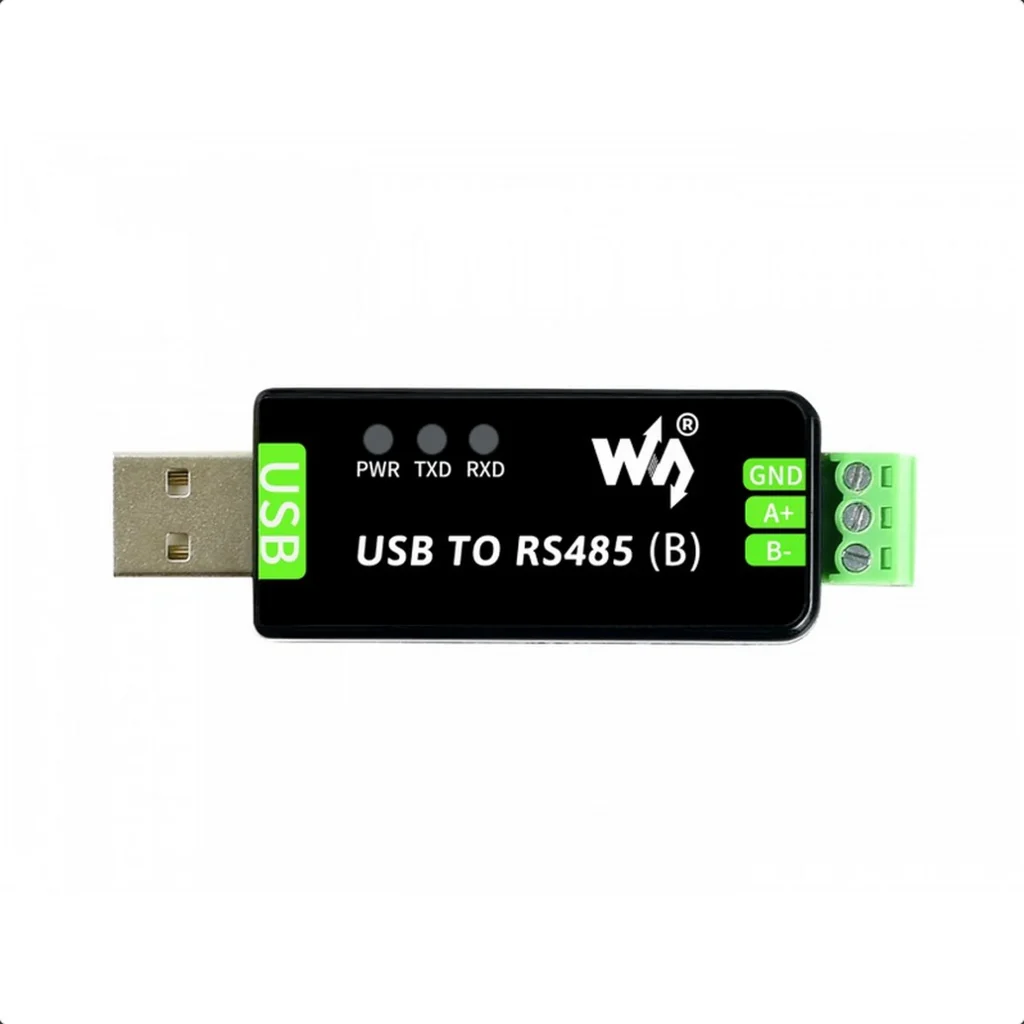

3 LEDs for indicating the power and transceiver status

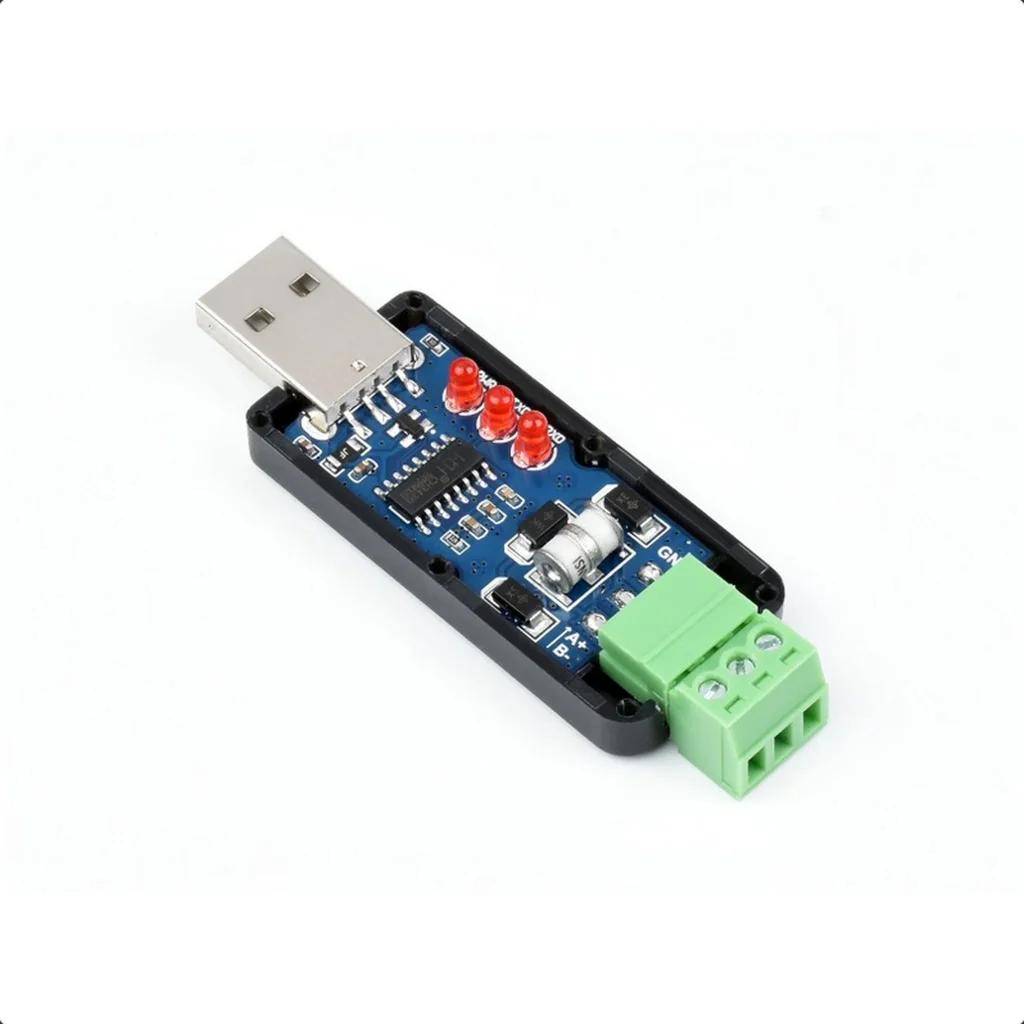

Onboard original CH343G and SP485EEN chips, providing better stability and compatibility, built-in lightningproof tube, resettable fuse, ESD and TVS protection circuits, etc.
Transmission distance up to 1.2km
The USB signal can be converted into a balanced differential RS485 signal and the transmission rate is stable. The reliable speed is 300bps ~ 3Mbps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.
Multi system Support
Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc.
Working Status Indicators
Onboard 3 LEDs for indicating the power and transceiver status
