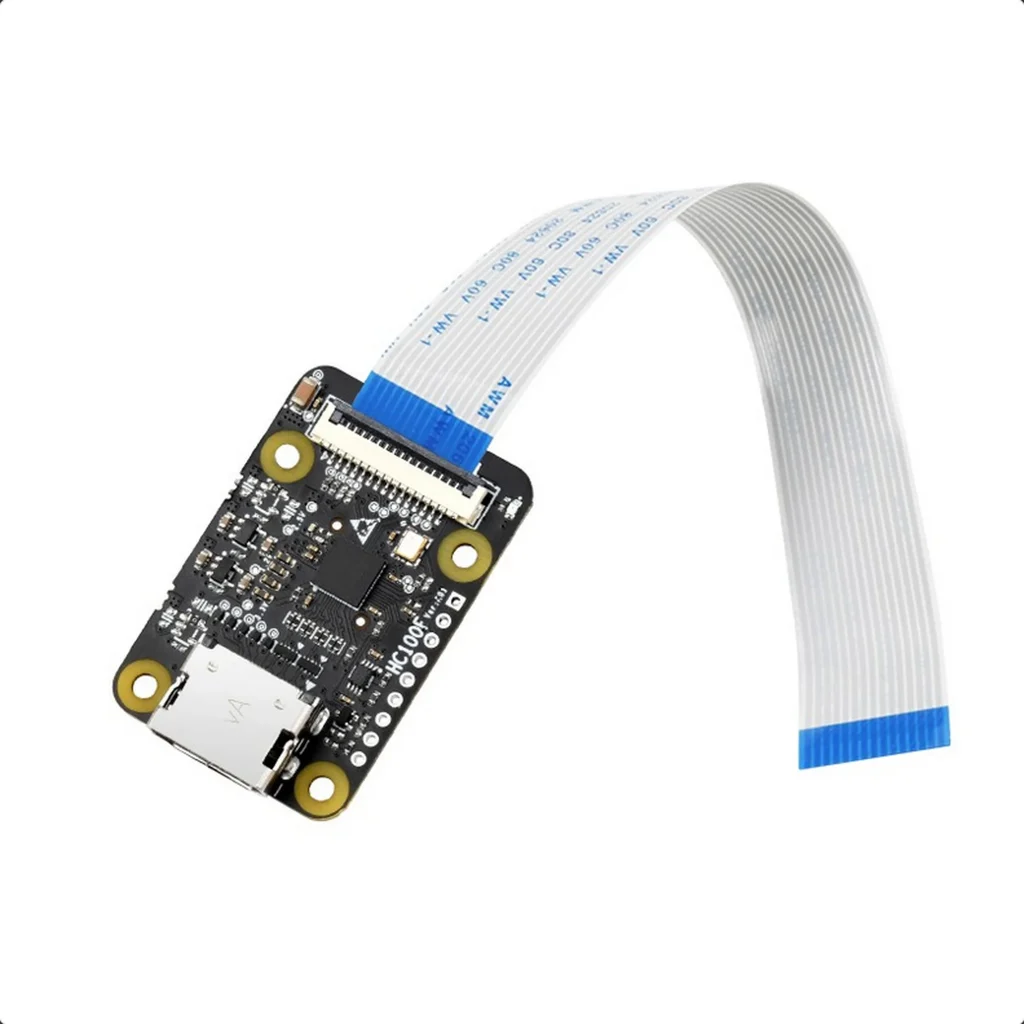

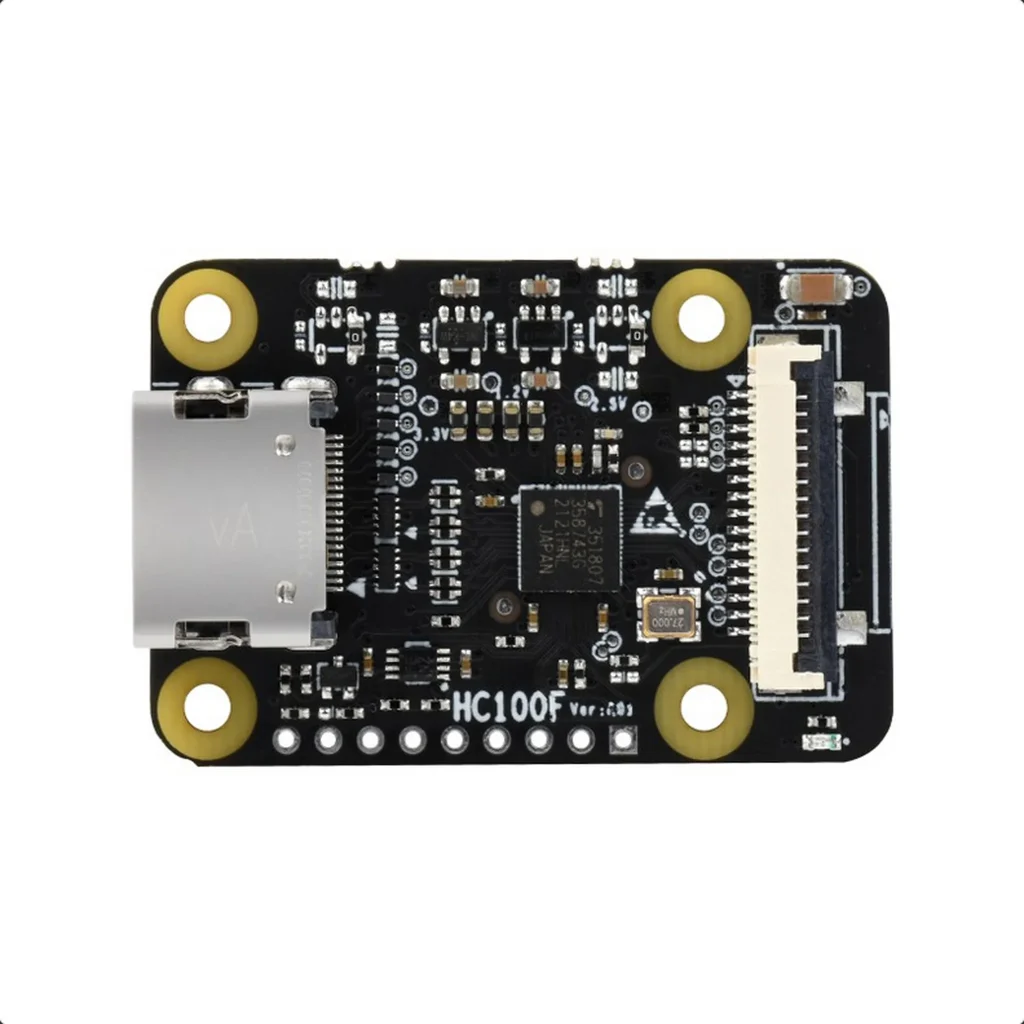

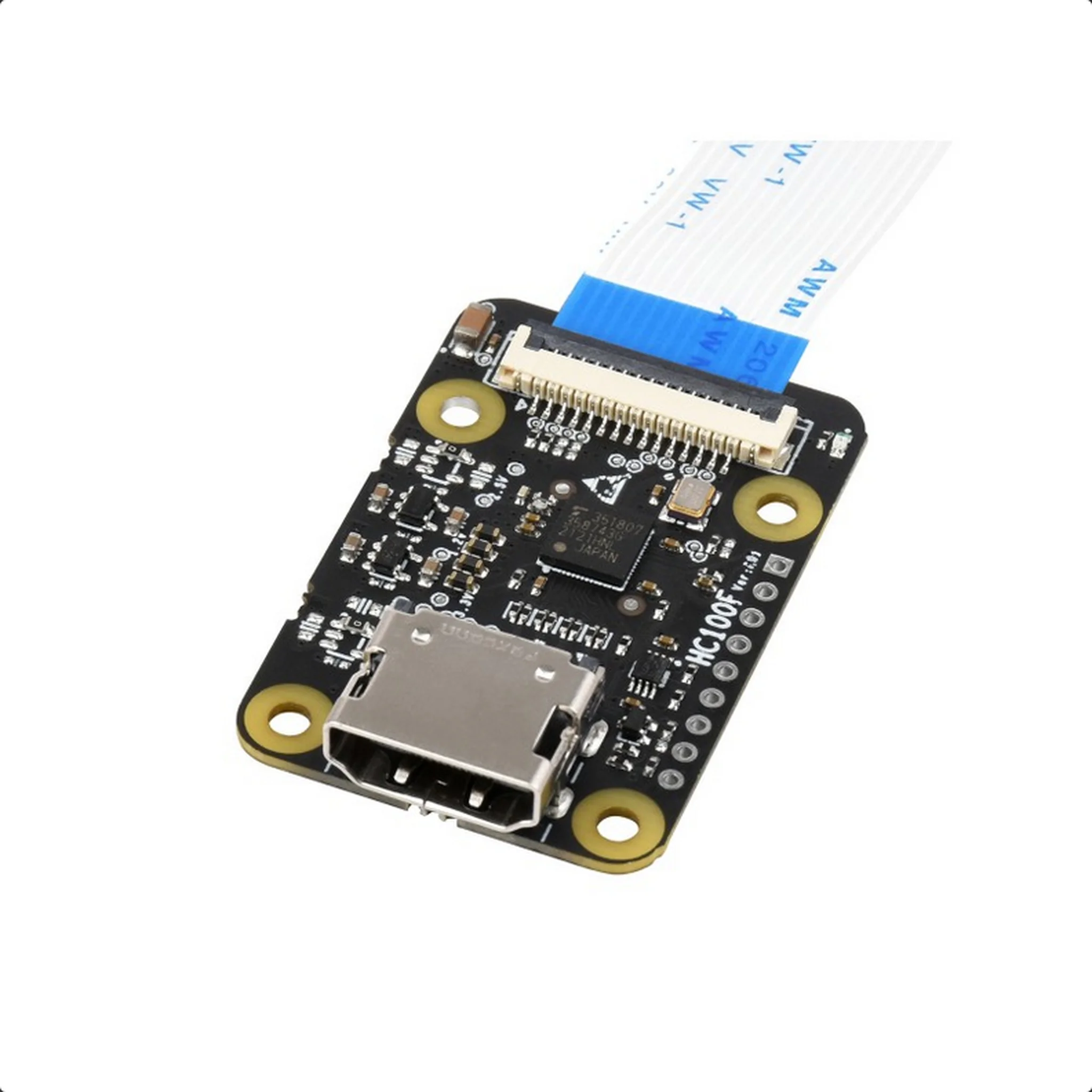

HDMI to CSI Camera Adapter
Compatible with Raspberry Pi Series Boards
This is an HDMI to CSI camera port adapter designed for Raspberry Pi with up to 1080p@30fps support from HDMI input, backward compatible. It allows you to use HDMI cameras just as the standard Raspberry Pi CSI cameras, all versions of Raspberry Pi series boards are supported.
Specifications
Chip
TC358743XBG
Input signal
Video
HDMI1.4, RGB888, up to 1080p@30fps support
Audio
HDMI
Output signal
Video
2-lanes MIPI CSI-2
Audio
I2S audio output, LPCM audio stream format
operating system
Raspberry Pi OS 32bit
Operating voltage
3.3V
Operating temperature
-30 ~ 70°C
how to use

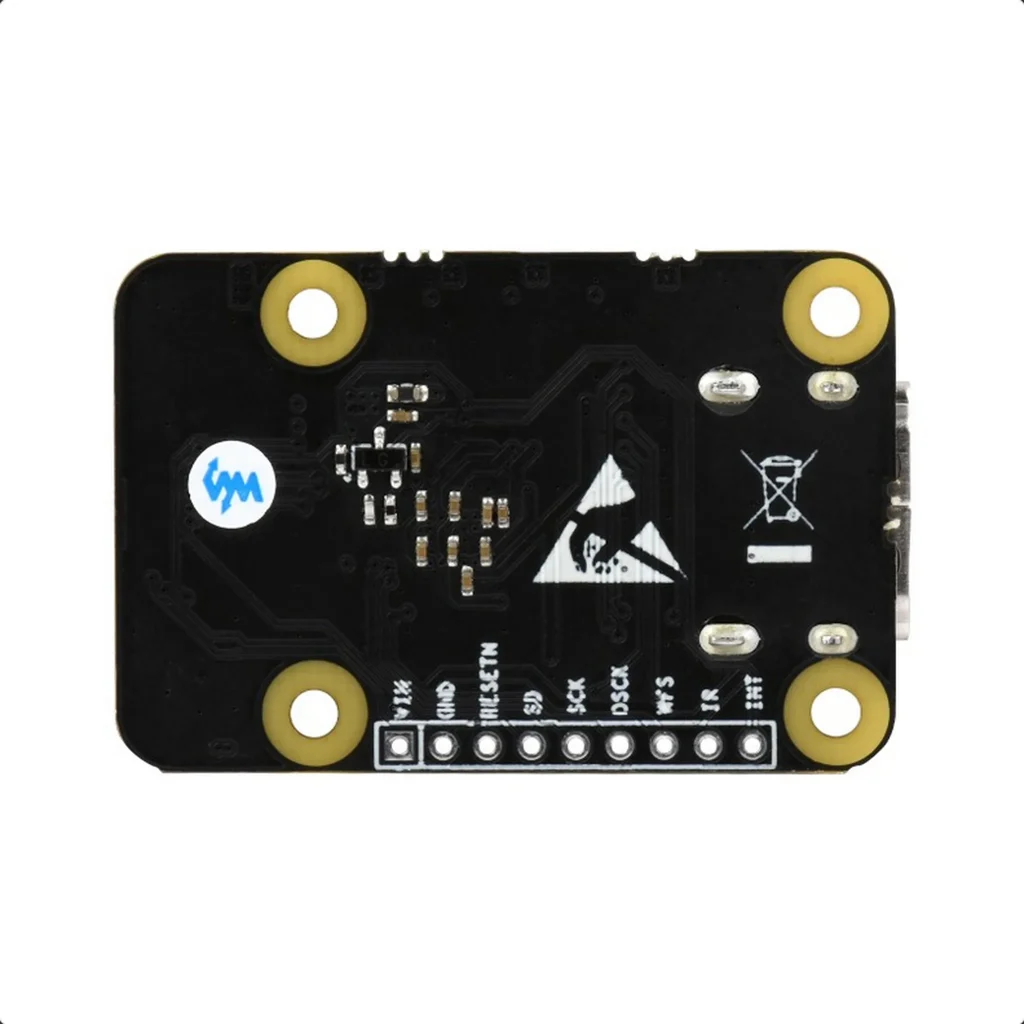

* Note: it is required to connect the reserved solder pad to the I2S pin of Raspberry Pi for audio output

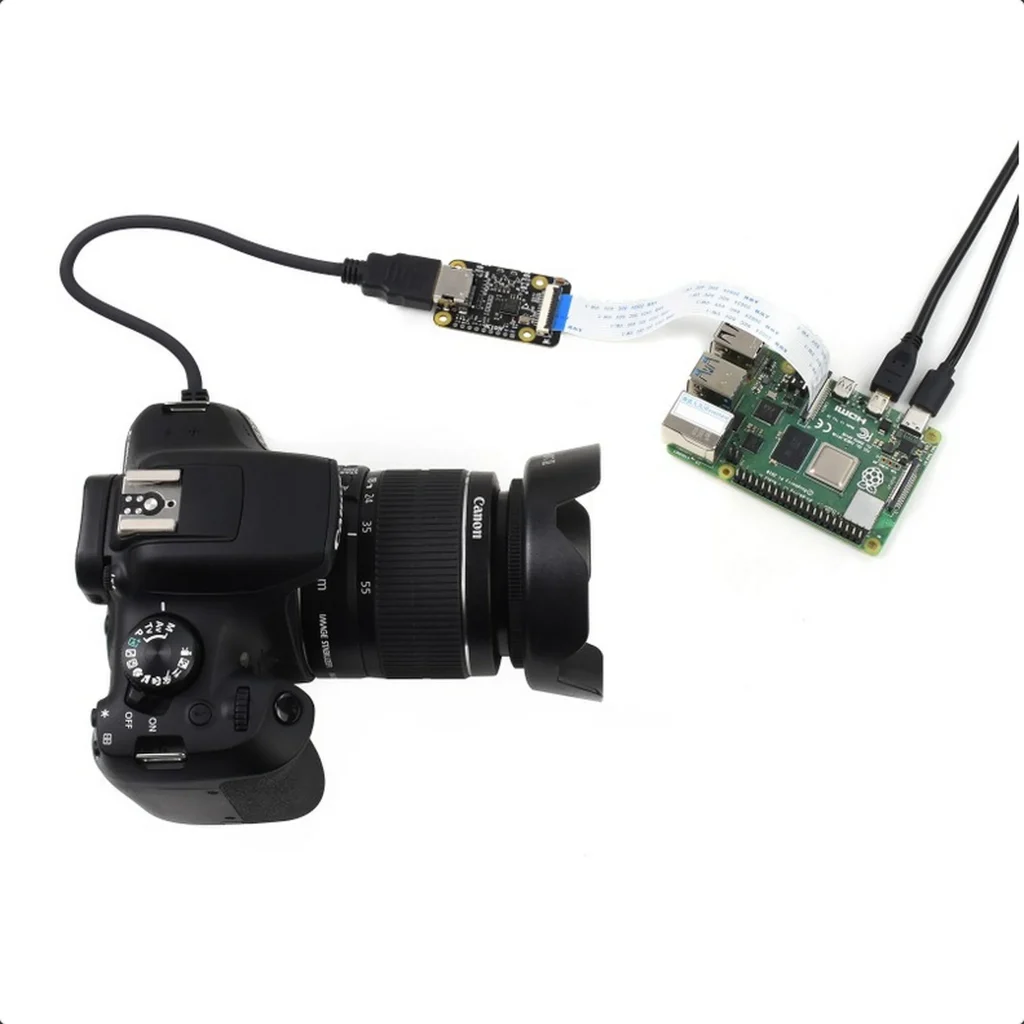

application example
connecting with Raspberry Pi
* Specific FFC is required for the Raspberry Pi Zero and Raspberry Pi 5.
