Grove – OLED Display 1.12″

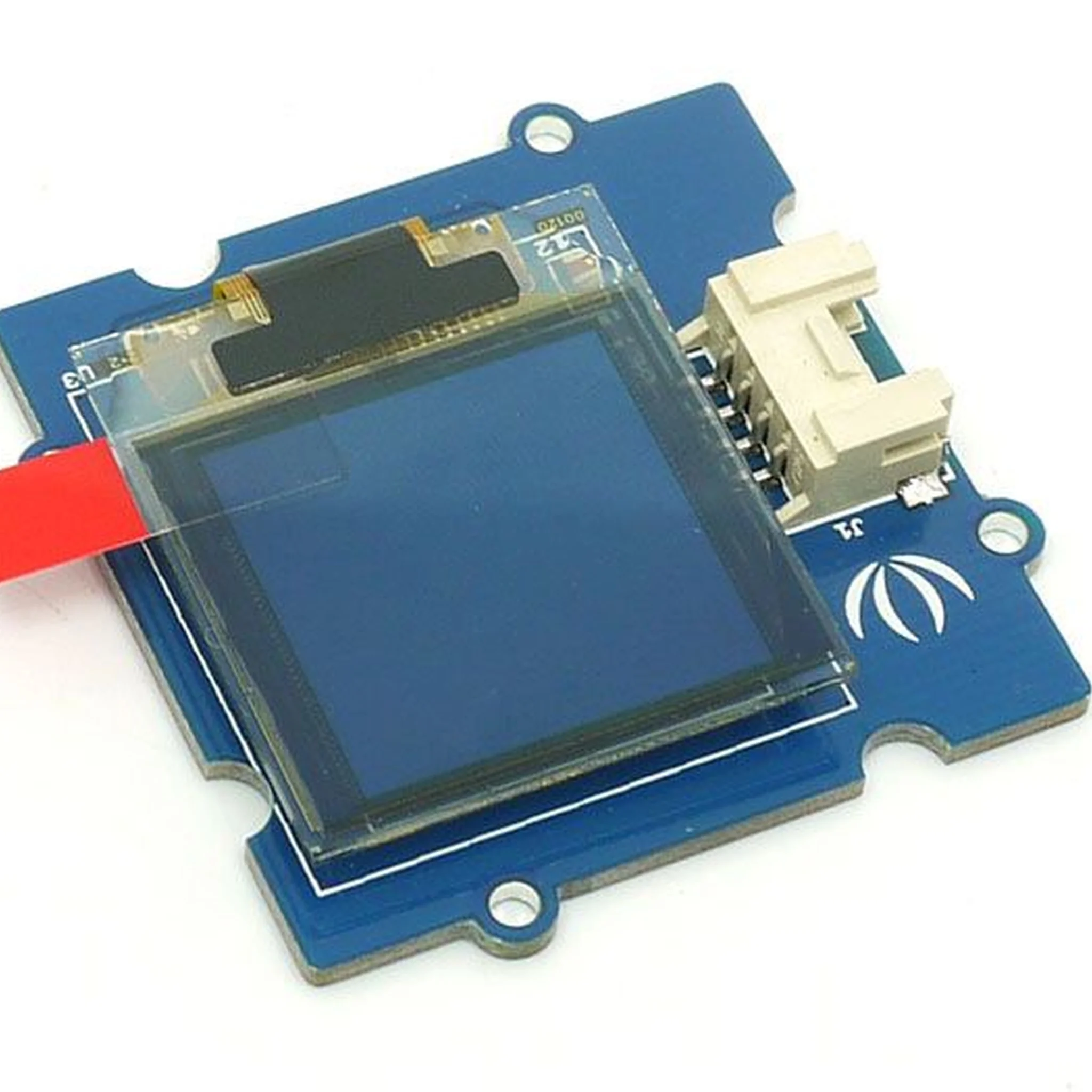

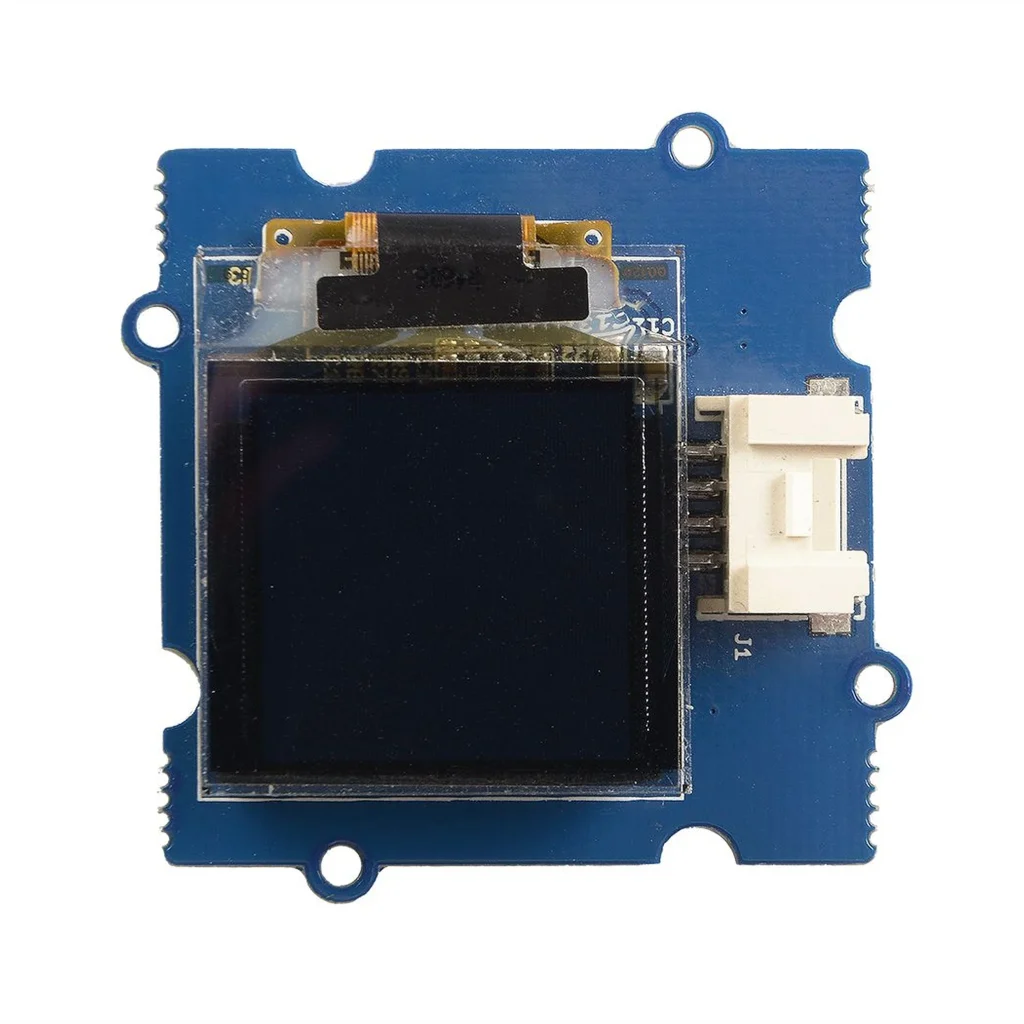

 Grove – OLED 1.12” is a 16 color grayscale 96×96 dot matrix OLED display module with Grove compatible 4pin I2C interface.Grove – OLED 1.12″ is constructed with 96 x 96 dot matrix OLED module ([ LY120])and SSD1327 driver IC. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption.

Features

• Dot Matrix: 96 x 96 Pixels
• Color: Grayscale Display (16 Gray shades)
• Supports both Normal and Inverse Color Display
• Supports Continuous Horizontal Scrolling

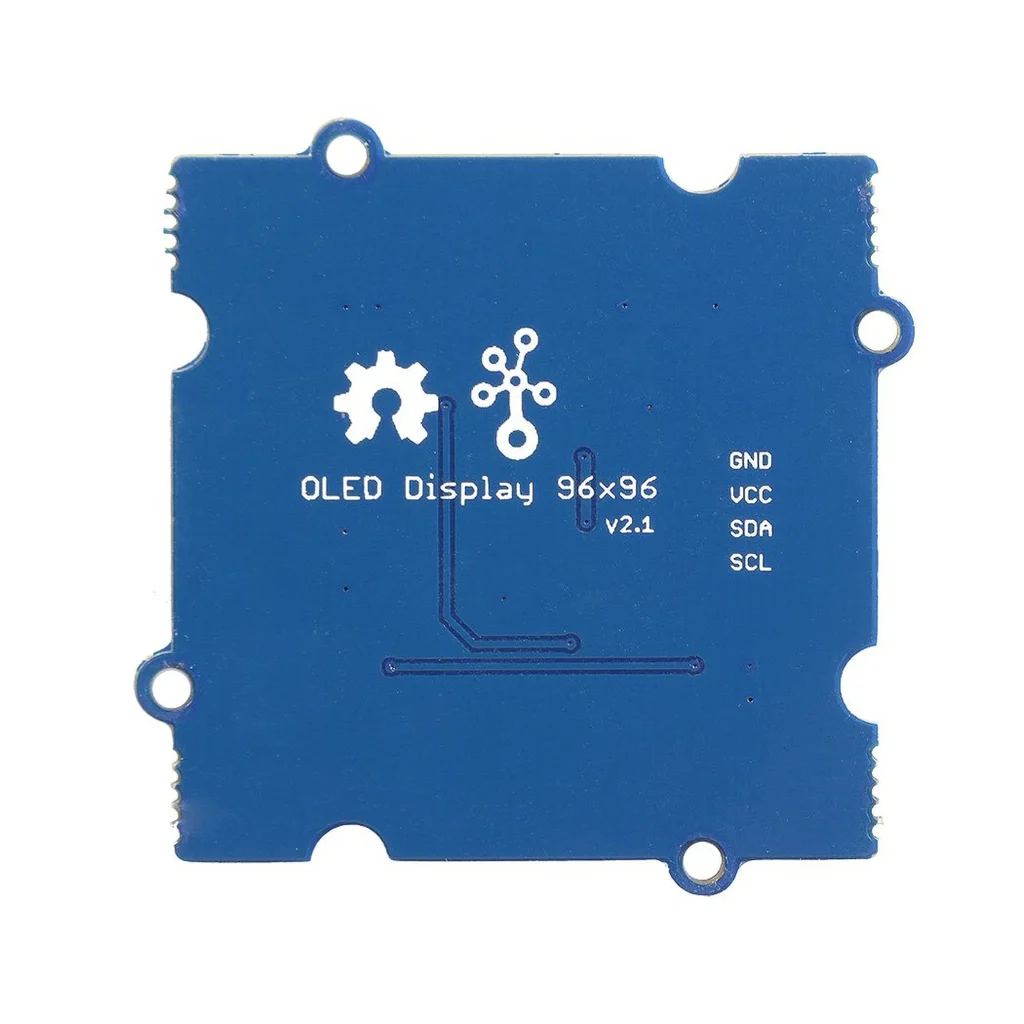

• Grove compatible 4pin I2C connector
• Works with both 5V and 3.3V logic MCUs
• Interface: I2C
• Wide range of operating temperature: -40 °C ~ 70 °C

Application Ideas

• Graphic display adapter for Seeeduino and Arduino using Grove stem board
• Display adapter for any 5V or 3.3V MCU which supports I2C interface
• Can be used with mbed microcontroller

Technical details

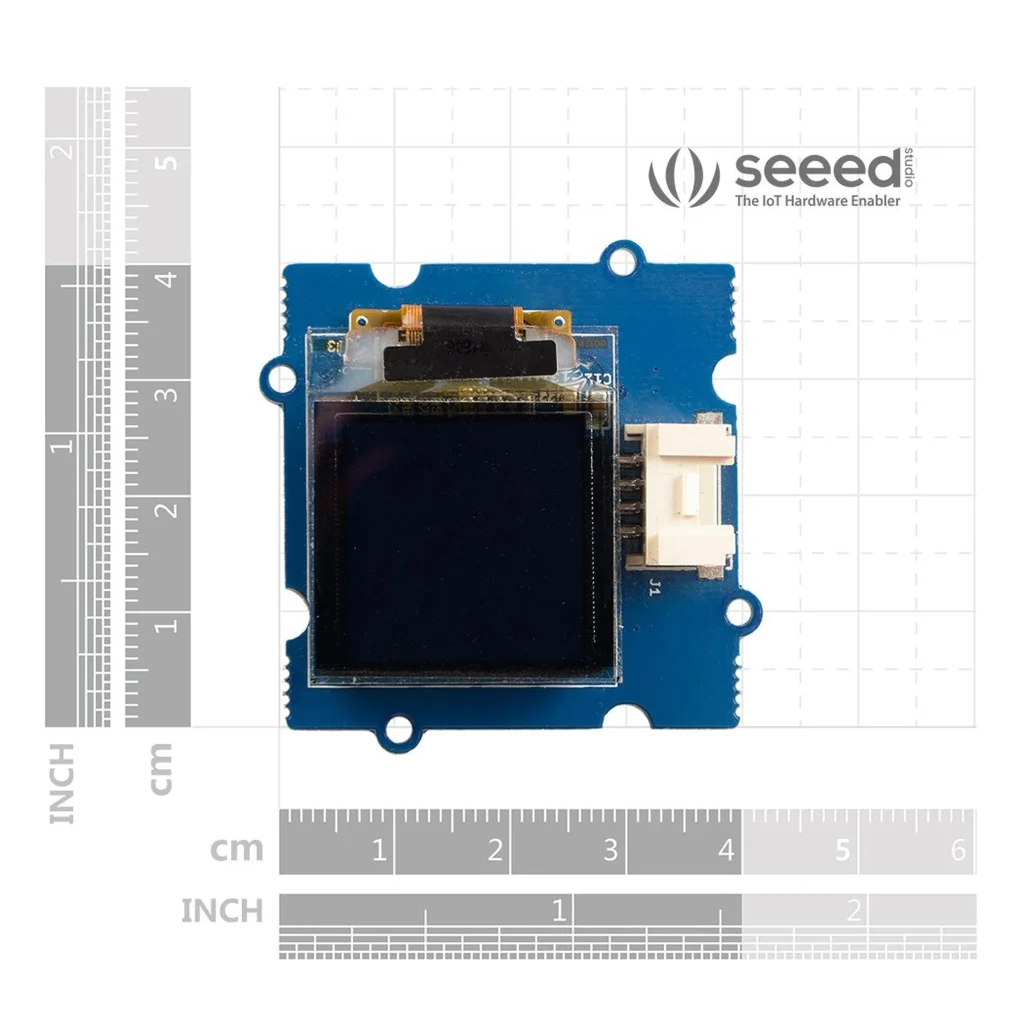

Dimensions     40mm x40mm x10mm
Weight     G.W 16.5g
Battery     Exclude

Part List
Grove – OLED Display 1.12”     1
