Grove – LED Strip Driver

The LED Strip Driver with 4-pin Grove interface provides easy connectivity to your standard Arduino device or Seeed Stalker

The LED Strip Driver with 4-pin Grove interface provides easy connectivity to your standard Arduino device or Seeed Stalker. It can help you control the luminance of a single-color LED strip, as well as the color and the luminance of an RGB LED strip through Arduino or Seeeduino.

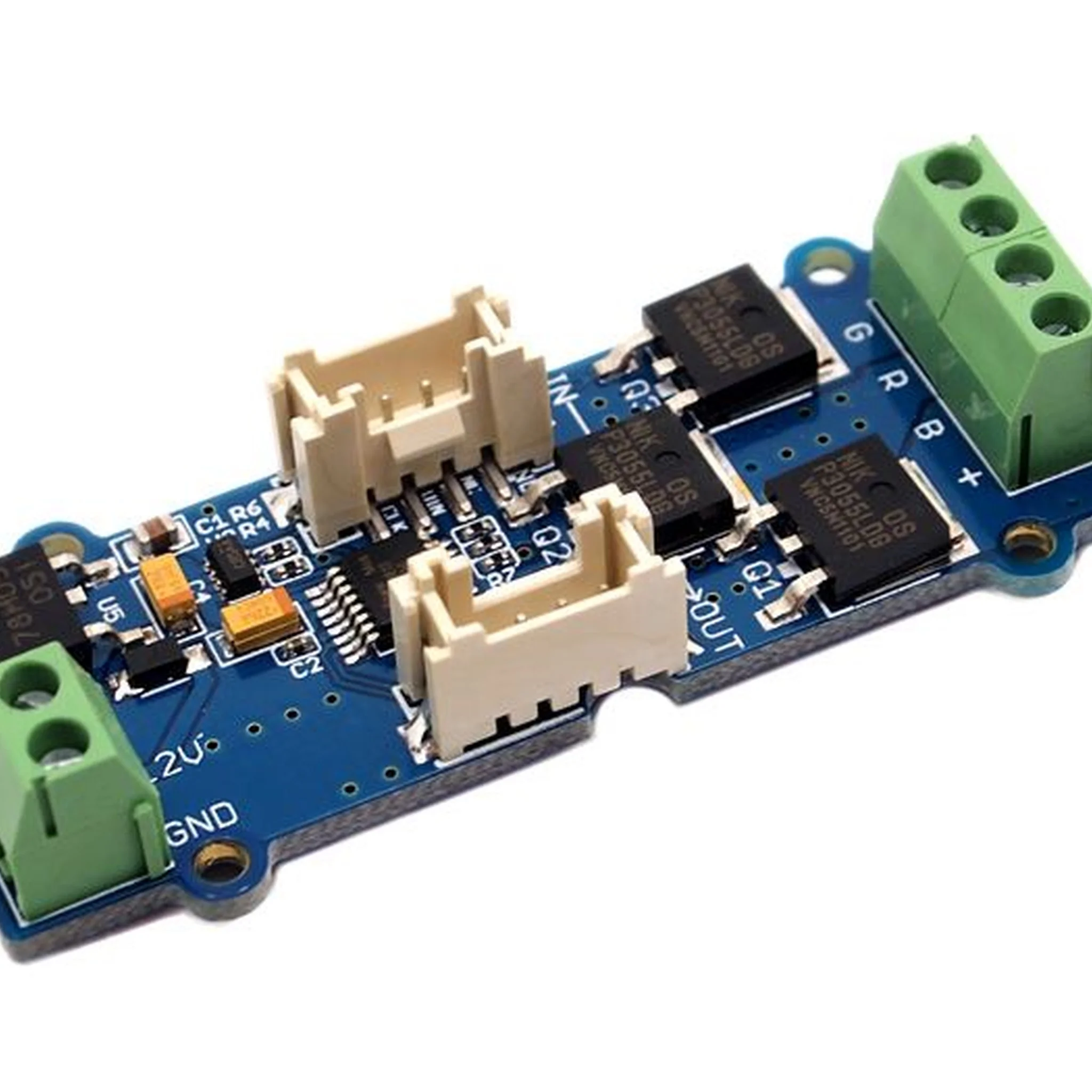

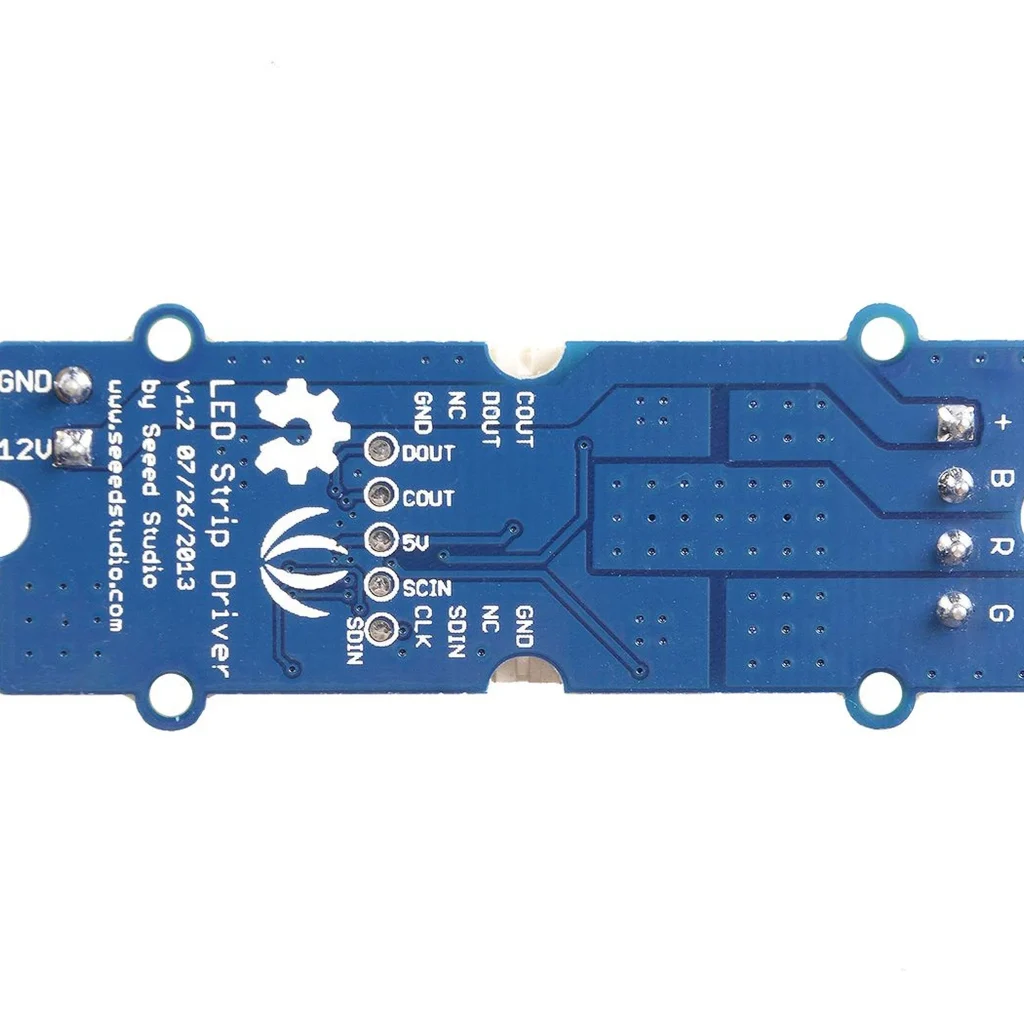

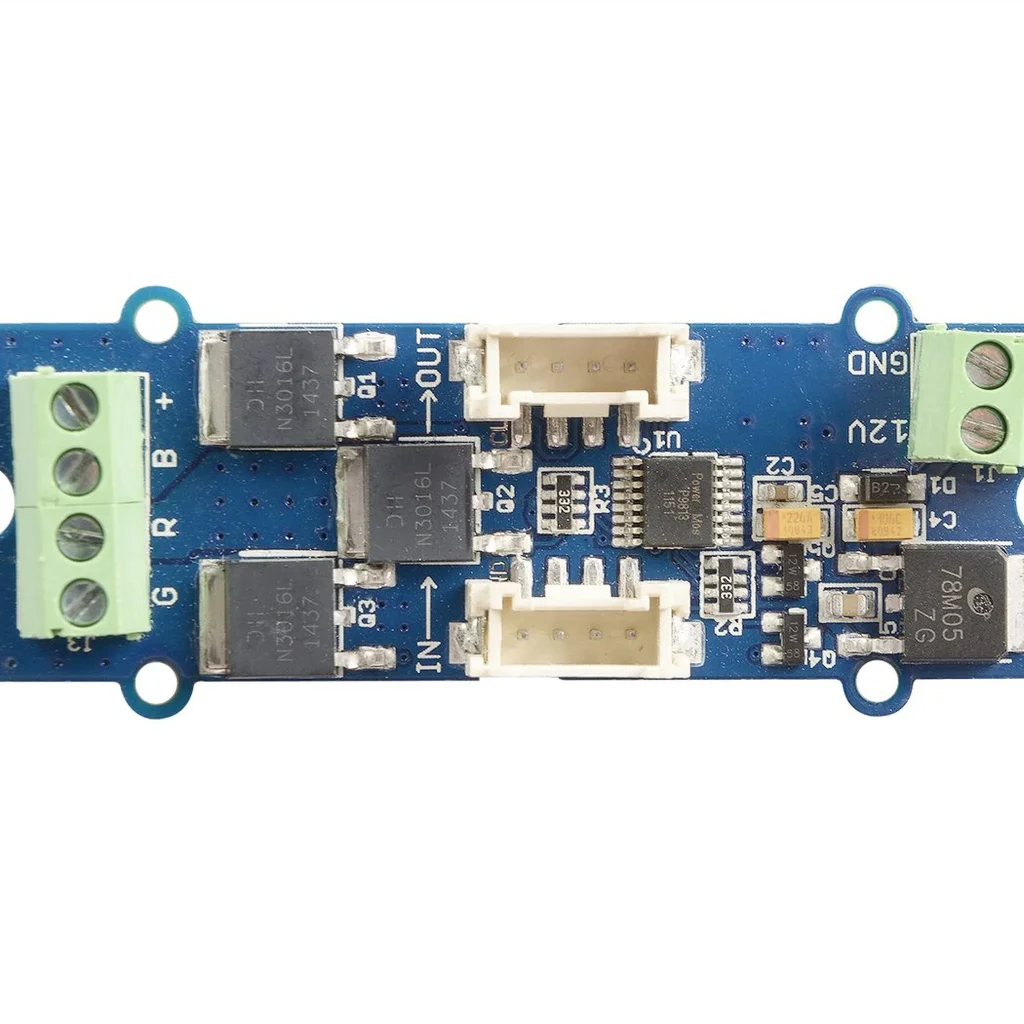

It has 2 terminals and 2 Grove interfaces. The power for the LED strip comes in through the 2-pin terminal. And the LED controlling voltages output through the 4-pin terminal. The 2 Grove interfaces are respectively screen-printed “IN” (for controlling data input) and “OUT” (for controlling data shared with the next strip driver).

It can drive an LED strip 1 to 2 meters long with 9 V, while 1 to 5 meters long with 12 V.  The driver in conjunction with the colorful LED strips can add a wonderful effect to indoor or outdoor usages.

Features

• Grove compatible interface
• Can be cascaded for a larger display
• Best results achieved with LED strips 5 meters long or shorter
• Outputs PWM signals
• 256 gray-levels are adjustable via programming
•  Arduino and MEGA compatible
• Screw Terminals (power input and control signal output interface)

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.


Technical details

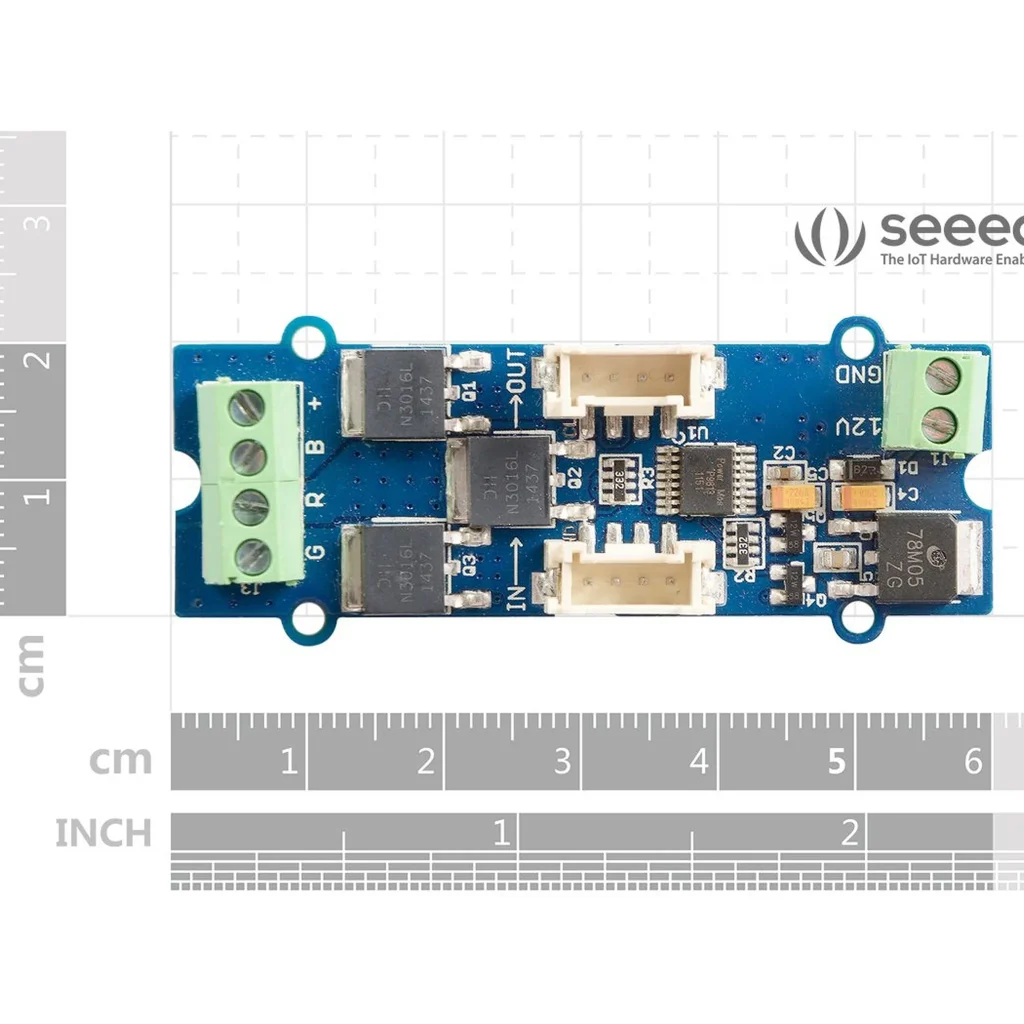

Dimensions     120mm x80mm x13mm
Weight     G.W 15g
Battery     Exclude

Part List
Grove – LED Strip Driver     1
