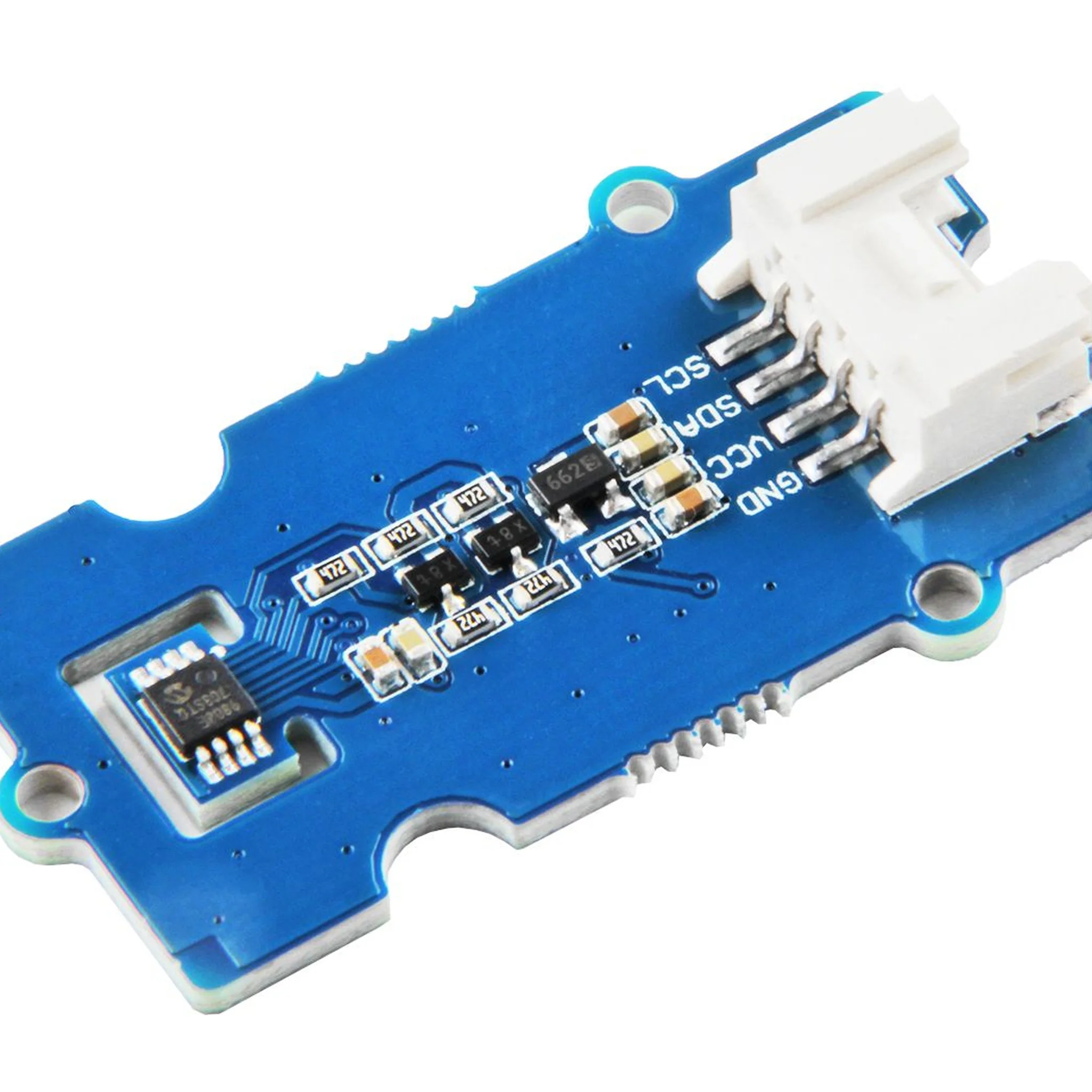

Grove – I2C High Accuracy Temperature Sensor – MCP9808

Features

• High accuracy & wide range of temperature measurement:
      ±0.25 (typical) from -40°C to +125°C
      ±0.5°C (maximum) from -20°C to 100°C
      ±1°C (maximum) from -40°C to +125°C
• User-selectable measurement resolution, providing flexibility for your temperature sensing applications.
      +0.5°C, +0.25°C, +0.125°C, +0.0625°C
• User-programmable registers, allow for user-selectable settings (E.g. Low-power or Shutdown modes)
• I2C interface, works great with Arduino
• Grove interface, fully compatible with Grove ecosystem, truly plug & play
• Easily convert the temperature data to a digital word for easy microcontroller readings

Description

Speaking of Arduino temperature sensors, we tend to think of DS18B20, lm35, and other common temperature sensors. However, the MCP9808 is one of the more accurate/precise temperature sensing options with a wider operating range and precision of +0.0625°C. What’s more, this temperature sensor is compatible with Arduino with its I2C communication protocol, making it a perfect choice for your temperature-sensing projects with Arduino!

The Grove – I2C High Accuracy Temperature Sensor(MCP9808) is a high accuracy digital module based on MCP9808. Integrated with Microchip MCP9808 temperature sensor, it provides high accuracy & a wide range of temperature measurements from -40°C to +125°C. Unlike other sensors, you can choose the measurement resolution of this sensor, providing high flexibility for your temperature sensing applications.

In addition to high-precision temperature measurements, we also offer programmable temperature alert output. We use a separate pin to output the alarm signal, you will find it so convenient to use this signal as an interruption to control other boards.

Don’ t know how to use MCP9808 I2C Temperature Sensor with Arduino? Check our blog for step-by-step instruction!

Note

We’ve Released the Grove Selection Guide and hope to help you find the Grove suit you best.

Applications

• Industrial Freezers and Refrigerators
• Food Processing
• Personal Computers and Servers
• PC Peripherals
• Consumer Electronics
• Handheld/Portable Devices
• Home automation

  Pin Map

Technical details

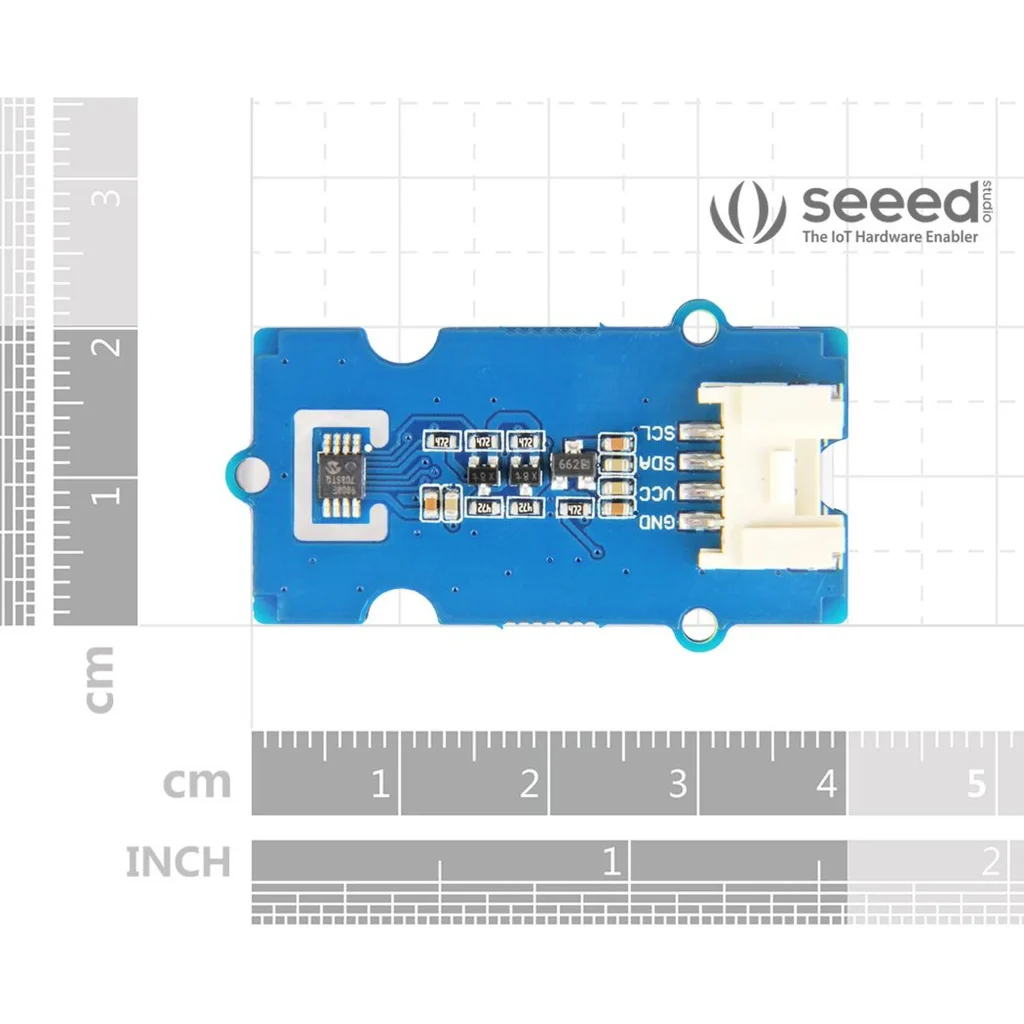

Dimensions     40mm x20mm x7mm
Weight     G.W 9.2g
Battery     Exclude
Operating Voltage     3.3V/5V
Operating Range     -40°C to +125°C
Digital Interface     I2C standard 400 kHz

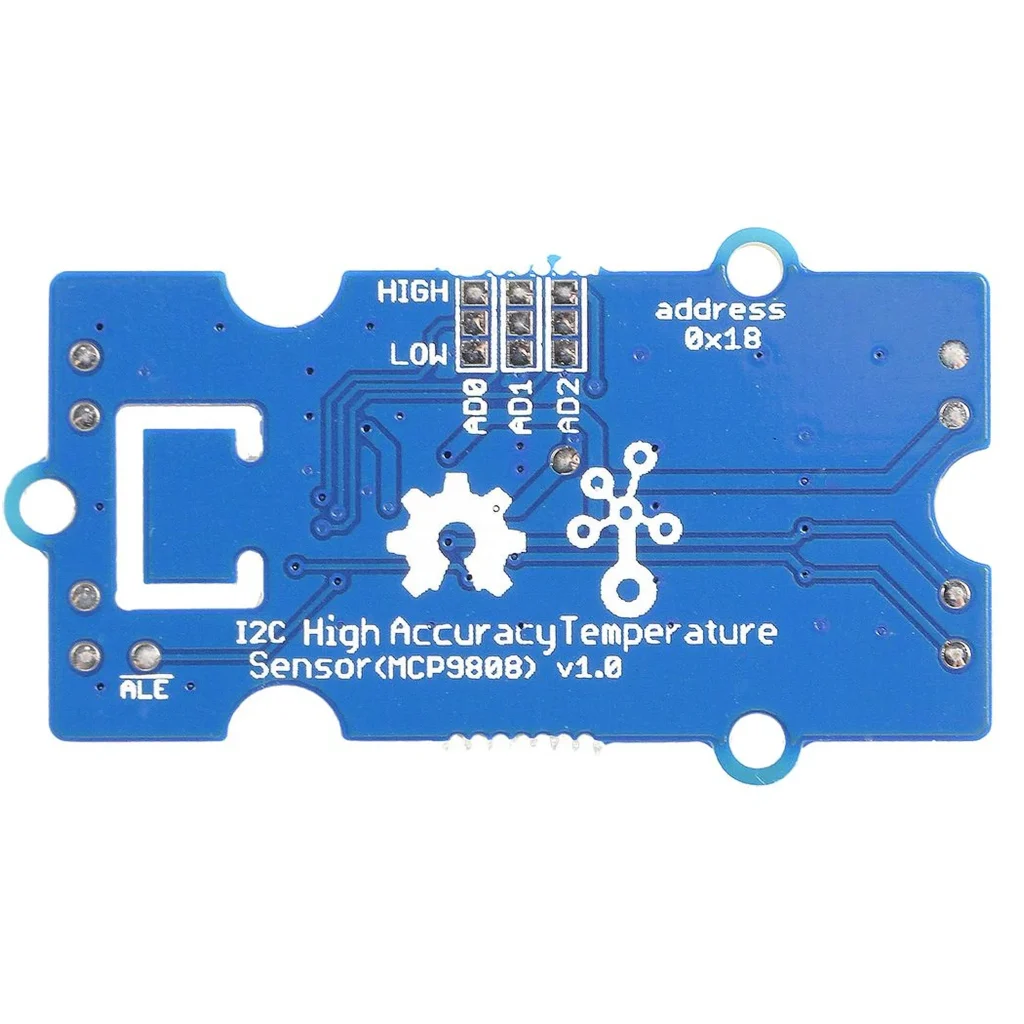

I2C Address     0x18(default)/ 0x18~0x1F(optional)
