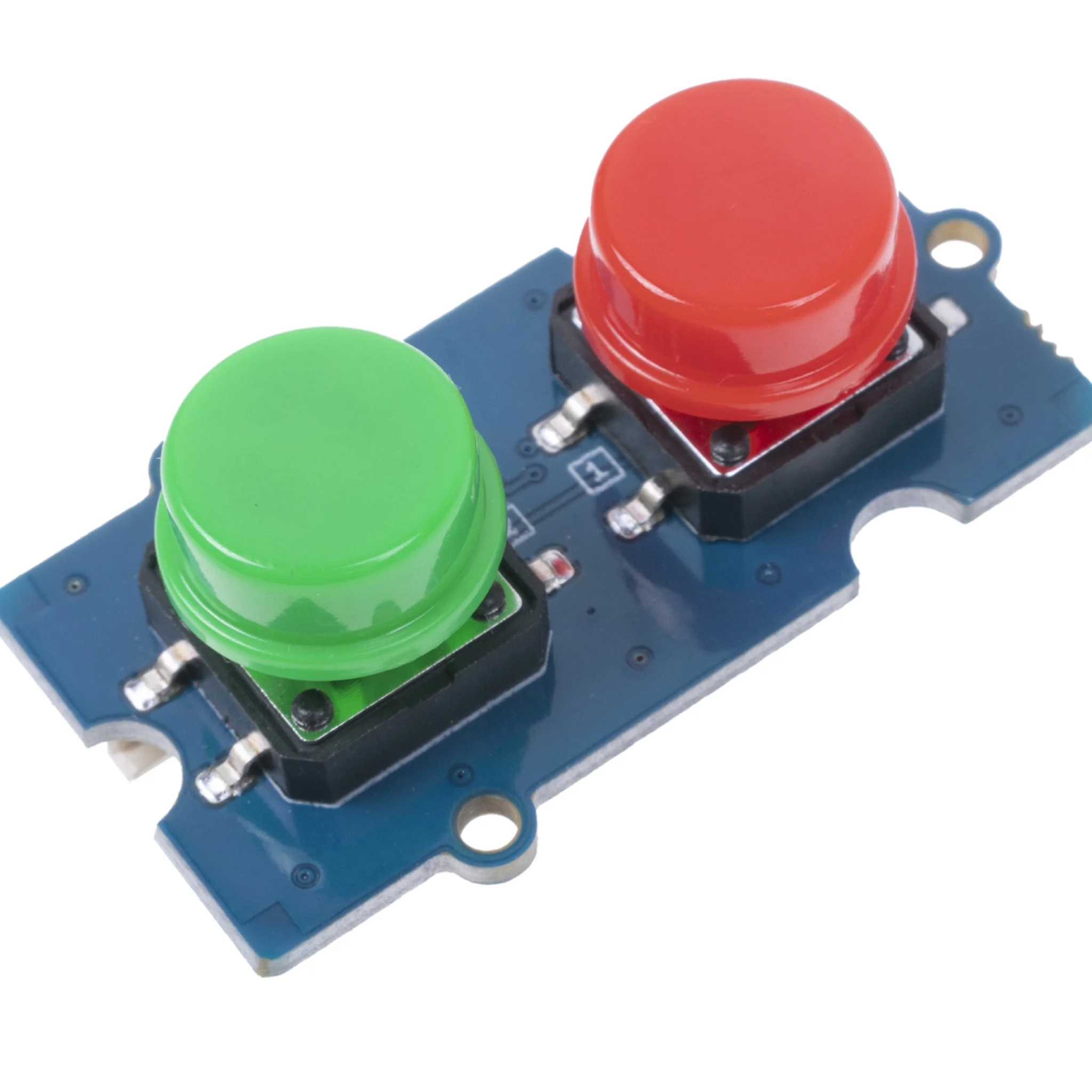

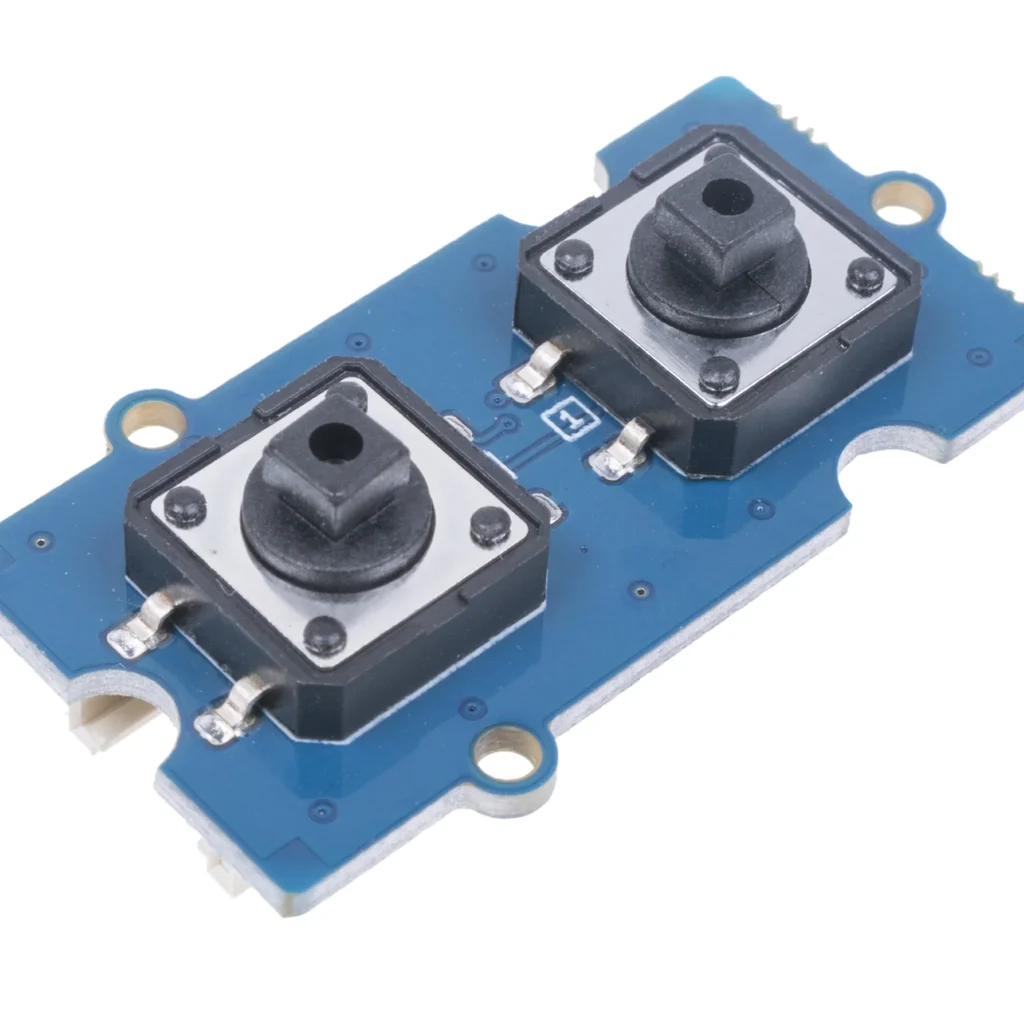

Grove – Dual Button

Key Features

    Compact modular design and less wire connection with two buttons in one grove module
    Different color keycaps provided, freely adjust the color combination as needed.
    3.3/5V voltage compatibility

Description

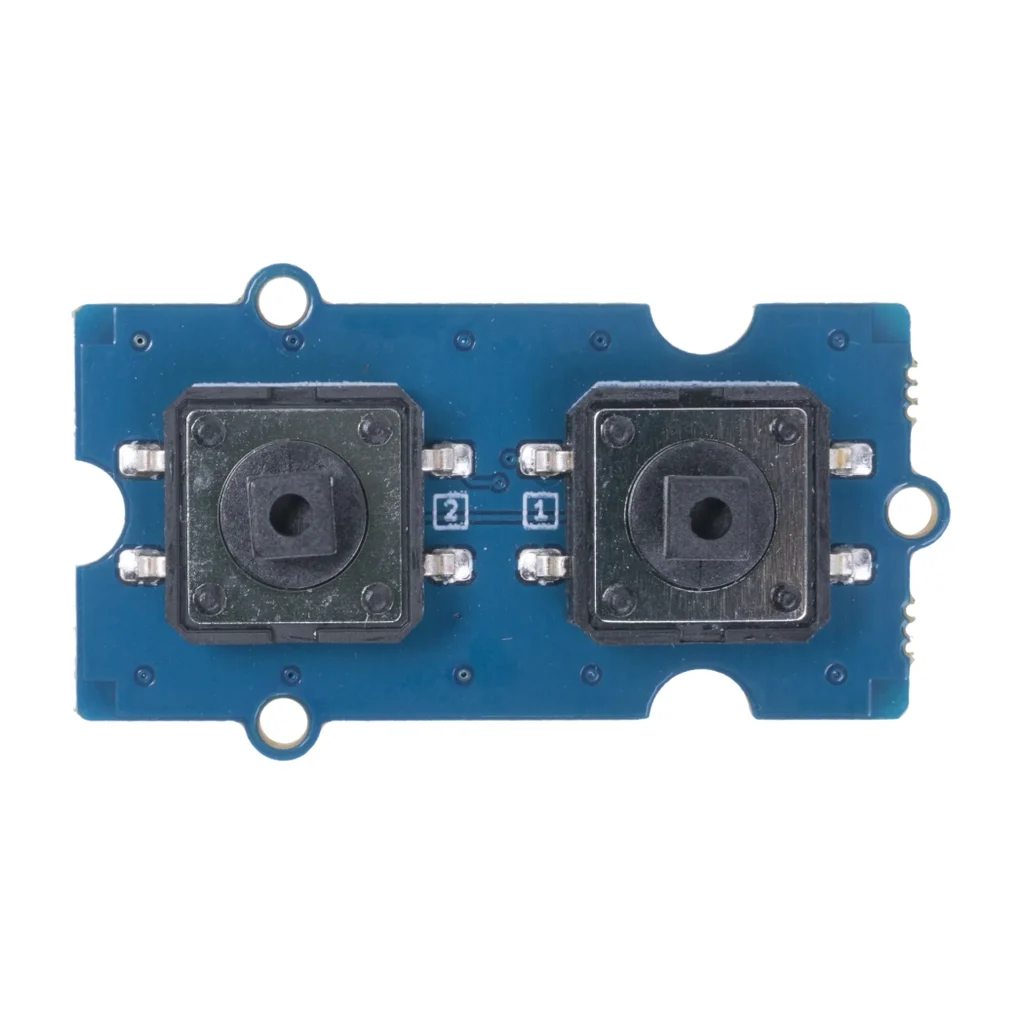

Grove – Dual Button includes 2 buttons, enables you to control two signal channels with one grove module.  With 4 different color keycaps provided, you can freely adjust the color combination as needed.

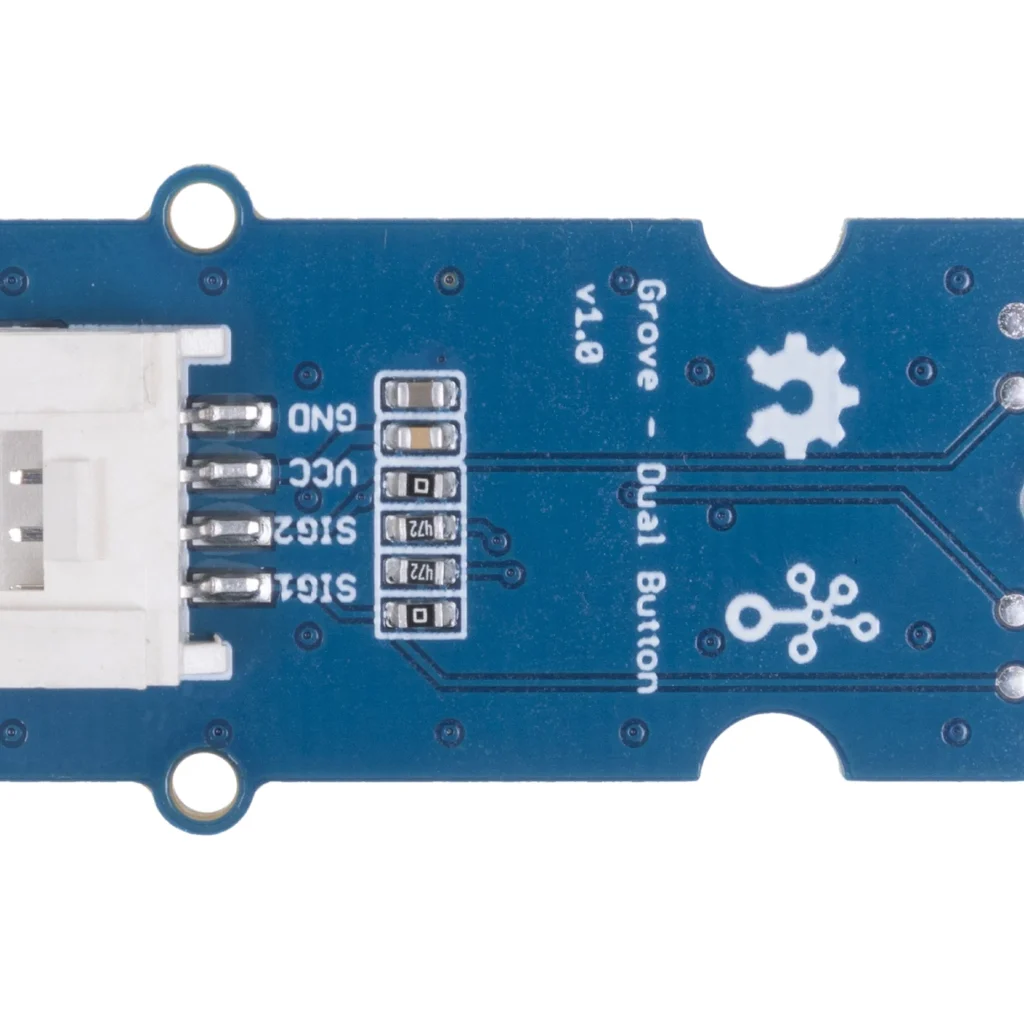

The button is simply driven by the GPIO Digital Pins. When the button is pressed, the Pins can reach a LOW signal from the button; on the other hand, when it is in the loosen state, Pins will always gain a HIGH signal until it is pressed.

Specification
Item               Value
Power            3.3V/5V
Interface        Grove interface
Dimensions     20*40mm

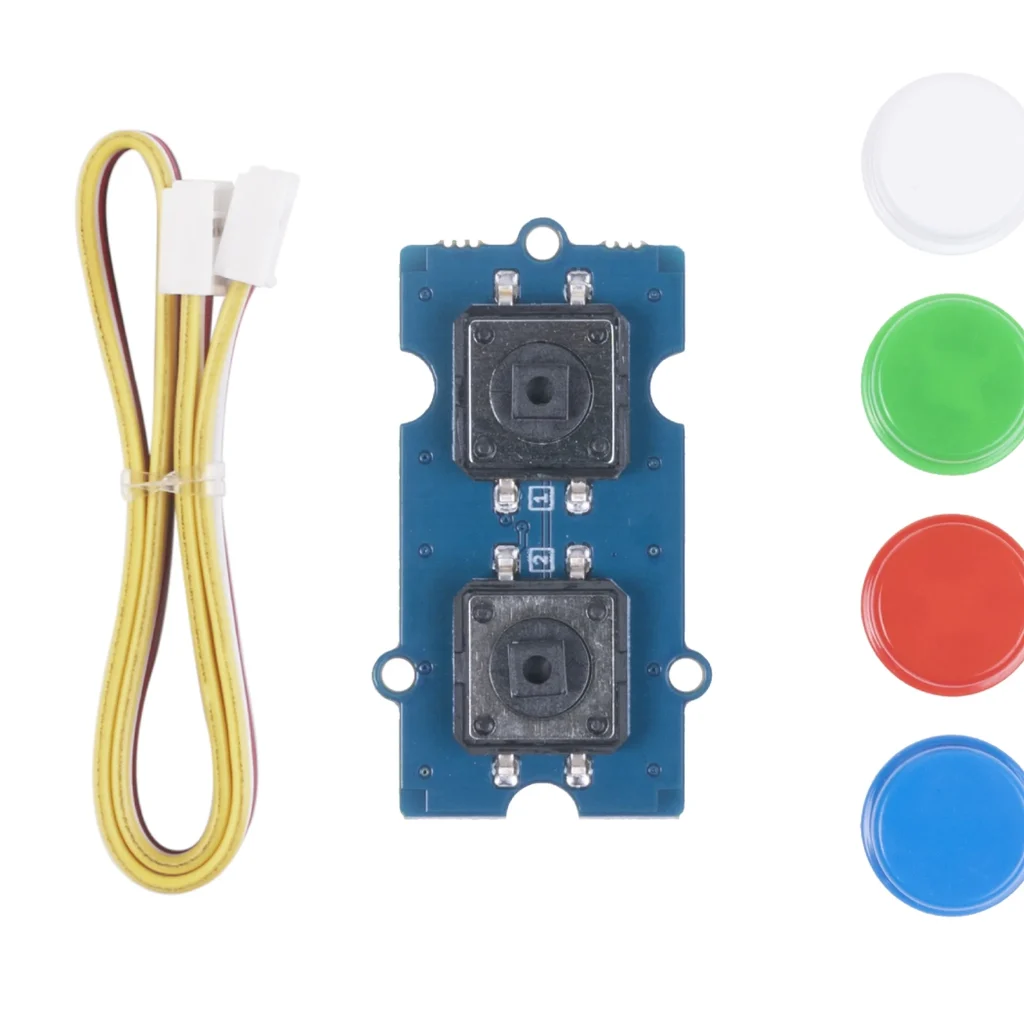

Part List
    1 x Grove – Dual Button
    4 x Keycaps
    1 x Grove Cable
