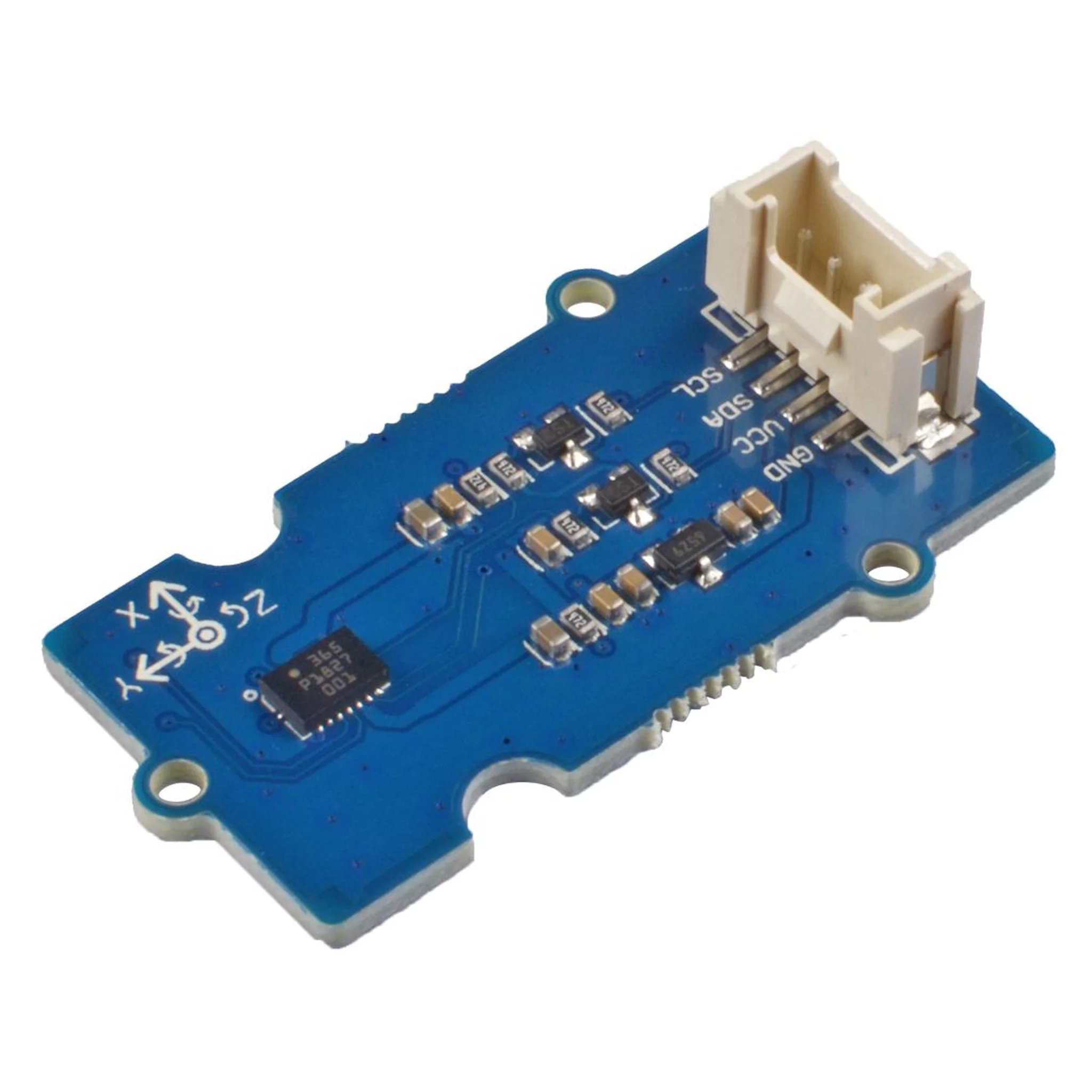

Grove – 6-Axis Accelerometer&Gyroscope (BMI088)

The Grove – 6-Axis Accelerometer&Gyroscope(BMI088) is a 6 DoF(degrees of freedom) High-performance Inertial Measurement Unit(IMU) .This sensor is based on BOSCH BMI088, which is a high-performance IMU with high vibration suppression. The 6-axis sensor combines a 16 bit triaxial gyroscope and a 16 bit triaxial accelerometer. Specially, you can use this sensor on the drone and robotics application in demanding environments.

Features

    The BM1088 is designed for drones, robotics and industry applications with challenging performance requirements.

    Wide acceleration measurment range(up to 24g)

    The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g

Typical Applications

    Drones and flying toys

    Industrial robots, hover boards

    Domestic applications(e.g. vacuum cleaner, social robots,etc.)

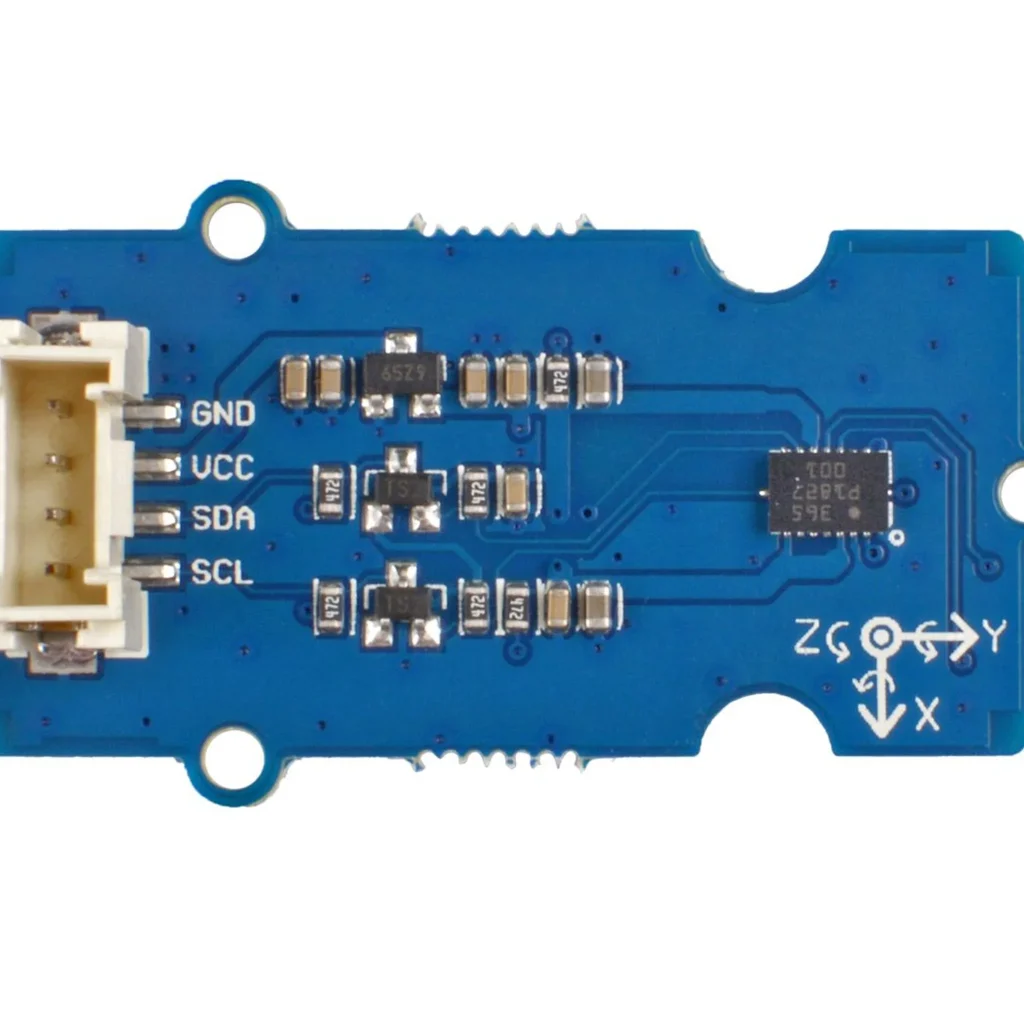

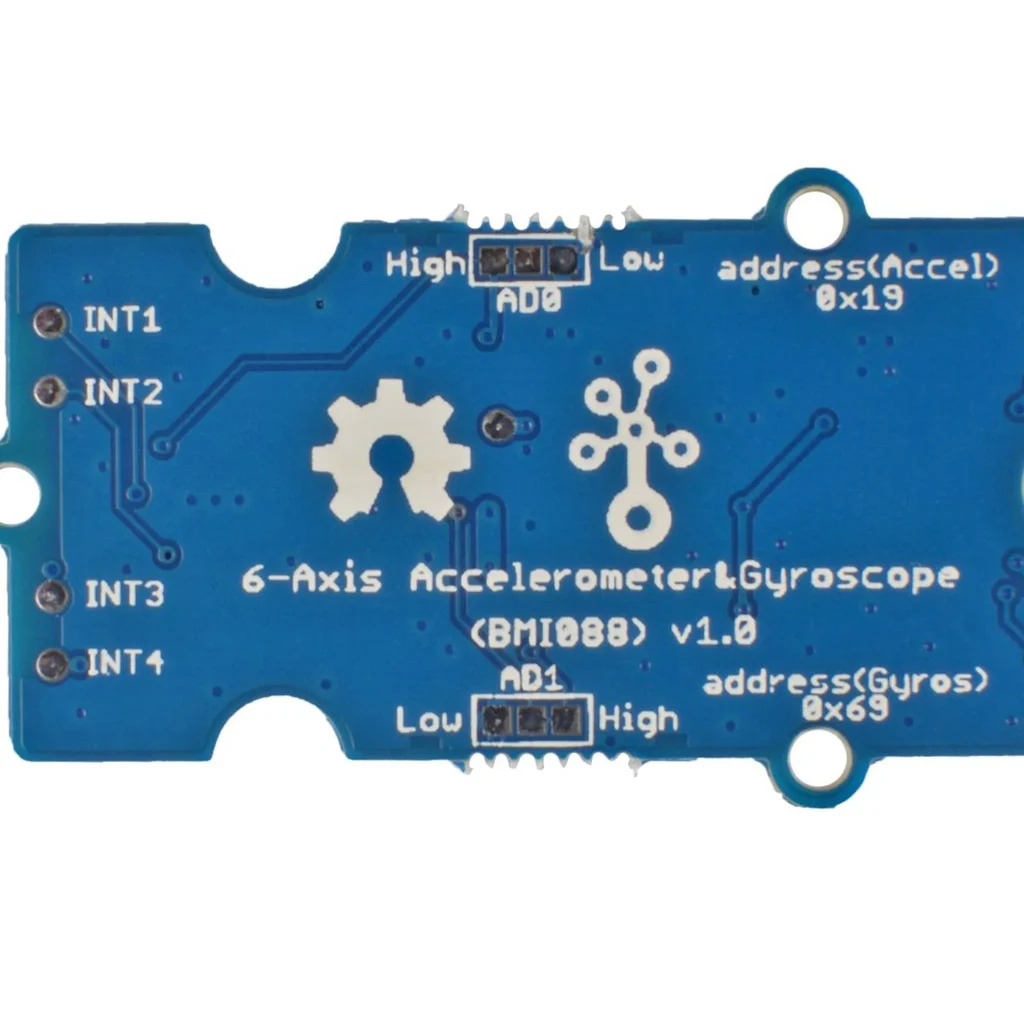

Pin Out

Technical details

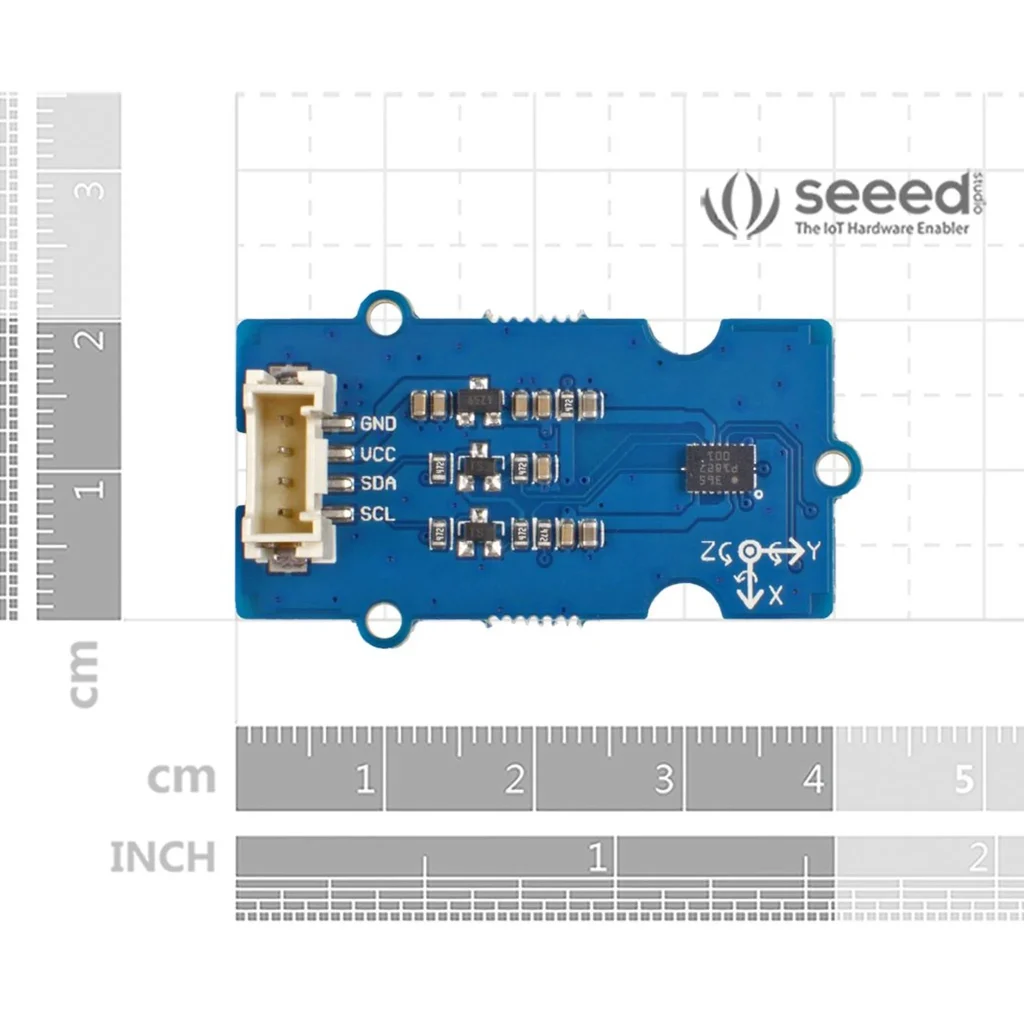

Dimensions   :  40mm x20mm x7mm
Weight :    G.W 9.4g
Battery :    Exclude
Operating Voltage  :  3.3V / 5V
Measurement range and sensitivity
Accelerometer :
–     ±3g @10920 LSB/g
–     ±6g @5460 LSB/g
–     ±12g @2730 LSB/g
–     ±24g @1365 LSB/g
Gyroscope
–     ±125°/s @262.1 LSB/°/s
–     ±250°/s @131.1 LSB/°/s
–     ±500°/s @65.5 LSB/°/s
–     ±1000°/s @32.8 LSB/°/s
–     ±2000°/s @16.4 LSB/°/s
Operating Temperature Range     -40℃ ~ +85℃
External interface     I2C
