ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, with Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth
ESP32-S3 7″ LCD Development Board
Integrates RGB interface LCD and 5-point capacitive touch
Features
This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
Onboard 7inch LCD display, 800×480 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
Application Scenarios
IPS Display Panel
Excellent display performance, 170° viewing angle
Supports multiple peripherals
Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces
Application Example
for reference only, please refer to the Package Content for the detailed part list

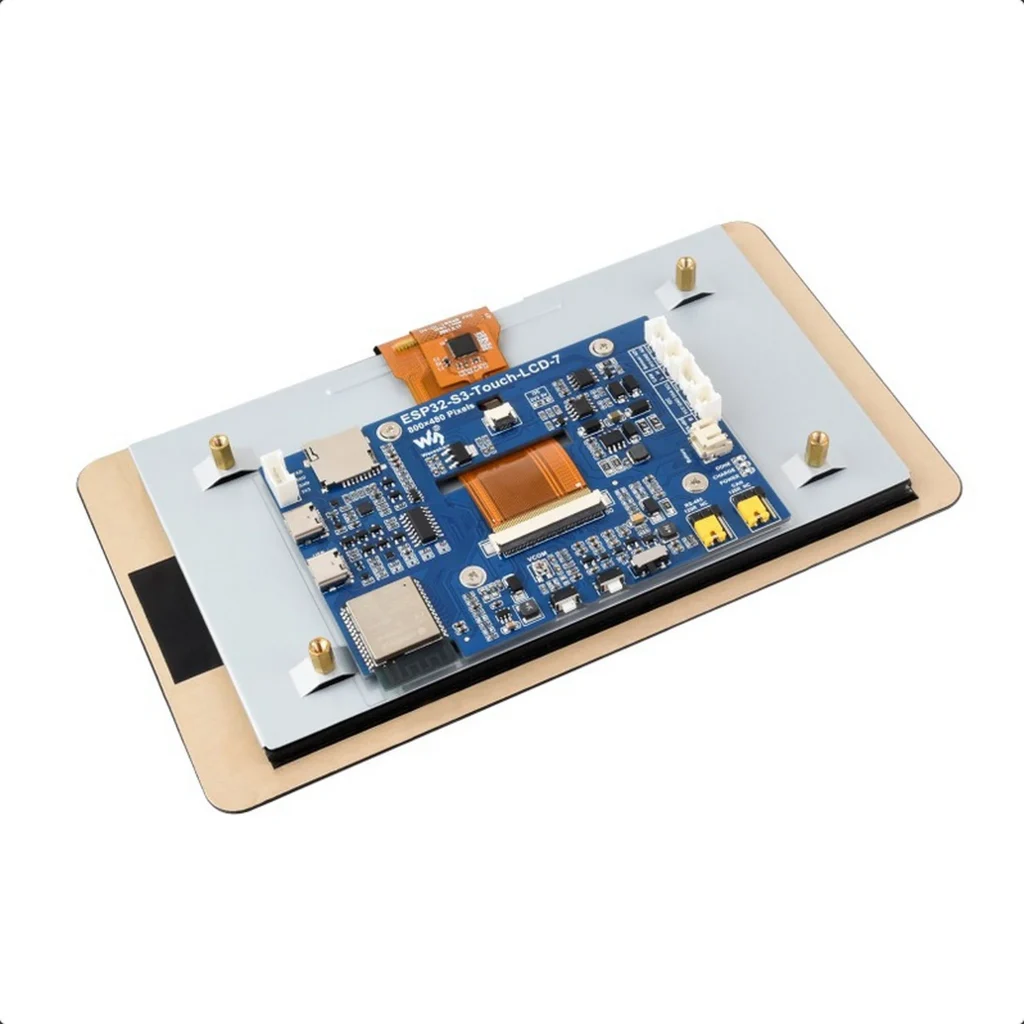

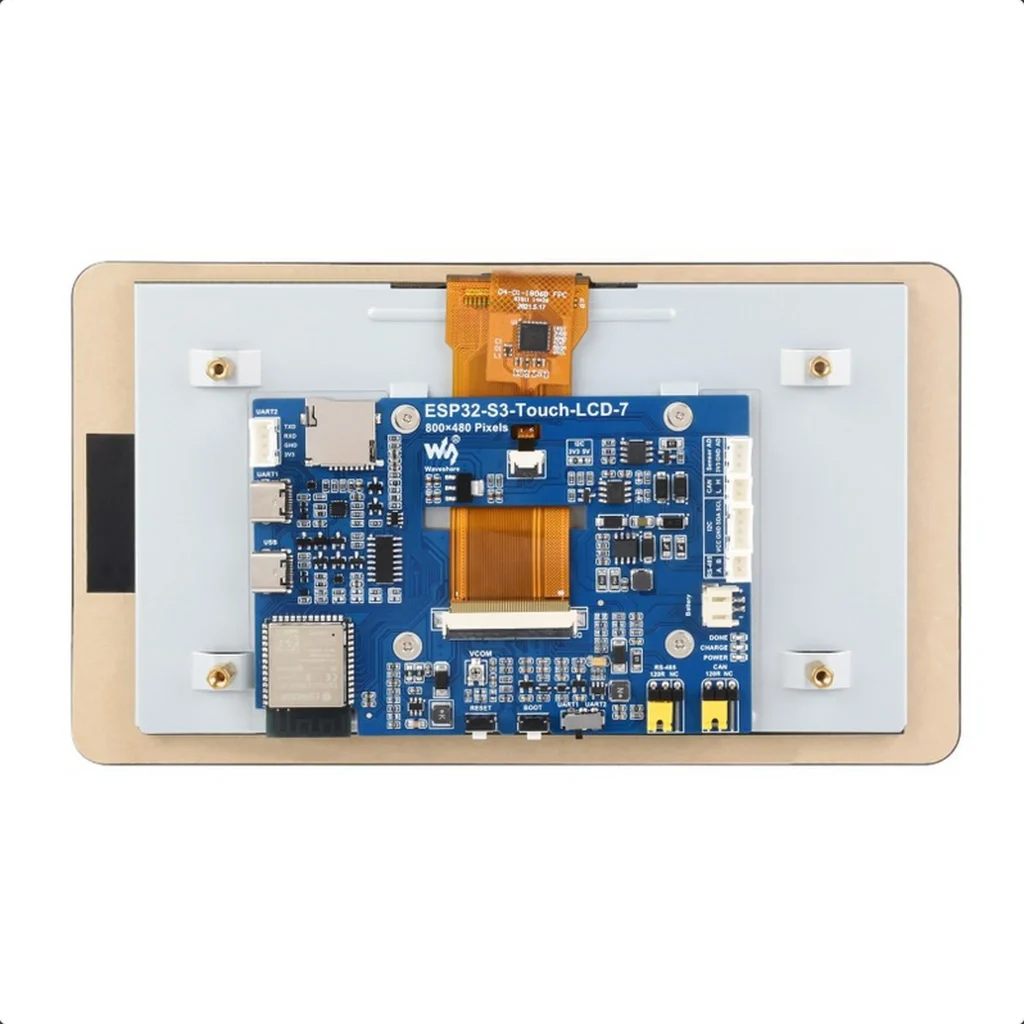

What’s On Board
ESP32-S3N8R8 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
7inch display panel connector
Touch panel connector
TF card slot
USB Type-C port
UART1 Port USB TO UART Type-C port
UART2 connector UART1 and UART2 are the same UART, selected by switch
Sensor header
CAN header
I2C header
RS485 header
3.7V single lithium battery PH2.0 header
CAN terminal resistor selection
RS485 terminal resistor selection
UART selection select UART1 or UART2
BOOT button Press and hold while powering on for program burning
