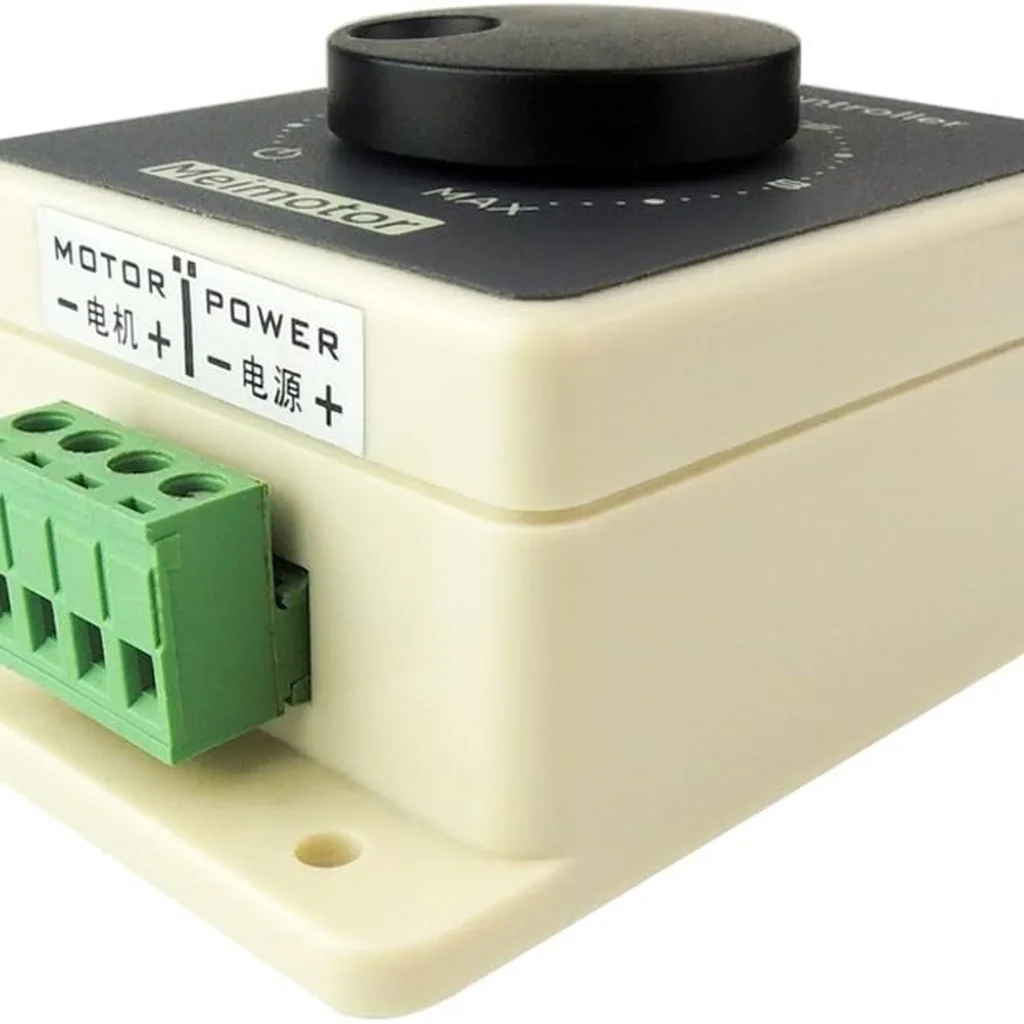

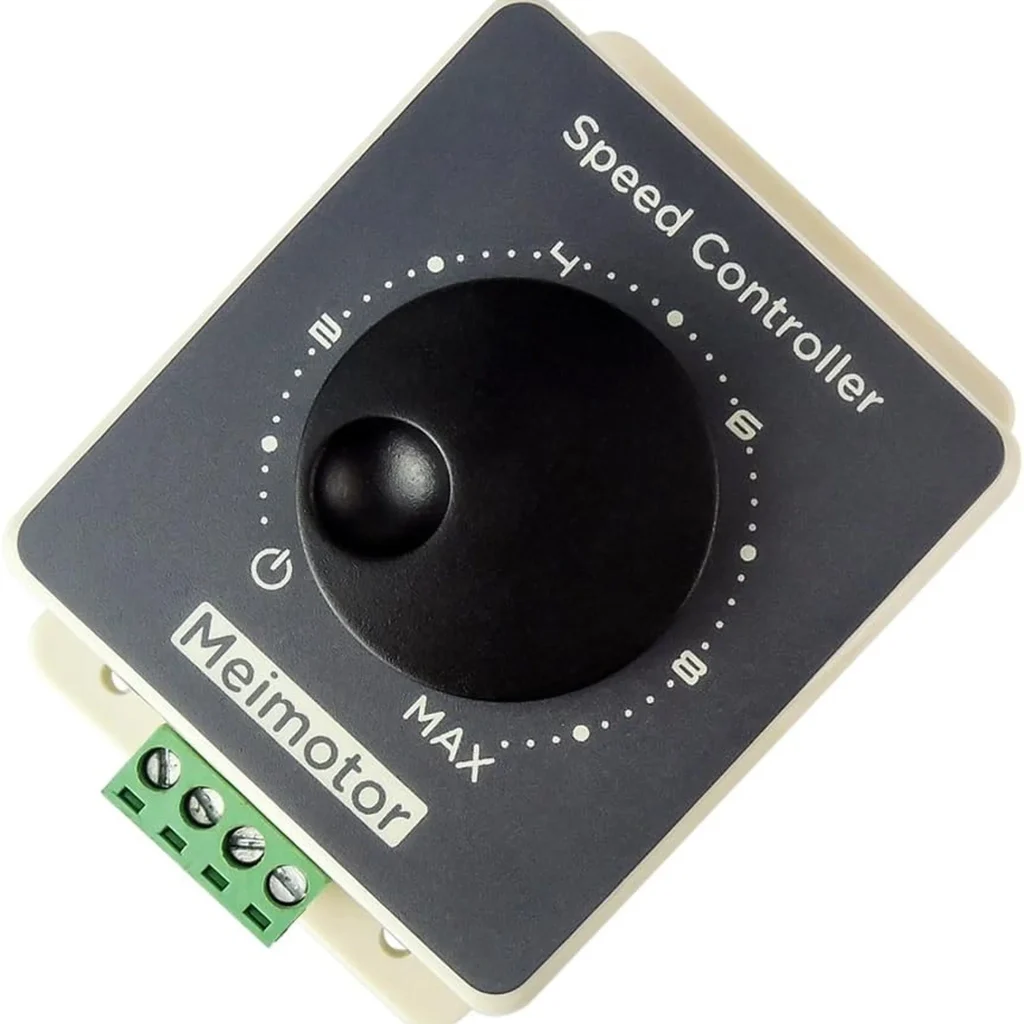

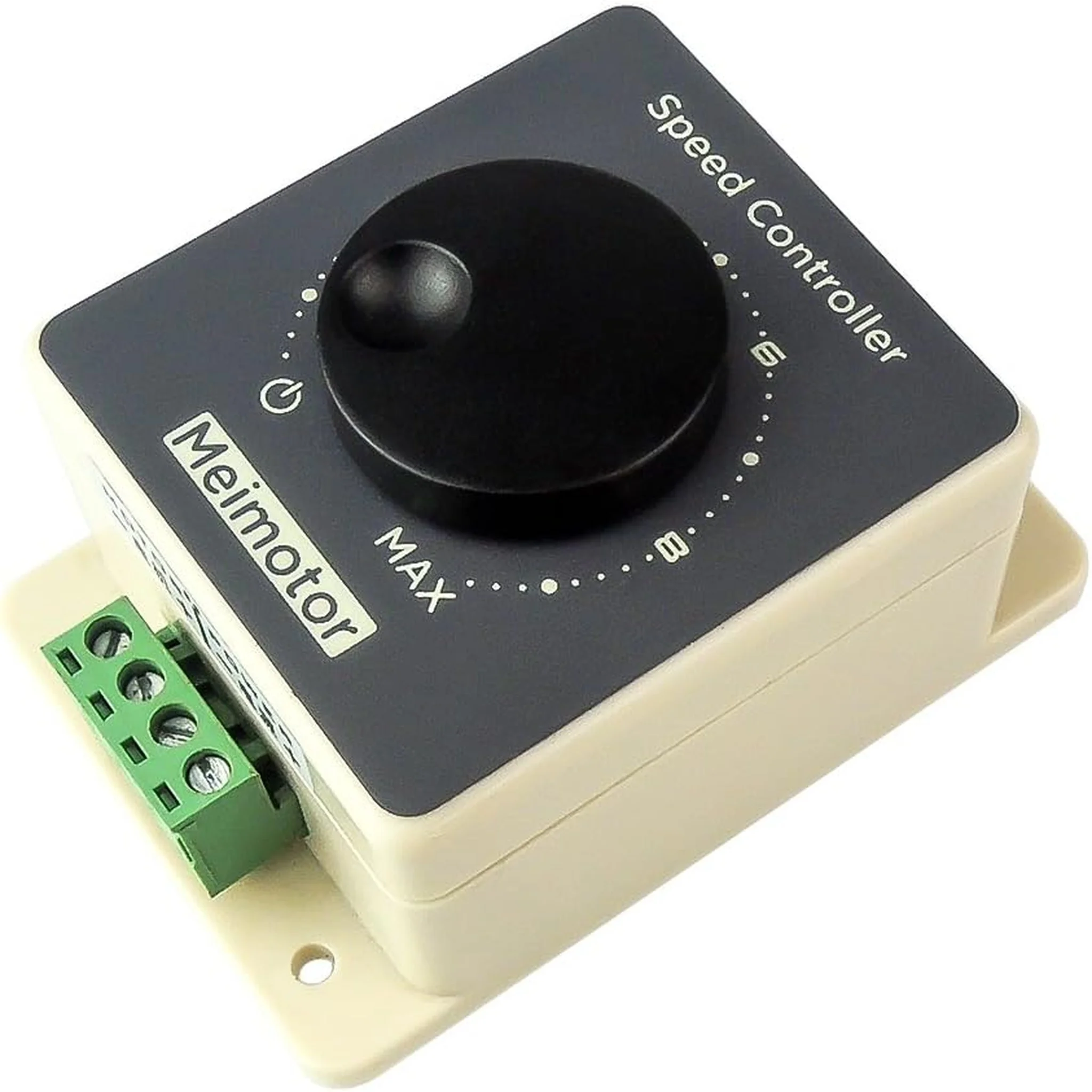

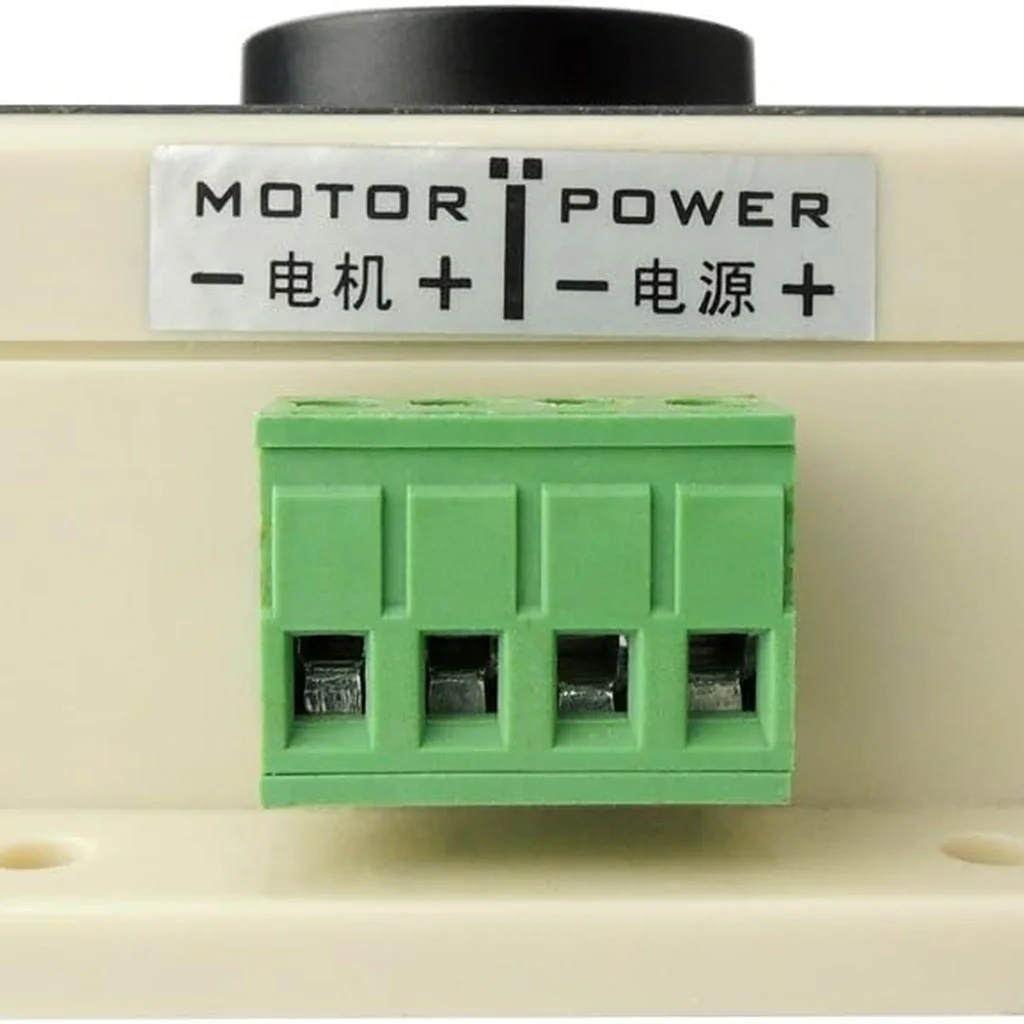

DC PWM Motor Speed Controller 12V/24V/36V/48V 20A

€12.00

Product Weight: 0.1000KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-0C1043
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

DC PWM Motor Speed Controller 12V/24V/36V/48V 20A

Model:CCM96SK
Potentiometer:resistance B100K;opening 8mm
Input voltage:DC 10-60V
Output voltage:0-100% of input voltage
Control power:depends on the input voltage:12V*10A=120W,24V*10A=240W etc…
Rated current:10A
Maximum current:20A
Speed range:5%-100%
Size:88mm*59mm*35mm
PWM frequency:25kHz
Weight:94g

DC PWM Motor Speed Controller 12V/24V/36V/48V 20A
