BTA10-600B  600 V, 10 A, 50mA Standard, TO-220 Thyristor

Available either in through-hole or surface mount packages, the BTA10, BTB10 and T10xx Triac series are suitable for general purpose mains power AC switching. They can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. They are also recommended for phase control operations in light dimmers and appliance motors speed controllers.

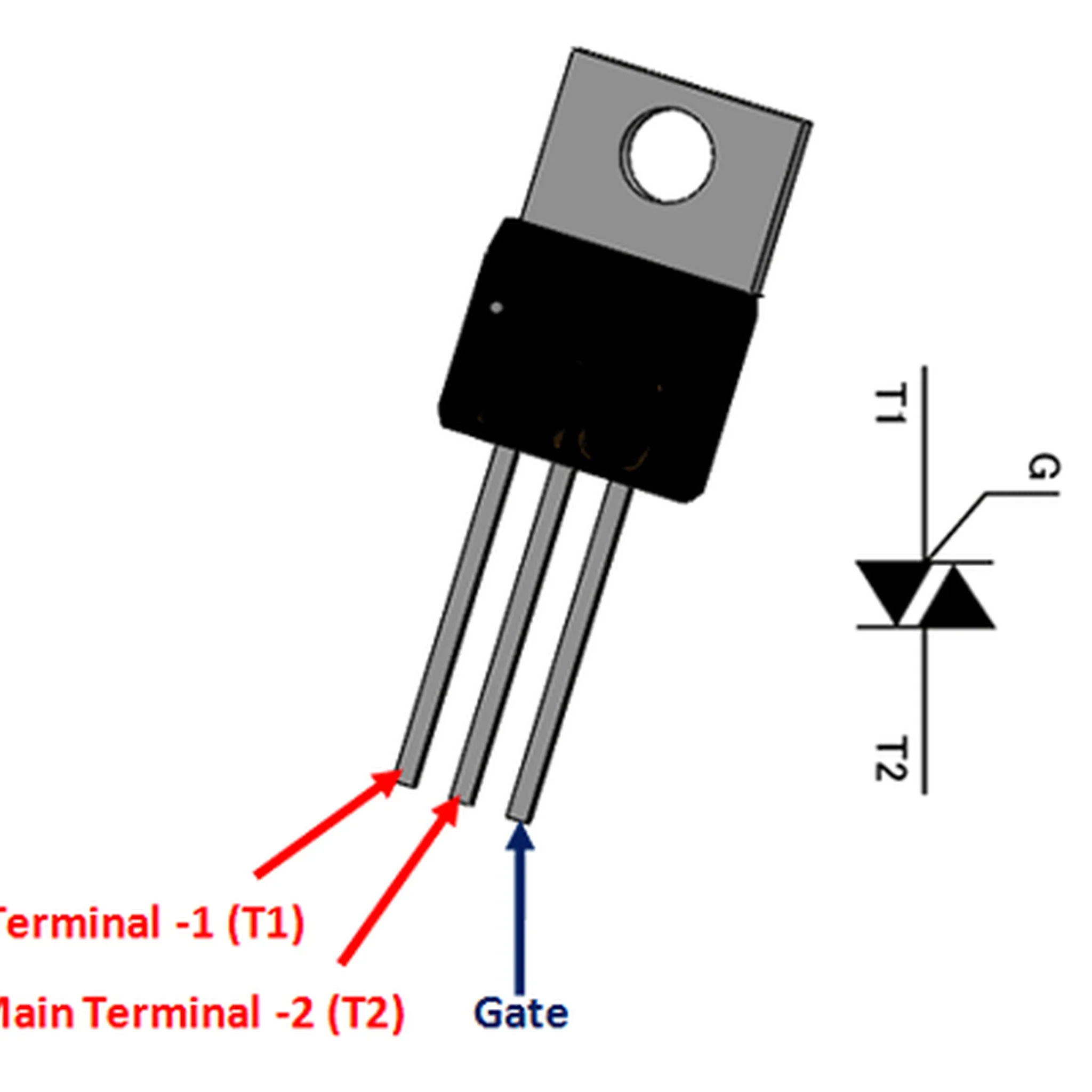

Pin Configuration

Series:                                                            BTA10
On-State RMS Current – It RMS:                   10 A
Non Repetitive On-State Current:                  105 A
Rated Repetitive Off-State Voltage VDRM:    600 V
Off-State Leakage Current @ VDRM IDRM:  5 uA
On-State Voltage:                                           1.55 V
Holding Current Ih Max:                                 50 mA
Gate Trigger Voltage – Vgt:                            1.3 V
Gate Trigger Current – Igt:                             100 mA
Minimum Operating Temperature:               – 40 C
Maximum Operating Temperature:              + 125 C
Mounting Style:                                            Through Hole
