Product Weight: 0.0050KG
The BT151 is a medium power 12A silicon-controlled rectifier that comes in a TO-220 package that can be used to switch medium power AC/DC loads and can handle high DC pulses.

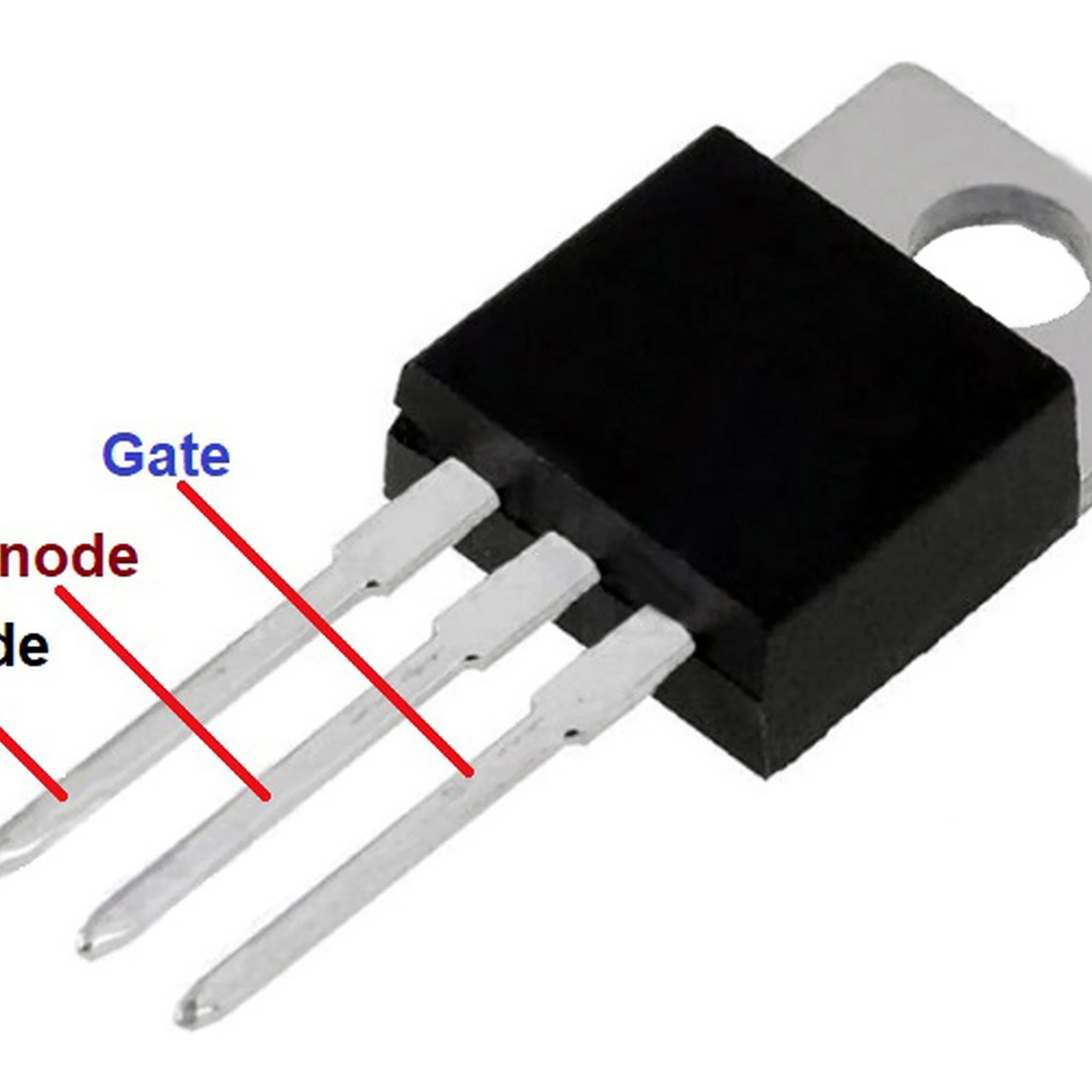

Pin configuration
|
Pin number: |
Pin name: |
Pin description: |
|
1 |
Cathode |
Conventional current flows out of the cathode. |
|
2 |
Anode |
Conventional current flows into the anode. |
|
3 |
Gate |
Controls conduction between the anode and cathode. |
|
4 |
Tab |
Electrically connected to the anode. |
BT151 Equivalent SCRs: BT152, TYN208, 2N6508
