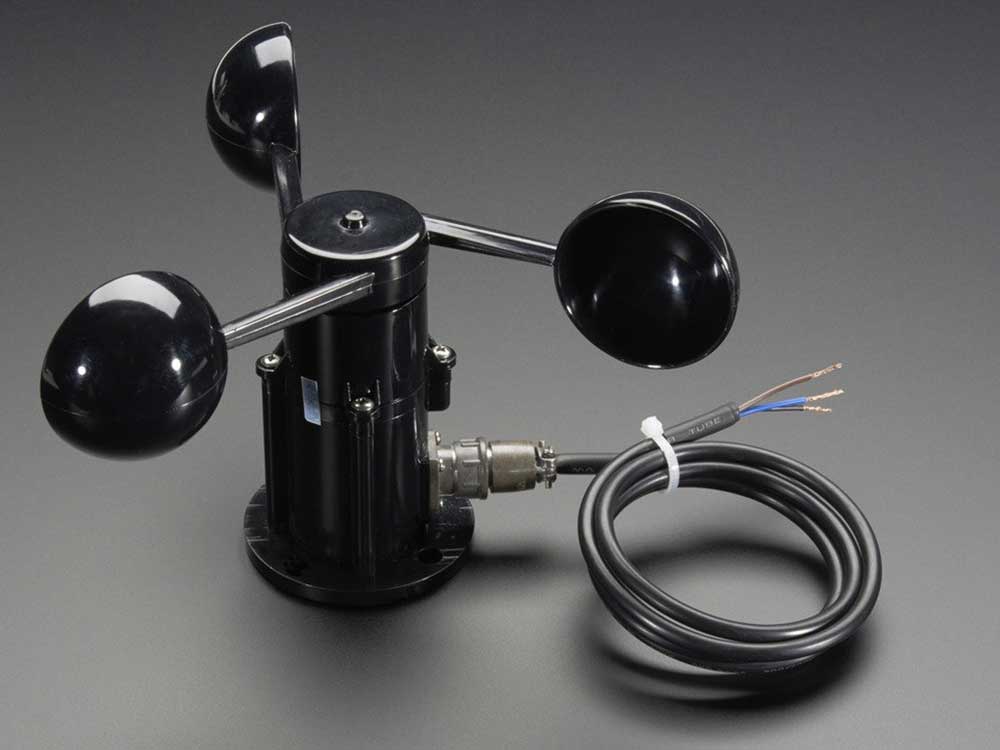

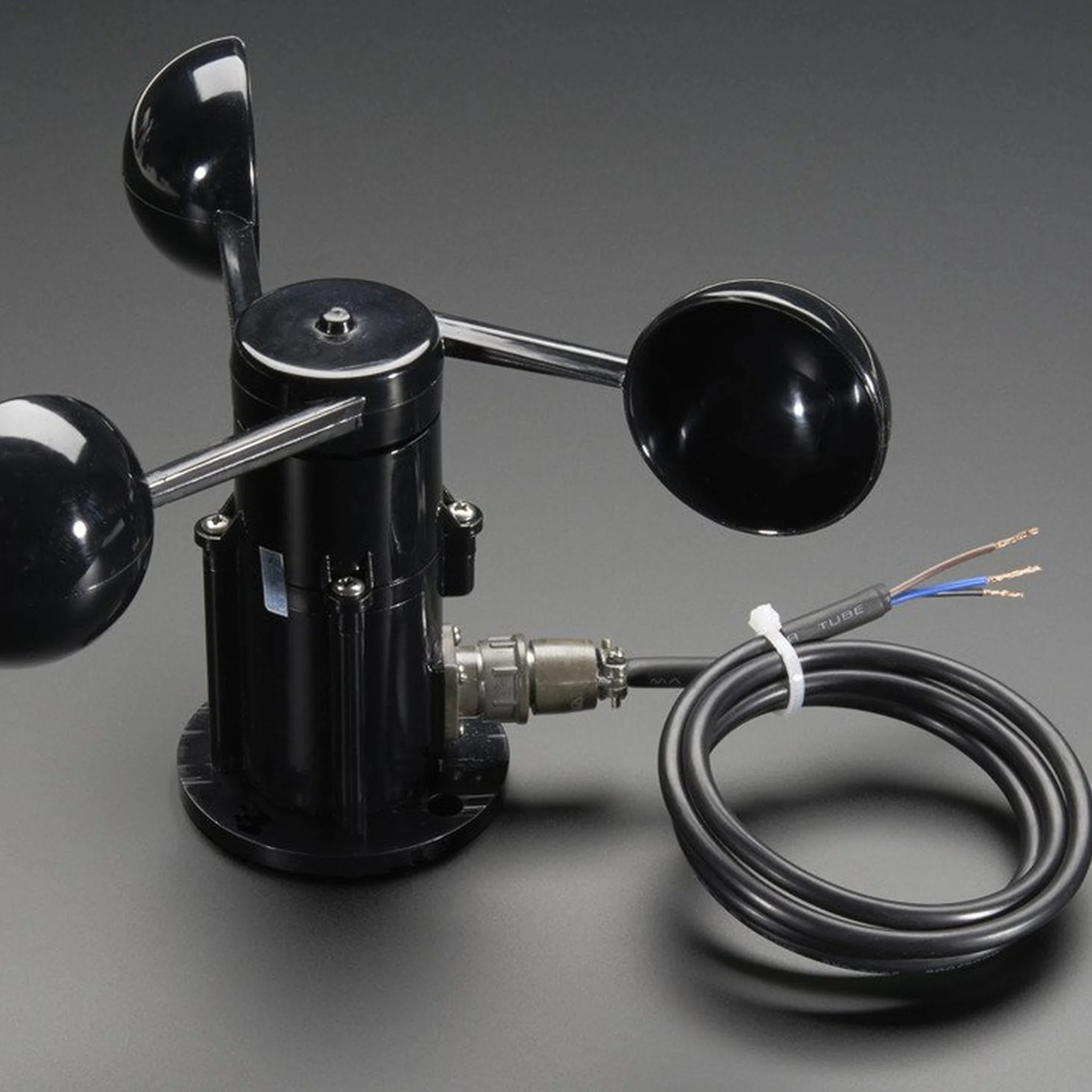

Anemometer Wind Speed Sensor w/Analog Voltage Output

An anemometer is a device used for measuring wind speed, and is a common weather station instrument. This well made anemometer is designed to sit outside and measure wind speed with ease.

How to use Anemometer wind speed sensor

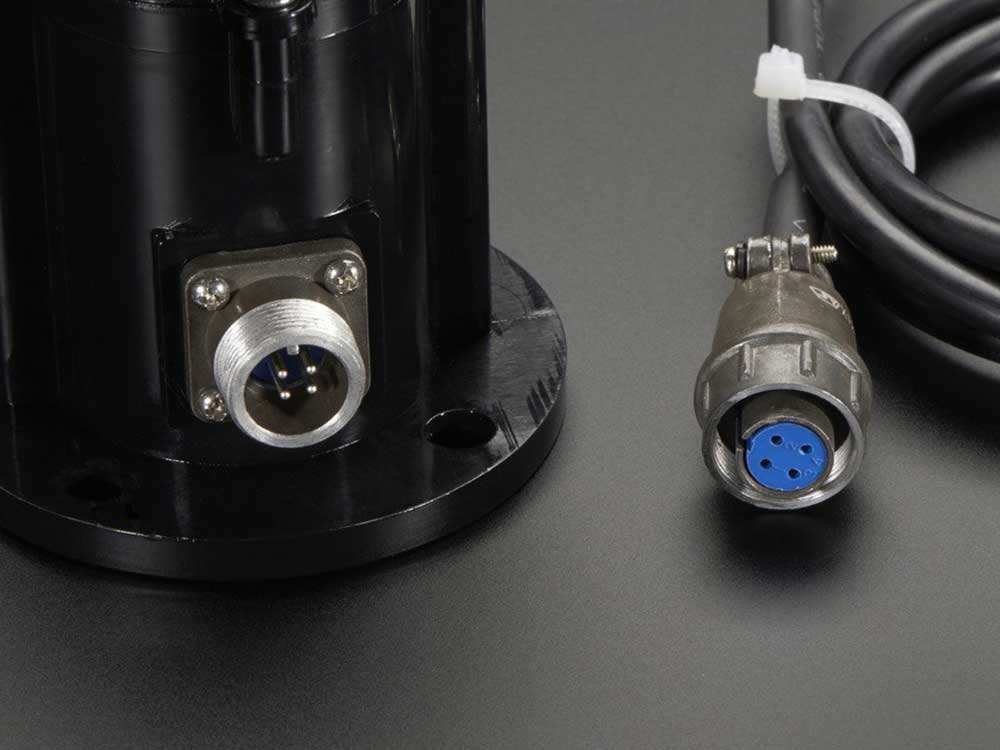

To use, connect the black wire to power and signal ground, the brown wire to 7-24VDC (we used 9V with success) and measure the analog voltage on the blue wire. The voltage will range from 0.4V (0 m/s wind) up to 2.0V (for 32.4m/s wind speed). That’s it! The sensor is rugged, and easy to mount. The cable can easily disconnect with a few twists and has a weatherproof connector.

Accurately and Reliably Measure

QS-FS Wind speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Build-in Digital circuits arecapableofstrong RFI & EMI resistance and automatic temperature compensation. Voltageandcurrentsignals output by electromagnetic induction, generate a linear relation betweenacquiredvalues and horizontal wind speed .

From what is Build -Anemometer wind speed sensor

The sensor mainly includes high-strengthaluminum-alloyhousing shell, 304SS wind cup, PCB board painted with anti-corrosion coating, andfeatureswater proof and corrosion resistance. The sealing rings are used to wraptherotatingpart,with the excellent sealing function of water proof, salt fog and dust immersing. WS04Windspeed sensor has good performance in harsh environment.

Features:

• Compact size for easy installation.
• High accuracy and good stability.
• Low starting threshold.
• Corrosion resistant.
• Overall carbon fiber material.
• Various output signal optional.
• Compatibility with Arduino.
• Compatibility with Raspberry Pi.

Dimensions of Anemometer Wind Speed Sensor

• Height (base to center): 105mm / 4.1″.
• Center out to Cup: 102mm / 4″.
• Arm Length: 70mm / 2.8″.
• Weight: 111.8g.

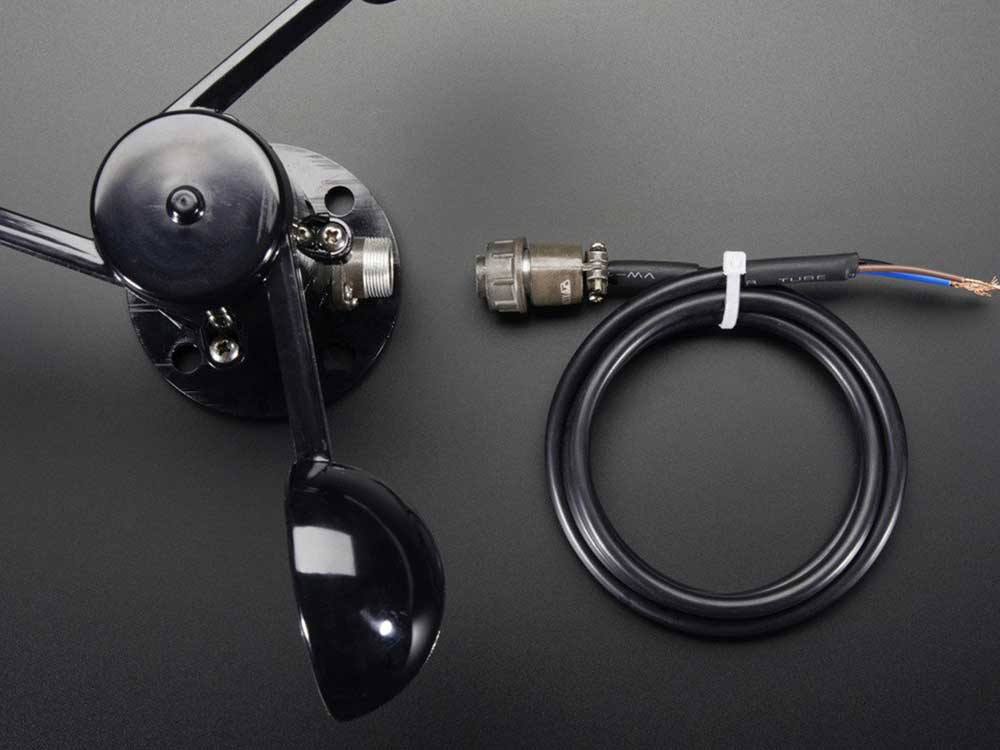

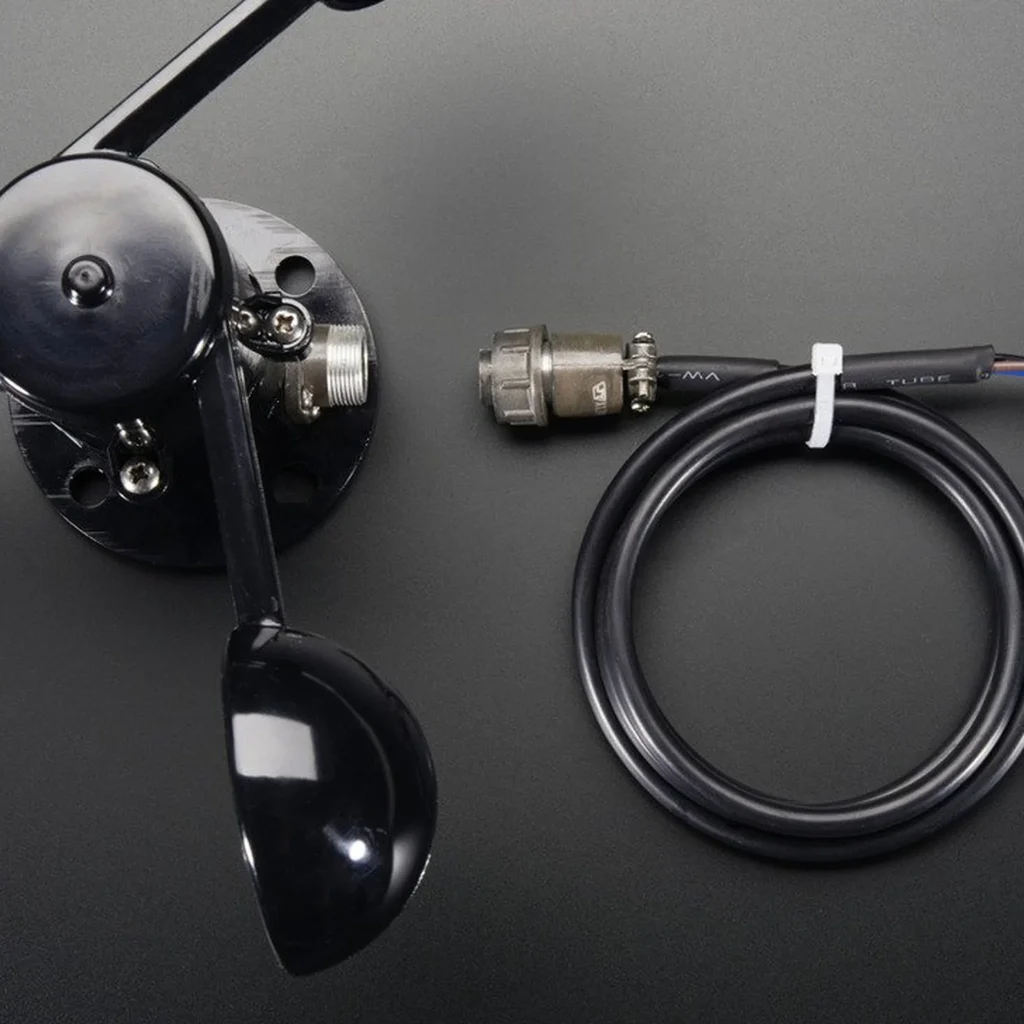

Wire Dimensions of Anemometer Wind Speed Sensor

• Wire Length: 99cm / 39″.
• Plug Length: 30mm / 1.2″.
• Diameter (thickness): 4.8mm / 0.2″.

Application:

• Weather monitoring stations.
• Safety monitoring of high altitude equipment.
• Ports and Marine vessels.
• Solar and wind power generation.
• Mobile weather monitoring vehicles.
• Airports & helipads.
• Road & rail tunnels.
