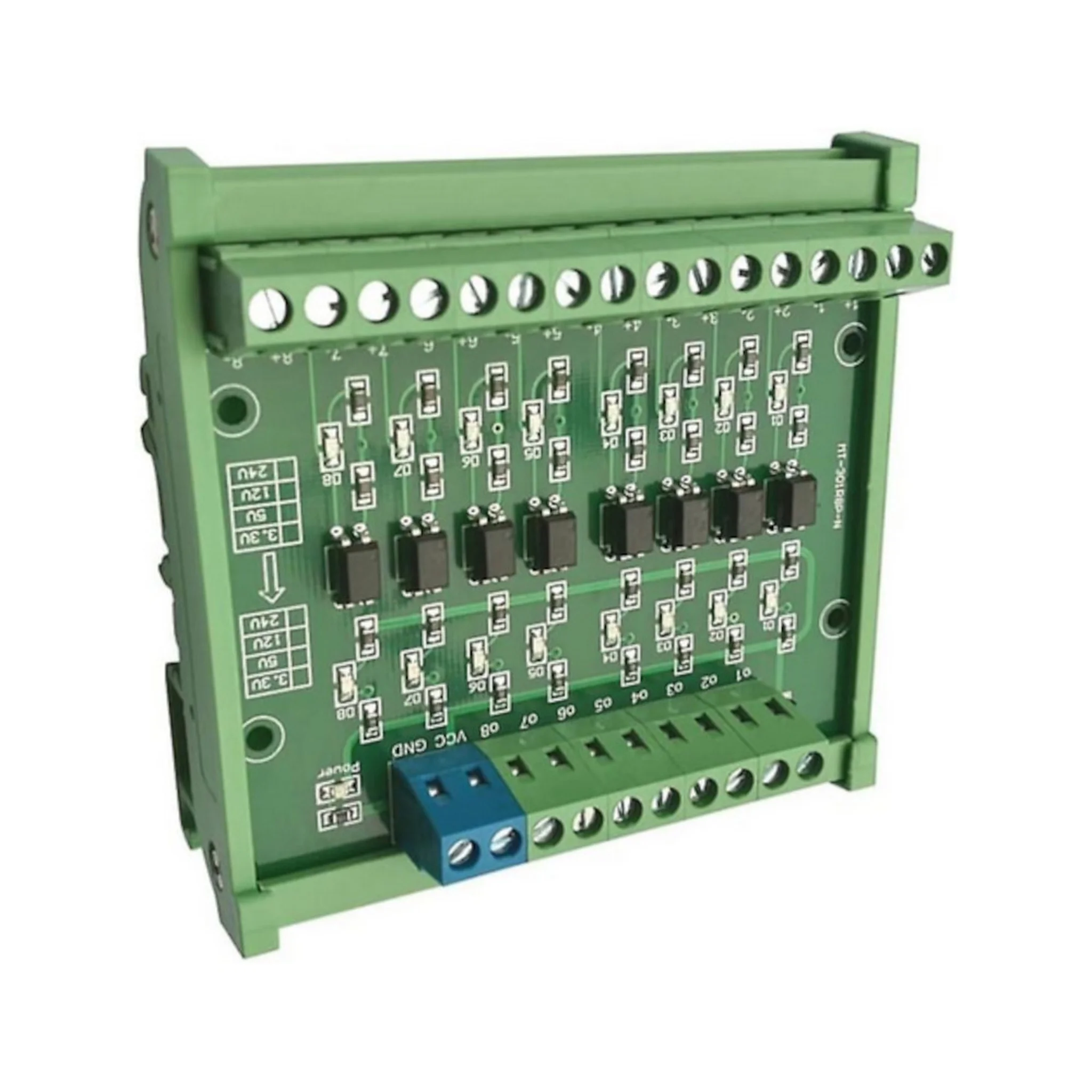

8-Channel Optocoupler Isolation Board 12V to 5V, NPN output

This 12V to 5V level converter module with 8-channel Optocoupler isolation features common anode / common cathode / differential signal inputs. The level shifter translates signal level from 12V to 5V and offers PNP output. It can be used for signal isolation, PLC signal level conversion, NPN to PNP signal conversion, polarity conversion, signal level voltage conversion and so on.

Note: DC power supply positive is equal to signal output voltage. For example: 12V to 5V module, then VCC=5V.

Features

PNP Output (NPN to PNP available)
Output Signal Level (12V to 5V)
Signal Photoelectric Isolation

Applications

Signal isolation
PLC signal level conversion
NPN to PNP signal conversion
Polarity conversion
Signal level voltage conversion

Specification

Input Channel: 8-channel Optocoupler Isolation
Output Signal: PNP Output (NPN to PNP available)
Sensor Input Voltage: 12V
Module Supply Voltage: 5V
Input Signal Level: 12V
Output Signal Level: 5V
Output Current: no more than 50mA for each channel
Indicator: SMD LED

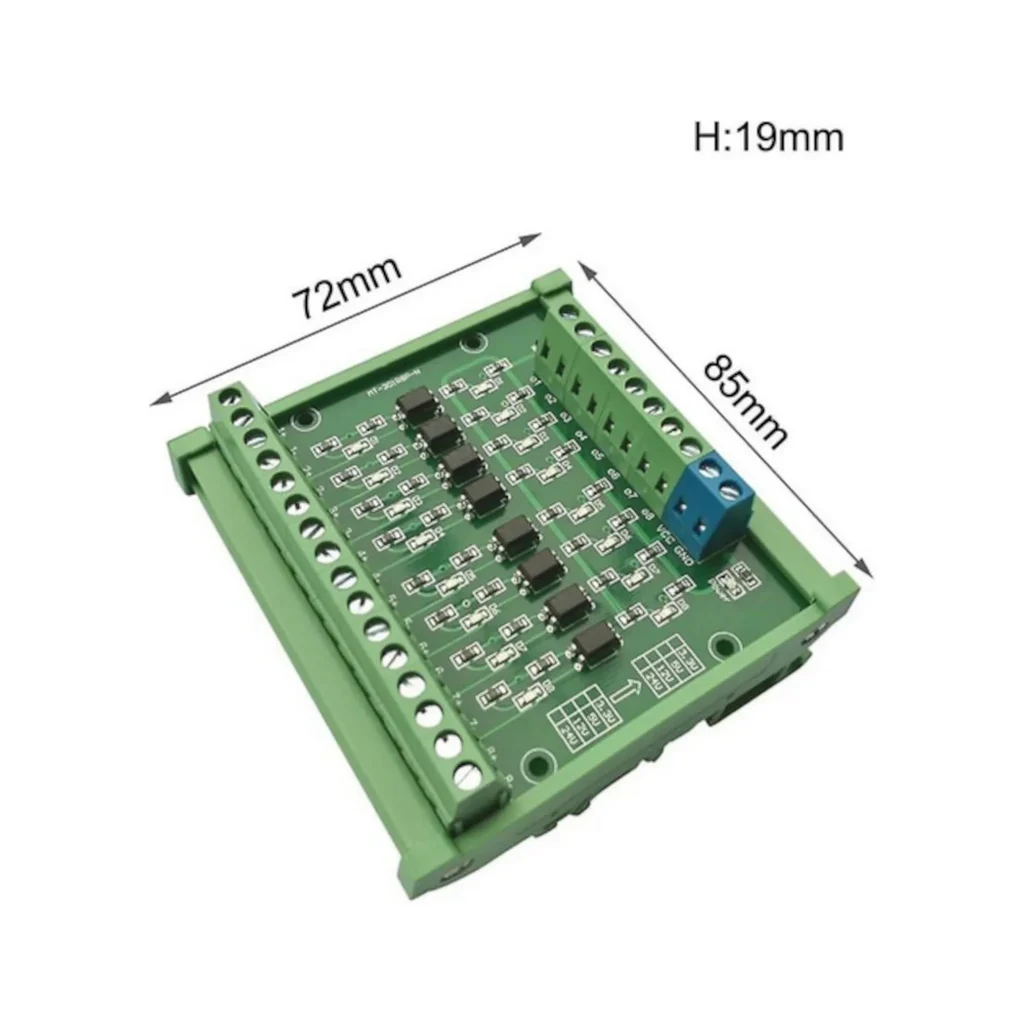

Size of Converter with Shell: 72*85*19mm
Size of Screw Hole: 3mm
Installation Specification: With Shell (Fit on standard rails)
