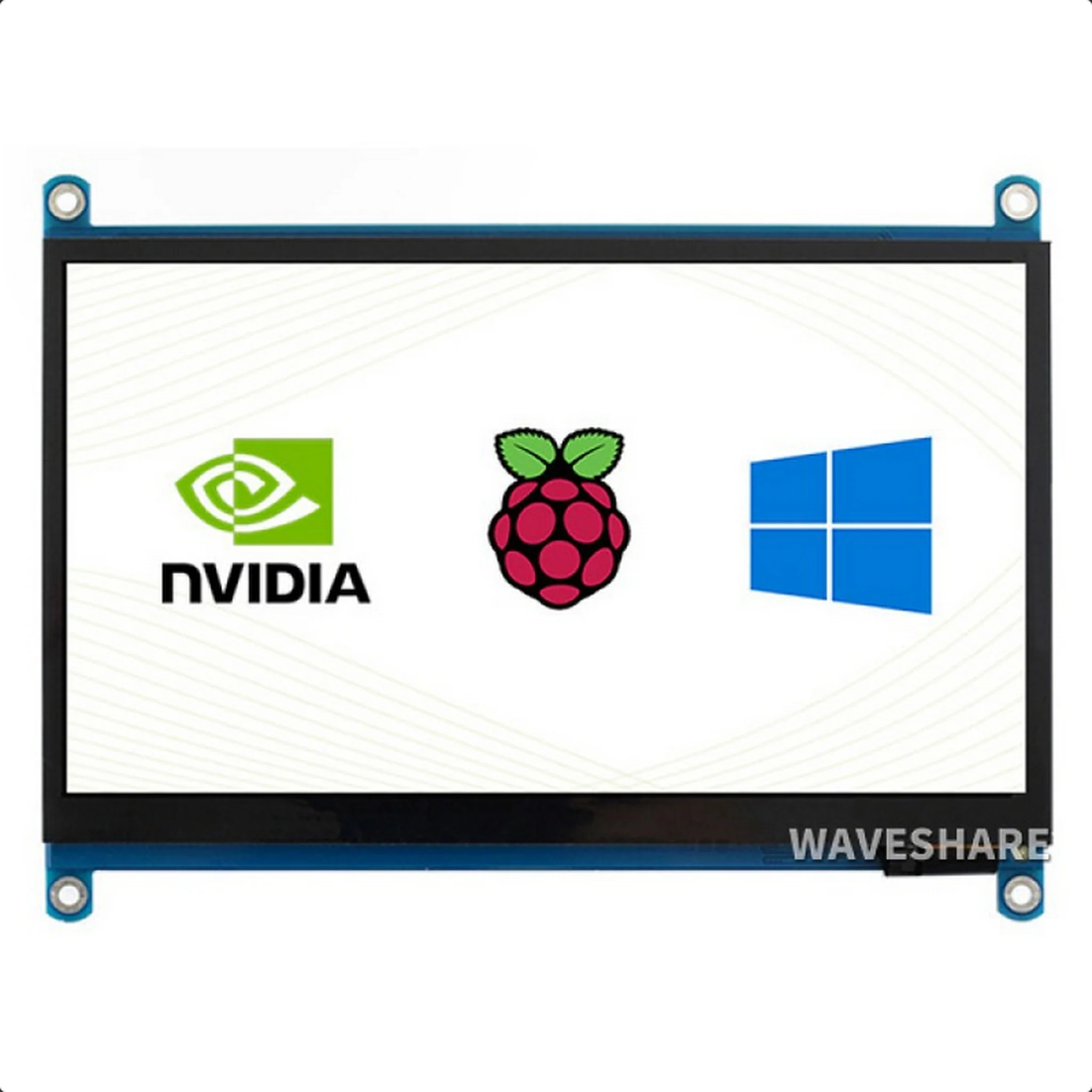

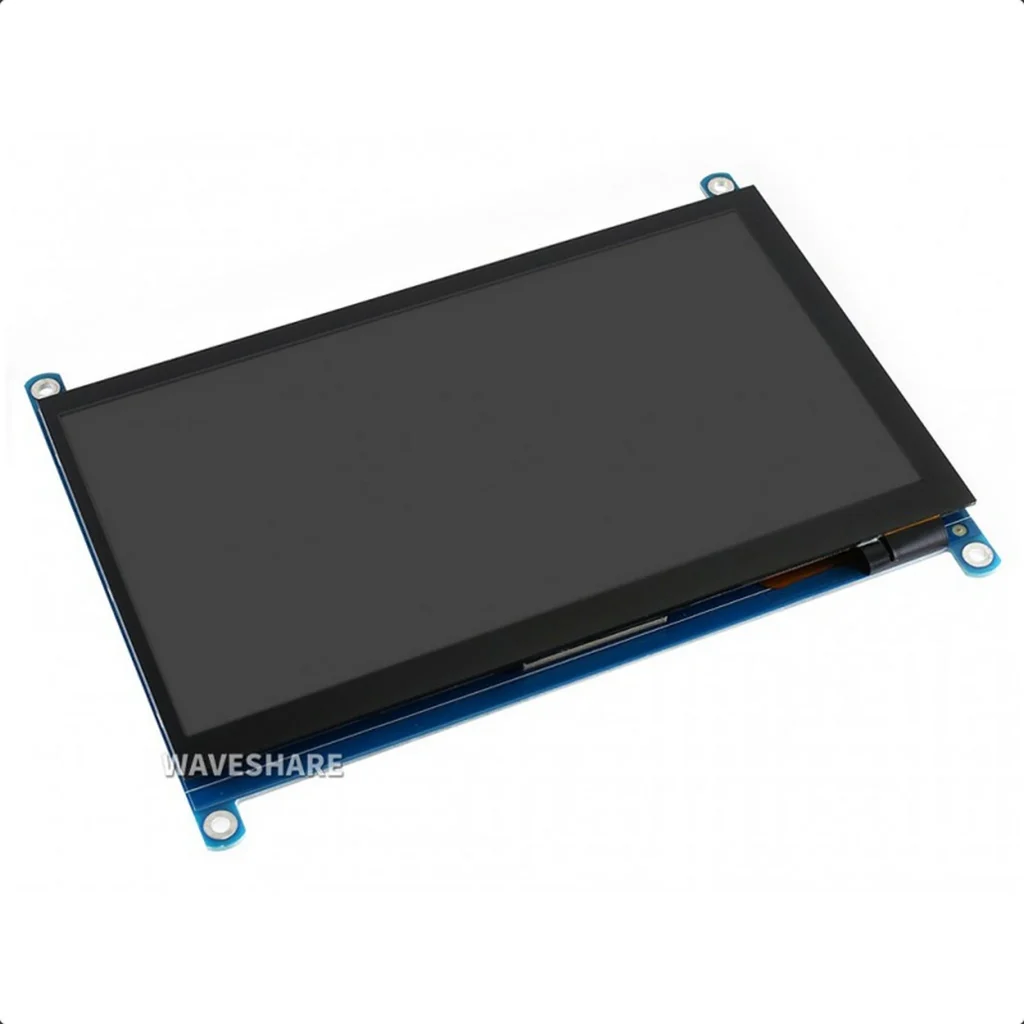

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support

€90.00

Product Weight: 0.3800KG

Product Details

SKU : 48-14628
Stock : Available

Guaranteed Safe Checkout

7″ HDMI Touch Display

Size7″
Resolution1024×600
Display InterfaceHDMI / VGA
Display PanelIPS
Viewing Angle170°
Touch TypeCapacitive
Touch Points5-point
Touch PortUSB
OSD MenuBrightness/Contrast
Audio Output13.5mm Jack
Audio Output24PIN Header
GamingXbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free

Game Console

Xbox360, PS4, Switch…

Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

Working with mini PC

Display

IPS Panel

Touch Control

1) up to 5-point touch, depending on the operating system.

Enjoy Gaming

* audio output via earphone/speaker port.

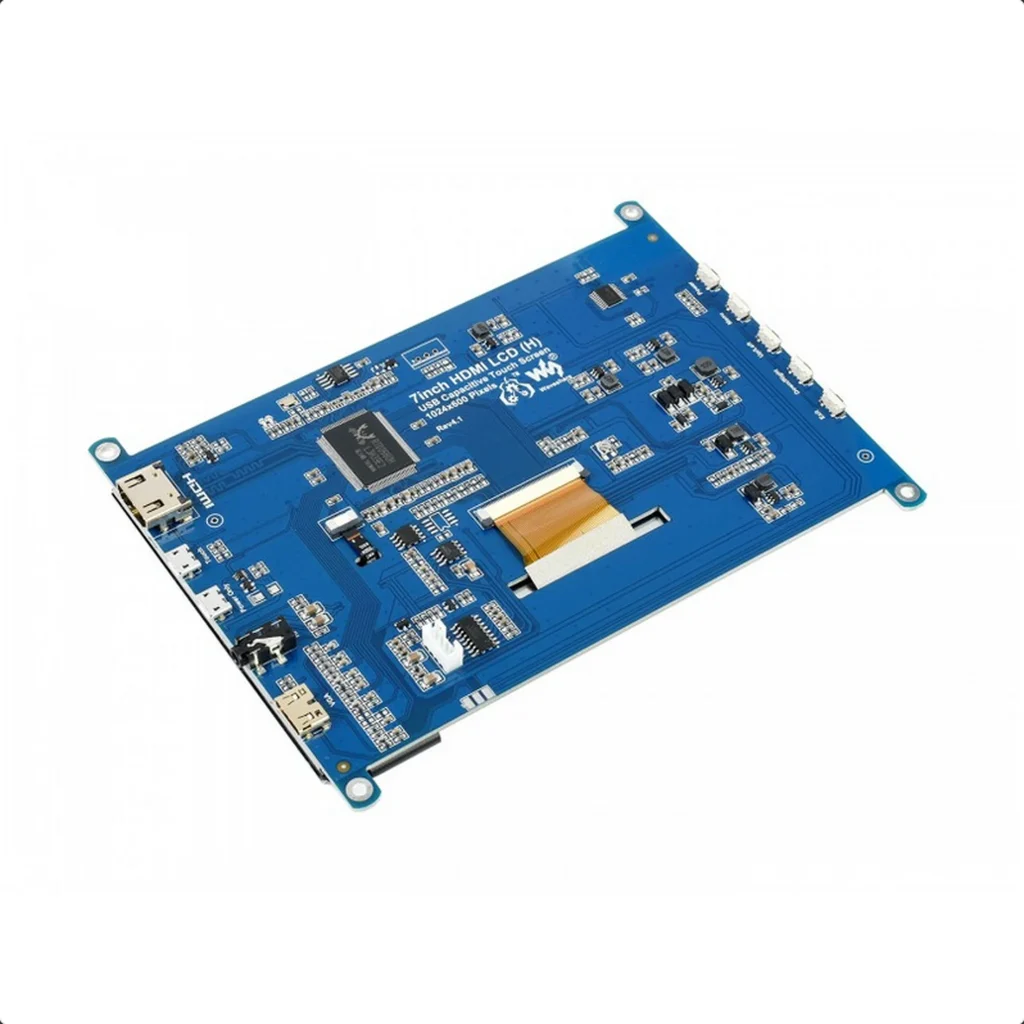

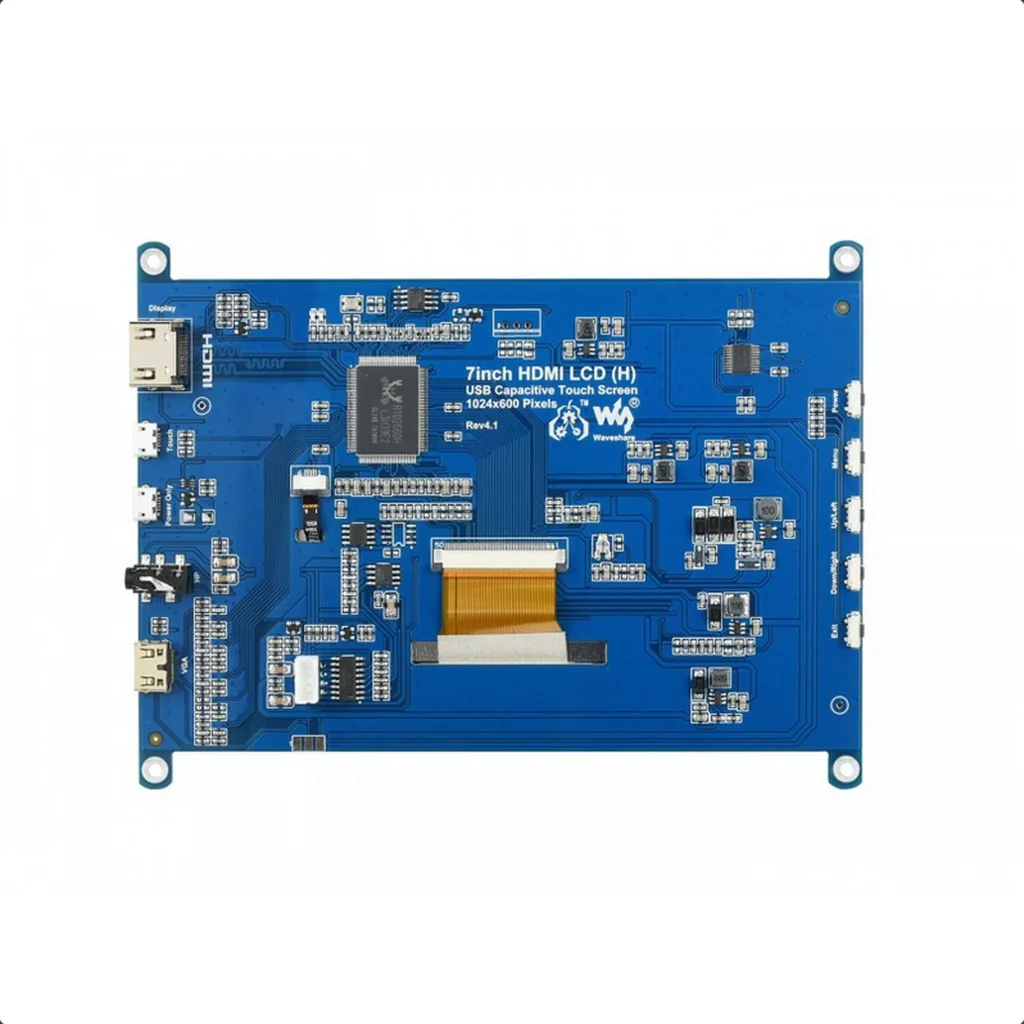

Demystifying Design Details

LCD FFC cable anti-interference design, more stable for industrial application
VCOM voltage adjustment for optimizing display effect
USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown
Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
OSD menu config buttons for adjusting backlight and display color
DC-DC LCD driver circuit, low heating on long term operation
VGA port to support VGA devices

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(H)

Inches	• 7
Κατάσταση	• New
