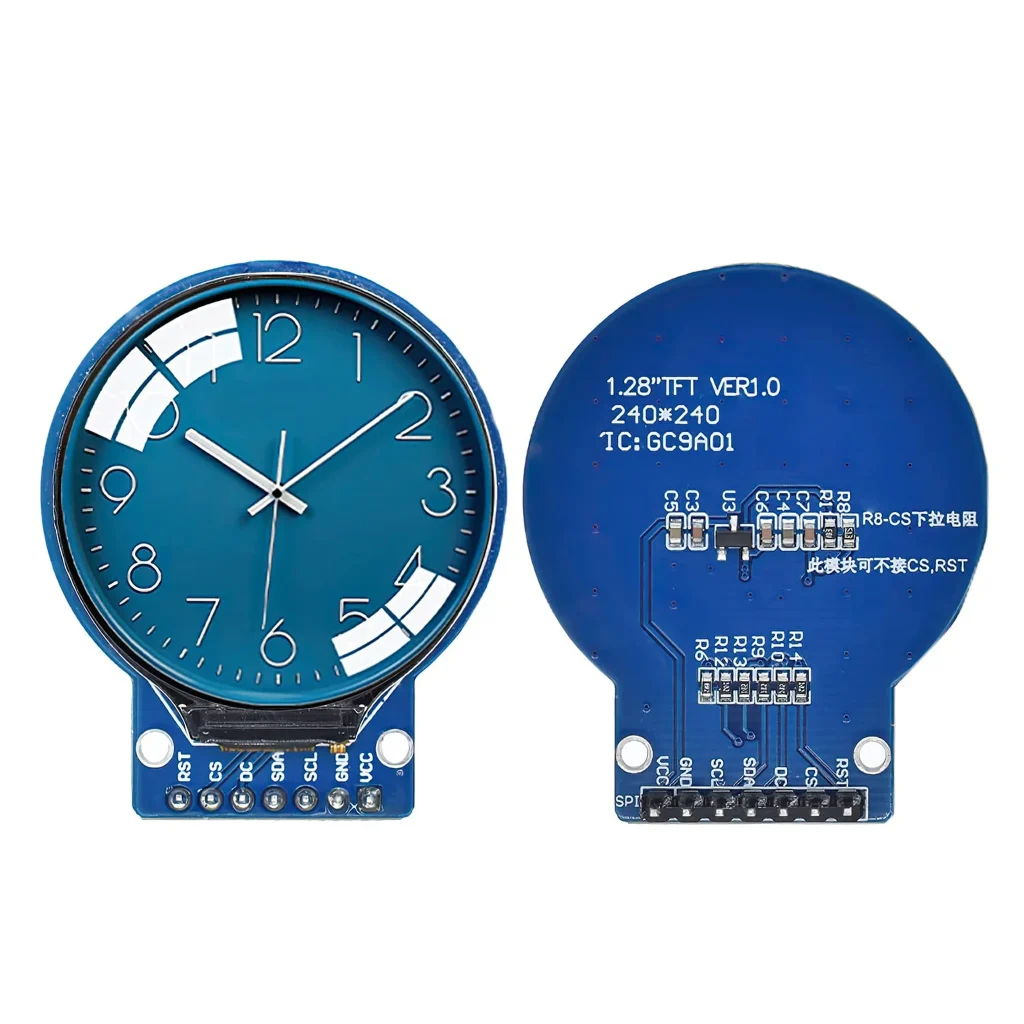

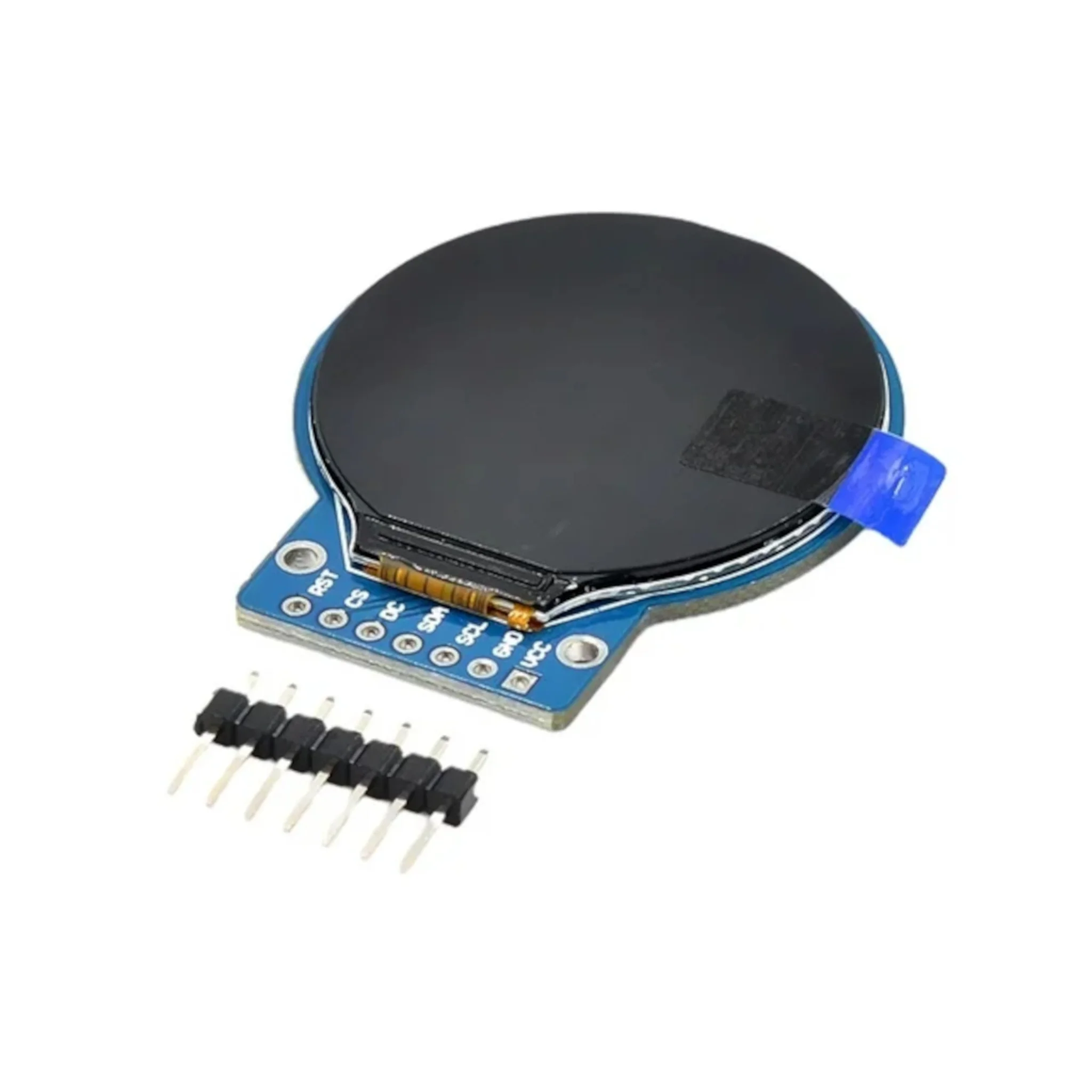

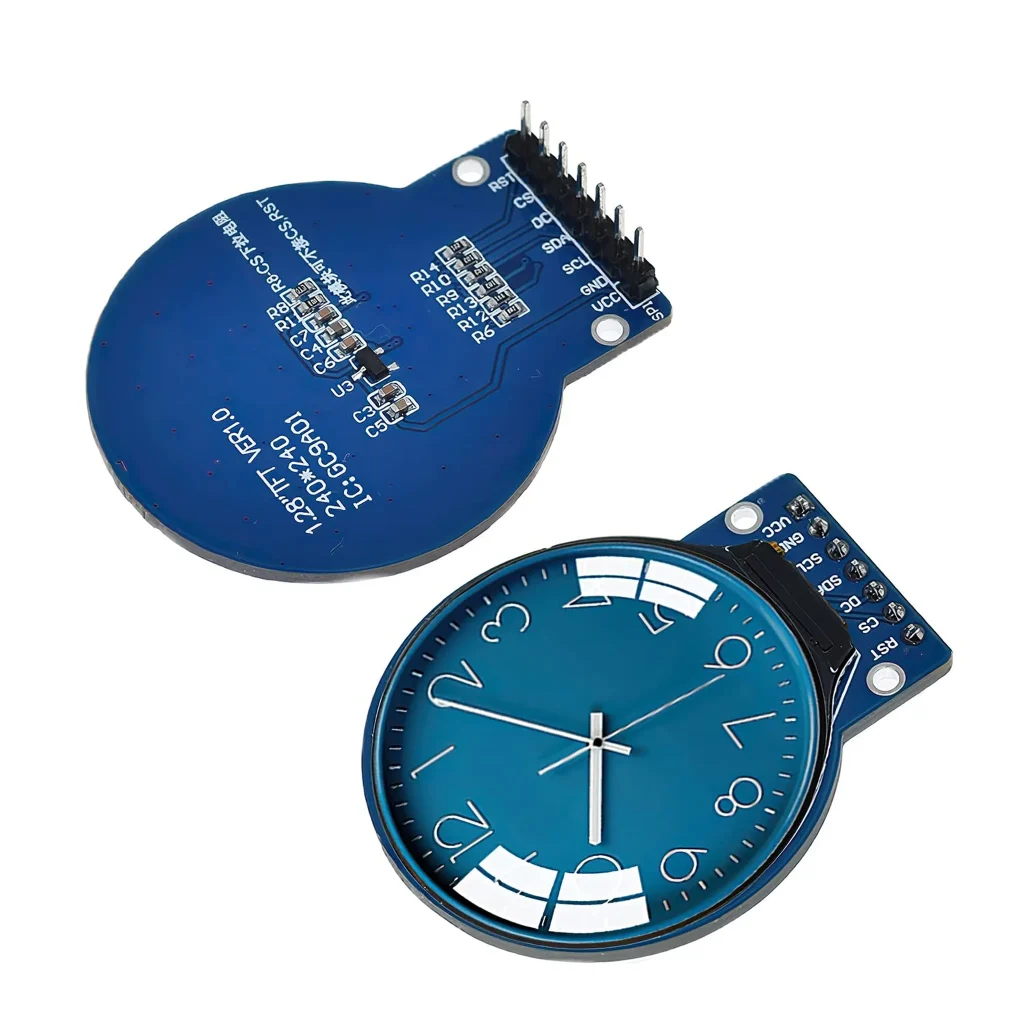

1.28 Inch TFT 240*240 IPS LCD Display Round Screen Module

Screen Display Size  :       1.28
Display Resolution  :         240*240 pixels
Driver :                               IC GC9A01
Display Color  :                  Full-color RGB

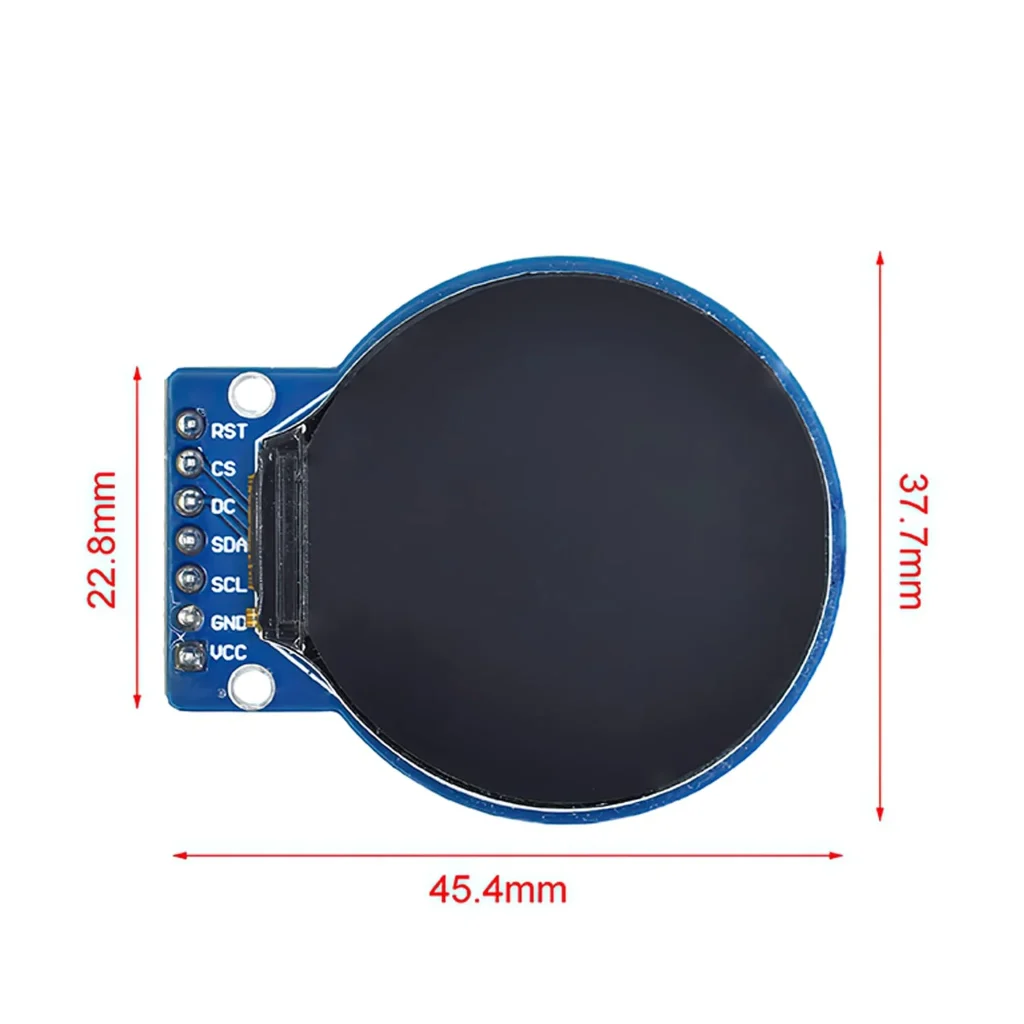

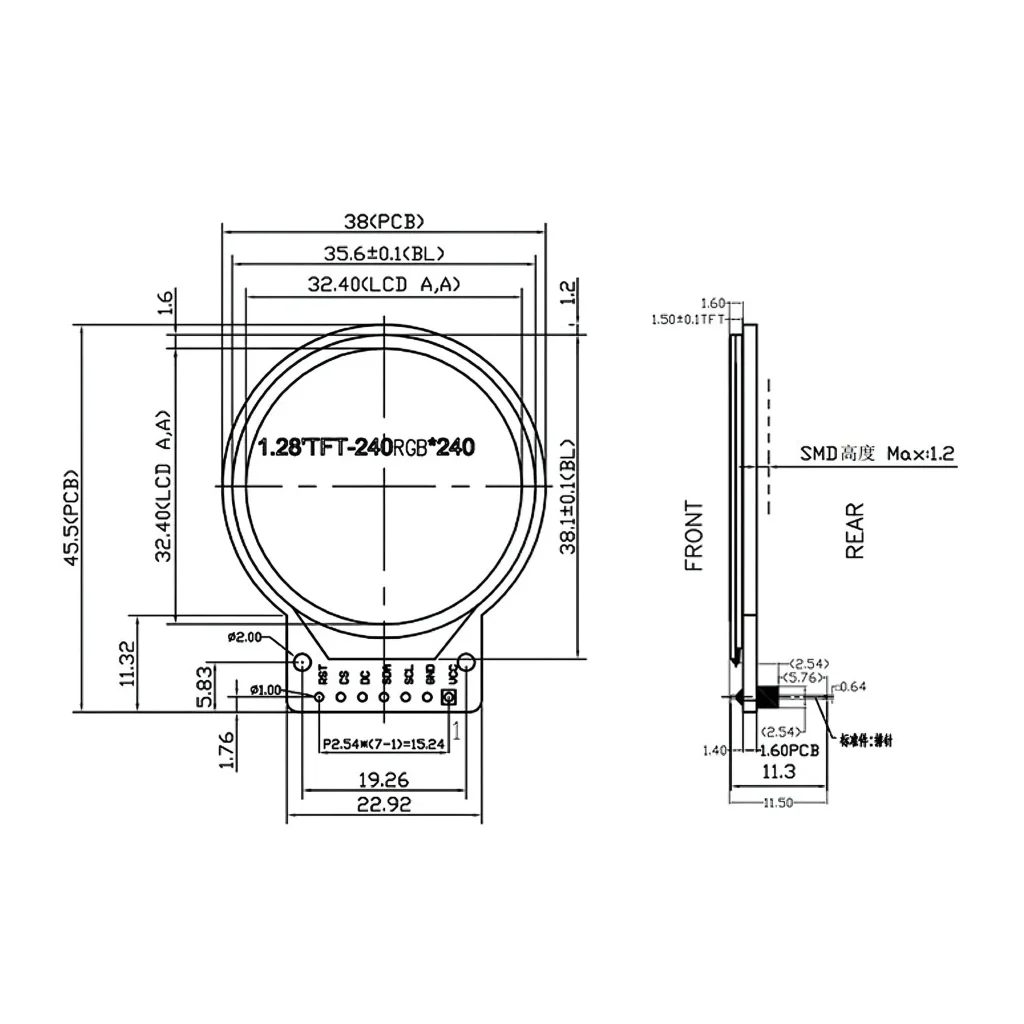

Panel size:                         38*45.5*3.2mm
Display size:                      32.4*32.4m
Drive voltage:                    3~5V
View:                                 IPS full viewing angle
Interface type:                   4-Pin SPI
Work voltage:                    2.8V-3.3V
Pins:                                  2.54mm 7Pin
View:                                 Full viewing angle display
Working temperature range: -20℃~70℃
Working humidity range:       5%-95%RH

We display the module with a 1.28 -inch size and 240×240 resolution, which is very suitable for enhancing your Raspberry Pi, ESP32 or Arduino project.

Full -color RGB, using the full -color RGB function of our display module to enjoy the vibrant and accurate color.

IPS complete perspective, our display module provides a wide range of perspectives, so you can see your project from any angle.

Easy to use, using the SPI interface mode and 3-5V driving voltage, our display module is simple to operate.

Compact and durable, the display size is 32.4mmx32.4mm, and the total size is 38mmx45.5mmx3.2mm. Our display module is both compact and durable.

* Οι ακροδέκτες ΔΕΝ είναι κολλημένοι.
