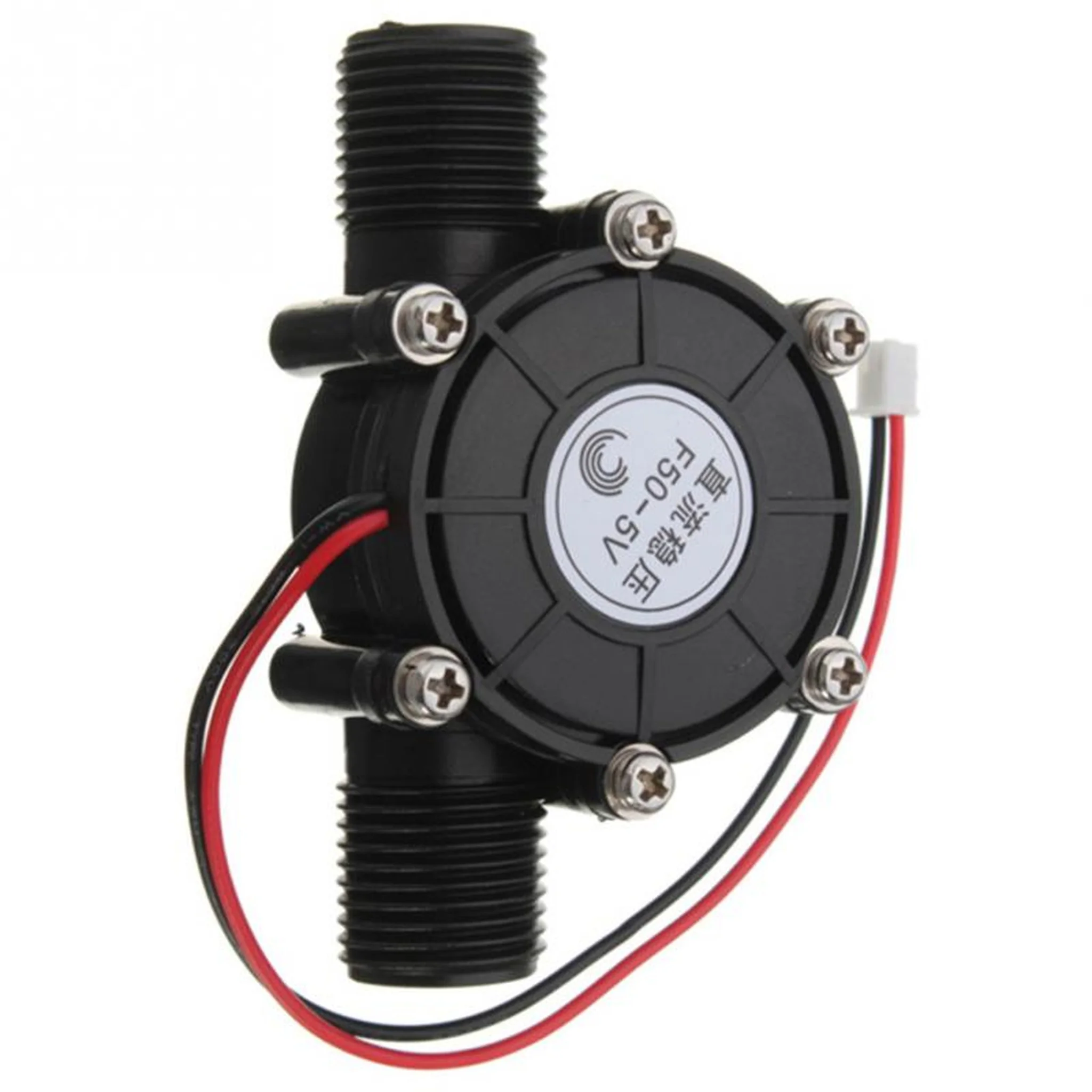

5V 10W DC Micro Hydro Generator Tap Water Flow Hydraulic DIY

80V/12V/5V 10W DC Micro Hydro Generator Tap Water Flow Hydraulic DIY

Micro hydro generator, the potential energy conversion of the water into electrical energy mechanical equipment.We provide you with three kinds of generators,Can be directly to the small battery charge,Can charge mobile phone,Can give 12V radio power, charging, power supply for LED lights, etc

Specification:

Output high voltage: 80V (1.2Mpa)
The maximum output : ≥220mA (12V)
Line resistance :10.5 + 0.5
Insulation resistance: 10M (DC100)
The outlet closed the maximum voltage: 0.6Mpa
The water outlet open the maximum voltage: 1.2Mpa
Start water pressure: 0.05Mpa
Size:8.8×5.8×3.9cm(L X W X H)
Axial gap 0.2 – 1.0mm
The mechanical noise :≤55dB
Generator single volume: 90g
The life of generator:≥ 3000h
Appearance: generator surface cleaning, no corrosion, the structure is strong.
Output characteristics: the output voltage with no voltage regulator is proportional to the water pressure.

F50-80V:
DC 0-80V output, generator without voltage regulator circuit, peak voltage reached 80V,Can be directly 10W LED about 3-12V lights, can be directly to the small battery charging, charging current maximum 220mA.

F50-5V:
DC 5V regulator output, you can charge the phone, you can also charge a lithium battery charging management chip.

F50-12V:
DC 12V voltage regulator output, you can give the 12V radio power, charging, power supply to the LED.

Package include:
1 x Micro Hydro Generator(80v/12v /5V for option)
