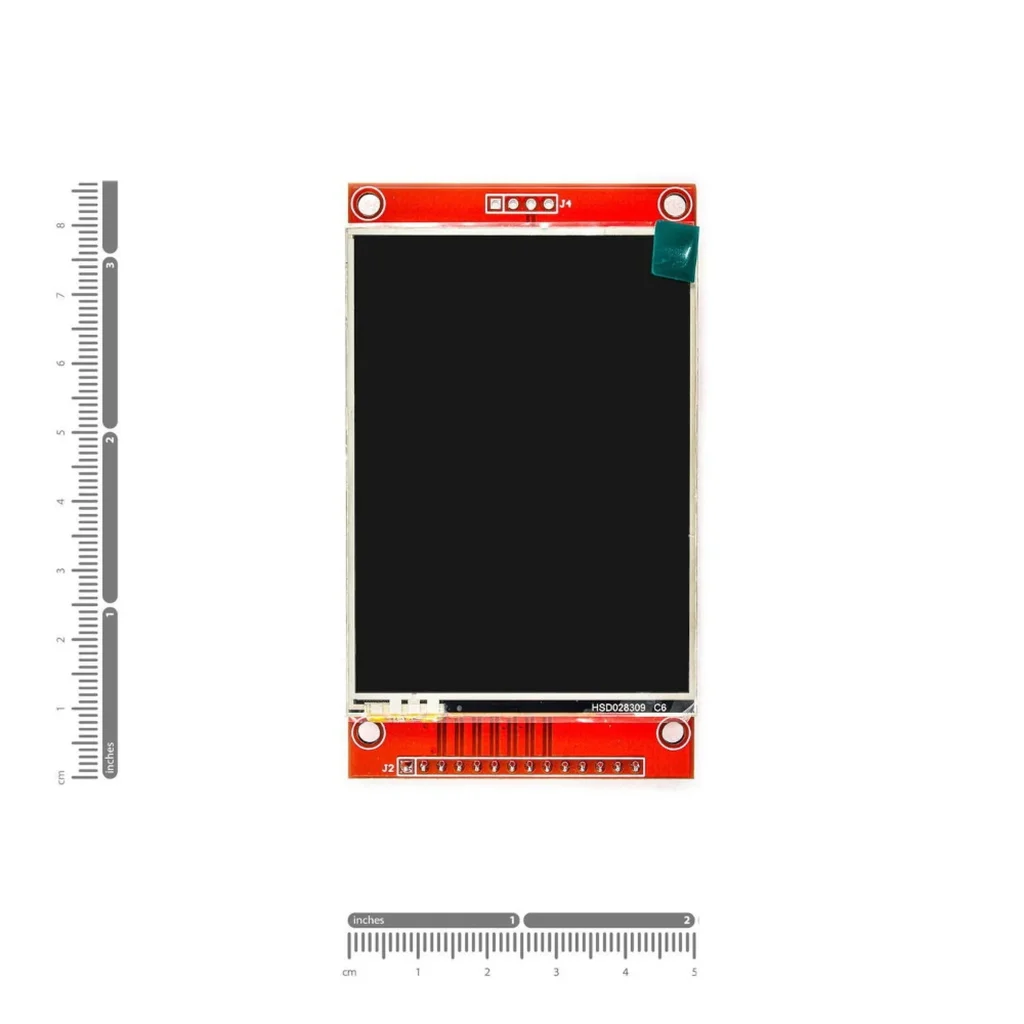

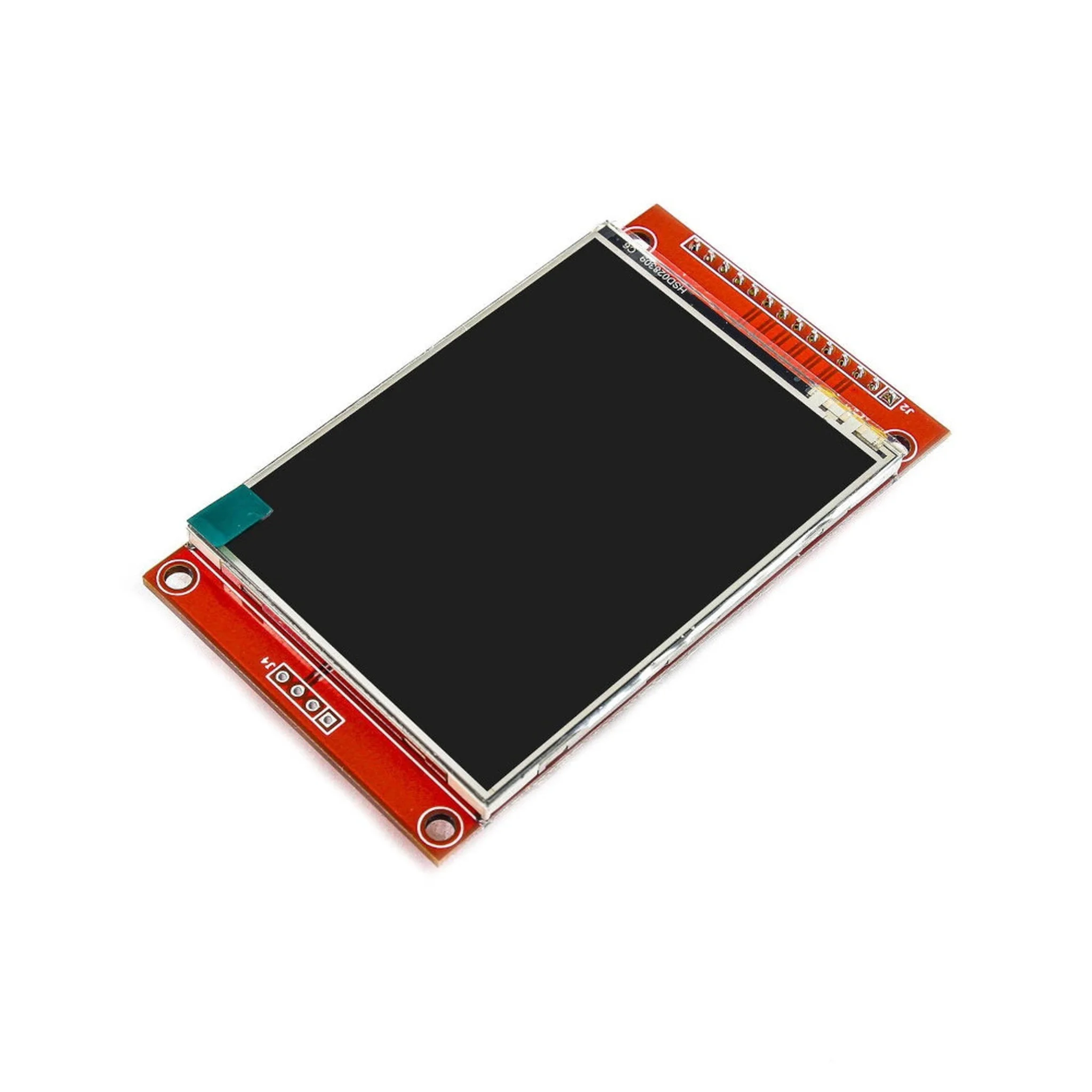

2.8Inch Colorful TFT LCD Screen Display Module

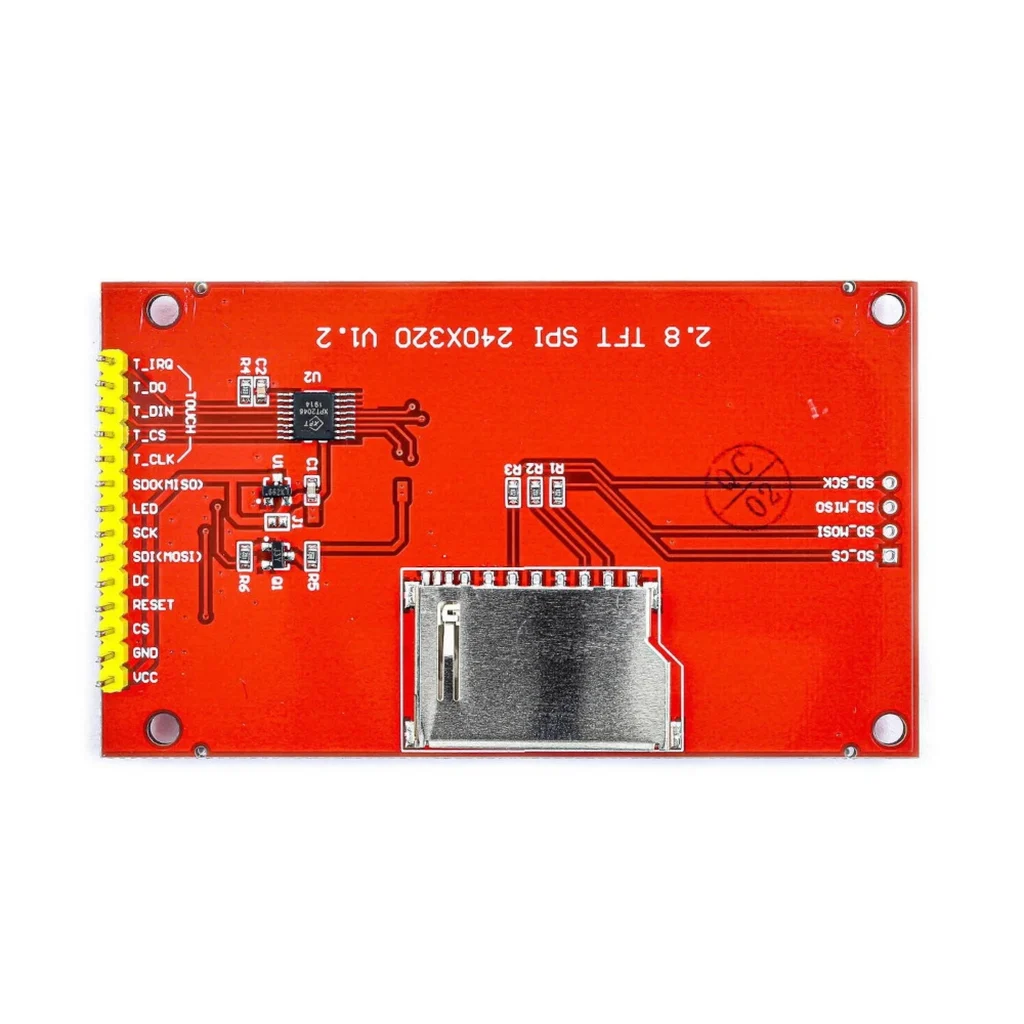

This LCD module is a 16bit RGB 65K full-color TFT LCD screen that is equipped with LED PWM adjustable backlight. This LCD module is portrait mode, if you would like to use landscape mode, you need to use some tricks or use technical support. The TFT Display communicates with the microcontrollers  trough 4pins SPI protocol. Also, this module is equipped with an SD memory slot. and can be supplied with TTL (3.3V DC)  up to 5V C. So before connecting it directly to the 5v logic level of the Arduino, ensure that has a voltage regulator, because the display may be destroyed if the version of the display you have does not have the regulator. If the display does not have a voltage regulator, you can use any logic level converter between the display and the Arduino
Specification of 2.8 inch Touch TFT LCD Display Module – SPI Interface

Feature:

• Type: TFT
  Resolution: 320*240
  Driver chip: ILI9341
  Display interface: 4-wire SPI
  Display area size: 43.2mm*57.6mm
  PCB board size: 50mm*86mm

           Display color: RGB 65K color
           VCC supply voltage: 3.3V~5V
           Logic IO port voltage: 3.3V (TTL)
           Power consumption: About 90mA
