Product Weight: 0.0800KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.
low power, wide viewing angle, paper-like effect
Ideal for price tags, shelf labels, industrial instruments…
Features at a glance
| operating voltage | 3.3V | display color | red, black, white |
|---|---|---|---|
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | 65.00 × 30.50mm | full refresh time | 15s |
| display size | 48.55 × 23.71mm | refresh power | 26.4mW (typ.) |
| dot pitch | 0.229 × 0.228mm | standby current | |
| resolution | 250×122 pixels | viewing angle | >170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

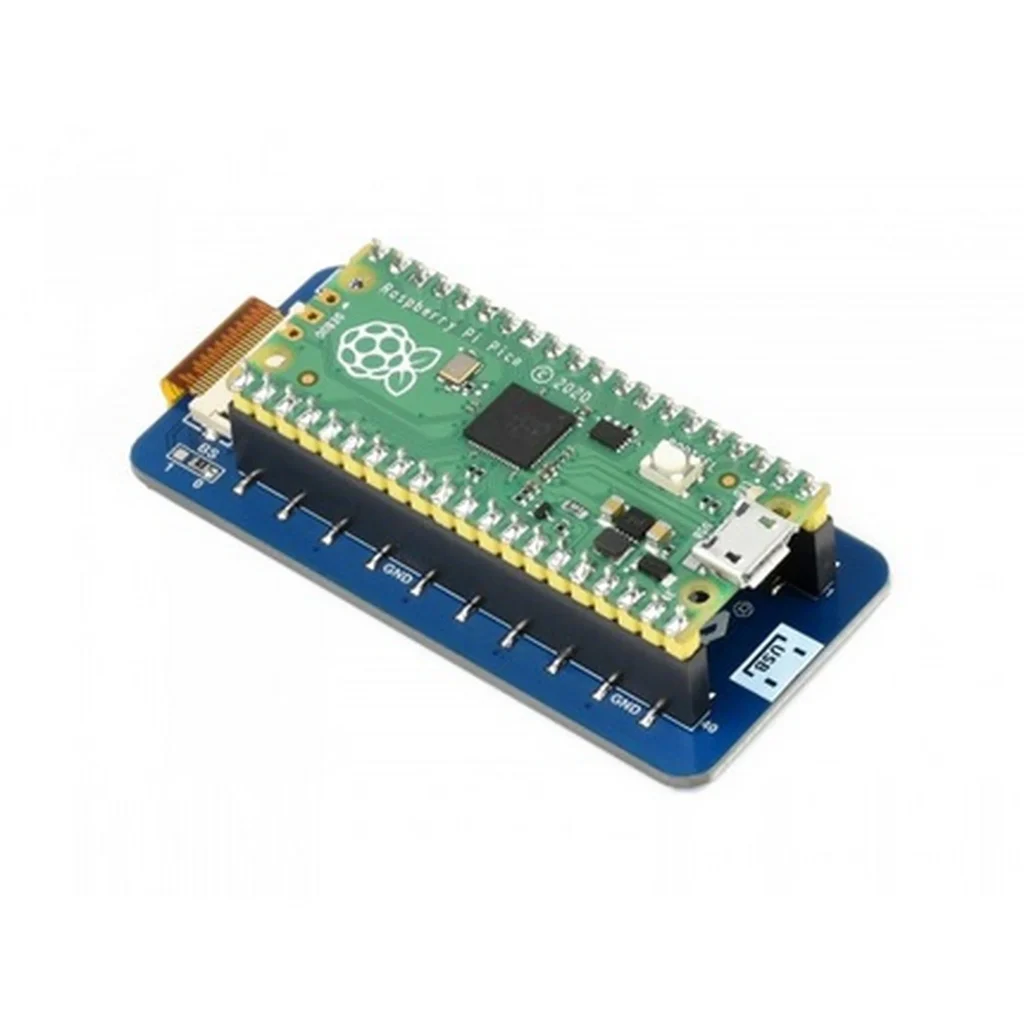

Onboard female pin header for direct attaching to Raspberry Pi Pico

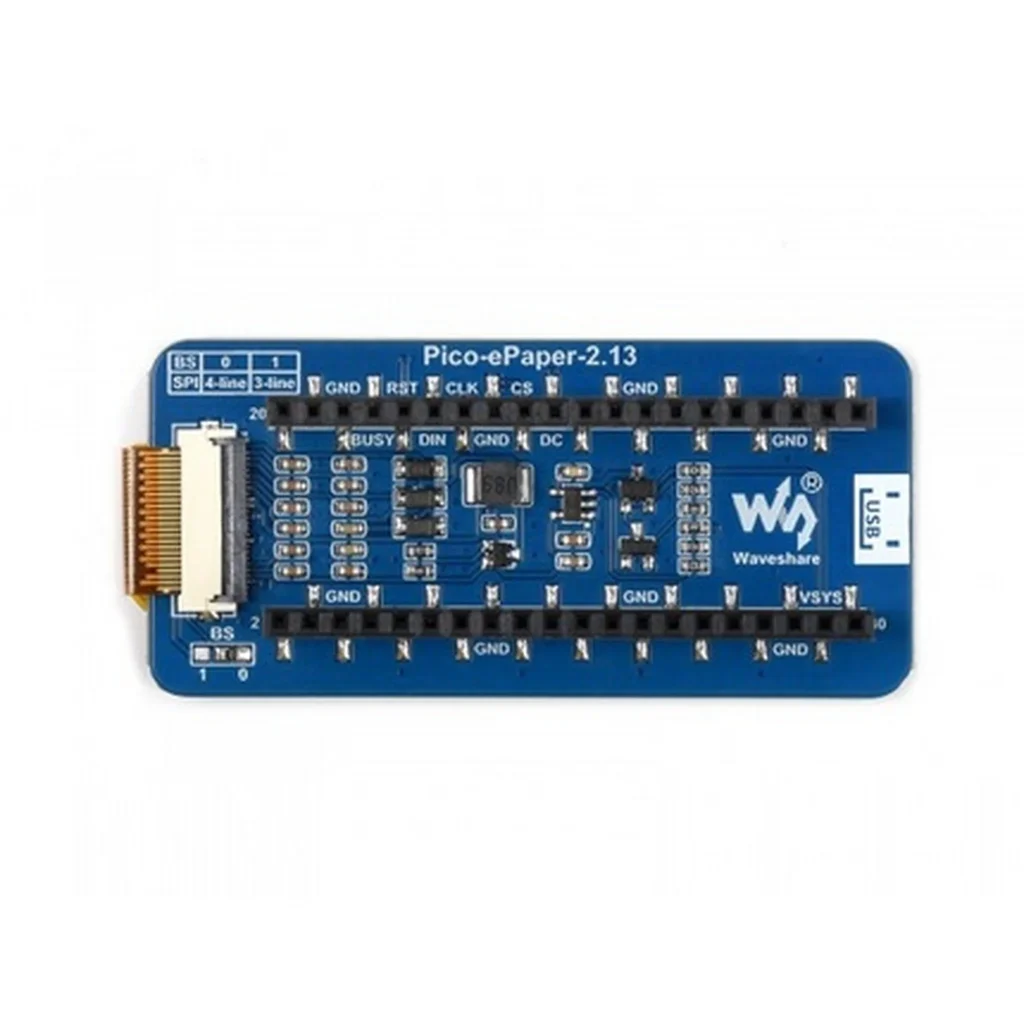

Pinout definition
| Inches |
|
