Rubicon Enclosure stack shell

External Height: 136.5mm
External Width: 87.6mm
External Depth: 33.5mm
Enclosure Material: ASA
Body Colour: Grey

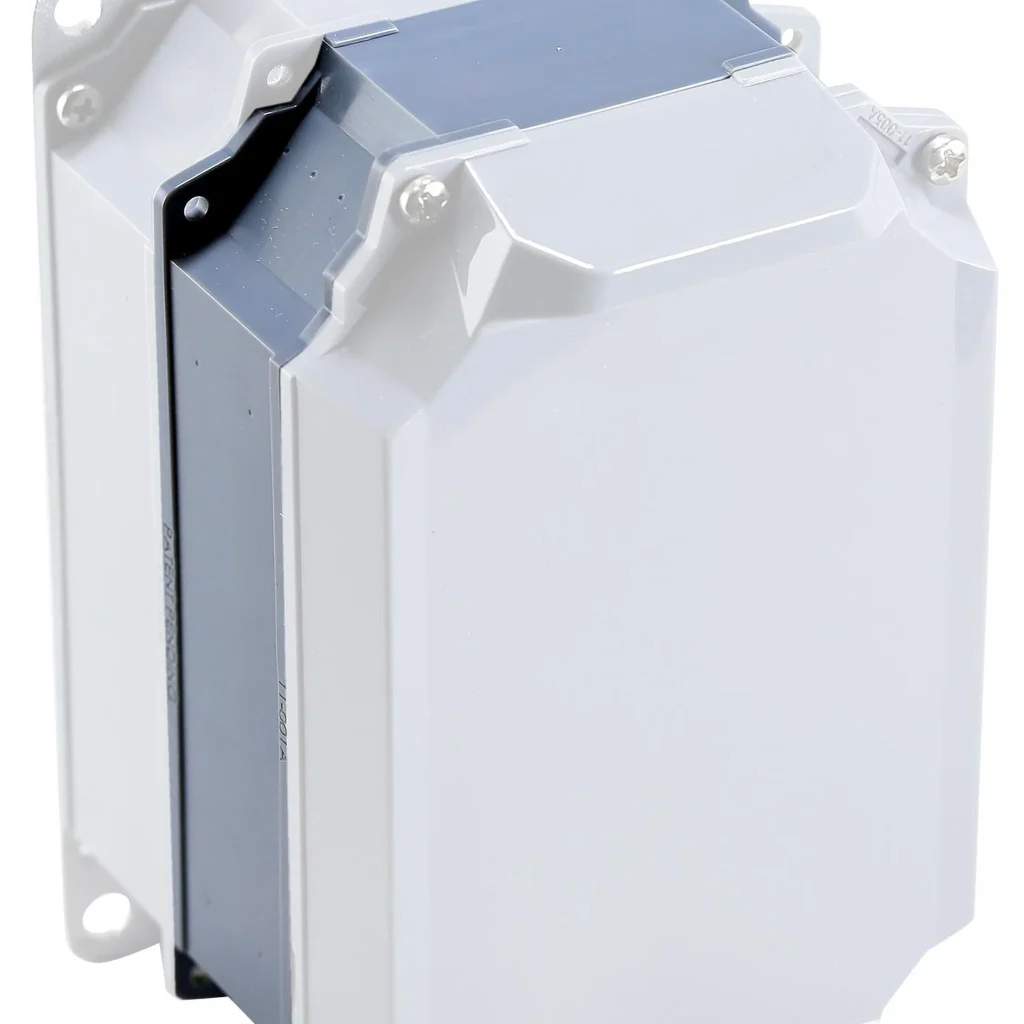

Allows to stack multiple shells to make a deeper Rubicon enclosure. More than two shells may be stacked, although IP rating is not guaranteed.

Προσοχή : χρειάζεται να έχετε προμηθευτεί την θήκη Rubicon! Το συγκεκριμένο προϊόν είναι μόνο η επέκτασή της σε περίπτωση που ο χώρος της αρχικής θήκης δεν είναι αρκετός για το project σας.

• Use silicone o-ring grease for harsh environments. Avoid over-tightening the screws.

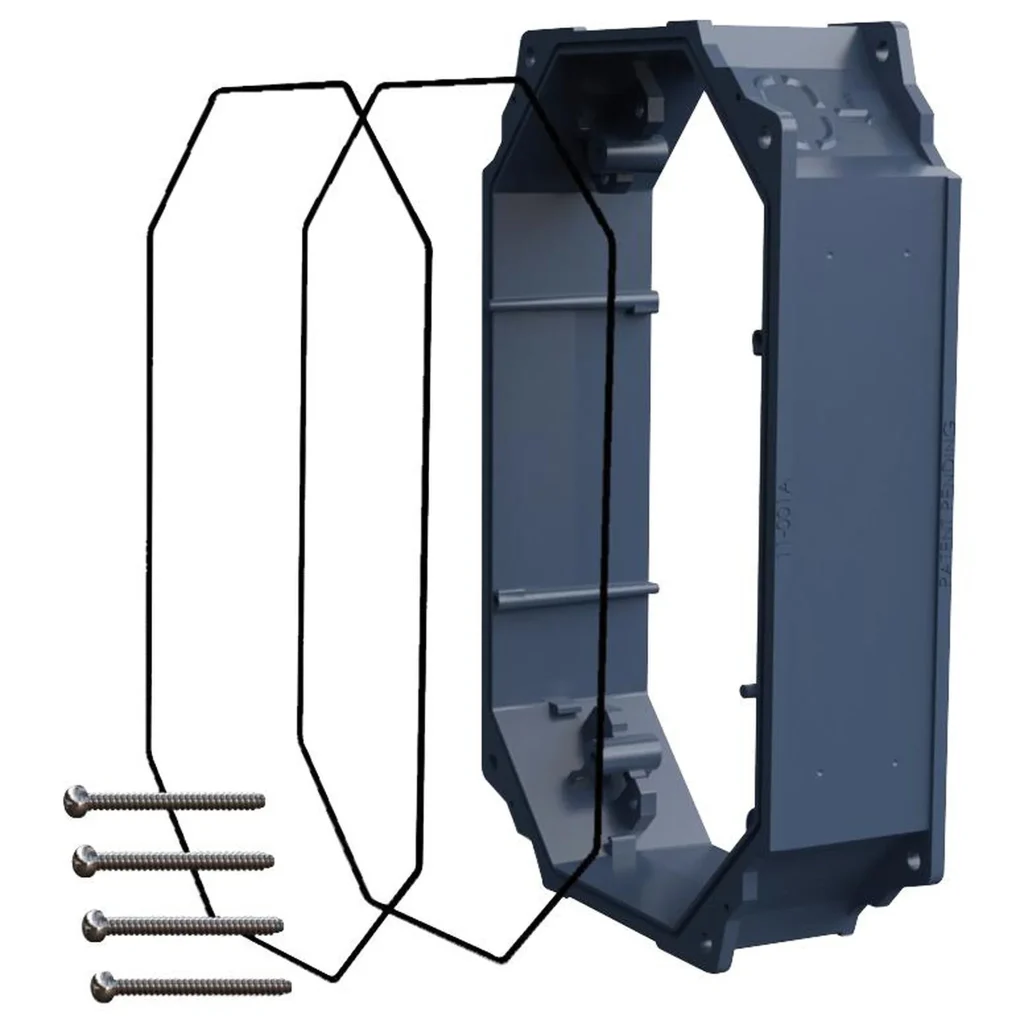

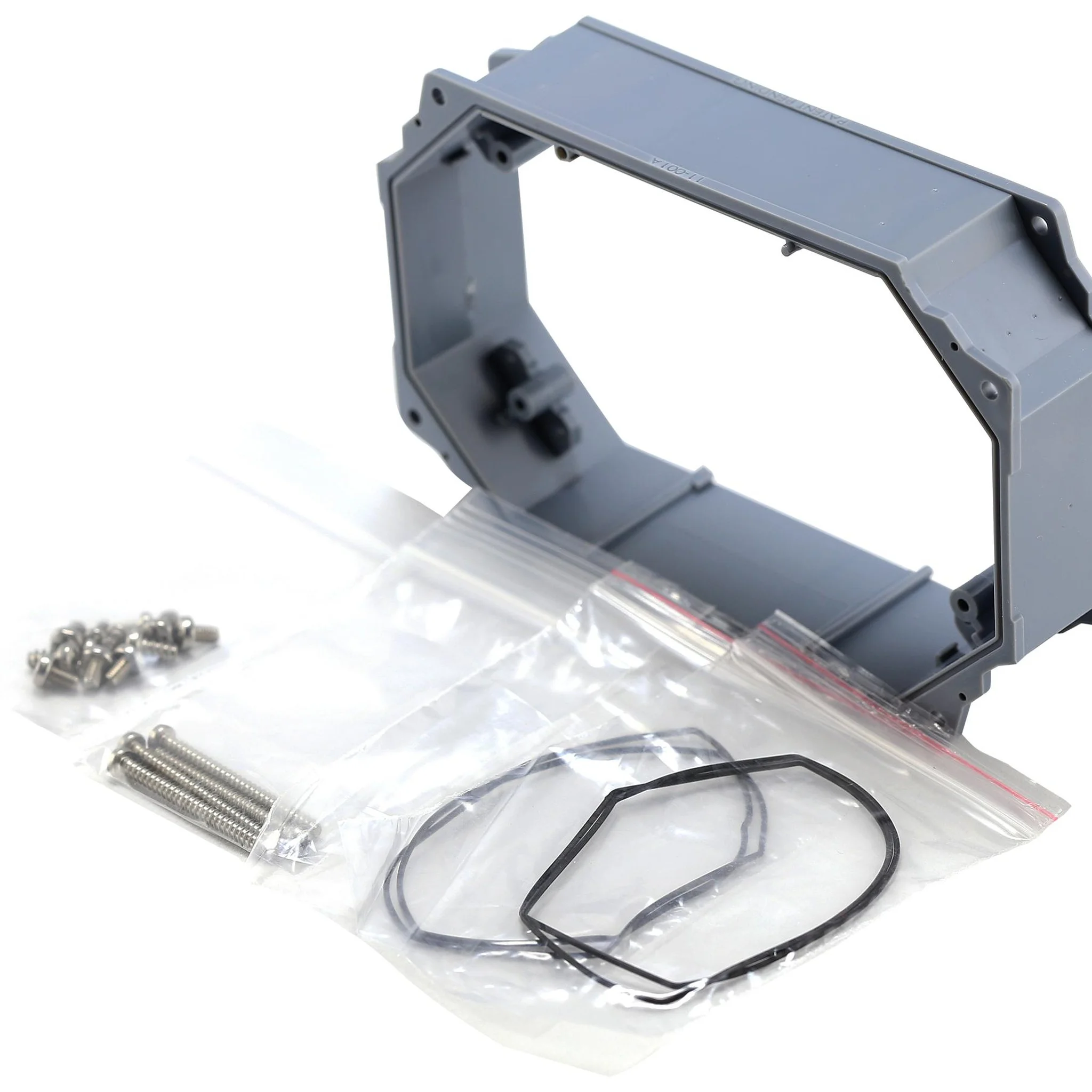

• IMPORTANT NOTE: Ensure correct orientation during assembly. “A” sides must be pointing in the same direction for both shells being stacked. Includes:
• 1 x Shell
• 1 x Gasket Kit
• 1 x Stacking Screws Kit (M3x35, Stainless Steel)
• 1 x Rubicon Shell Screw Pack
• (12 screws: 4x for mounting onto bosses, 4x for cover, and 4x for mounting onto the base plate)

Technical Datasheet: 2619073.pdf
