• Using pogo pin connection, the Zero 2W can be easily attached
• Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
• Onboard headphone jack(extended from USB) and an additional speaker header
• Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
• Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive
• Not compatible with the first generation Zero

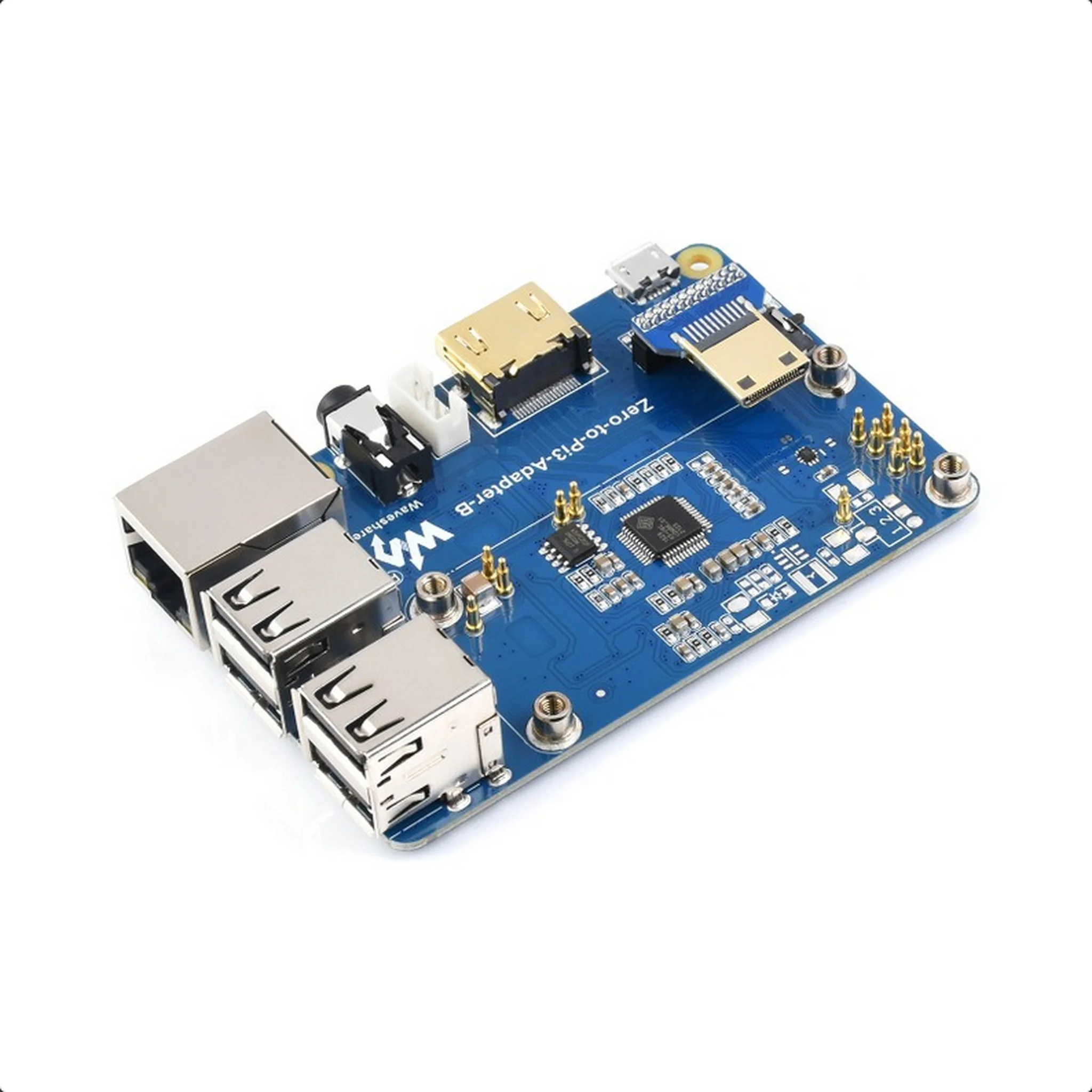

Based on Raspberry Pi 2W

Use Pi Zero 2W to reproduce the original appearance of the 3B series as much as possible
More Cost-effective Choice

for reference only, Pi Zero 2W is NOT included

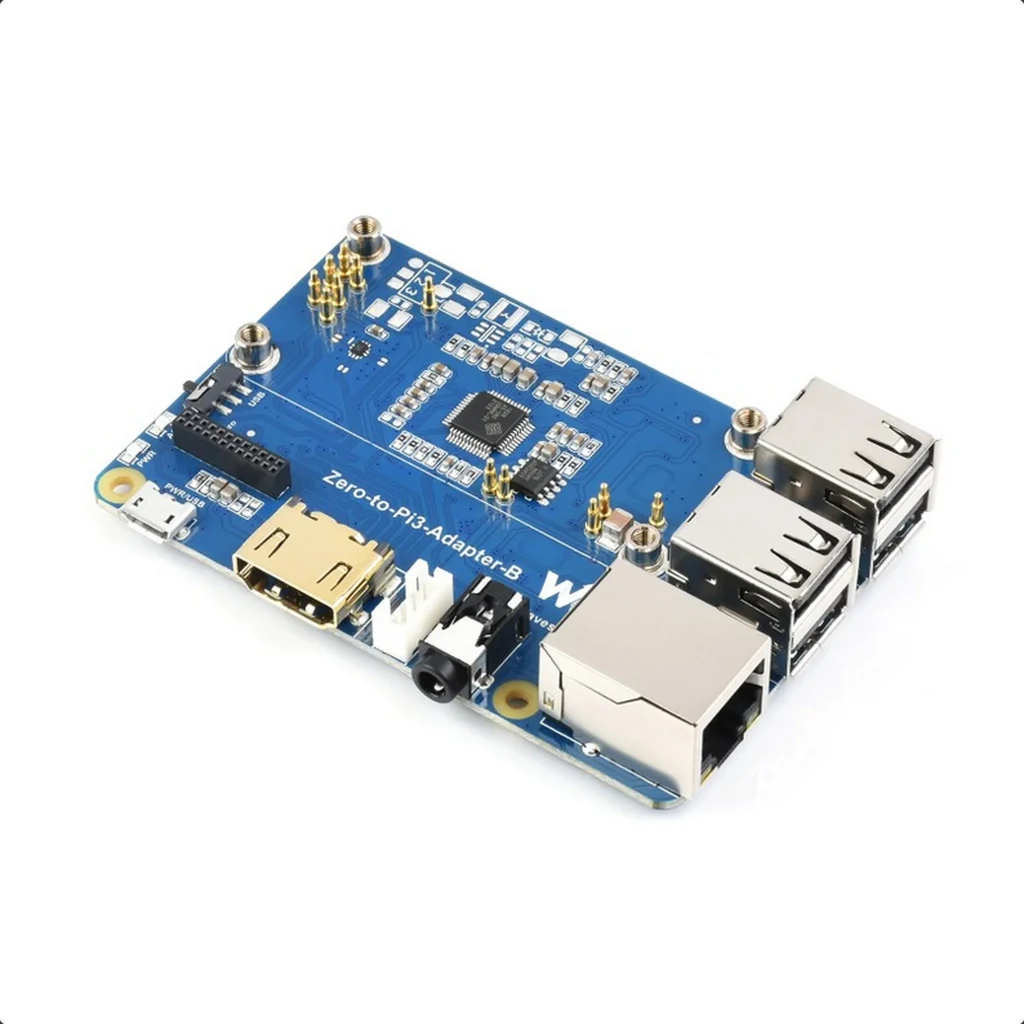

Easy to Install

Using pogo pin connection, the Zero 2W can be easily attached

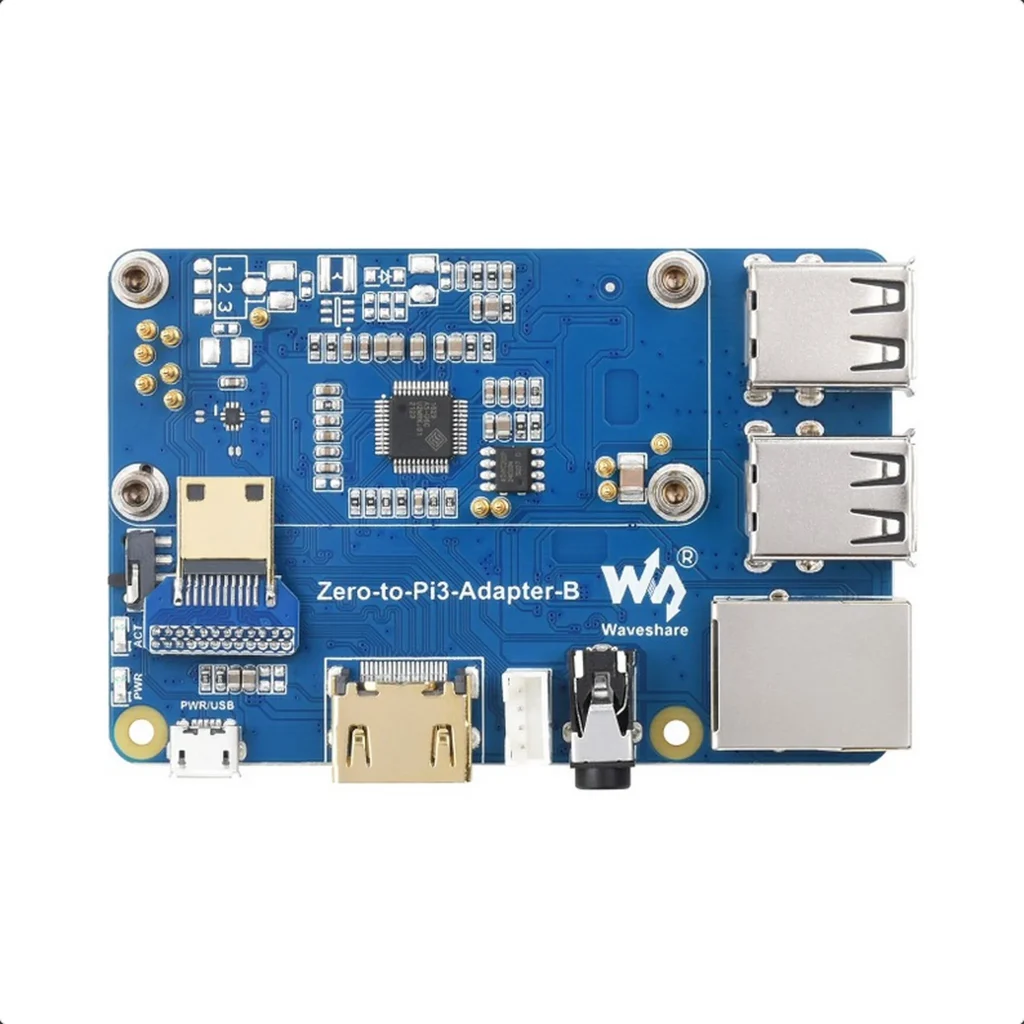

Interface Introduction

Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port
Note: The Ethernet port does not support PoE function

Compatible with Pi 3B Series HATs

Easy access to Pi 3B series HATs or other development projects
Note: the height of the GPIO is higher than the Pi 3B / 3B+

Onboard Audio Interface

Support 3.5mm headphone jack and 4PIN speaker header
When headphone is plugged in, the speaker will be automatically disabled.

Outline dimensions
