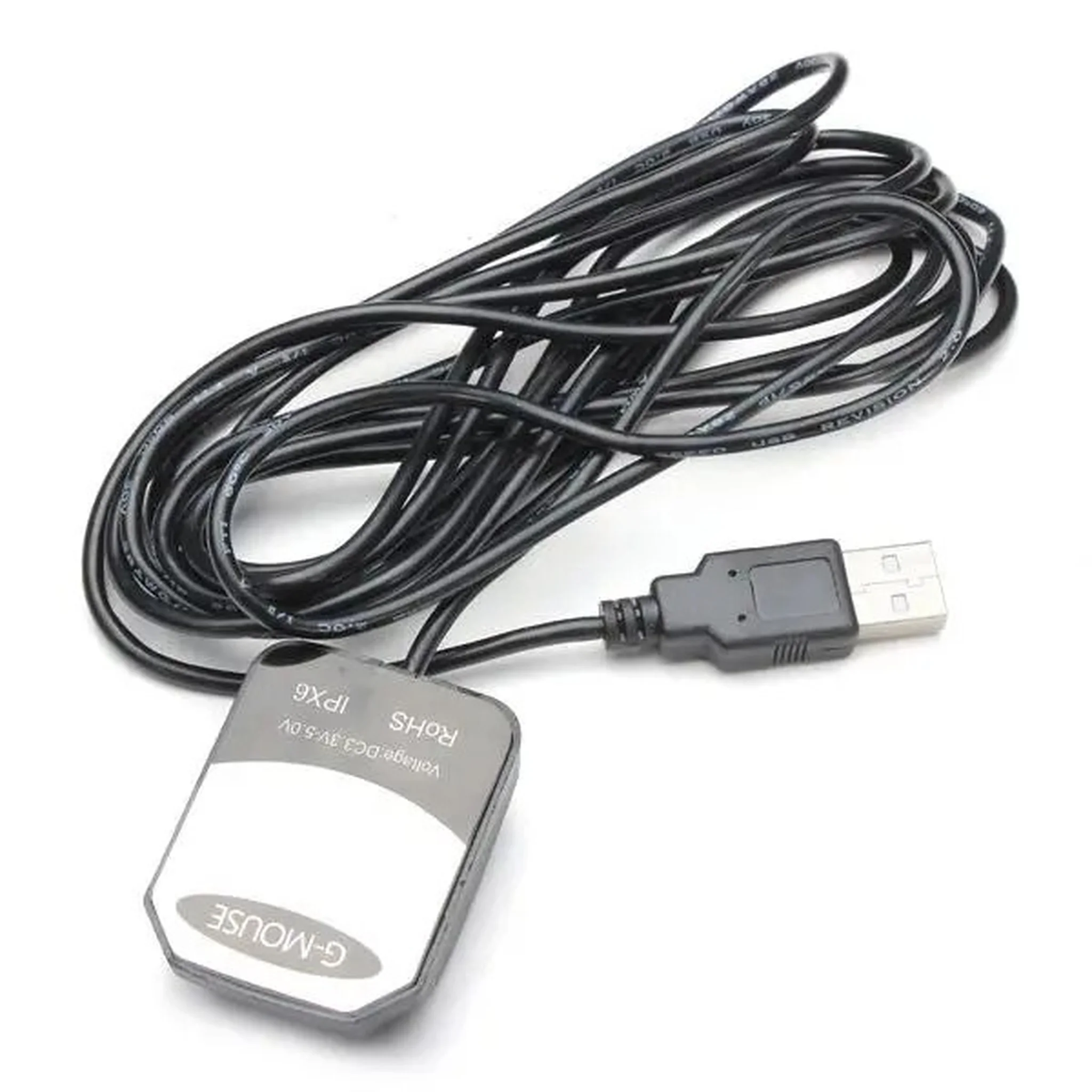

VK-162 G-MOUSE USB GPS Module
K-162 GMOUSE USB External GPS Navigation Module [u-blox] is an external GPS receiver dongle for PCs and Raspberry Pi, that is developed based on LOCUSY u-blox 7 core. It can support google earth platform under the Window and Linux family but not android and IOS operating systems. This GPS receiver is a low size (mini size) and low-cost module with high sensitivity and high accuracy, that can be used as a standalone GPS receiver. This module is easy to use without installation that is enough to plug it in any PCs USB port to receive GPS data through the Standard NMEA Protocol format. It can receive GPS signals from American GPS satellite, Euro Galileo satellite, and SBAS (WAAS, EGNOS, MSAS, GAGAN) satellite.

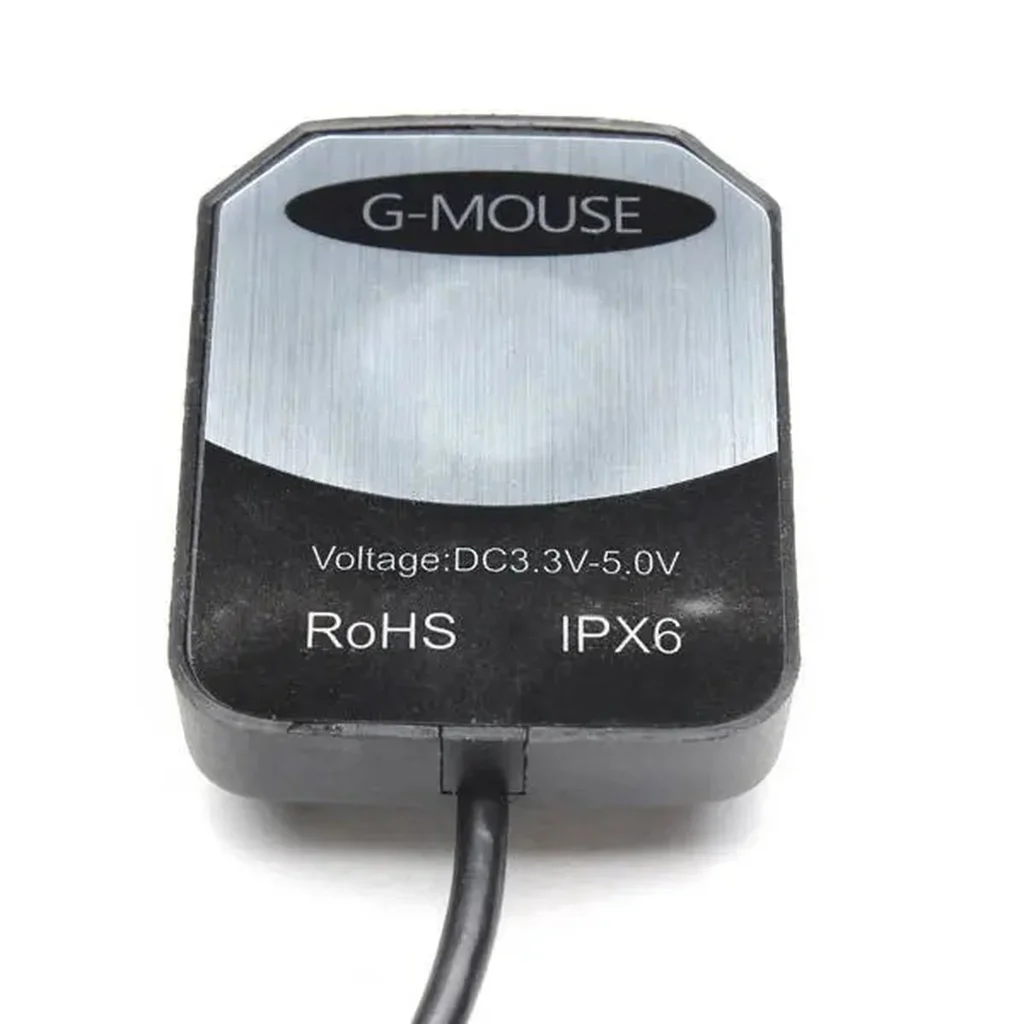

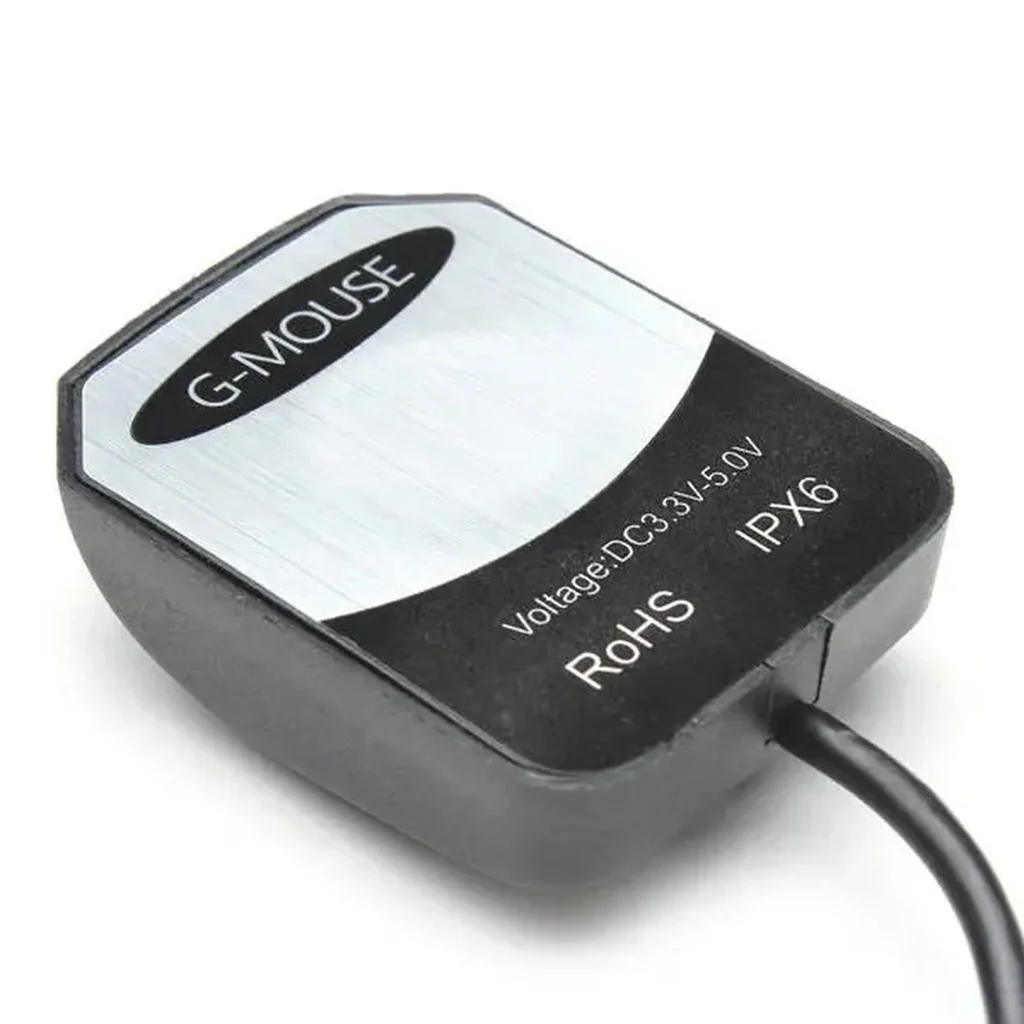

The mini GPS receiver bottom case is embedded a magnetic plate to attach on the Ferro surfaces such as car roof, boot roof to achieve a clear anti-interference view of the universe. The G-Mouse GPS can receive the satellite signal and extract the information such as current time, date, latitude, longitude, speed, altitude, and even travel direction/heading among other data through the positioning platform such as google earth to tracking or traveling uses. This external GPS can be used for vehicle navigation, vehicle alarm, vehicle DVR, vehicle video surveillance, vehicle DVD navigation, DVR, vehicle audio, vehicle monitors, vehicle terminals, vehicle tracking, bus-stop, human tracking, personal positioning, security systems, surveying agricultural automation equipment, and so on.
Features:
Chipset properties:
Main chip: u-blox
C / A code: 1.023MHz stream
Receive frequency: L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS, and MSAS]
Positioning performance:
2D plane: 5m [average]
2D plane: 3.5m [average], there DGPS auxiliary.
Drift: Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000m
Maximum speed: 500m/s
Acceleration: <4g
Electrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-148dBm
Cold start time: 32s [average]
Warm start Time: 32s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Temperature
Operating : -40°C ~ 80°C
Storage : -40°C ~ 85°C
Humidity : < 95% non-condensing
Protocol:
GPS Protocol Default : NMEA 0183
GPS Output Data : Command GGA, GSA, GSV, RMC, VTG, GLL
GPS transfer rate : Auto-Baud
Dimensions:
USB Cable length: 2m
Size: 49mm x 38mm x 16mm
