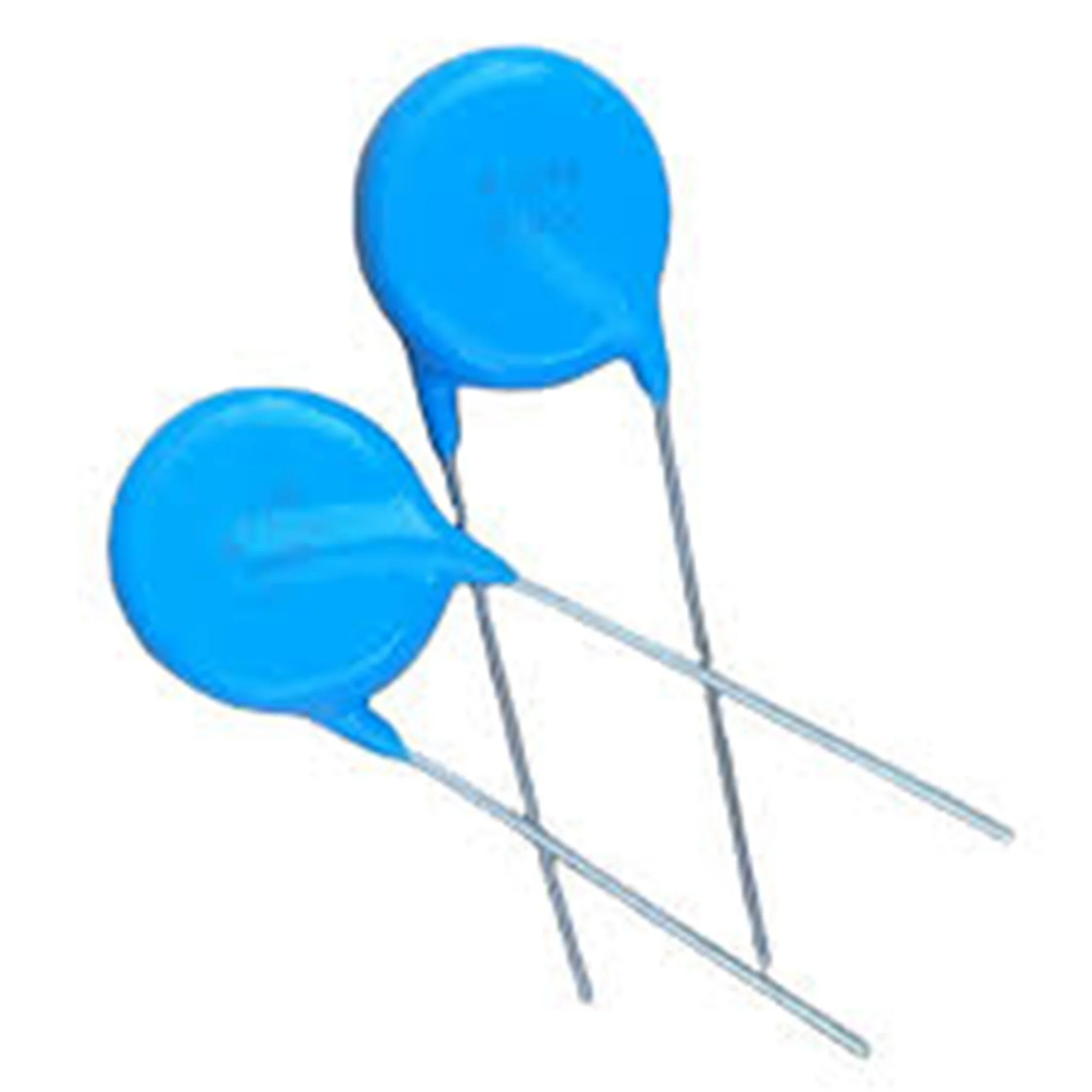

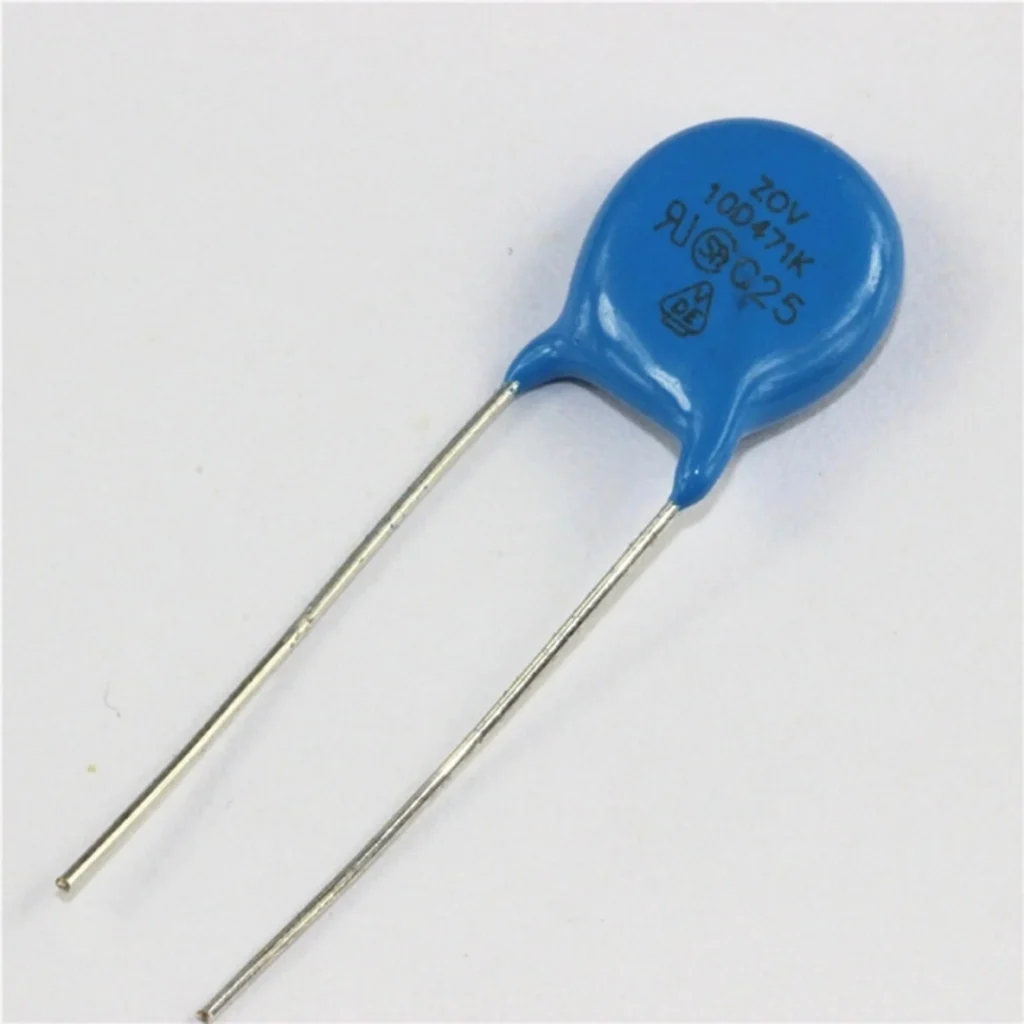

Varistor 10D471K

This MOV is suitable for 220V AC line protection in a typical electronic devices against voltage surges and spikes, such as those generated by inductive switching transients.
Many users ask us that MOV says marking as 470V so how is it suitable for 220V application.

The AC mains you get said 220V RMS. So peak voltage is 308V = 220V x 1.4 (VPeak = VRMS × √2)

This MOV 10D471K is having 300V AC RMS rating. So its suitable for 220V AC mains applications.

Product:	MOV
Mounting Style:	PCB Mount
Termination Style:	Radial
Voltage Rating AC:	300 VAC
Voltage Rating DC:	517 VDC
Varistor Voltage:	470 V
Clamping Voltage:	775 V
Diameter:	10 mm
Peak Surge Current:	2.5 kA
Surge Energy Rating:	70 J
Capacitance:	210 pF
Minimum Operating Temperature:	– 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Bulk
Tolerance:	10 %
