Product Weight: 0.1400KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.
Type-C Bi-Directional Fast charging, 5V 6A output. Supports charging and power output at the same time, onboard battery fuel gauge IC
Comes with online development resources and manual
SAFETY CAUTIONS

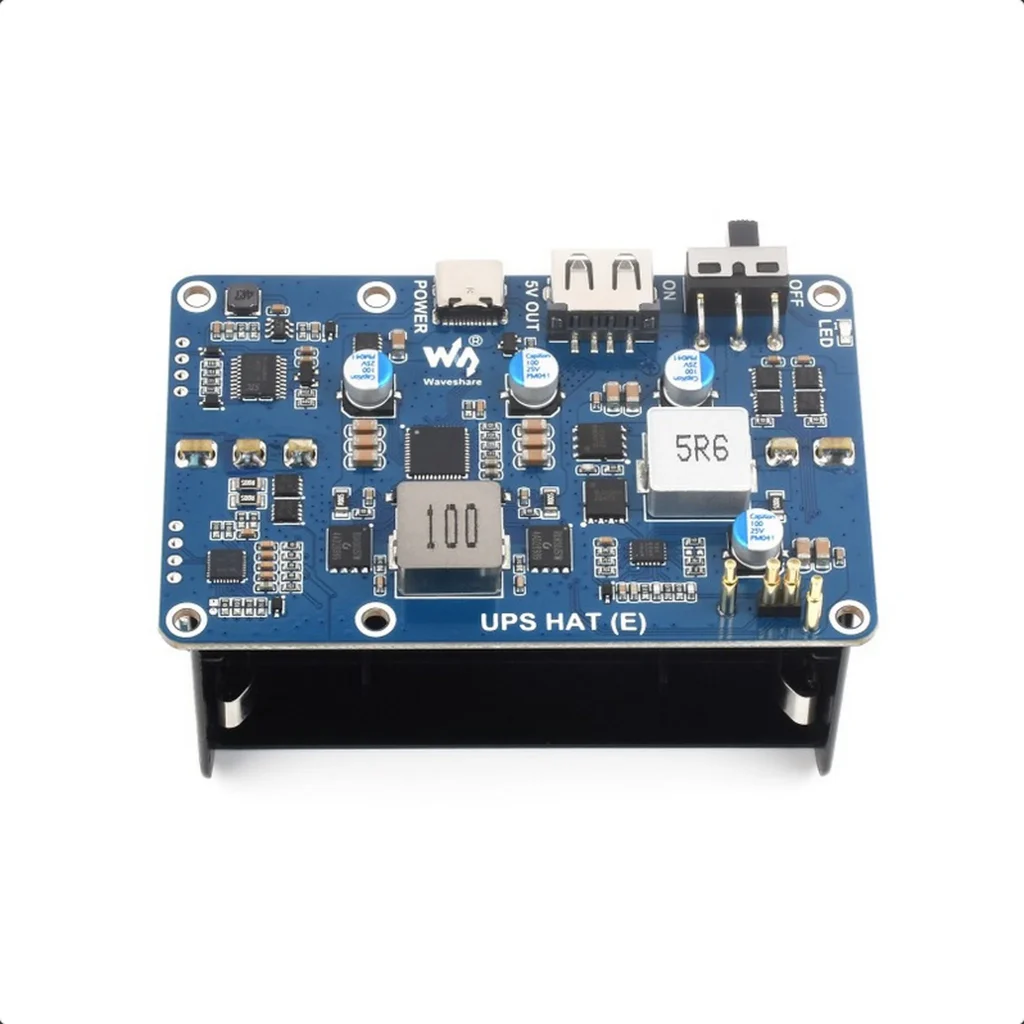

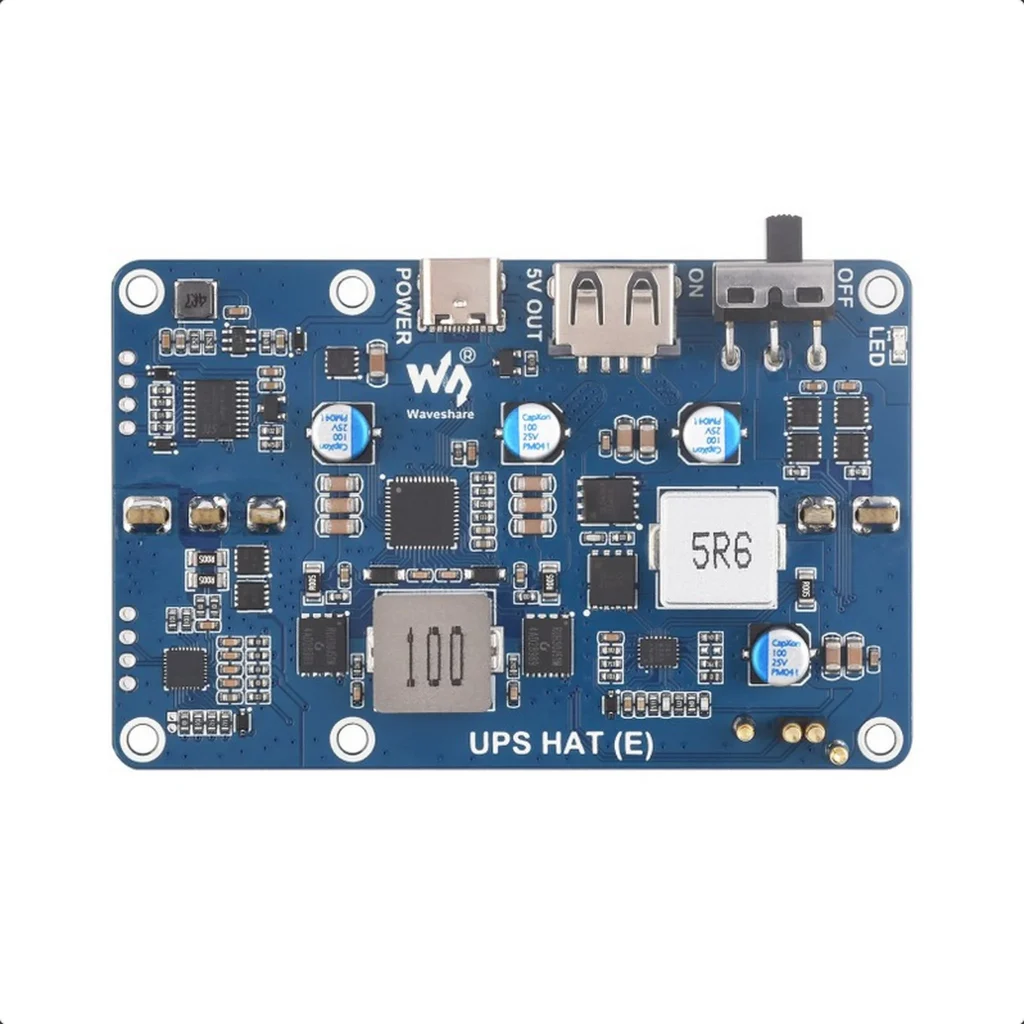

The UPS HAT (E) is an uninterruptible power supply (UPS) expansion board specially designed for the Raspberry Pi series. Onboard battery fuel gauge IC, fast charging chip and high-power buck chip to realize higher power input and output. Supports monitoring the operating state of the HAT via the I2C interface.
| Control bus | I2C |
|---|---|

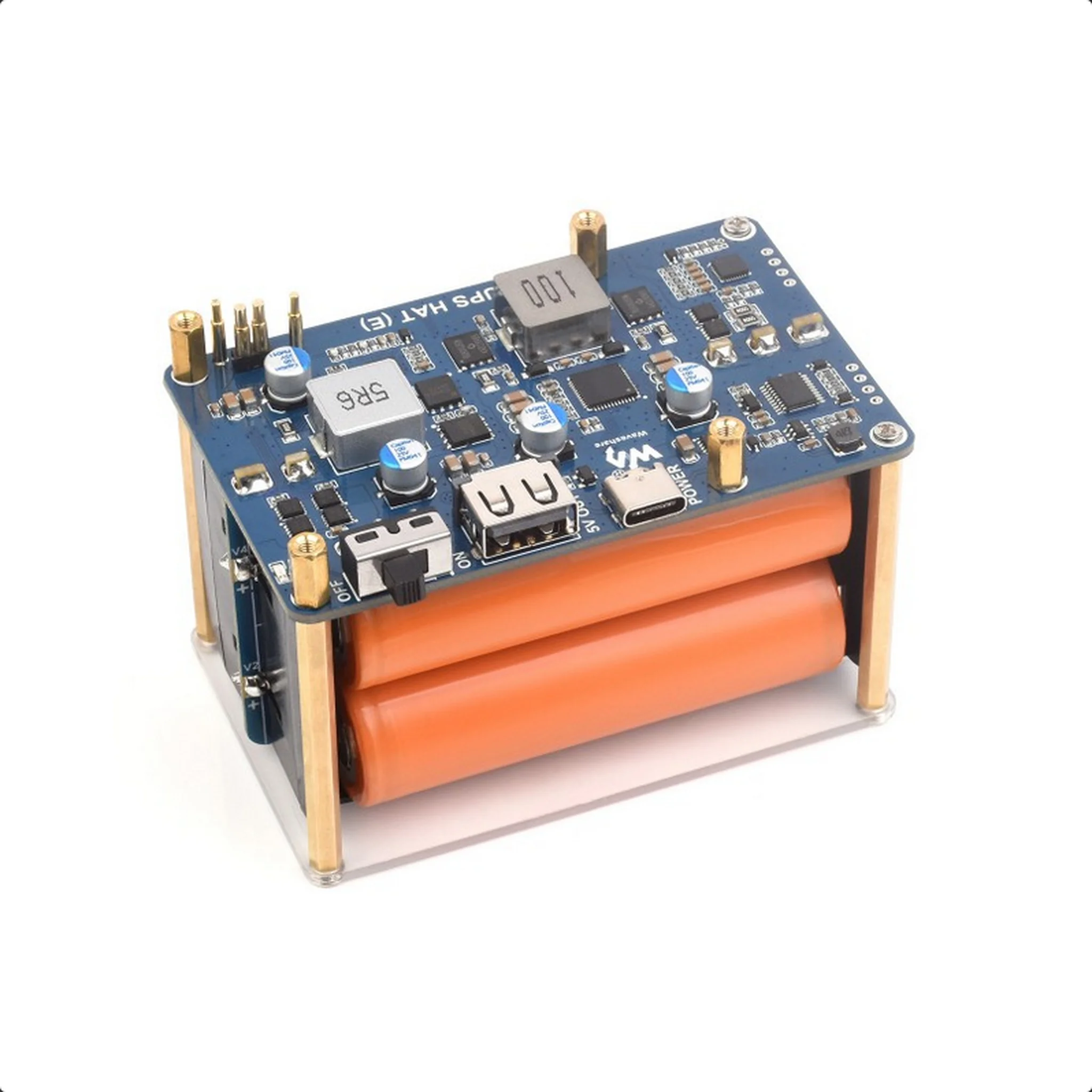

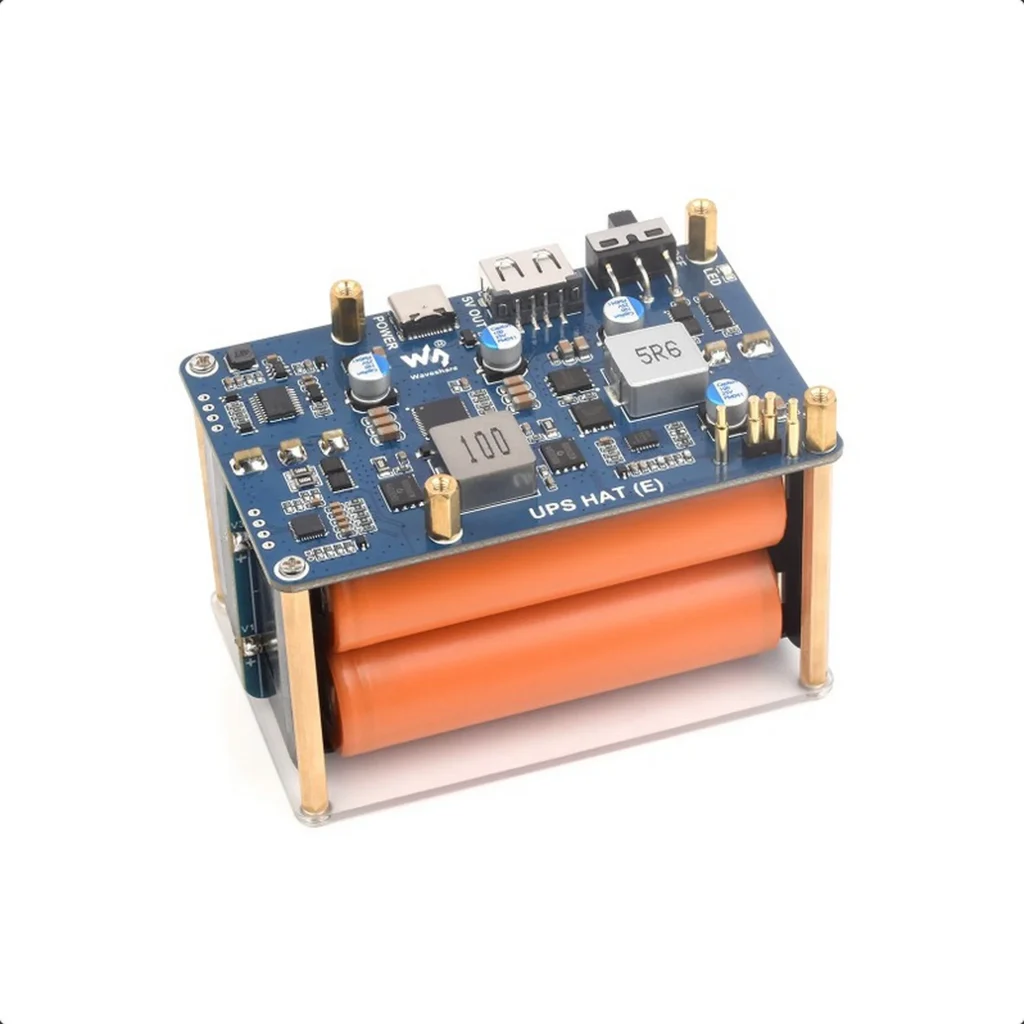

| Battery support | 21700 Li battery × 4 (in series, NOT included) |
| Type-C power | Bi-directional input/output fast charging protocol, up to 40W charging power |
| Output power | 5V 6A |
| Dimensions | 56 × 88mm |
| Mounting hole size | 3.0mm |
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
* for reference only, please refer to the Package Content for the detailed part list
Onboard warning indicators, easy to check if the battery is connected correctly
* for reference only, the 21700 batteries are NOT included
Do not connect the recharger if the indicator lights up, otherwise the protection circuit will be broken down.
Adopts USB Type-C interface, supports multiple input/output protocols. Supports 5V, 9V, 12V, 15V, 20V input voltage, up to 40W charging power. Onboard USB Type-A interface for 5V power output, more convenient for powering other boards
* for reference only, the Raspberry Pi 5 Official 27W USB-C power supply is NOT included.
Powering the Raspberry Pi via pogo pins, without using any GPIO resource,
compatible with Raspberry Pi 5 / 4B / 3B+, etc.
Connecting to Raspberry Pi 5
Connecting to Raspberry Pi 4B
* for reference only, the 21700 batteries are NOT included
monitoring the Type-C port and batteries voltage, current, power, and remaining capacity via I2C
When the voltage dips too low, it is possible to save files properly and then shut down the system by software, to avoid any data loss
Easy to check the battery status in real-time, and automatically shutdown when the battery level is low. Supports detecting power connection and automatically rebooting the Raspberry Pi
